Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

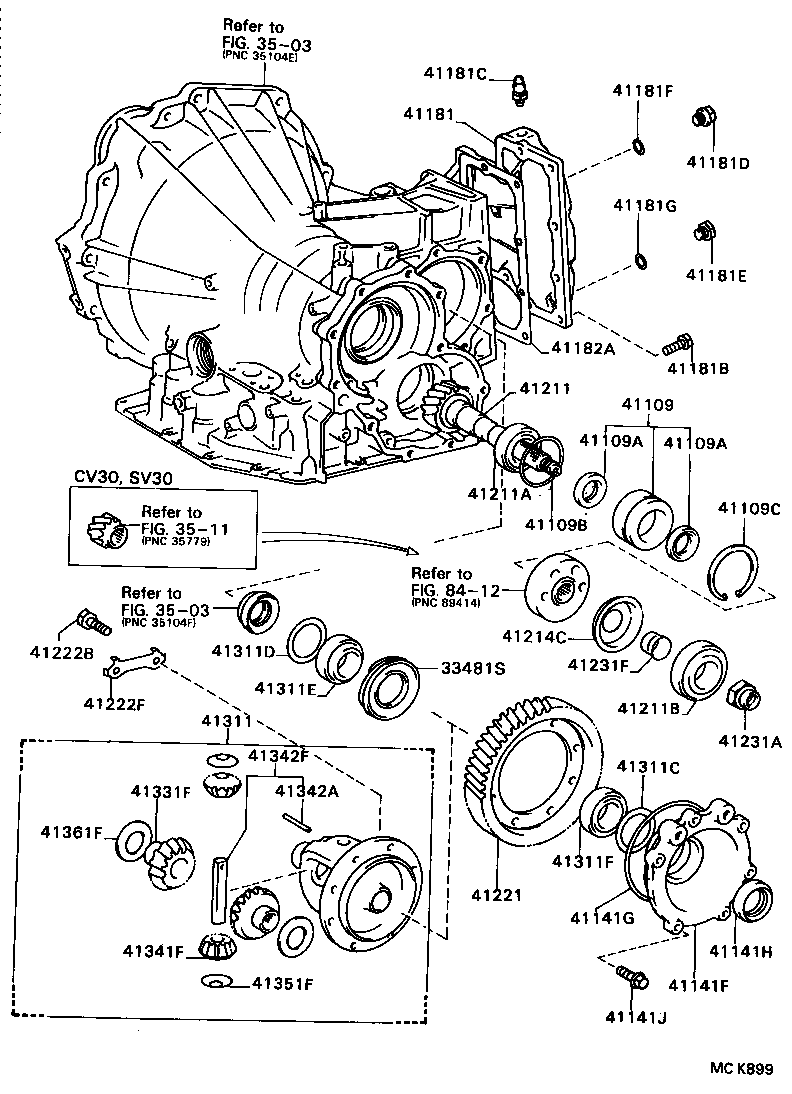

Exploded illustration MCK899 3503 — not listed in this catalogue 41181C — PLUG, BREATHER (FOR FRONT DIFFERENTIAL CARRIER COVER) (1 parts) 41181F — GASKET (FOR FRONT DIFFERENTIAL FILLER PLUG) (1 parts) 41181 — COVER, FRONT DIFFERENTIAL CARRIER (1 parts) 41181D — PLUG (FOR FRONT DIFFERENTIAL FILLER) (2 parts) 41181G — GASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG) (1 parts) 41181E — PLUG (FOR FRONT DIFFERENTIAL DRAIN) (1 parts) 41182A — GASKET, DIFFERENTIAL CARRIER COVER (1 parts) 41181B — BOLT (FOR FRONT DIFFERENTIAL CARRIER COVER SETTING) (1 parts) 41211 — PINION, DIFFERENTIAL DRIVE (8 parts) 41109 — CAGE SUB-ASSY, DIFFERENTIAL DRIVE PINION BEARING (4 parts) 41109A — SEAL, OIL (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE) (2 parts) 41109A — SEAL, OIL (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE) (2 parts) 41211A — BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) (5 parts) 41109C — RING, HOLE SNAP (FOR DIFF. DRIVE PINION BEARING CAGE) (2 parts) 41109B — RING, O (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE) (2 parts) 3511 — not listed in this catalogue 8412 — not listed in this catalogue 3503 — not listed in this catalogue 41214C — SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL (2 parts) 41311D — SHIM (FOR FRONT DIFFERENTIAL CASE FRONT) (21 parts) 41222B — BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) (4 parts) 41231F — SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING (2 parts) 33481S — GEAR, SPEEDOMETER DRIVE (ATM) (3 parts) 41311E — BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT) (4 parts) 41222F — PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK (1 parts) 41211B — BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) (2 parts) 41311 — CASE, FRONT DIFFERENTIAL (5 parts) 41231A — NUT, DRIVE PINION LOCK (2 parts) 41342F — SHAFT, FRONT DIFFERENTIAL PINION, NO.1 (5 parts) 41311C — SHIM (FOR FRONT DIFFERENTIAL CASE REAR) (37 parts) 41342A — PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) (1 parts) 41331F — GEAR, FRONT DIFFERENTIAL SIDE (3 parts) 41361F — WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 (41 parts) 41311F — BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR) (5 parts) 41221 — GEAR, FRONT DIFFERENTIAL RING (7 parts) 41141G — RING, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) (2 parts) 41341F — PINION, FRONT DIFFERENTIAL (3 parts) 41141H — SEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER) (4 parts) 41351F — WASHER, FRONT DIFFERENTIAL PINION THRUST (6 parts) 41141F — RETAINER, FRONT DIFFERENTIAL SIDE BEARING (5 parts) 41141J — BOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) (4 parts)
MCK899 · 38 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
201 parts on this figure
Part number Description Fitment Price
33481S — Gear, Speedometer Drive (ATM)
33481-32020 Gear, Speedometer Drive (ATM)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥2,390
33481-32040 note Gear, Speedometer Drive (ATM)
1990-07 → 1994-06 ended
VZV3# 4FC ¥3,760
33481-32050 note Gear, Speedometer Drive (ATM)
1990-07 → 1994-06 ended
SV35 4FC ¥3,780
41109 — Cage Sub-assy, Differential Drive Pinion Bearing
41109-20011 Cage Sub-assy, Differential Drive Pinion Bearing
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥3,050
41109-32030 Cage Sub-assy, Differential Drive Pinion Bearing
1990-07 → 1991-05 ended
VZV3# 4FC ¥3,090
41109-33010 Cage Sub-assy, Differential Drive Pinion Bearing
1991-05 → 1993-05 ended
VZV3# 4FC ¥3,050
41109-33020 Cage Sub-assy, Differential Drive Pinion Bearing
1993-05 → 1994-06 ended
VZV3# ¥3,070
41109A — Seal, Oil (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE)
90310-34005 Seal, Oil (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥200
90310-35007 Seal, Oil (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE)
1991-05 → 1994-06 ended
VZV3# 4FC ¥240
41109B — Ring, O (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE)
90301-65003 Ring, O (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥720
90301-69003 Ring, O (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE)
1990-07 → 1994-06 ended
VZV3# 4FC ¥280
41109C — Ring, Hole Snap (FOR DIFF. DRIVE PINION BEARING CAGE)
90521-76002 Ring, Hole Snap (FOR DIFF. DRIVE PINION BEARING CAGE)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥670
90521-79008 Ring, Hole Snap (FOR DIFF. DRIVE PINION BEARING CAGE)
1990-07 → 1994-06 ended
SV35,VZV3# 4FC ¥240
41141F — Retainer, Front Differential Side Bearing
41101-32010 Retainer, Front Differential Side Bearing
1990-07 → 1994-06 ended
CV30,SV30,32,33 5F ¥3,170
41101-32020 Retainer, Front Differential Side Bearing
1990-07 → 1991-05 ended
VZV3# 4FC ¥5,900
41101-32030 Retainer, Front Differential Side Bearing
1990-07 → 1994-06 ended
SV35 4FC ¥5,800
41101-33010 Retainer, Front Differential Side Bearing
1991-05 → 1994-06 ended
VZV3# 4FC ¥5,800
41141-32041 Retainer, Front Differential Side Bearing
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥9,200
41141G — Ring, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
90301-63004 Ring, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
1990-07 → 1994-06 ended
CV30,SV30,32,33 5F ¥370
90301-99018 Ring, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥1,040
41141H — Seal, Oil(FOR DIFFERENTIAL SIDE BEARING RETAINER)
90311-35019 Seal, Oil(FOR DIFFERENTIAL SIDE BEARING RETAINER)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥400
90311-35026 Seal, Oil(FOR DIFFERENTIAL SIDE BEARING RETAINER)
1990-07 → 1994-06 ended
CV30,SV30,32,33 5F ¥290
90311-44003 Seal, Oil(FOR DIFFERENTIAL SIDE BEARING RETAINER)
1990-07 → 1994-06 ended
SV35 4FC ¥770
90311-50011 Seal, Oil(FOR DIFFERENTIAL SIDE BEARING RETAINER)
1990-07 → 1994-06 ended
VZV3# 4FC ¥770
41141J — Bolt(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
90105-08061 note Bolt(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
1990-07 → 1994-06 ended
CV30,SV30,32,33 5F ¥230
90105-08155 note Bolt(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
1990-07 → 1994-06 ended
SV35,VZV32,33 4FC ¥170
90105-08331 note Bolt(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
1990-07 → 1991-05 ended
VZV3# 4FC ¥130
91611-60825 note Bolt(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥140
41181 — Cover, Front Differential Carrier
41181-32012 Cover, Front Differential Carrier
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥14,700
41181B — Bolt (FOR FRONT DIFFERENTIAL CARRIER COVER SETTING)
90105-08062 note Bolt (FOR FRONT DIFFERENTIAL CARRIER COVER SETTING)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥190
41181C — Plug, Breather (FOR FRONT DIFFERENTIAL CARRIER COVER)
90930-03031 Plug, Breather (FOR FRONT DIFFERENTIAL CARRIER COVER)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥370
41181D — Plug (FOR FRONT DIFFERENTIAL FILLER)
90341-18002 Plug (FOR FRONT DIFFERENTIAL FILLER)
1990-07 → 1994-06 ended
VZV3# 4FC ¥580
90341-18038 Plug (FOR FRONT DIFFERENTIAL FILLER)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥220
41181E — Plug (FOR FRONT DIFFERENTIAL DRAIN)
90341-18021 Plug (FOR FRONT DIFFERENTIAL DRAIN)
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥240
41181F — Gasket (FOR FRONT DIFFERENTIAL FILLER PLUG)
90430-18008 Gasket (FOR FRONT DIFFERENTIAL FILLER PLUG)
1990-07 → 1994-06 ended
CV30,SV30,32,33,VZV3# 4FC ¥110
41181G — Gasket (FOR FRONT DIFFERENTIAL DRAIN PLUG)
90430-18008 Gasket (FOR FRONT DIFFERENTIAL DRAIN PLUG)
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥110
41182A — Gasket, Differential Carrier Cover
41182-32010 Gasket, Differential Carrier Cover
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥250
41211 — Pinion, Differential Drive
41211-32030 Pinion, Differential Drive
1990-07 → 1990-12 ended
SV30,32,33 4FC ¥18,900
41211-32040 Pinion, Differential Drive
1990-07 → 1990-12 ended
CV30 4FC ¥20,000
41211-32070 Pinion, Differential Drive
1990-07 → 1991-05 ended
SV35,VZV3# 4FC ¥18,900
41211-32071 Pinion, Differential Drive
1991-05 → 1992-06 ended
SV35,VZV30,31 4FC ¥18,900
41211-32072 Pinion, Differential Drive
1992-06 → 1994-06 ended
SV35 4FC ¥18,800
41211-32080 Pinion, Differential Drive
1990-12 → 1994-06 ended
SV30,32,33 4FC ¥18,800
41211-32090 Pinion, Differential Drive
1990-12 → 1994-06 ended
CV30 4FC ¥19,800
41211-33020 Pinion, Differential Drive
1991-05 → 1994-06 ended
VZV32,33 ¥19,800
41211A — Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT)
90366-35050 Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥2,550
90366-36002 Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT)
1990-07 → 1991-03 ended
SV35,VZV3# 4FC ¥2,160
90366-36002 Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT)
1991-03 → 1991-05 ended
VZV3# 4FC ¥2,160
90366-36003 Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT)
1991-03 → 1991-05 ended
SV35 4FC ¥2,160
90366-36003 Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT)
1991-05 → 1994-06 ended
SV35,VZV3# 4FC ¥2,160
41211B — Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR)
90366-40010 Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥2,130
90366-40051 Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR)
1990-07 → 1994-06 ended
SV35,VZV3# 4FC ¥2,530
41214C — Slinger, Front Differential Drive Pinion Oil
41214-32010 Slinger, Front Differential Drive Pinion Oil
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥240
41214-32020 Slinger, Front Differential Drive Pinion Oil
1990-07 → 1994-06 ended
SV35,VZV3# 4FC ¥260
41221 — Gear, Front Differential Ring
41221-12260 Gear, Front Differential Ring
1990-07 → 1994-06 ended
SV35 5F ¥13,500
41221-20240 Gear, Front Differential Ring
1990-07 → 1992-06 ended
VZV30,31 ¥14,100
41221-32070 Gear, Front Differential Ring
1990-07 → 1994-06 ended
SV35 4FC ¥12,800
41221-32080 Gear, Front Differential Ring
1990-07 → 1994-06 ended
SV32,33 5F (ETO,LUM,VE,VX,ZX) ¥12,800
41221-32090 Gear, Front Differential Ring
1990-07 → 1994-06 ended
CV30;SV30 5F ¥12,800
41221-32100 Gear, Front Differential Ring
1990-07 → 1994-06 ended
SV30,32,33 4FC;SV32,33 5F GT ¥12,800
41221-33030 Gear, Front Differential Ring
1991-05 → 1994-06 ended
VZV32,33 ¥12,800
41222B — Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
90101-11003 Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
1990-07 → 1994-06 ended
CV30,SV30,32,33 ¥140
90105-12150 Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
1990-07 → 1994-06 ended
SV35 4FC ¥260
90105-12150 Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
1990-07 → 1994-06 ended
SV35 5F ¥260
90105-12154 Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
1990-07 → 1994-06 ended
VZV3# ¥240
41222F — Plate, Fornt Differential Ring Gear Set Bolt Lock
41222-32010 Plate, Fornt Differential Ring Gear Set Bolt Lock
1990-07 → 1994-06 ended
CV30,SV30,32,33 ¥170
41231A — Nut, Drive Pinion Lock
90179-20004 Nut, Drive Pinion Lock
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥370
90179-24006 Nut, Drive Pinion Lock
1990-07 → 1994-06 ended
SV35,VZV3# 4FC ¥310
41231F — Spacer, Front Differential Drive Pinion Bearing
41231-32010 Spacer, Front Differential Drive Pinion Bearing
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥810
41231-32020 Spacer, Front Differential Drive Pinion Bearing
1990-07 → 1994-06 ended
SV35,VZV3# 4FC ¥910
41311 — Case, Front Differential
41301-32023 Case, Front Differential
1990-07 → 1991-06 ended
CV30,SV30,32,33 4FC ¥42,300
41301-32060 Case, Front Differential
1990-07 → 1994-06 ended
CV30,SV30,32,33 5F ¥42,300
41301-32071 Case, Front Differential
1991-06 → 1994-06 ended
CV30,SV30,32,33 4FC ¥41,900
41302-32020 Case, Front Differential
1990-07 → 1994-06 ended
VZV3# 4FC ¥26,200
41302-32030 Case, Front Differential
1990-07 → 1994-06 ended
SV35 4FC ¥19,800
41311C — Shim (FOR FRONT DIFFERENTIAL CASE REAR)
90564-45001 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
CV30,SV30,32,33 5F ¥350
90564-45002 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
CV30,SV30,32,33 5F ¥350
90564-45003 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
CV30,SV30,32,33 5F ¥350
90564-45004 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
CV30,SV30,32,33 5F ¥350
90564-45005 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
CV30,SV30,32,33 5F ¥350
90564-45006 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
CV30,SV30,32,33 5F ¥350
90564-45007 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
CV30,SV30,32,33 5F ¥350
90564-45008 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
CV30,SV30,32,33 5F ¥350
90564-45009 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
CV30,SV30,32,33 5F ¥350
90564-45010 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
CV30,SV30,32,33 5F ¥350
90564-45011 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
CV30,SV30,32,33 ¥360
90564-45012 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
CV30,SV30,32,33 5F ¥350
90564-45013 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
CV30,SV30,32,33 5F ¥350
90564-45014 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
CV30,SV30,32,33 5F ¥350
90564-45015 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
CV30,SV30,32,33 5F ¥360
90564-45016 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
CV30,SV30,32,33 5F ¥350
90564-45017 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
CV30,SV30,32,33 5F ¥370
90564-45018 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
CV30,SV30,32,33 5F ¥370
90564-45019 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
CV30,SV30,32,33 5F ¥370
90564-76001 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
SV35,VZV3# ¥310
90564-76002 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
SV35,VZV3# ¥310
90564-76003 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
SV35,VZV3# ¥310
90564-76004 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
SV35,VZV3# ¥310
90564-76005 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
SV35,VZV3# ¥410
90564-76006 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
SV35,VZV3# ¥410
90564-76007 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
SV35,VZV3# ¥410
90564-76008 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
SV35,VZV3# ¥410
90564-76009 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
SV35,VZV3# ¥410
90564-76010 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
SV35,VZV3# ¥410
90564-76011 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
SV35,VZV3# ¥410
90564-76012 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
SV35,VZV3# ¥410
90564-76013 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
SV35,VZV3# ¥410
90564-76014 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
SV35,VZV3# ¥410
90564-76015 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
SV35,VZV3# ¥410
90564-76016 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
SV35,VZV3# ¥410
90564-76017 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
SV35,VZV3# ¥410
90564-76018 note Shim (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
SV35,VZV3# ¥410
41311D — Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
90564-45011 note Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
1990-07 → 1994-06 ended
CV30,SV30,32,33 5F ¥360
90564-49001 note Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥210
90564-49002 note Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥270
90564-49003 note Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥270
90564-49004 note Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥270
90564-49005 note Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥270
90564-49006 note Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥270
90564-49007 note Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥270
90564-49008 note Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥270
90564-49009 note Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥270
90564-49010 note Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥270
90564-49011 note Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥270
90564-49012 note Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥270
90564-49013 note Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥270
90564-49014 note Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥270
90564-49015 note Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥270
90564-49016 note Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥270
90564-49017 note Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥270
90564-49018 note Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥270
90564-49019 note Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥270
90564-80001 note Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
1990-07 → 1994-06 ended
VZV3# 4FC ¥240
41311E — Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
90366-40016 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
1990-07 → 1994-06 ended
CV30,SV30,32,33 ¥2,690
90366-57001 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
1990-07 → 1994-06 ended
SV35,VZV30,31 5F ¥2,910
90366-57020 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
1990-07 → 1994-06 ended
VZV3# 4FC ¥2,800
90366-67004 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
1990-07 → 1994-06 ended
SV35 4FC ¥3,040
41311F — Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
90366-40023 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
CV30,SV30,32,33 5F ¥2,690
90366-44001 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
CV30,SV30,32,33 4FC ¥2,690
90366-50014 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
SV35,VZV30,31 5F ¥2,420
90366-50030 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
VZV3# 4FC ¥2,670
90366-55034 Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
1990-07 → 1994-06 ended
SV35 4FC ¥2,800
41331F — Gear, Front Differential Side
41331-12030 Gear, Front Differential Side
1990-07 → 1994-06 ended
SV35 ¥4,250
41331-17010 Gear, Front Differential Side
1990-07 → 1994-06 ended
VZV3# ¥4,920
41331-32010 Gear, Front Differential Side
1990-07 → 1994-06 ended
CV30,SV30,32,33 ¥5,100
41341F — Pinion, Front Differential
41341-20011 Pinion, Front Differential
1990-07 → 1994-06 ended
SV35 ¥2,490
41341-20020 Pinion, Front Differential
1990-07 → 1994-06 ended
VZV3# ¥2,460
41341-22030 Pinion, Front Differential
1990-07 → 1994-06 ended
CV30,SV30,32,33 ¥2,470
41342A — Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058 Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT)
1990-07 → 1994-06 ended
CV30,SV30,32,33 ¥160
41342F — Shaft, Front Differential Pinion, NO.1
41342-12040 Shaft, Front Differential Pinion, NO.1
1990-07 → 1994-06 ended
SV35 5F ¥1,240
41342-20050 Shaft, Front Differential Pinion, NO.1
1990-07 → 1991-06 ended
CV30,SV30,32,33 ¥1,850
41342-20050 Shaft, Front Differential Pinion, NO.1
1991-06 → 1991-07 ended
CV30,SV30,32,33 5F ¥1,850
41342-32020 Shaft, Front Differential Pinion, NO.1
1991-06 → 1992-06 ended
CV30,SV30,32,33 4FC ¥1,690
41342-32020 Shaft, Front Differential Pinion, NO.1
1992-06 → 1994-06 ended
CV30,SV30,32,33 ¥1,690
41351F — Washer, Front Differential Pinion Thrust
41351-12010 Washer, Front Differential Pinion Thrust
1990-07 → 1994-06 ended
SV35 5F ¥220
41351-20010 Washer, Front Differential Pinion Thrust
1990-07 → 1992-06 ended
VZV30,31 5F ¥190
41351-32010 Washer, Front Differential Pinion Thrust
1990-07 → 1994-06 ended
CV30,SV30,32,33 ¥120
41351-32020 Washer, Front Differential Pinion Thrust
1990-07 → 1991-06 ended
VZV3# 4FC ¥250
41351-32021 Washer, Front Differential Pinion Thrust
1991-06 → 1994-06 ended
VZV3# 4FC ¥240
41351-32030 Washer, Front Differential Pinion Thrust
1990-07 → 1994-06 ended
SV35 4FC ¥240
41361F — Washer, Front Differential Side Gear Thrust, NO.1
41361-12330 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1994-06 ended
SV35 5F ¥320
41361-12340 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1994-06 ended
SV35 4FC ¥320
41361-12340 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1994-06 ended
SV35 5F ¥320
41361-12350 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1994-06 ended
SV35 5F ¥320
41361-12350 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1994-06 ended
SV35 4FC ¥320
41361-12360 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1994-06 ended
SV35 4FC ¥320
41361-12360 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1994-06 ended
SV35 5F ¥320
41361-12370 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1994-06 ended
SV35 4FC ¥320
41361-12370 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1994-06 ended
SV35 5F ¥320
41361-12380 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1994-06 ended
SV35 4FC ¥320
41361-12380 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1994-06 ended
SV35 5F ¥320
41361-12390 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1994-06 ended
SV35 4FC ¥320
41361-12390 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1994-06 ended
SV35 5F ¥320
41361-12400 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1994-06 ended
SV35 4FC ¥320
41361-22020 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1994-06 ended
CV30,SV30,32,33 ¥220
41361-22030 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1994-06 ended
CV30,SV30,32,33 ¥220
41361-22040 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1994-06 ended
CV30,SV30,32,33 ¥220
41361-22140 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1994-06 ended
CV30,SV30,32,33 ¥210
41361-22150 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1994-06 ended
CV30,SV30,32,33 ¥210
41361-22160 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1994-06 ended
CV30,SV30,32,33 ¥210
41362-17010 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1991-06 ended
VZV3# ¥440
41362-17010 note Washer, Front Differential Side Gear Thrust, NO.1
1991-06 → 1992-06 ended
VZV30,31 5F ¥440
41362-17020 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1991-06 ended
VZV3# ¥440
41362-17020 note Washer, Front Differential Side Gear Thrust, NO.1
1991-06 → 1992-06 ended
VZV30,31 5F ¥440
41362-17030 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1991-06 ended
VZV3# ¥440
41362-17030 note Washer, Front Differential Side Gear Thrust, NO.1
1991-06 → 1992-06 ended
VZV30,31 5F ¥440
41362-17040 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1991-06 ended
VZV3# ¥440
41362-17040 note Washer, Front Differential Side Gear Thrust, NO.1
1991-06 → 1992-06 ended
VZV30,31 5F ¥440
41362-17050 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1991-06 ended
VZV3# ¥440
41362-17050 note Washer, Front Differential Side Gear Thrust, NO.1
1991-06 → 1992-06 ended
VZV30,31 5F ¥440
41362-17060 note Washer, Front Differential Side Gear Thrust, NO.1
1991-06 → 1992-06 ended
VZV30,31 5F ¥440
41362-17060 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1991-06 ended
VZV3# ¥440
41362-17070 note Washer, Front Differential Side Gear Thrust, NO.1
1990-07 → 1991-06 ended
VZV3# ¥440
41362-17070 note Washer, Front Differential Side Gear Thrust, NO.1
1991-06 → 1992-06 ended
VZV30,31 5F ¥440
41362-33010 note Washer, Front Differential Side Gear Thrust, NO.1
1991-06 → 1994-06 ended
VZV3# 4FC ¥350
41362-33020 note Washer, Front Differential Side Gear Thrust, NO.1
1991-06 → 1994-06 ended
VZV3# 4FC ¥350
41362-33030 note Washer, Front Differential Side Gear Thrust, NO.1
1991-06 → 1994-06 ended
VZV3# 4FC ¥350
41362-33040 note Washer, Front Differential Side Gear Thrust, NO.1
1991-06 → 1994-06 ended
VZV3# 4FC ¥370
41362-33050 note Washer, Front Differential Side Gear Thrust, NO.1
1991-06 → 1994-06 ended
VZV3# 4FC ¥400
41362-33060 note Washer, Front Differential Side Gear Thrust, NO.1
1991-06 → 1994-06 ended
VZV3# 4FC ¥470
41362-33070 note Washer, Front Differential Side Gear Thrust, NO.1
1991-06 → 1994-06 ended
VZV3# 4FC ¥470
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
