Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

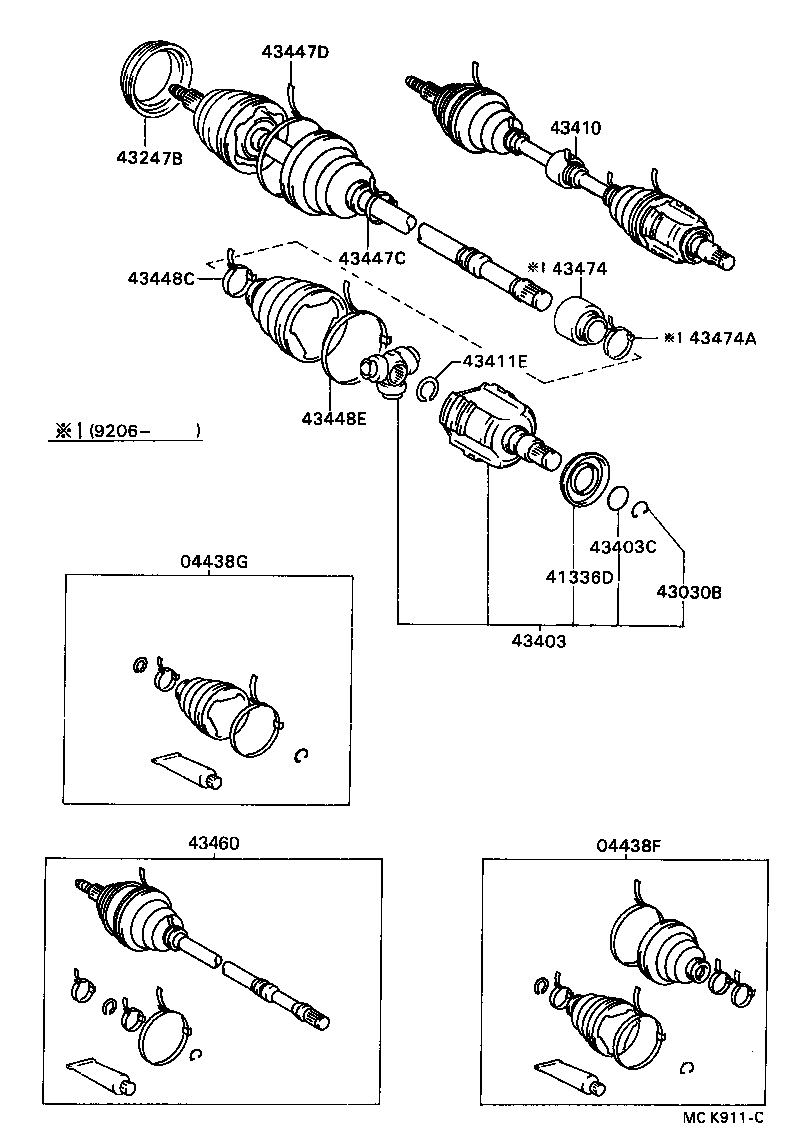

Exploded illustration MCK911C 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (7 parts) 43410 — SHAFT ASSY, FRONT DRIVE, RH (38 parts) 43247B — DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2 (5 parts) 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (4 parts) 43474 — DAMPER, DRIVE SHAFT (1 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (5 parts) 43474A — CLAMP (FOR DRIVE SHAFT DAMPER SETTING) (1 parts) 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (5 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (7 parts) 43403C — RING, O (FOR FRONT DRIVE INBOARD JOINT) (1 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (9 parts) 41336D — COVER, FRONT DRIVE SHAFT DUST, RH (3 parts) 43030B — RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH) (2 parts) 43403 — JOINT SET, FRONT AXLE INBOARD, RH (1 parts) 43460 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH (31 parts) 04438F — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH (11 parts)
MCK911C · 16 callouts Full size ↗
131 parts on this figure
Part number Description Fitment Price
04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH
04437-17040 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1990-07 → 1992-06 ended
VZV30,31 5F ¥10,800
04438-12190 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1990-07 → 1990-09 ended
SV30;SV32,33 4FC (LUM,VE,VX,ZX) ¥10,800
04438-12191 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1990-09 → 1992-05 ended
SV30;SV32,33 4FC (LUM,VE,VX,ZX) ¥10,800
04438-12270 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1992-06 → 1994-06 ended
SV30;SV32,33 4FC ¥10,800
04438-20070 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1990-07 → 1994-06 ended
CV30;SV32,33 5F (ETO,LUM,VE,VX,ZX) ¥10,800
04438-20110 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1992-05 → 1992-06 ended
SV30;SV32,33 4FC (LUM,VE,VX,ZX) ¥10,800
04438-32120 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1990-07 → 1994-06 ended
VZV3# 4FC ¥10,800
04438-32150 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1990-07 → 1992-06 ended
SV32,33 GT ¥10,800
04438-32170 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1990-07 → 1990-09 ended
SV35 ¥10,800
04438-32171 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1990-09 → 1992-06 ended
SV35 ¥10,800
04438-32172 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1992-06 → 1994-06 ended
SV35 ¥10,800
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04437-17030 Boot Kit, Front Drive Shaft Inboard Joint, RH
1990-07 → 1992-06 ended
VZV30,31 5F ¥6,700
04438-12160 Boot Kit, Front Drive Shaft Inboard Joint, RH
1990-07 → 1990-09 ended
SV30;SV32,33 4FC (LUM,VE,VX,ZX) ¥6,700
04438-12161 Boot Kit, Front Drive Shaft Inboard Joint, RH
1990-09 → 1992-06 ended
SV30;SV32,33 4FC (LUM,VE,VX,ZX) ¥6,700
04438-12260 Boot Kit, Front Drive Shaft Inboard Joint, RH
1992-06 → 1994-06 ended
SV30;SV32,33 4FC ¥6,700
04438-20060 Boot Kit, Front Drive Shaft Inboard Joint, RH
1990-07 → 1994-06 ended
CV30;SV32,33 5F (ETO,LUM,VE,VX,ZX) ¥6,700
04438-32110 Boot Kit, Front Drive Shaft Inboard Joint, RH
1990-07 → 1994-06 ended
VZV3# 4FC ¥6,700
04438-32140 Boot Kit, Front Drive Shaft Inboard Joint, RH
1990-07 → 1992-06 ended
SV32,33 GT ¥6,700
04438-32160 Boot Kit, Front Drive Shaft Inboard Joint, RH
1990-07 → 1990-09 ended
SV35 ¥6,700
04438-32161 Boot Kit, Front Drive Shaft Inboard Joint, RH
1990-09 → 1994-06 ended
SV35 ¥6,700
41336D — Cover, Front Drive Shaft Dust, RH
41336-12020 Cover, Front Drive Shaft Dust, RH
1990-07 → 1994-06 ended
VZV3# ¥330
41336-20011 Cover, Front Drive Shaft Dust, RH
1990-07 → 1994-06 ended
CV30,SV30,32,33 ¥510
41336-20040 Cover, Front Drive Shaft Dust, RH
1990-07 → 1994-06 ended
SV35 ¥950
43030B — Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT RH)
90521-26004 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT RH)
1990-07 → 1994-06 ended
SV35 ¥100
90521-79001 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT RH)
1990-07 → 1992-06 ended
SV32,33 GT ¥280
43247B — Deflector, Front Wheel Bearing Dust, RH NO.2
43247-12010 note Deflector, Front Wheel Bearing Dust, RH NO.2
1990-07 → 1991-05 ended
SV35;SV30,32,33,VZV3# GT,PRO,VR,VX,ZE,ZX ¥780
43247-12010 note Deflector, Front Wheel Bearing Dust, RH NO.2
1992-06 → 1994-06 ended
CV30,SV3#,VZV3# ¥780
43247-12010 note Deflector, Front Wheel Bearing Dust, RH NO.2
1991-05 → 1992-06 ended
SV3#,VZV3# ¥780
43247-32011 Deflector, Front Wheel Bearing Dust, RH NO.2
1990-07 → 1991-06 ended
CV30,SV3#,VZV3# ¥2,420
43247-33010 Deflector, Front Wheel Bearing Dust, RH NO.2
1991-06 → 1994-06 ended
CV30,SV3#,VZV3# ¥2,400
43403 — Joint Set, Front Axle Inboard, RH
43403-12050 Joint Set, Front Axle Inboard, RH
1990-07 → 1994-06 ended
SV35 ¥26,400
43403C — Ring, O (FOR FRONT DRIVE INBOARD JOINT)
90301-26006 Ring, O (FOR FRONT DRIVE INBOARD JOINT)
1990-07 → 1994-06 ended
SV35 ¥650
43410 — Shaft Assy, Front Drive, RH
43410-12400 Shaft Assy, Front Drive, RH
1992-06 → 1994-06 ended
SV35 ¥75,000
43410-12410 note Shaft Assy, Front Drive, RH
1992-06 → 1994-06 ended
SV35 ¥75,000
43410-20220 Shaft Assy, Front Drive, RH
1990-07 → 1991-01 ended
SV30;SV32,33 4FC (LUM,VE,VX,ZX) ¥76,900
43410-20221 Shaft Assy, Front Drive, RH
1991-01 → 1994-06 ended
SV30;SV32,33 4FC (ETO,LUM,VE,VX,ZX) ¥79,200
43410-20230 note Shaft Assy, Front Drive, RH
1990-07 → 1991-01 ended
SV30 VR,ZE;SV32,33 4FC (VX,ZX) ¥76,900
43410-20231 note Shaft Assy, Front Drive, RH
1992-06 → 1994-06 ended
SV30;SV32,33 4FC ¥79,500
43410-20231 note Shaft Assy, Front Drive, RH
1991-06 → 1992-06 ended
SV30;SV32,33 4FC (LUM,VE,VX,ZX) ¥79,500
43410-20231 note Shaft Assy, Front Drive, RH
1991-01 → 1991-06 ended
SV30 VR,ZE;SV32,33 4FC (VX,ZX) ¥79,500
43410-20240 Shaft Assy, Front Drive, RH
1990-07 → 1991-01 ended
SV32,33 5F (LUM,VE,VX,ZX) ¥76,900
43410-20241 Shaft Assy, Front Drive, RH
1991-01 → 1994-06 ended
SV32,33 5F (ETO,LUM,VE,VX,ZX) ¥79,200
43410-20250 note Shaft Assy, Front Drive, RH
1990-07 → 1991-01 ended
SV32,33 5F (VX,ZX) ¥76,900
43410-20251 note Shaft Assy, Front Drive, RH
1991-06 → 1992-06 ended
SV32,33 5F (LUM,VE,VX,ZX) ¥79,600
43410-20251 note Shaft Assy, Front Drive, RH
1992-06 → 1994-06 ended
SV32,33 5F ¥79,600
43410-20251 note Shaft Assy, Front Drive, RH
1991-01 → 1991-06 ended
SV32,33 5F (VX,ZX) ¥79,600
43410-32140 Shaft Assy, Front Drive, RH
1990-07 → 1991-01 ended
SV35 ¥72,000
43410-32141 Shaft Assy, Front Drive, RH
1991-01 → 1992-06 ended
SV35 ¥71,500
43410-32150 note Shaft Assy, Front Drive, RH
1992-06 → 1994-06 ended
CV30 ¥76,700
43410-32180 Shaft Assy, Front Drive, RH
1990-07 → 1991-01 ended
CV30 ¥76,900
43410-32181 Shaft Assy, Front Drive, RH
1991-01 → 1994-06 ended
CV30 ¥79,200
43410-32200 note Shaft Assy, Front Drive, RH
1990-07 → 1991-01 ended
SV35 ¥72,000
43410-32201 note Shaft Assy, Front Drive, RH
1991-01 → 1992-06 ended
SV35 ¥71,200
43410-32210 Shaft Assy, Front Drive, RH
1990-07 → 1991-01 ended
VZV3# 5F ¥79,900
43410-32211 Shaft Assy, Front Drive, RH
1991-01 → 1992-06 ended
VZV30,31 5F ¥79,200
43410-32220 note Shaft Assy, Front Drive, RH
1990-07 → 1991-01 ended
VZV3# 5F ¥79,900
43410-32221 note Shaft Assy, Front Drive, RH
1991-01 → 1992-06 ended
VZV30,31 5F ¥79,200
43410-32230 Shaft Assy, Front Drive, RH
1990-07 → 1991-01 ended
SV32,33 4FC GT ¥79,900
43410-32231 Shaft Assy, Front Drive, RH
1991-01 → 1992-06 ended
SV32,33 4FC GT ¥79,200
43410-32240 note Shaft Assy, Front Drive, RH
1990-07 → 1991-01 ended
SV32,33 4FC GT ¥79,900
43410-32241 note Shaft Assy, Front Drive, RH
1991-01 → 1992-06 ended
SV32,33 4FC GT ¥79,200
43410-32250 Shaft Assy, Front Drive, RH
1990-07 → 1991-01 ended
SV32,33 5F GT ¥79,900
43410-32251 Shaft Assy, Front Drive, RH
1991-01 → 1992-06 ended
SV32,33 5F GT ¥79,200
43410-32260 note Shaft Assy, Front Drive, RH
1990-07 → 1991-01 ended
SV32,33 5F GT ¥79,900
43410-32261 note Shaft Assy, Front Drive, RH
1991-01 → 1992-06 ended
SV32,33 5F GT ¥79,200
43410-32270 Shaft Assy, Front Drive, RH
1990-07 → 1991-01 ended
VZV3# 4FC ¥79,900
43410-32271 Shaft Assy, Front Drive, RH
1991-01 → 1994-06 ended
VZV3# 4FC ¥79,200
43410-32280 note Shaft Assy, Front Drive, RH
1990-07 → 1991-01 ended
VZV3# 4FC ¥79,900
43410-32281 note Shaft Assy, Front Drive, RH
1991-01 → 1992-06 ended
VZV3# 4FC ¥79,200
43410-32281 note Shaft Assy, Front Drive, RH
1992-06 → 1994-06 ended
VZV3# ¥79,200
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
90520-22005 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
1990-07 → 1994-06 ended
SV30,35;SV32,33 4FC (ETO,LUM,VE,VX,ZX) ¥100
90520-24028 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
1990-07 → 1994-06 ended
VZV3# 4FC ¥180
90520-25034 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
1990-07 → 1992-06 ended
SV32,33 GT ¥160
90520-26028 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
1990-07 → 1992-06 ended
VZV30,31 5F ¥110
90520-26048 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
1990-07 → 1994-06 ended
CV30;SV32,33 5F (ETO,LUM,VE,VX,ZX) ¥120
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-14010 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1990-07 → 1994-06 ended
SV30,35;VZV30,31 5F;SV32,33 4FC (ETO,LUM,VE,VX,ZX) ¥700
90949-01108 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1990-07 → 1992-06 ended
SV32,33 GT ¥320
90949-01559 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1990-07 → 1994-06 ended
CV30;SV32,33 5F (ETO,LUM,VE,VX,ZX) ¥320
90949-01654 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1990-07 → 1994-06 ended
VZV3# 4FC ¥350
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-16040 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1993-07 → 1994-06 ended
SV30,35;SV32,33 4FC ¥550
42345-16060 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1993-07 → 1994-06 ended
CV30;SV32,33 5F ¥210
90949-01076 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1990-07 → 1993-07 ended
SV30,35;SV32,33 4FC (ETO,LUM,VE,VX,ZX) ¥380
90949-01107 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1990-07 → 1992-06 ended
SV32,33 GT ¥540
90949-01339 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1990-07 → 1992-06 ended
VZV30,31 5F ¥350
90949-01473 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1990-07 → 1993-07 ended
CV30;SV32,33 5F (ETO,LUM,VE,VX,ZX) ¥260
90949-01656 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1990-07 → 1994-06 ended
VZV3# 4FC ¥510
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-14010 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1990-07 → 1992-06 ended
VZV30,31 5F ¥700
90949-01078 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1990-07 → 1994-06 ended
SV30,35;SV32,33 4FC (ETO,LUM,VE,VX,ZX) ¥80
90949-01108 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1990-07 → 1992-06 ended
SV32,33 GT ¥320
90949-01559 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1990-07 → 1994-06 ended
CV30;SV32,33 5F (ETO,LUM,VE,VX,ZX) ¥320
90949-01654 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1990-07 → 1994-06 ended
VZV3# 4FC ¥350
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-16040 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1993-07 → 1994-06 ended
SV30,35;SV32,33 4FC ¥550
42345-16090 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1993-07 → 1994-06 ended
CV30;SV32,33 5F ¥870
42345-30010 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1990-07 → 1993-07 ended
CV30;SV32,33 5F (ETO,LUM,VE,VX,ZX) ¥970
42346-22010 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1990-07 → 1992-06 ended
SV32,33 GT ¥620
90949-01076 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1990-07 → 1993-07 ended
SV30,35;SV32,33 4FC (ETO,LUM,VE,VX,ZX) ¥380
90949-01340 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1990-07 → 1992-06 ended
VZV30,31 5F ¥280
90949-01655 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1990-07 → 1994-06 ended
VZV3# 4FC ¥640
43460 — Shaft Assy, Front Drive Outboard Joint, RH
43460-19307 note Shaft Assy, Front Drive Outboard Joint, RH
1992-06 → 1994-06 ended
SV35 ¥41,800
43470-19165 Shaft Assy, Front Drive Outboard Joint, RH
1990-07 → 1991-01 ended
VZV3# 5F ¥40,000
43470-19166 Shaft Assy, Front Drive Outboard Joint, RH
1991-01 → 1992-06 ended
VZV30,31 5F ¥44,300
43470-19305 note Shaft Assy, Front Drive Outboard Joint, RH
1990-07 → 1991-01 ended
SV35 ¥38,300
43470-19306 note Shaft Assy, Front Drive Outboard Joint, RH
1991-01 → 1992-06 ended
SV35 ¥41,200
43470-29135 Shaft Assy, Front Drive Outboard Joint, RH
1990-07 → 1991-01 ended
SV30;SV32,33 4FC (LUM,VE,VX,ZX) ¥39,600
43470-29136 Shaft Assy, Front Drive Outboard Joint, RH
1991-01 → 1994-06 ended
SV30;SV32,33 4FC (ETO,LUM,VE,VX,ZX) ¥41,200
43470-29145 note Shaft Assy, Front Drive Outboard Joint, RH
1990-07 → 1991-01 ended
SV30 VR,ZE;SV32,33 4FC (VX,ZX) ¥39,600
43470-29146 note Shaft Assy, Front Drive Outboard Joint, RH
1991-01 → 1991-06 ended
SV30 VR,ZE;SV32,33 4FC (VX,ZX) ¥41,200
43470-29146 note Shaft Assy, Front Drive Outboard Joint, RH
1991-06 → 1992-06 ended
SV30;SV32,33 4FC (LUM,VE,VX,ZX) ¥41,200
43470-29146 note Shaft Assy, Front Drive Outboard Joint, RH
1992-06 → 1994-06 ended
SV30;SV32,33 4FC ¥41,200
43470-29155 Shaft Assy, Front Drive Outboard Joint, RH
1990-07 → 1991-01 ended
CV30;SV32,33 5F (LUM,VE,VX,ZX) ¥39,600
43470-29156 Shaft Assy, Front Drive Outboard Joint, RH
1991-01 → 1994-06 ended
CV30;SV32,33 5F (ETO,LUM,VE,VX,ZX) ¥41,300
43470-29165 note Shaft Assy, Front Drive Outboard Joint, RH
1990-07 → 1991-01 ended
SV32,33 5F (VX,ZX) ¥39,600
43470-29166 note Shaft Assy, Front Drive Outboard Joint, RH
1991-01 → 1991-06 ended
SV32,33 5F (VX,ZX) ¥41,500
43470-29166 note Shaft Assy, Front Drive Outboard Joint, RH
1991-06 → 1992-06 ended
SV32,33 5F (LUM,VE,VX,ZX) ¥41,500
43470-29166 note Shaft Assy, Front Drive Outboard Joint, RH
1992-06 → 1994-06 ended
SV32,33 5F ¥41,500
43470-39085 Shaft Assy, Front Drive Outboard Joint, RH
1990-07 → 1991-01 ended
SV35 ¥38,900
43470-39086 Shaft Assy, Front Drive Outboard Joint, RH
1991-01 → 1992-06 ended
SV35 ¥41,200
43470-39087 Shaft Assy, Front Drive Outboard Joint, RH
1992-06 → 1994-06 ended
SV35 ¥42,200
43470-39105 Shaft Assy, Front Drive Outboard Joint, RH
1990-07 → 1991-01 ended
SV32,33 GT ¥39,700
43470-39106 Shaft Assy, Front Drive Outboard Joint, RH
1991-01 → 1992-06 ended
SV32,33 GT ¥39,200
43470-39115 note Shaft Assy, Front Drive Outboard Joint, RH
1990-07 → 1991-01 ended
SV32,33 GT ¥39,700
43470-39116 note Shaft Assy, Front Drive Outboard Joint, RH
1991-01 → 1992-06 ended
SV32,33 GT ¥39,200
43470-39125 Shaft Assy, Front Drive Outboard Joint, RH
1990-07 → 1991-01 ended
VZV3# 4FC ¥41,800
43470-39126 Shaft Assy, Front Drive Outboard Joint, RH
1991-01 → 1994-06 ended
VZV3# 4FC ¥41,400
43470-39135 note Shaft Assy, Front Drive Outboard Joint, RH
1990-07 → 1991-01 ended
VZV3# 4FC ¥41,800
43470-39136 note Shaft Assy, Front Drive Outboard Joint, RH
1991-01 → 1992-06 ended
VZV3# 4FC ¥41,400
43470-39136 note Shaft Assy, Front Drive Outboard Joint, RH
1992-06 → 1994-06 ended
VZV3# ¥41,400
43470-39165 note Shaft Assy, Front Drive Outboard Joint, RH
1990-07 → 1991-01 ended
VZV3# 5F ¥42,800
43470-39166 note Shaft Assy, Front Drive Outboard Joint, RH
1991-01 → 1992-06 ended
VZV30,31 5F ¥41,400
43474 — Damper, Drive Shaft
43474-12030 Damper, Drive Shaft
1992-06 → 1994-06 ended
SV35 ¥3,820
43474A — Clamp (FOR DRIVE SHAFT DAMPER SETTING)
90949-01696 Clamp (FOR DRIVE SHAFT DAMPER SETTING)
1992-06 → 1994-06 ended
SV35 ¥240
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
