Toyota Camry/Vista
1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan
Discontinued model
Data version 1994-11

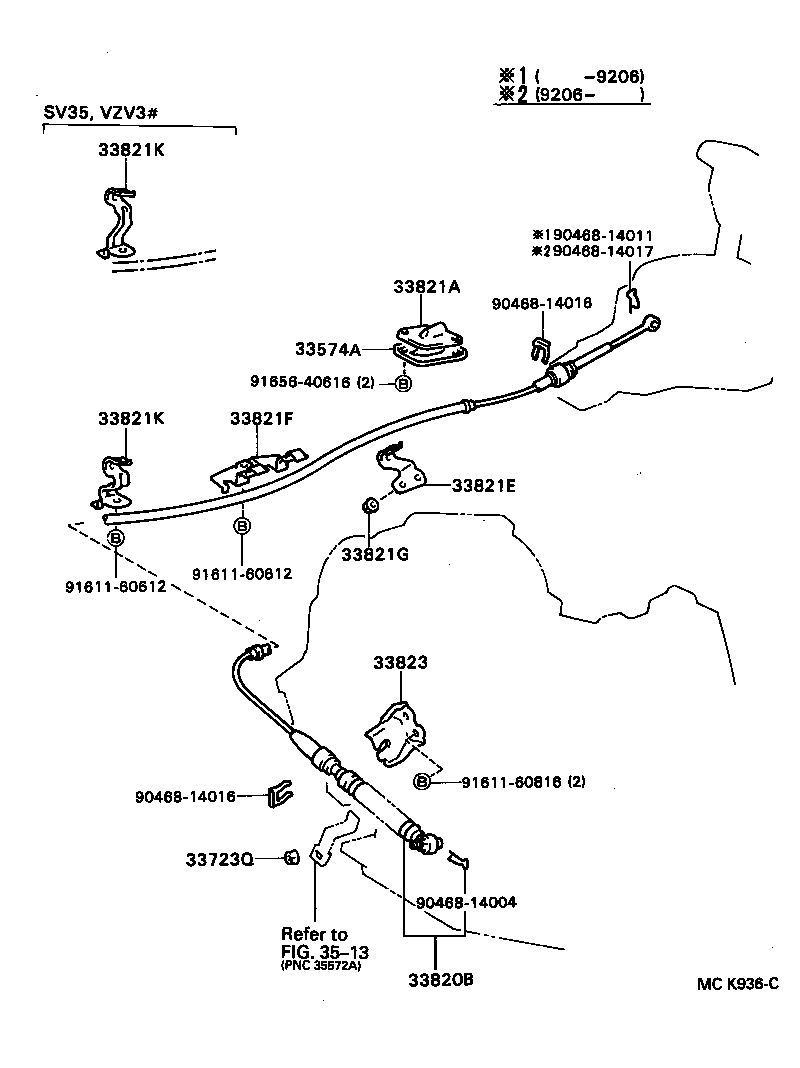

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33574A — Retainer, Shift Cable Grommet, NO.1 | ||||
| 33574-32150 |
Retainer, Shift Cable Grommet, NO.1
1990-07 → 1994-06
ended
|
CV30,SV3#,VZV3# 4FC | ¥780 | |
| 33574-32180 |
Retainer, Shift Cable Grommet, NO.1
1990-07 → 1991-03
ended
|
CV30,SV3# 5F | ¥1,000 | |
| 33574-32181 |
Retainer, Shift Cable Grommet, NO.1
1991-03 → 1994-06
ended
|
CV30,SV3# 5F | ¥1,020 | |
| 33574-32190 |
Retainer, Shift Cable Grommet, NO.1
1990-07 → 1991-03
ended
|
VZV3# 5F | ¥1,000 | |
| 33574-32191 |
Retainer, Shift Cable Grommet, NO.1
1991-03 → 1992-06
ended
|
VZV30,31 5F | ¥1,000 | |
| 33723Q — Nut (FOR CONNECTING ROD SWIVEL) | ||||
| 90179-08054 |
Nut (FOR CONNECTING ROD SWIVEL)
1990-07 → 1994-06
ended
|
CV30,SV3#,VZV3# 4FC | ¥100 | |
| 33820B — Cable Assy, Transmission Control | ||||
| 33820-32290 |
Cable Assy, Transmission Control
1990-07 → 1994-06
ended
|
CV30,SV3#,VZV3# 4FC | ¥17,400 | |
| 33821A — Grommet, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01572 |
Grommet, NO.1 (FOR TRANSMISSION CONTROL CABLE)
1990-07 → 1994-06
ended
|
CV30,SV3#,VZV3# 4FC | ¥400 | |
| 90480-01579 |
Grommet, NO.1 (FOR TRANSMISSION CONTROL CABLE)
1990-07 → 1994-06
ended
|
CV30,SV3# 5F | ¥580 | |
| 90480-01581 |
Grommet, NO.1 (FOR TRANSMISSION CONTROL CABLE)
1990-07 → 1992-06
ended
|
VZV30,31 5F | ¥240 | |
| 33821E — Clamp, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01682 |
Clamp, NO.1 (FOR TRANSMISSION CONTROL CABLE)
1990-07 → 1994-06
ended
|
CV30,SV3#,VZV3# 4FC | ¥390 | |
| 33821F — Clamp, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01680 |
Clamp, NO.2 (FOR TRANSMISSION CONTROL CABLE)
1990-07 → 1994-06
ended
|
CV30,SV3#,VZV3# 4FC | ¥470 | |
| 33821G — Nut (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-06009 |
Nut (FOR TRANSMISSION CONTROL CABLE)
1990-07 → 1994-06
ended
|
CV30,SV3#,VZV3# 4FC | ¥120 | |
| 33821K — Clamp, NO.3 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01681 |
Clamp, NO.3 (FOR TRANSMISSION CONTROL CABLE)
1990-07 → 1994-06
ended
|
CV30,SV30,32,33 4FC | ¥470 | |
| 90949-01701 |
Clamp, NO.3 (FOR TRANSMISSION CONTROL CABLE)
1990-07 → 1991-05
ended
|
SV35,VZV3# 4FC | ¥510 | |
| 90949-01737 |
Clamp, NO.3 (FOR TRANSMISSION CONTROL CABLE)
1991-05 → 1994-06
ended
|
SV35,VZV3# 4FC | ¥510 | |
| 33823 — Bracket, Transmission Control Cable, NO.1 | ||||
| 33823-32030 |
Bracket, Transmission Control Cable, NO.1
1990-07 → 1990-09
ended
|
CV30,SV3#,VZV3# 4FC | ¥1,220 | |
| 33823-32031 |
Bracket, Transmission Control Cable, NO.1
1990-09 → 1994-06
ended
|
CV30,SV3#,VZV3# 4FC | ¥1,200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
