Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

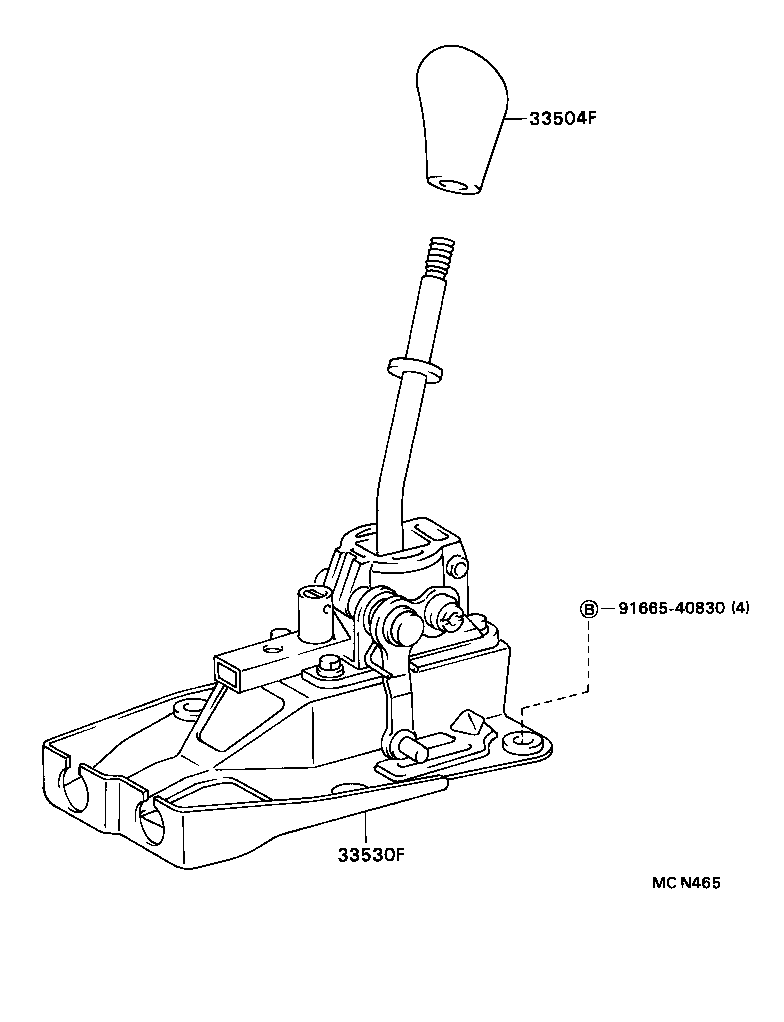

Exploded illustration MCN465 33504F — KNOB SUB-ASSY, SHIFT LEVER (46 parts) 9166540830 — not listed in this catalogue 33530F — LEVER ASSY, SHIFT (FOR FLOOR SHIFT) (1 parts)
MCN465 · 2 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
47 parts on this figure
Part number Description Fitment Price
33504F — Knob Sub-assy, Shift Lever
33504-12180-B0 note Knob Sub-assy, Shift Lever
1991-05 → 1994-06 ended
CV30,SV3#,VZV30,31 5F (ETO,LUM,PRO,VE,VR,VX,ZE,ZV,ZX) ¥3,820
33504-12180-E0 note Knob Sub-assy, Shift Lever
1991-05 → 1992-06 ended
CV30,SV3#,VZV30,31 HT 5F (ETO,PRO,VE,VR,VX) ¥3,810
33504-12180-E3 note Knob Sub-assy, Shift Lever
1992-09 → 1994-06 ended
CV30,SV3# 5F (ETO,LUM,VR,VX,ZE,ZX) ¥3,810
33504-12180-K0 note Knob Sub-assy, Shift Lever
1991-05 → 1994-06 ended
CV30,SV3#,VZV30,31 5F (ETO,LUM,PRO,VE,VR,VX,ZE,ZV,ZX) ¥3,810
33504-12200-B0 note Knob Sub-assy, Shift Lever
1991-05 → 1992-06 ended
SV32,33 5F GT ¥7,400
33504-12200-B0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV32,33 5F ZX ¥7,400
33504-12200-B0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV32,33 HT 5F VX ¥7,400
33504-12200-B0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV35 HT 5F VX ¥7,400
33504-12200-B0 note Knob Sub-assy, Shift Lever
1991-05 → 1992-06 ended
SV32,33,35 HT 5F VX ¥7,400
33504-12200-E0 note Knob Sub-assy, Shift Lever
1991-08 → 1992-06 ended
SV32,33,35 HT 5F VX ¥7,300
33504-12200-E0 note Knob Sub-assy, Shift Lever
1991-08 → 1992-06 ended
SV32,33 HT 5F GT ¥7,300
33504-12200-E3 note Knob Sub-assy, Shift Lever
1992-08 → 1994-06 ended
SV35 HT 5F VX ¥7,400
33504-12200-E3 note Knob Sub-assy, Shift Lever
1992-08 → 1994-06 ended
SV32,33 5F ZX ¥7,400
33504-12200-E3 note Knob Sub-assy, Shift Lever
1992-08 → 1994-06 ended
SV32,33 HT 5F VX ¥7,400
33504-12200-K0 note Knob Sub-assy, Shift Lever
1991-06 → 1992-06 ended
SV32,33,35 HT 5F VX ¥7,300
33504-12200-K0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV35 HT 5F VX ¥7,300
33504-12200-K0 note Knob Sub-assy, Shift Lever
1991-06 → 1992-06 ended
SV32,33 5F GT ¥7,300
33504-12200-K0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV32,33 HT 5F VX ¥7,300
33504-12200-K0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV32,33 5F ZX ¥7,300
33504-14050-33 note Knob Sub-assy, Shift Lever
1990-07 → 1991-09 ended
SV30 5F (VL,XT) ¥2,960
33504-14050-52 note Knob Sub-assy, Shift Lever
1990-07 → 1992-06 ended
SV30 5F (VL,XT) ¥3,000
33504-14050-E2 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV30 5F (VL,XT) ¥3,000
33504-14050-K0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV30 5F (VL,XT) ¥3,000
33504-14050-S4 note Knob Sub-assy, Shift Lever
1991-10 → 1994-06 ended
SV30 5F (VL,XT) ¥3,000
33504-14070-E1 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV30 5F (VL,XT) ¥2,730
33504-14070-K0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV30 5F (VL,XT) ¥2,730
33504-14070-S4 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV30 5F (VL,XT) ¥2,730
33504-20110-16 note Knob Sub-assy, Shift Lever
1990-07 → 1991-05 ended
VZV30 5F ¥3,000
33504-20110-16 note Knob Sub-assy, Shift Lever
1990-07 → 1991-05 ended
CV30,SV3# HT 5F (ETO,VE,VR,VX) ¥3,000
33504-20110-22 note Knob Sub-assy, Shift Lever
1990-07 → 1991-05 ended
CV30,SV3# 5F (ETO,LUM,VE,VR,VX,ZE,ZV,ZX) ¥3,000
33504-20110-22 note Knob Sub-assy, Shift Lever
1990-07 → 1991-05 ended
VZV30 5F ¥3,000
33504-20110-33 note Knob Sub-assy, Shift Lever
1990-07 → 1991-05 ended
VZV30 5F ¥3,000
33504-20110-33 note Knob Sub-assy, Shift Lever
1990-07 → 1991-05 ended
CV30,SV3# 5F (ETO,LUM,VE,VR,VX,ZE,ZV,ZX) ¥3,000
33504-20120-13 note Knob Sub-assy, Shift Lever
1990-07 → 1991-05 ended
SV32,33,VZV3# 5F (GT,PRO) ¥7,300
33504-20120-16 note Knob Sub-assy, Shift Lever
1990-07 → 1991-05 ended
SV32,33,VZV3# HT 5F (GT,PRO) ¥7,300
33504-20120-22 note Knob Sub-assy, Shift Lever
1990-07 → 1991-05 ended
SV32,33,VZV3# 5F (GT,PRO) ¥7,300
33542-32110-02 note Knob Sub-assy, Shift Lever
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# 4FC ¥5,900
33542-32110-03 note Knob Sub-assy, Shift Lever
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# 4FC ¥5,900
33542-32110-06 note Knob Sub-assy, Shift Lever
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# HT 4FC ¥5,900
33542-32120-03 note Knob Sub-assy, Shift Lever
1991-06 → 1992-06 ended
SV32,33,35,VZV32,33 HT 4FC (PRO,VX) ¥15,400
33542-32130-B0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥15,400
33542-32130-E0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥15,400
33542-32130-K0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
CV30,SV3#,VZV3# 4FC ¥15,400
33542-32140-B0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV32,33 4FC ZX ¥15,400
33542-32140-B0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV32,33 HT 4FC VX ¥15,400
33542-32140-B0 note Knob Sub-assy, Shift Lever
1992-06 → 1994-06 ended
SV35,VZV3# HT 4FC (PRO,VX) ¥15,400
33530F — Lever Assy, Shift (FOR FLOOR SHIFT)
33530-33050 Lever Assy, Shift (FOR FLOOR SHIFT)
1992-06 → 1994-06 ended
CV30,SV30,32,33 5F ¥16,800
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
