Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

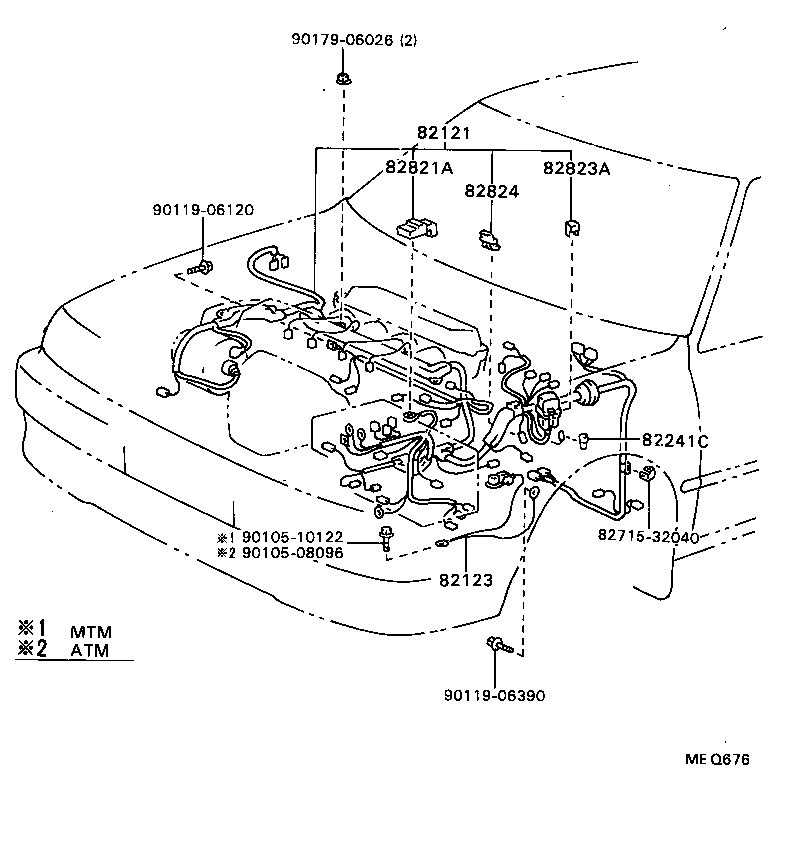

Exploded illustration MEQ676 9017906026 — not listed in this catalogue 82121 — WIRE, ENGINE (41 parts) 82821A — COVER, CONNECTOR (2 parts) 82823A — CAP, TERMINAL, NO.2 (1 parts) 82824 — CONNECTOR, WIRING HARNESS (2 parts) 9011906120 — not listed in this catalogue 82241C — WIRE, RELAY (3 parts) 8271532040 — not listed in this catalogue 9010510122 — not listed in this catalogue 9010508096 — not listed in this catalogue 82123 — WIRE, ENGINE, NO.3 (7 parts) 9011906390 — not listed in this catalogue
MEQ676 · 6 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
56 parts on this figure
Part number Description Fitment Price
82121 — Wire, Engine
82121-3H440 Wire, Engine
1990-07 → 1992-06 ended
CV30 5F ¥45,000
82121-3H450 Wire, Engine
1990-07 → 1992-06 ended
CV30 4FC ¥48,300
82121-3H460 Wire, Engine
1990-07 → 1991-05 ended
SV30 5F ¥48,900
82121-3H461 Wire, Engine
1991-05 → 1992-06 ended
SV30 5F ¥48,300
82121-3H470 Wire, Engine
1990-07 → 1991-05 ended
SV30 4FC ¥51,800
82121-3H471 Wire, Engine
1991-05 → 1992-06 ended
SV30 4FC ¥51,200
82121-3H480 Wire, Engine
1990-07 → 1991-05 ended
SV32,33 5F (LUM,VE,VX,ZX) ¥51,800
82121-3H481 Wire, Engine
1991-05 → 1991-07 ended
SV32,33 5F (LUM,VE,VX,ZX) ¥51,800
82121-3H482 Wire, Engine
1991-07 → 1992-06 ended
SV32,33 5F (LUM,VE,VX,ZX) ¥51,200
82121-3H490 Wire, Engine
1990-07 → 1991-05 ended
SV32,33 4FC (LUM,VE,VX,ZX) ¥97,900
82121-3H491 Wire, Engine
1991-05 → 1991-07 ended
SV32,33 4FC (LUM,VE,VX,ZX) ¥97,900
82121-3H492 Wire, Engine
1991-07 → 1992-06 ended
SV32,33 4FC (LUM,VE,VX,ZX) ¥97,100
82121-3H500 Wire, Engine
1990-07 → 1991-05 ended
SV35 5F ¥51,800
82121-3H501 Wire, Engine
1991-05 → 1991-07 ended
SV35 5F ¥51,800
82121-3H502 Wire, Engine
1991-07 → 1992-06 ended
SV35 5F ¥51,200
82121-3H510 Wire, Engine
1990-07 → 1991-05 ended
SV35 4FC ¥112,000
82121-3H511 Wire, Engine
1991-05 → 1991-07 ended
SV35 4FC ¥112,000
82121-3H512 Wire, Engine
1991-07 → 1992-06 ended
SV35 4FC ¥111,000
82121-3H520 Wire, Engine
1990-07 → 1991-05 ended
SV32,33 5F GT ¥97,900
82121-3H521 Wire, Engine
1991-05 → 1991-07 ended
SV32,33 5F GT ¥97,900
82121-3H522 Wire, Engine
1991-07 → 1992-06 ended
SV32,33 5F GT ¥97,100
82121-3H530 Wire, Engine
1990-07 → 1991-05 ended
SV32,33 4FC GT ¥97,900
82121-3H531 Wire, Engine
1991-05 → 1991-07 ended
SV32,33 4FC GT ¥97,900
82121-3H532 Wire, Engine
1991-07 → 1992-06 ended
SV32,33 4FC GT ¥97,100
82121-3H540 Wire, Engine
1990-07 → 1991-05 ended
VZV3# 5F ¥112,000
82121-3H541 Wire, Engine
1991-05 → 1991-08 ended
VZV30,31 5F ¥112,000
82121-3H542 Wire, Engine
1991-08 → 1992-06 ended
VZV30,31 5F ¥111,000
82121-3H550 Wire, Engine
1990-07 → 1991-05 ended
VZV3# 4FC ¥112,000
82121-3H551 Wire, Engine
1991-05 → 1991-08 ended
VZV30,31 4FC ¥112,000
82121-3H552 Wire, Engine
1991-08 → 1992-06 ended
VZV30,31 4FC ¥111,000
82121-3H560 Wire, Engine
1991-05 → 1992-06 ended
VZV32,33 ¥97,100
82121-3H570 Wire, Engine
1992-06 → 1994-06 ended
SV30 5F ¥48,300
82121-3H580 Wire, Engine
1992-06 → 1994-06 ended
SV30 4FC ¥51,200
82121-3H590 Wire, Engine
1992-06 → 1994-06 ended
SV32,33 5F ¥51,200
82121-3H600 Wire, Engine
1992-06 → 1994-06 ended
SV32,33 4FC ¥97,100
82121-3H610 Wire, Engine
1992-06 → 1994-06 ended
SV35 5F ¥51,200
82121-3H620 Wire, Engine
1992-06 → 1993-01 ended
SV35 4FC ¥111,000
82121-3H621 Wire, Engine
1993-01 → 1994-06 ended
SV35 4FC ¥105,000
82121-3H630 Wire, Engine
1992-06 → 1994-06 ended
CV30 5F ¥45,000
82121-3H640 Wire, Engine
1992-06 → 1994-06 ended
CV30 4FC ¥45,000
82121-3H650 Wire, Engine
1992-06 → 1994-06 ended
VZV3# ¥125,000
82123 — Wire, Engine, NO.3
82123-32110 Wire, Engine, NO.3
1990-07 → 1992-06 ended
SV3# ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX ¥3,200
82123-32111 Wire, Engine, NO.3
1992-06 → 1994-06 ended
SV3# ¥3,200
82123-32120 Wire, Engine, NO.3
1990-07 → 1992-06 ended
SV32,33 GT ¥3,200
82123-32130 Wire, Engine, NO.3
1990-07 → 1992-06 ended
VZV30,31 5F ¥3,200
82123-32140 note Wire, Engine, NO.3
1990-07 → 1992-06 ended
VZV30,31 5F ¥3,200
82123-32140 Wire, Engine, NO.3
1990-07 → 1994-06 ended
VZV3# 4FC ¥3,200
82123-32150 Wire, Engine, NO.3
1990-07 → 1994-06 ended
CV30 ¥3,200
82241C — Wire, Relay
82241-32040 note Wire, Relay
1990-07 → 1992-06 ended
CV30,SV3#,VZV3# ¥520
82241-32040 Wire, Relay
1992-06 → 1994-06 ended
CV30,VZV3# ¥520
82241-32060 note Wire, Relay
1990-07 → 1992-06 ended
SV32,33,35,VZV3# ¥370
82821A — Cover, Connector
82821-32110 note Cover, Connector
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# ¥620
82821-35010 note Cover, Connector
1992-06 → 1994-06 ended
VZV3# —
82823A — Cap, Terminal, NO.2
82823-50020 Cap, Terminal, NO.2
1990-07 → 1994-06 ended
CV30,SV3#,VZV3# ¥190
82824 — Connector, Wiring Harness
82824-20050 Connector, Wiring Harness
1990-07 → 1992-06 ended
CV30,SV3# ¥940
82824-20050 Connector, Wiring Harness
1992-08 → 1994-06 ended
CV30 4FC LUM;CV30 HT +5 ¥940
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
