Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

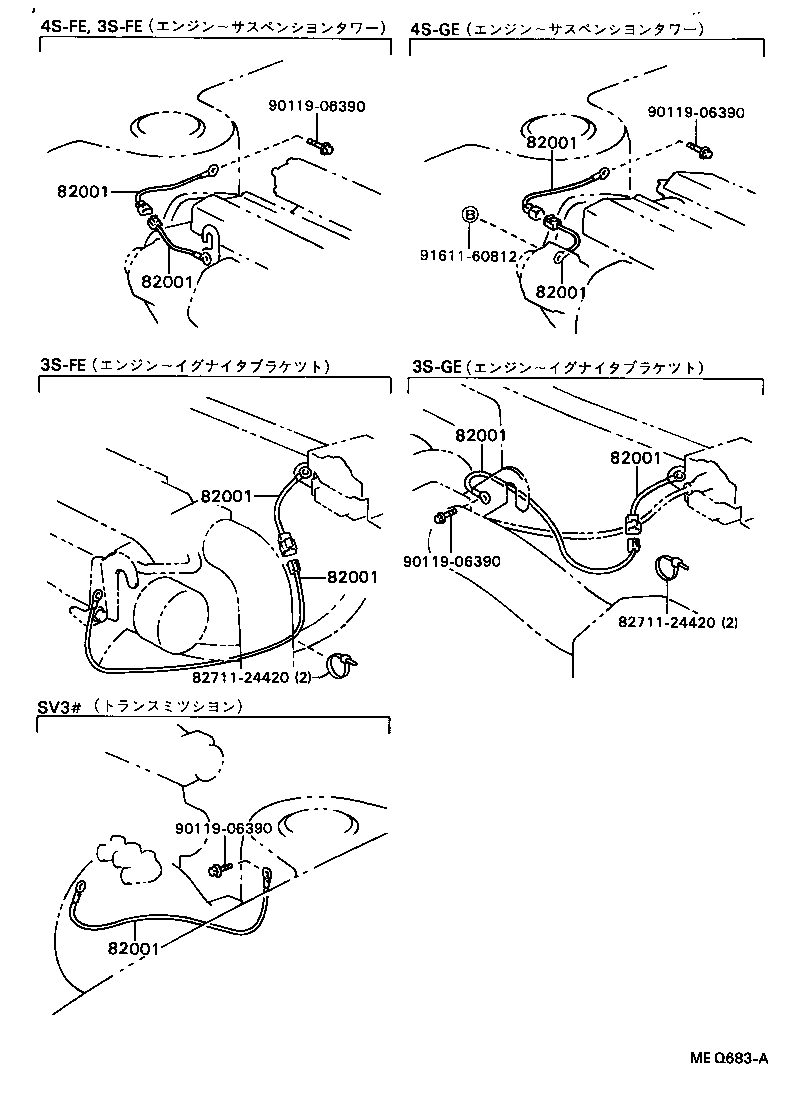

Exploded illustration MEQ683A 9011906390 — not listed in this catalogue 9011906390 — not listed in this catalogue 82001 — CABLE, BOND, NO.1 (21 parts) 82001 — CABLE, BOND, NO.1 (21 parts) 9161160812 — not listed in this catalogue 82001 — CABLE, BOND, NO.1 (21 parts) 82001 — CABLE, BOND, NO.1 (21 parts) 82001 — CABLE, BOND, NO.1 (21 parts) 82001 — CABLE, BOND, NO.1 (21 parts) 82001 — CABLE, BOND, NO.1 (21 parts) 9011906390 — not listed in this catalogue 82001 — CABLE, BOND, NO.1 (21 parts) 8271124420 — not listed in this catalogue 8271124420 — not listed in this catalogue 9011906390 — not listed in this catalogue 82001 — CABLE, BOND, NO.1 (21 parts)
MEQ683A · 9 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
21 parts on this figure
Part number Description Fitment Price
82001 — Cable, Bond, NO.1
90980-07206 note Cable, Bond, NO.1
1990-07 → 1991-11 ended
VZV30,31 ¥610
90980-07206 note Cable, Bond, NO.1
1992-08 → 1994-06 ended
SV32,33,35,VZV3# ¥610
90980-07206 note Cable, Bond, NO.1
1991-11 → 1992-06 ended
VZV30,31 ¥610
90980-07206 note Cable, Bond, NO.1
1990-07 → 1992-08 ended
SV32,33,35 ¥610
90980-07206 note Cable, Bond, NO.1
1991-05 → 1992-08 ended
VZV32,33 ¥610
90980-07264 note Cable, Bond, NO.1
1990-07 → 1992-06 ended
SV3# ¥680
90980-07280 note Cable, Bond, NO.1
1990-07 → 1994-06 ended
SV3# ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX ¥610
90980-07287 note Cable, Bond, NO.1
1990-07 → 1994-06 ended
SV3# ¥610
90980-07307 note Cable, Bond, NO.1
1990-07 → 1992-06 ended
SV32,33 GT ¥510
90980-07333 note Cable, Bond, NO.1
1990-07 → 1994-06 ended
VZV3# ¥510
90980-07334 note Cable, Bond, NO.1
1990-07 → 1992-06 ended
SV32,33 GT ¥710
90980-07335 note Cable, Bond, NO.1
1990-07 → 1994-06 ended
VZV3# ¥870
90980-07336 note Cable, Bond, NO.1
1990-07 → 1994-06 ended
SV32,33,35 ETO,LUM,VE,VX,ZV,ZX ¥980
90980-07337 note Cable, Bond, NO.1
1990-07 → 1991-11 ended
VZV30,31 ¥980
90980-07346 note Cable, Bond, NO.1
1991-11 → 1994-06 ended
VZV3# ¥900
90980-07346 note Cable, Bond, NO.1
1991-05 → 1991-11 ended
VZV32,33 ¥900
90980-07347 note Cable, Bond, NO.1
1991-05 → 1991-11 ended
VZV32,33 ¥520
90980-07347 note Cable, Bond, NO.1
1991-11 → 1994-06 ended
VZV3# ¥520
90980-07353 note Cable, Bond, NO.1
1991-05 → 1991-11 ended
VZV32,33 ¥610
90980-07353 note Cable, Bond, NO.1
1991-11 → 1994-06 ended
VZV3# ¥610
90980-07368 note Cable, Bond, NO.1
1992-08 → 1994-06 ended
VZV3# ¥610
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
