Toyota Camry/Vista
1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan
Discontinued model
Data version 1994-11

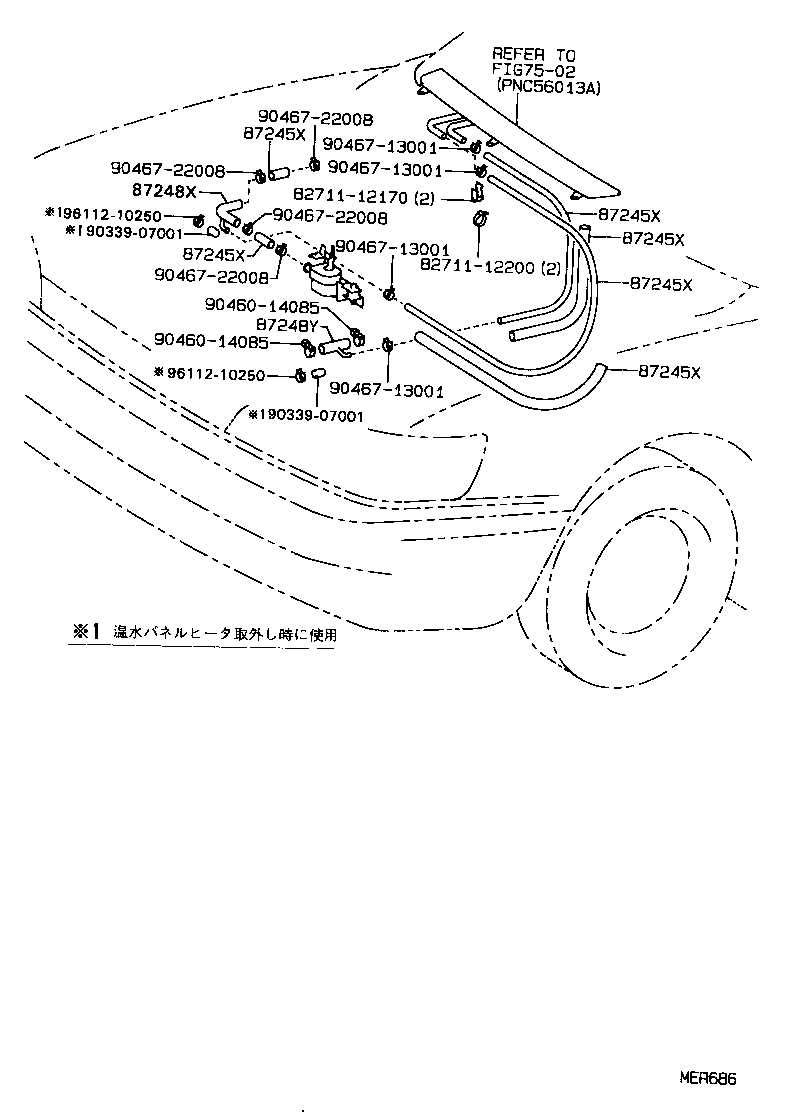

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87245X — Hose, Heater Water | ||||
| 90445-23006 note |
Hose, Heater Water
1990-09 → 1992-06
ended
|
CV30,SV3#,VZV3# | ¥1,540 | |
| 99556-11000 note |
Hose, Heater Water
1990-09 → 1992-06
ended
|
CV30,SV3#,VZV3# | ¥1,180 | |
| 99556-30210 note |
Hose, Heater Water
1990-09 → 1992-06
ended
|
CV30,SV3#,VZV3# | ¥470 | |
| 87248X — Pipe, Heater Water | ||||
| 87248-32050 |
Pipe, Heater Water
1990-09 → 1992-06
ended
|
CV30,SV3#,VZV3# | — | |
| 87248Y — Pipe, Heater Water, NO.2 | ||||
| 87248-30260 |
Pipe, Heater Water, NO.2
1990-09 → 1992-06
ended
|
CV30,SV3#,VZV3# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
