Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

20 part groups · 5 illustrations

Illustrations

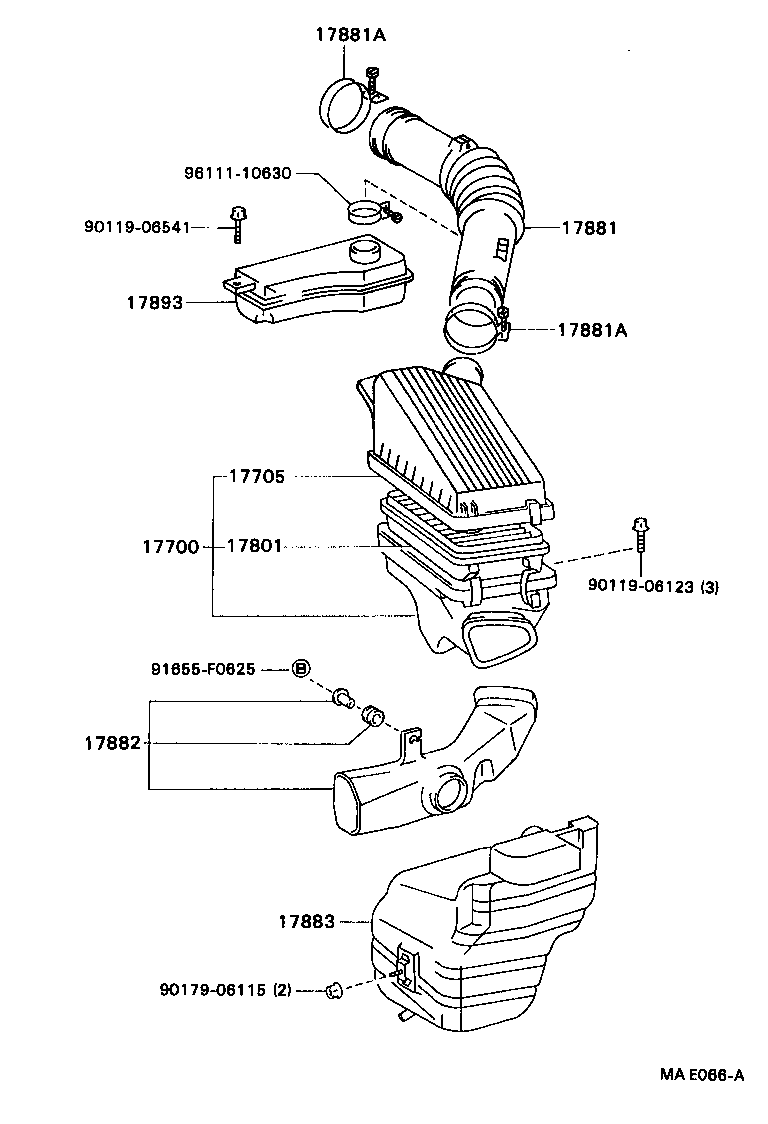

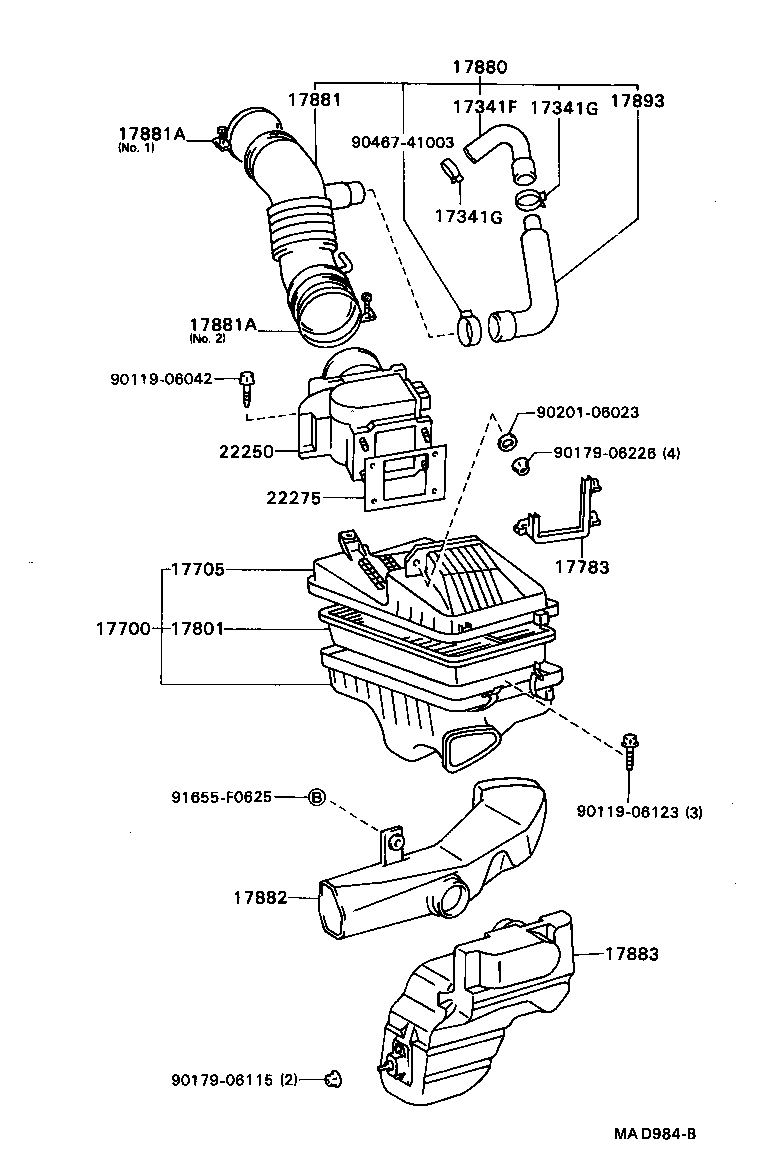

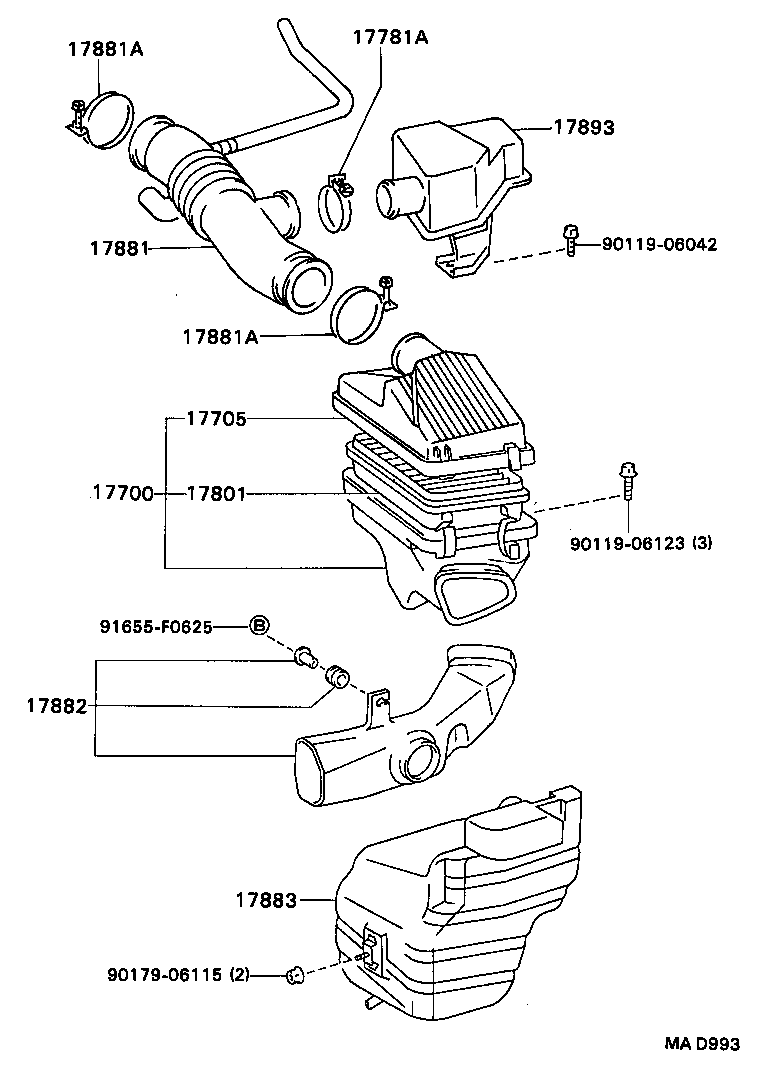

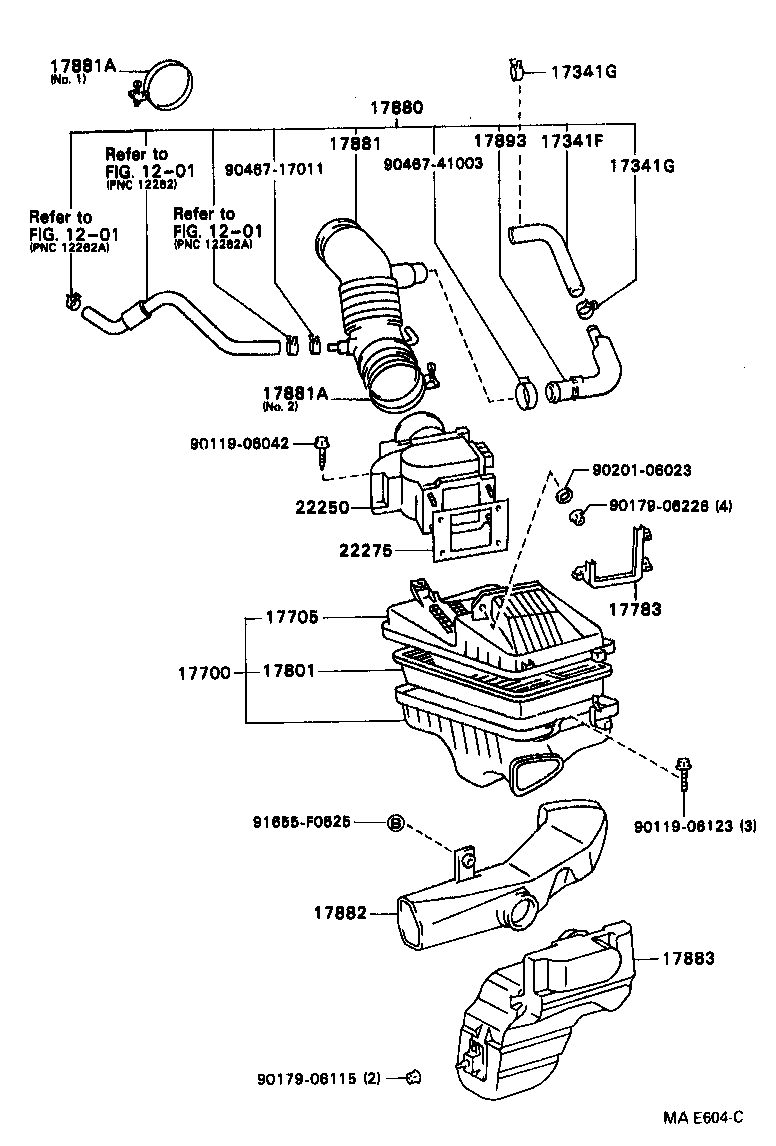

Figure MAD942 MAD942 1990-07 → — Figure MAE066A MAE066A 1990-07 → — Figure MAD993 MAD993 1990-07 → 1992-06 Figure MAD984B MAD984B 1990-07 → 1992-06 Figure MAE604C MAE604C 1991-05 → —

Part groups

PNCDescription
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17342D Hose, Air, NO.2
17343D Hose, Air, NO.3
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17781A Clamp, Hose
17783 Plate, Air Cleaner Baffle
17801 Element Sub-assy, Air Cleaner Filter
17849 Gasket, Intake Air Connector
17861 Connector, Intake Air
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17883 Hose, Air Cleaner, NO.3
17893 Resonator, Intake Air
17940D Intercooler Assy
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
