Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

27 part groups · 13 illustrations

Illustrations

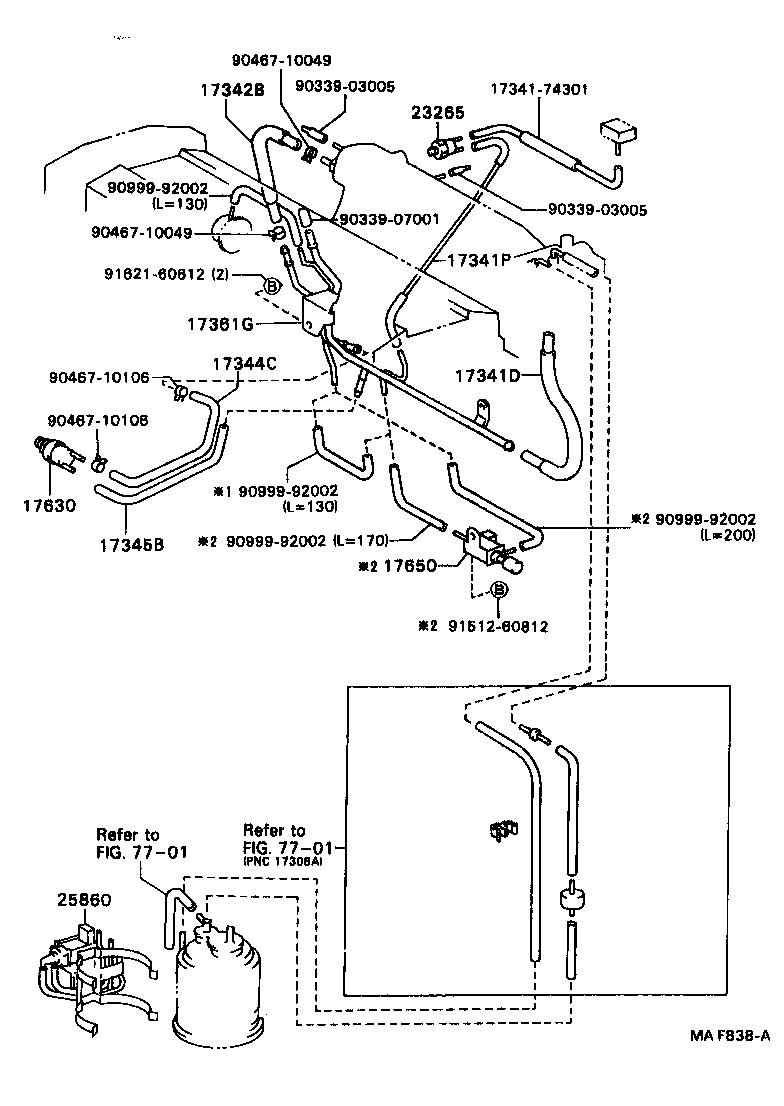

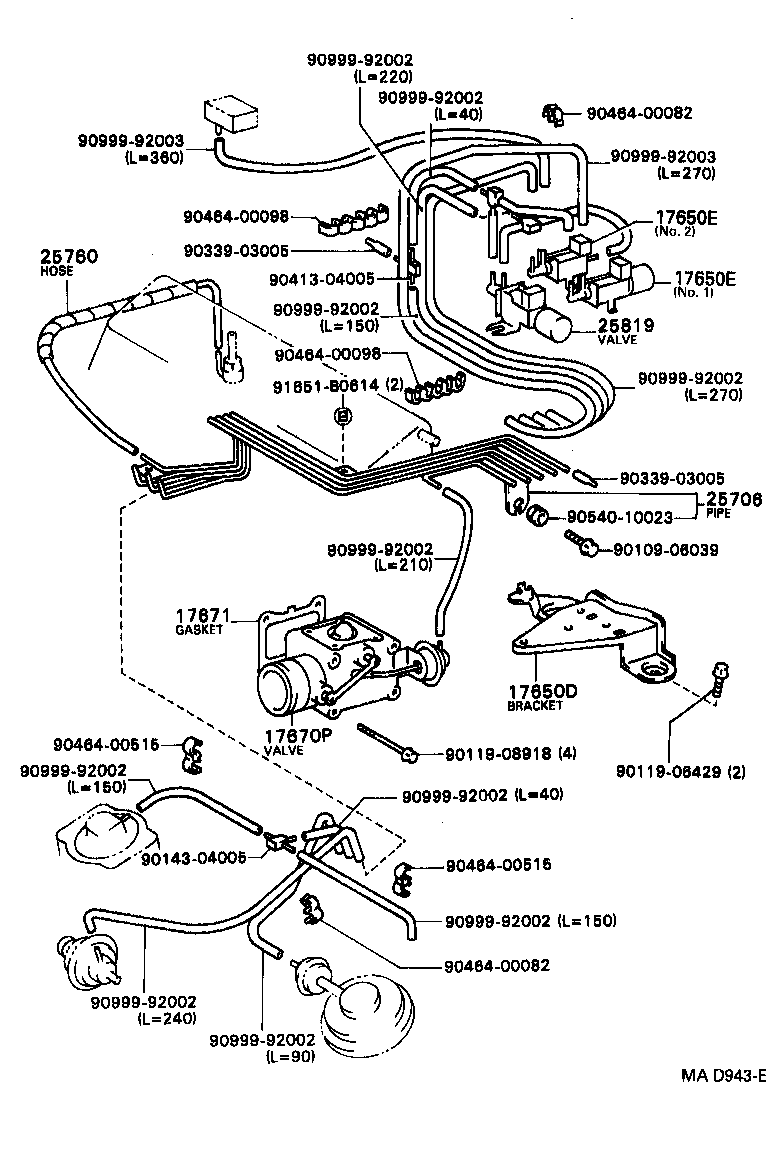

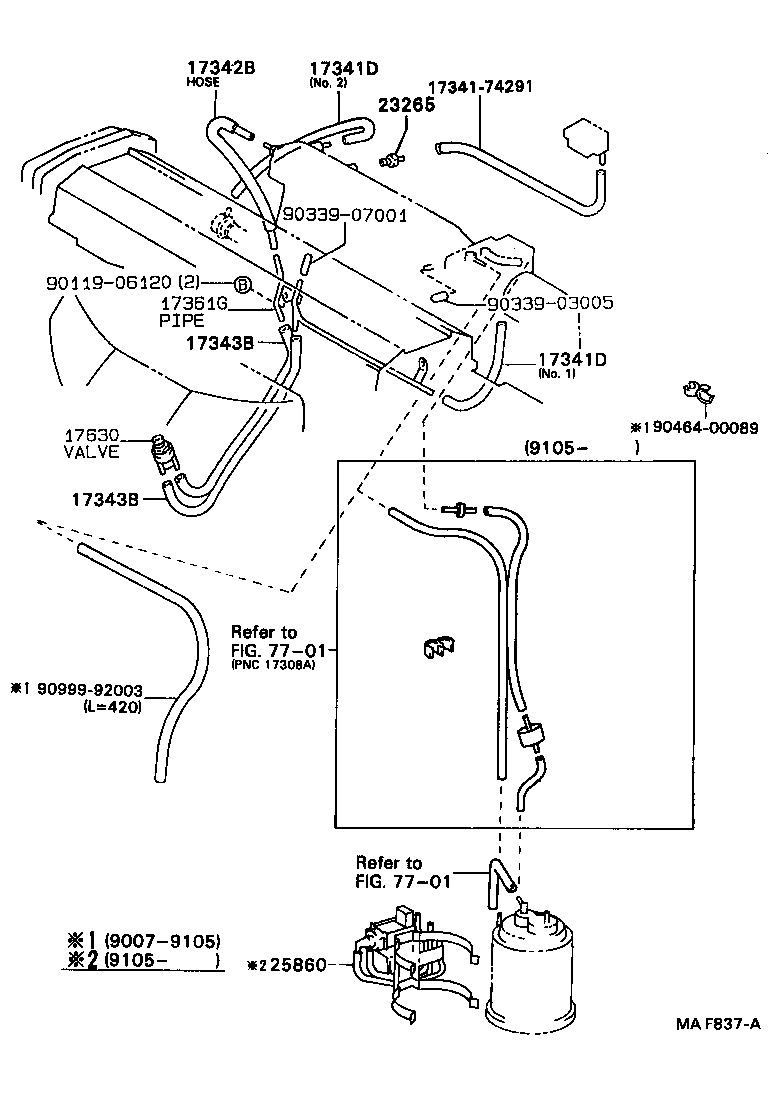

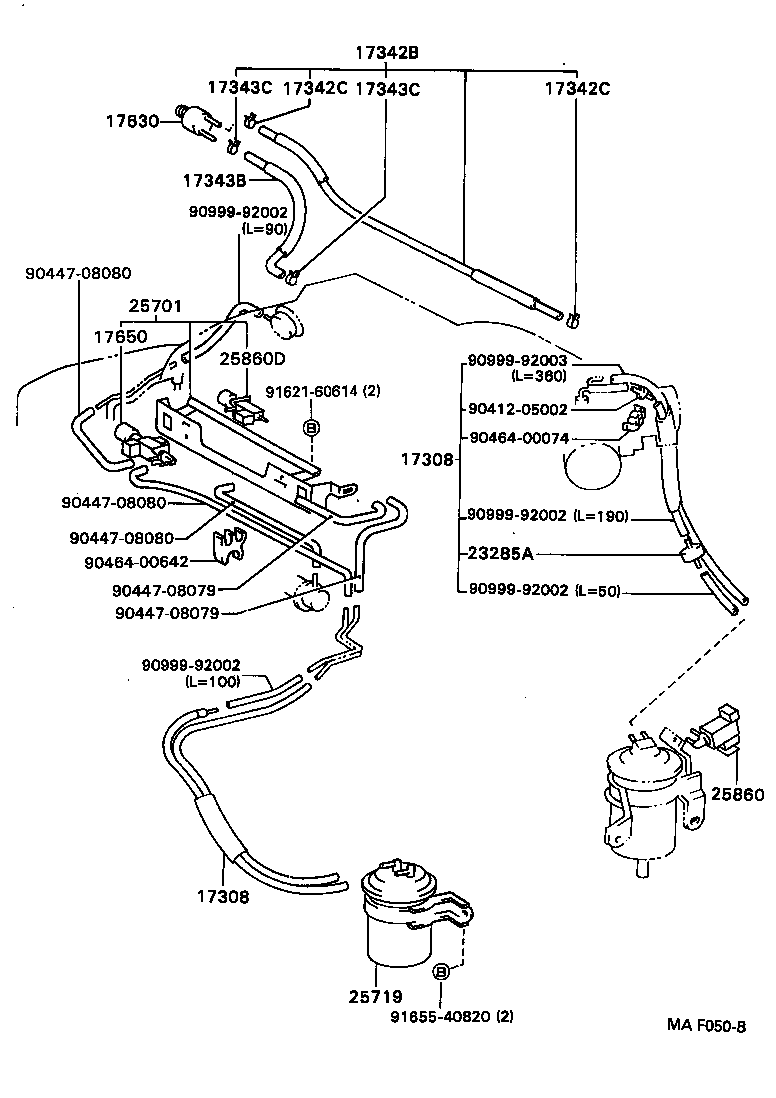

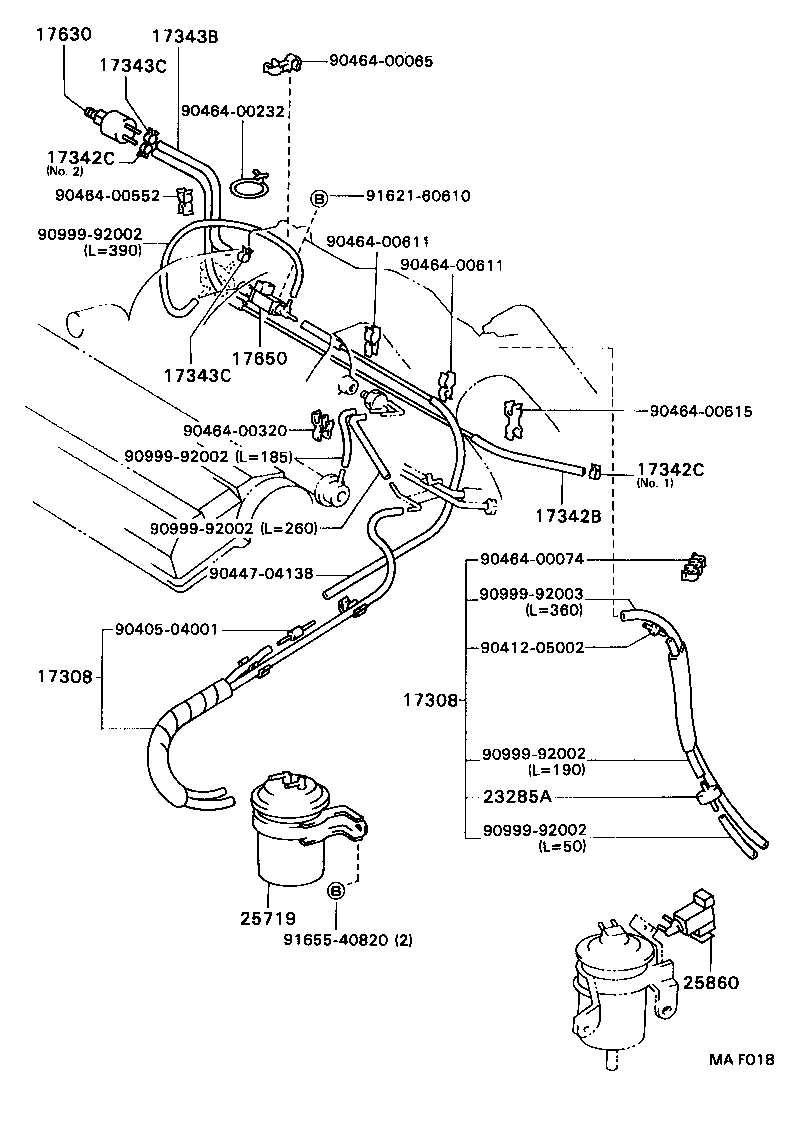

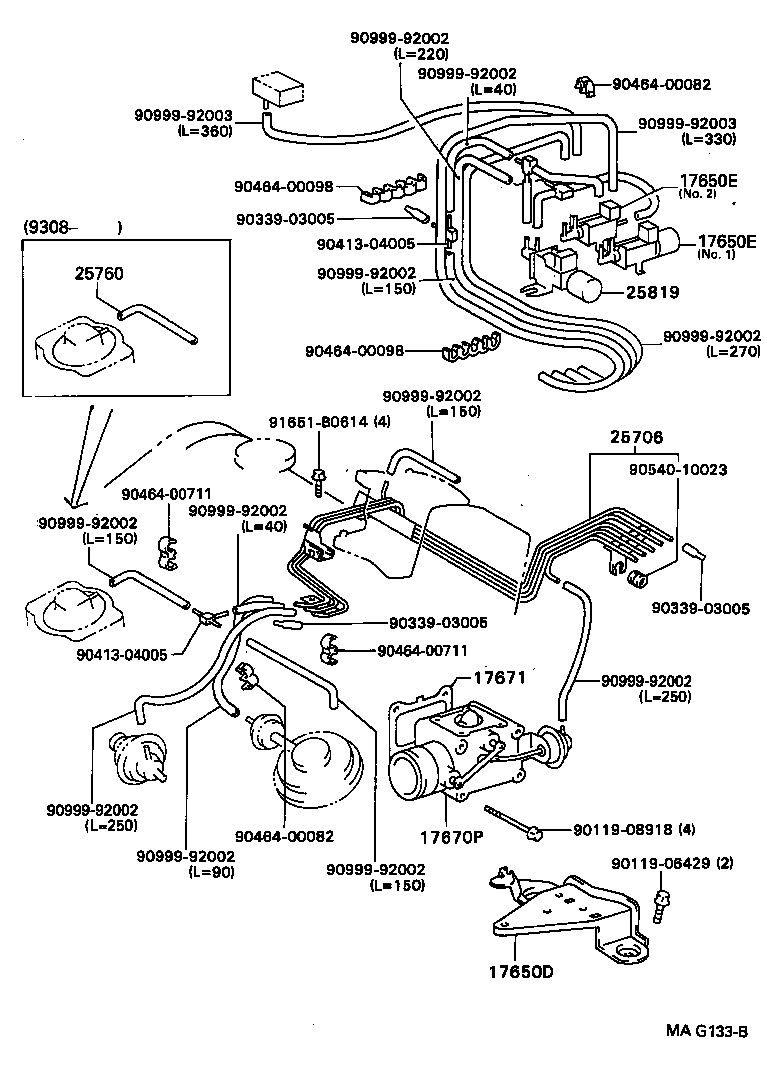

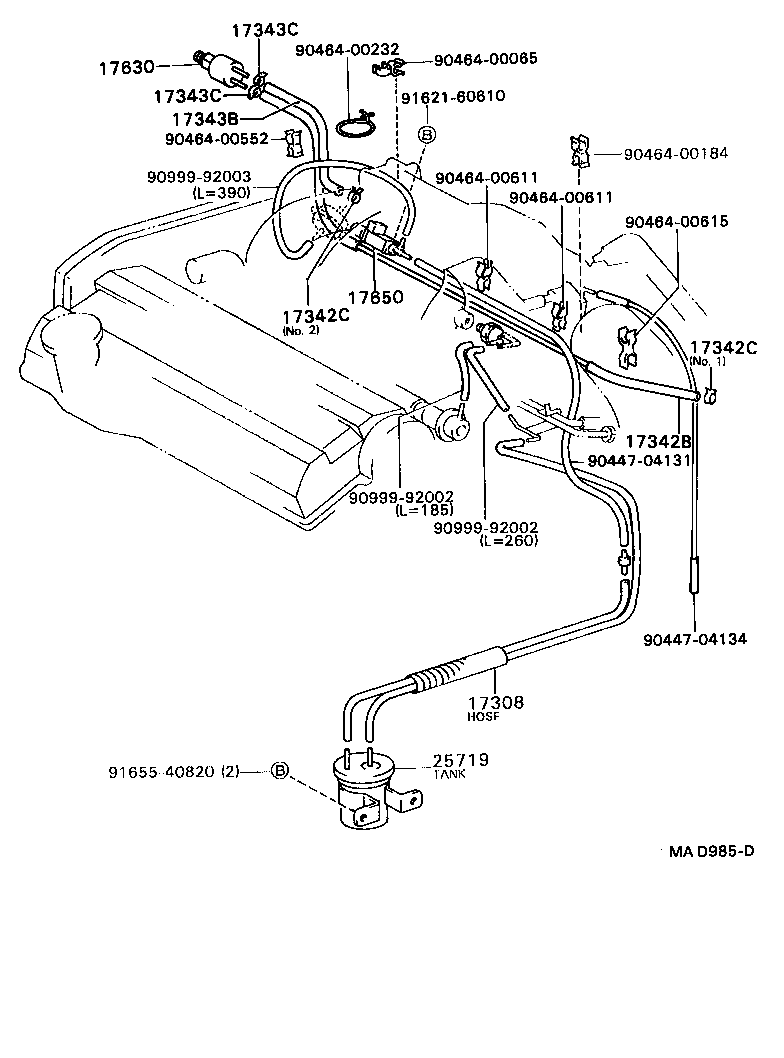

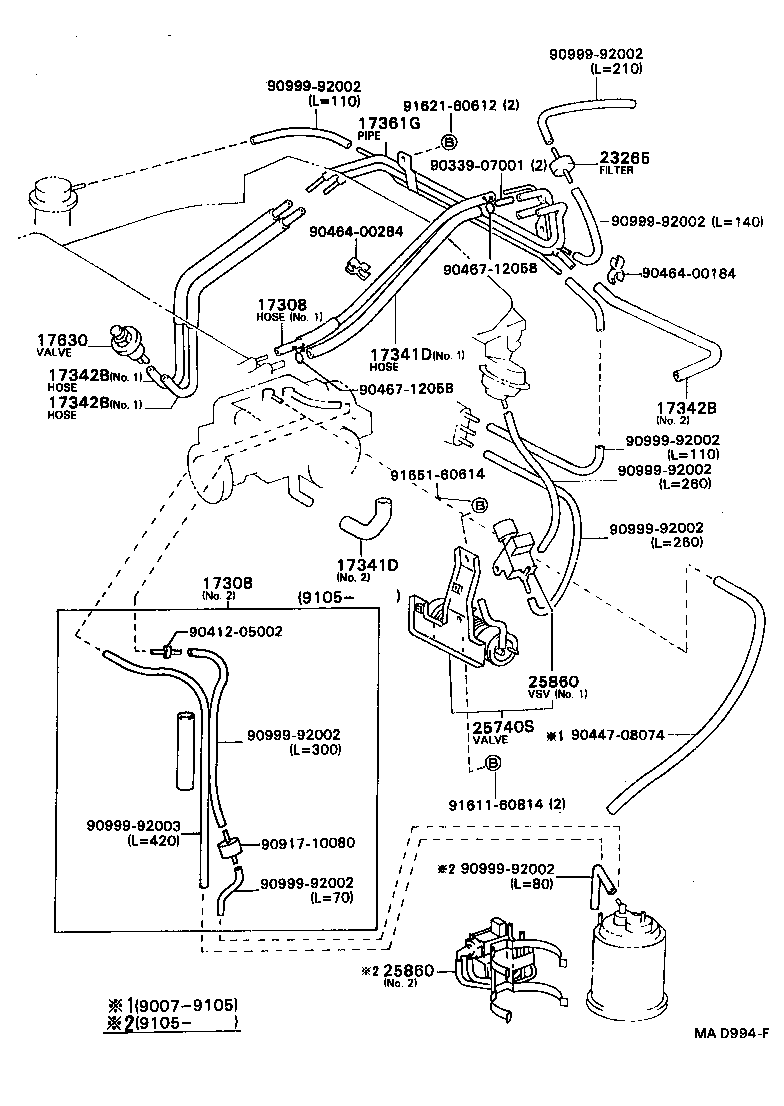

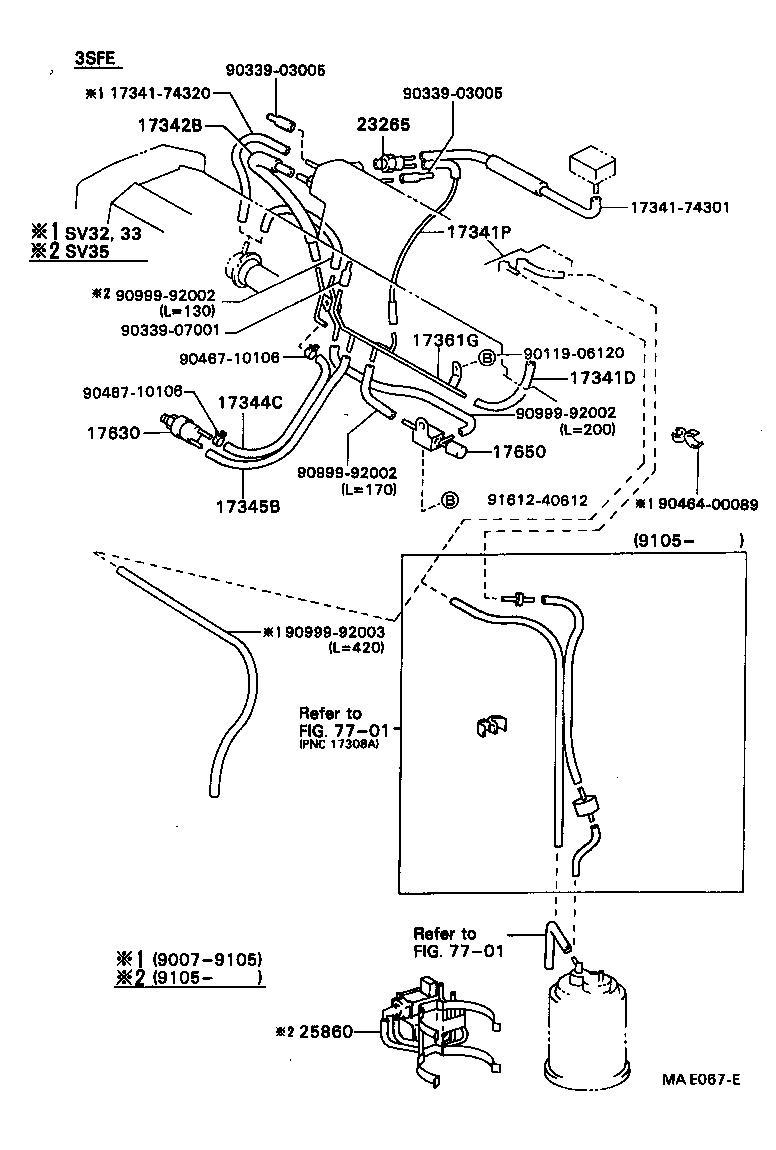

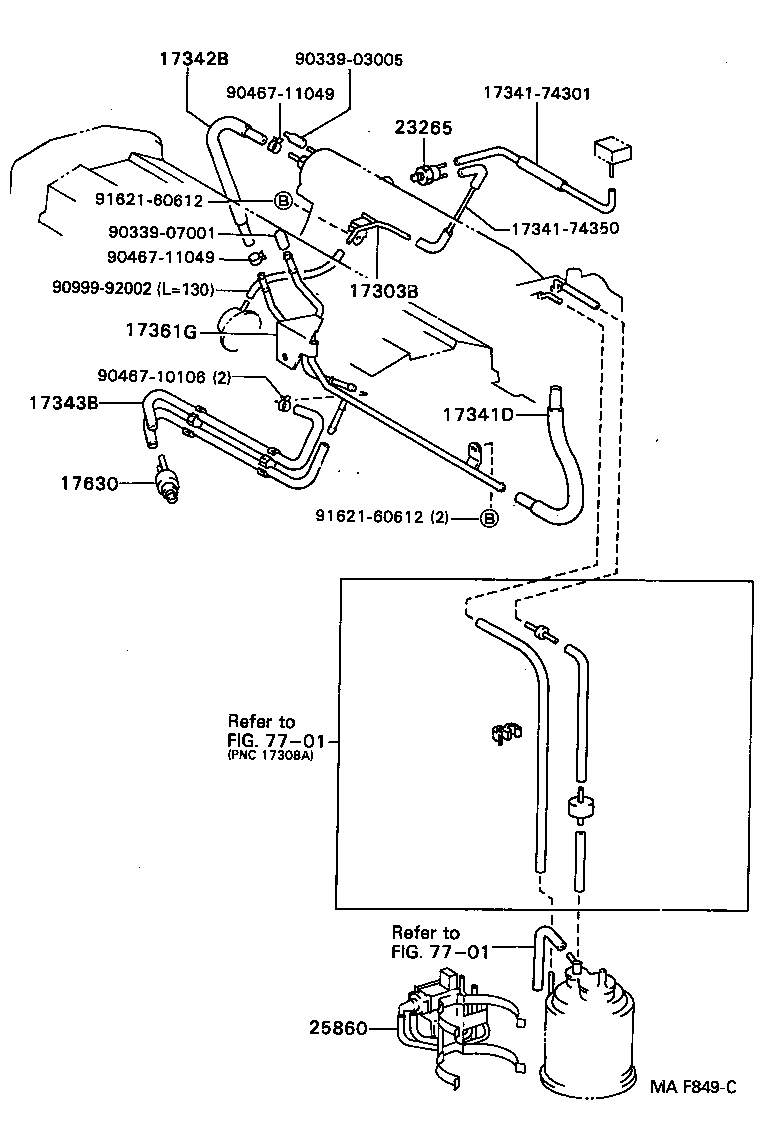

Figure MA9503A MA9503A 1990-07 → — Figure MAD943E MAD943E 1990-07 → 1992-06 Figure MAG133B MAG133B 1992-06 → — Figure MA9503A MA9503A 1990-07 → — Figure MAE067E MAE067E 1990-07 → 1992-06 Figure MAF837A MAF837A 1990-07 → 1992-06 Figure MAF838A MAF838A 1992-06 → — Figure MAF849C MAF849C 1992-06 → — Figure MAD994F MAD994F 1990-07 → 1992-06 Figure MA9503A MA9503A 1990-07 → — Figure MAD985D MAD985D 1990-07 → 1991-05 Figure MAF018 MAF018 1991-05 → 1992-06 Figure MAF050B MAF050B 1991-05 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341D Hose, NO.1(FOR IDLE-UP)
17341P Hose, Air
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17344C Hose, NO.4(FOR IDLE-UP)
17345B Hose, NO.5(FOR IDLE-UP)
17361G Tube, Air(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
17650E Valve, Vacuum Switching
17670P Valve Assy, Air By-pass
17671 Gasket, Air By-pass Valve
23265 Filter, Gas, NO.1
23285A Valve, Check, NO.1
25701 Valve Set, Emission Control
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25719 Tank, Vacuum Surge
25740S Valve Assy, Air Control(FOR IDLE SPEED CONTROL)
25760 Hose Assy, Vacuum Transmitting
25819 Valve Assy, Vacuum Regulating
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
