Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

19 part groups · 7 illustrations

Illustrations

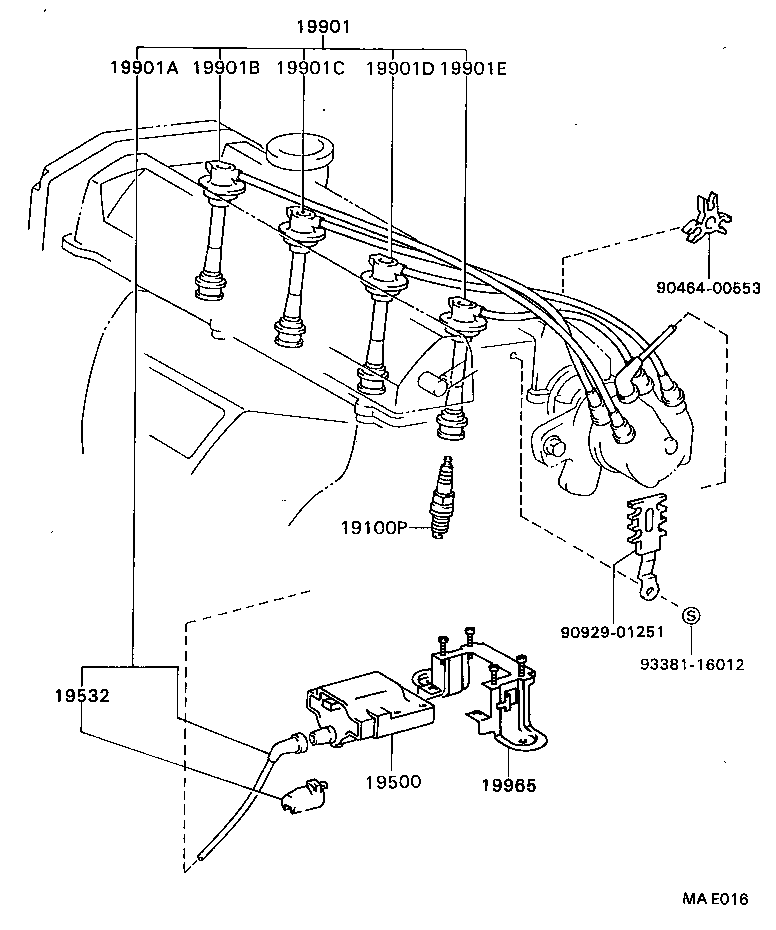

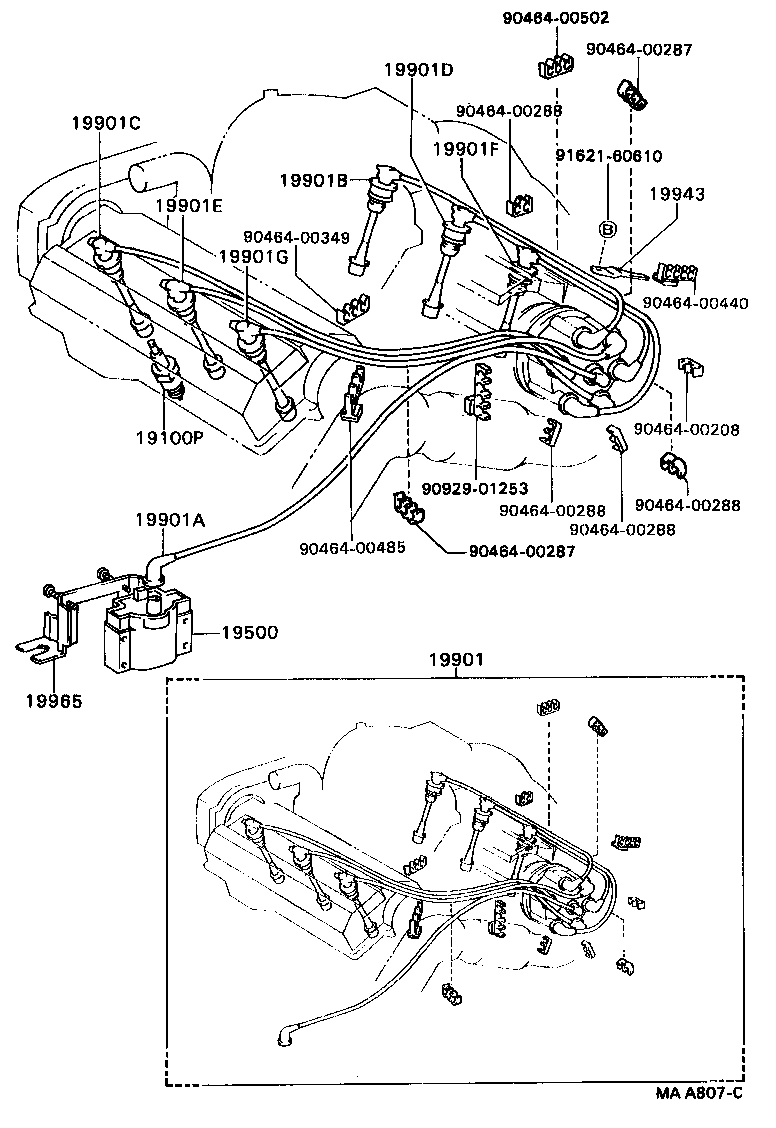

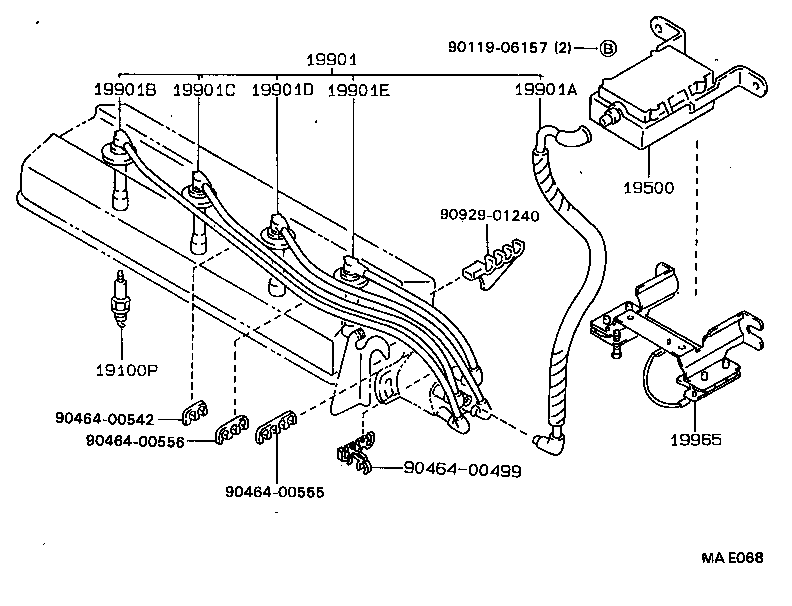

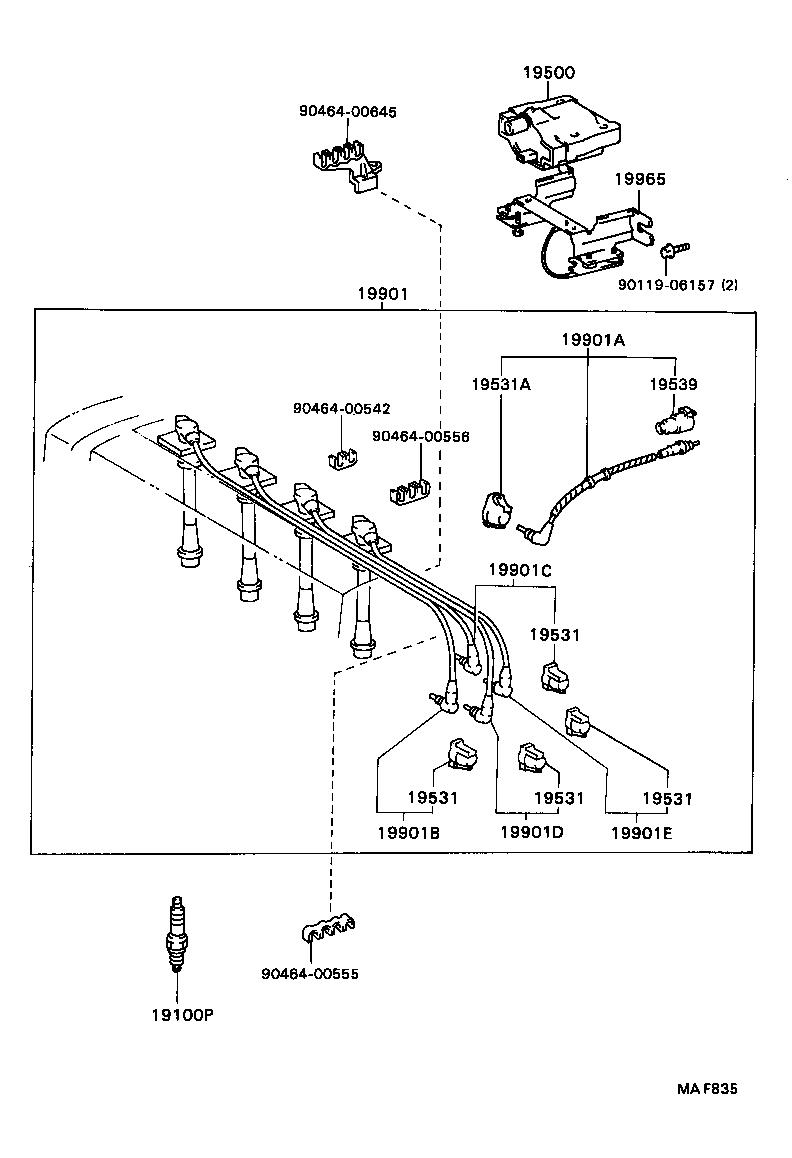

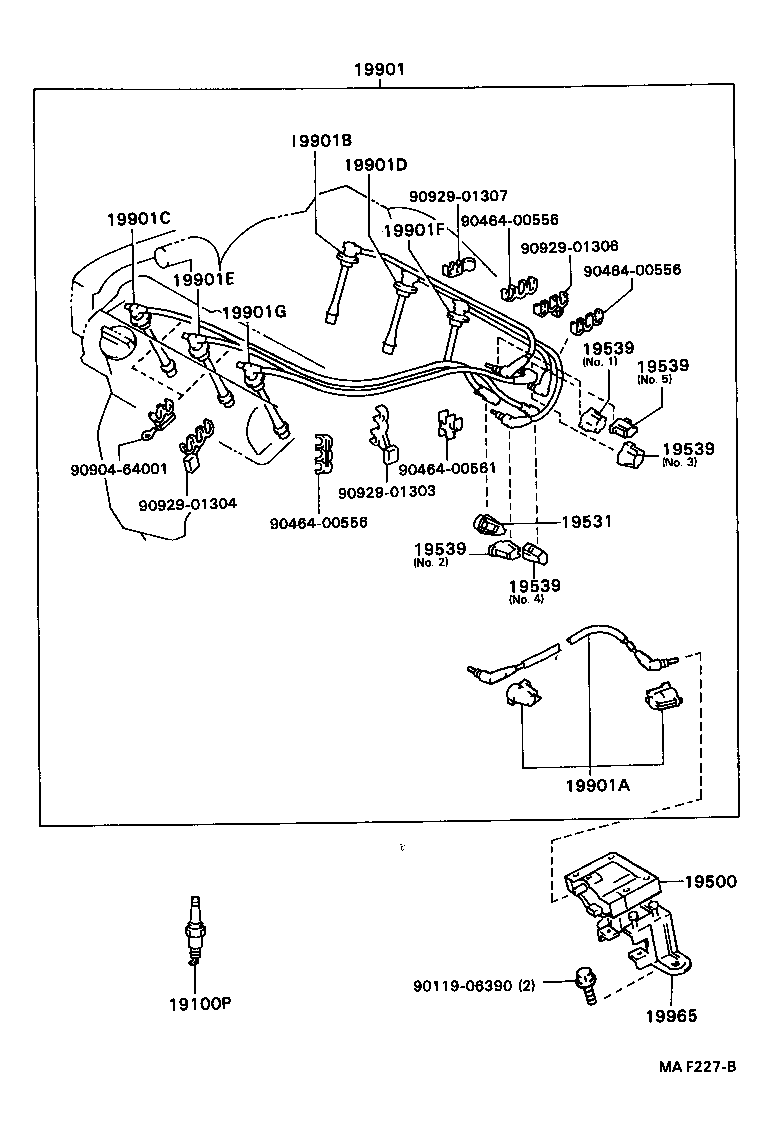

Figure MEC974 MEC974 1990-07 → — Figure MAE068 MAE068 1990-07 → 1992-06 Figure MAE071A MAE071A 1990-07 → 1992-06 Figure MAF835 MAF835 1992-06 → — Figure MAE016 MAE016 1990-07 → 1992-06 Figure MAA807C MAA807C 1990-07 → 1992-06 Figure MAF227B MAF227B 1991-05 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19531 Holder, Resistive Cord, NO.1
19531A Holder, Resistive Code, NO.3
19532 Holder, Resistive Code, NO.2
19539 Holder, Resistive Code, NO.4
19850 Plug Assy, Glow
19850B Grommet, Screw(FOR GLOW PLUG)
19871 Connector, Glow Plug NO.1
19901 Cord Set, Coil & Spark, W/Resistive
19901A Cord, Coil Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19901F Cord, Spark Plug Resistive, NO.5
19901G Cord, Spark Plug Resistive, NO.6
19943 Plate, Resistive Cord Clamp Support NO.1
19965 Band, Ignition Coil, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
