Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

35 part groups · 7 illustrations

Illustrations

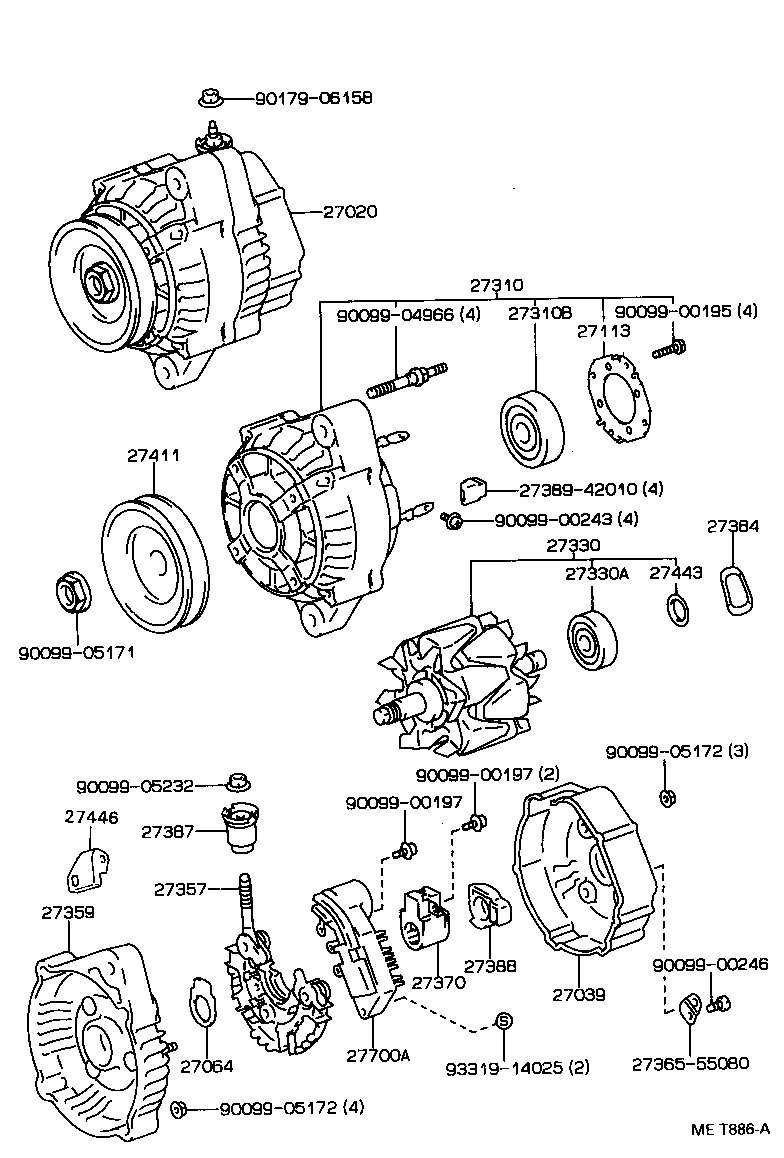

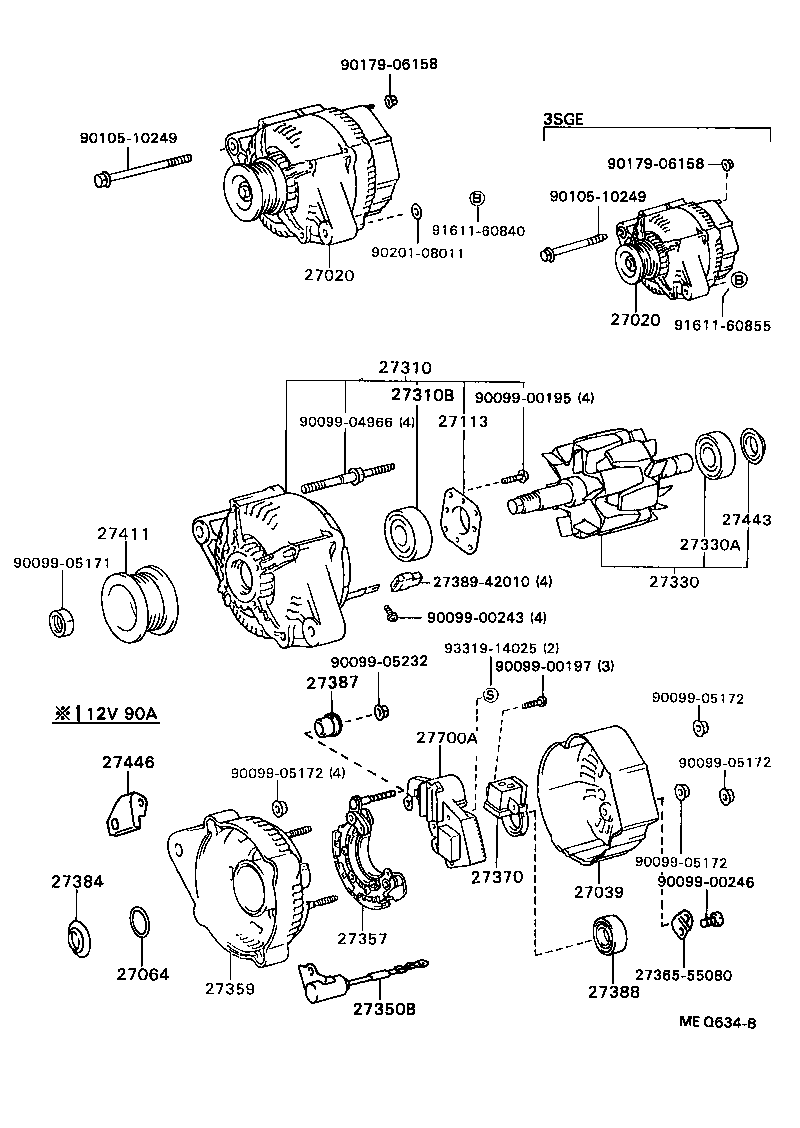

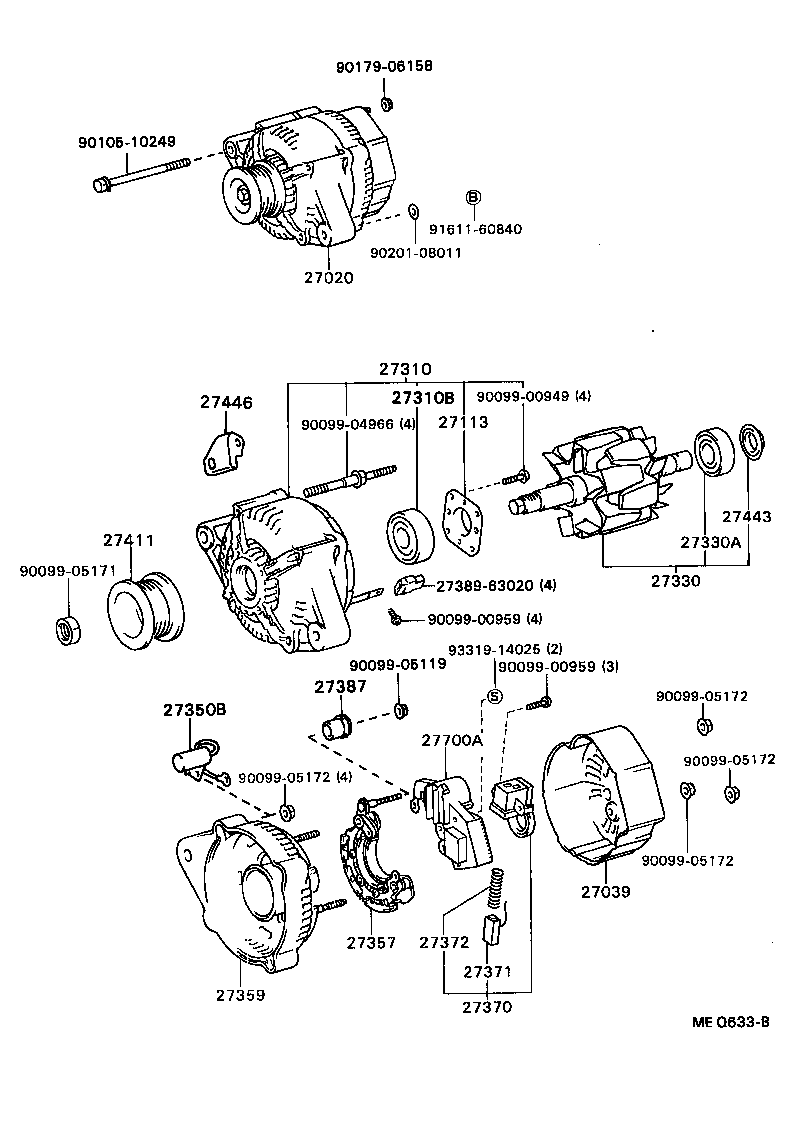

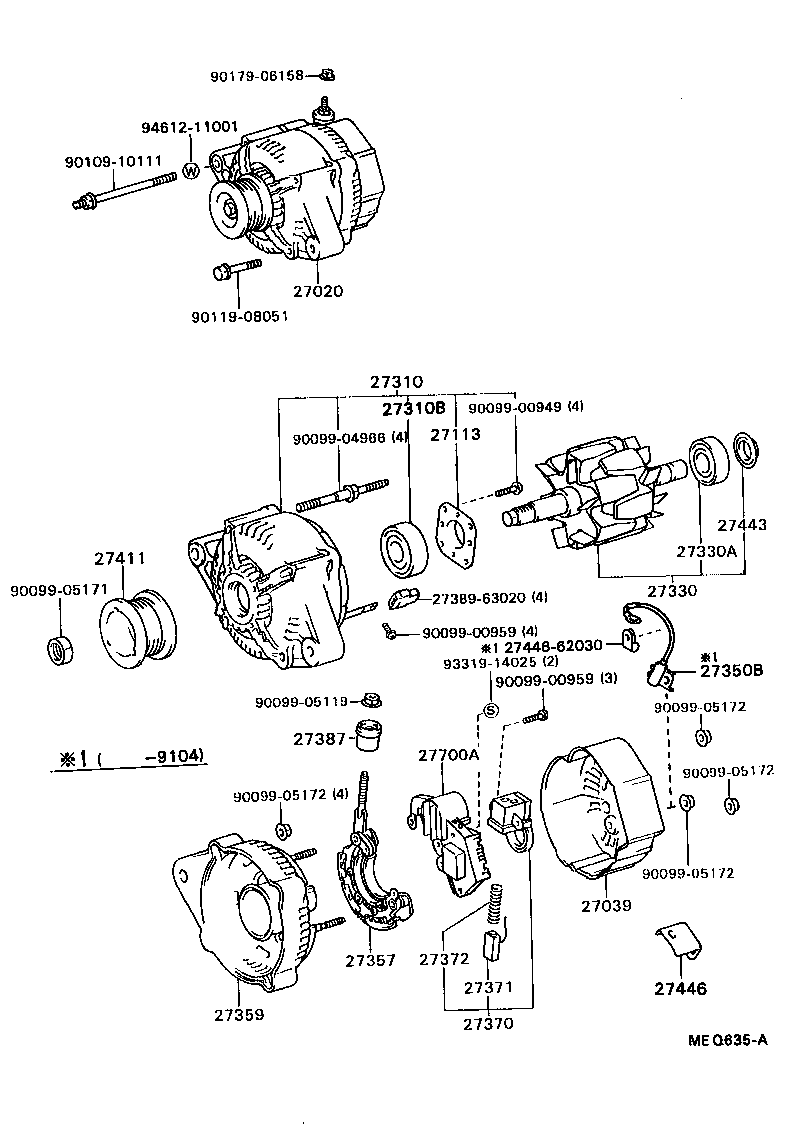

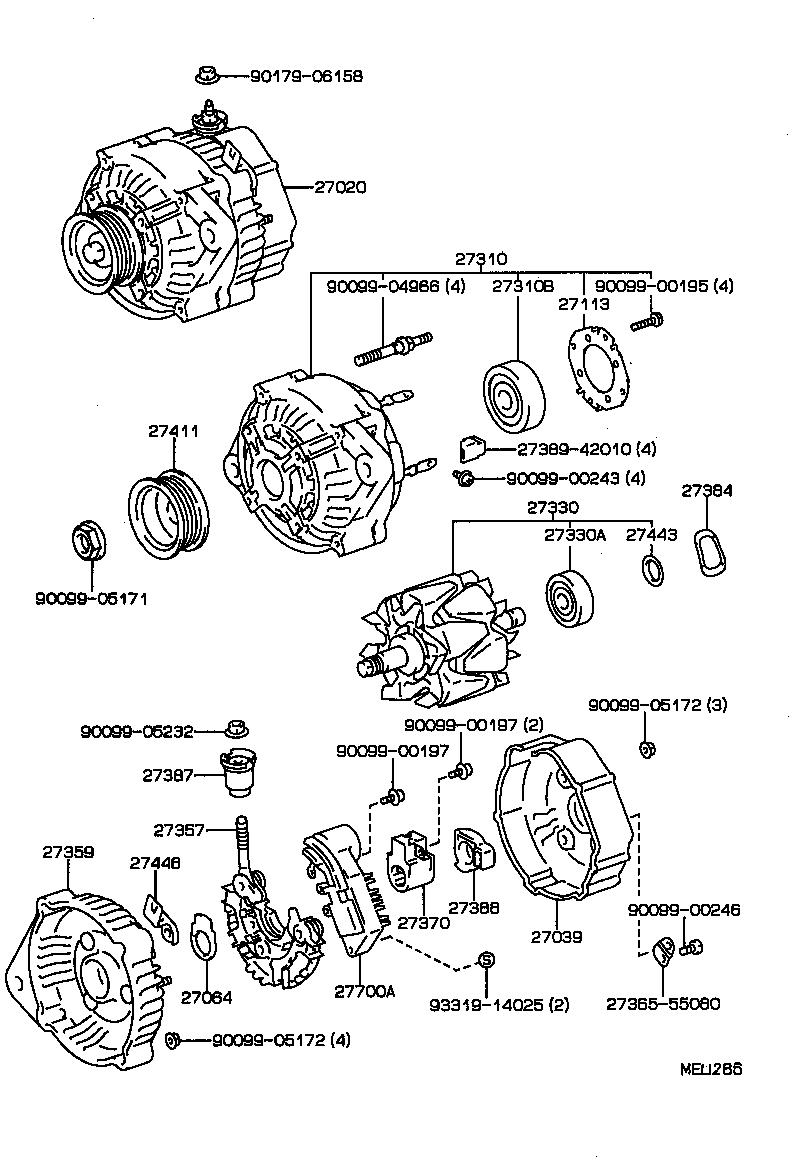

Figure MEQ632A MEQ632A 1990-07 → 1992-06 Figure MET886A MET886A 1992-06 → 1994-06 Figure MEQ633B MEQ633B 1990-07 → 1994-06 Figure MEQ634B MEQ634B 1990-07 → 1992-06 Figure MEQ634B MEQ634B 1990-07 → 1994-06 Figure MEQ635A MEQ635A 1990-07 → 1992-06 Figure MEU286 MEU286 1992-06 → 1994-06

Part groups

PNCDescription
27020 Alternator Assy
27036 Terminal Sub-assy, Lead Wire, Alternator
27039 Cover, Alternator Rear End
27064 Seal, Alternator Plate
27113 Plate, Bearing Retainer, Alternator
27310 Frame Assy, Drive End, Alternator
27310A Collar OR Nut(FOR ALTERNATOR DRIVE END FRAME)
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27310C Felt(FOR ALTERNATOR DRIVE END FRAME)
27313 Cover, Alternator Felt, Inner NO.2
27315 Cover, Alternator Felt, Inner NO.1
27330 Rotor Assy, Alternator
27330A Bearing(FOR ALTERNATOR ROTOR)
27330B Ring, Snap(FOR ALTERNATOR ROTOR)
27350 Frame Assy, Rectifier End
27350B Condenser, Alternator
27351 Bush(FOR ALTERNATOR RECTIFIER END FRAME)
27353 Holder, W/Rectifier Positive, Alternator
27357 Holder, Alternator, W/Rectifier
27359 Frame, Alternator Rectifier End
27370 Holder Assy, Alternator Brush
27371 Brush, Alternator
27372 Spring, Alternator Brush
27373 Holder, Alternator Brush, A
27384 Washer
27387 Insulator, Terminal
27388 Cover, Alternator Brush
27410 Stator Assy, Alternator
27411 Pulley, Alternator
27412 Collar, Spacer(FOR ALTERNATOR PULLEY)
27441 Fan, Alternator
27443 Cover, Alternator Bearing
27446 Clip, Alternator Cord
27700A Regulator Assy, Generator
29342A Packing, Vacuum Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
