Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Master Cylinder

15 part groups · 3 illustrations

Illustrations

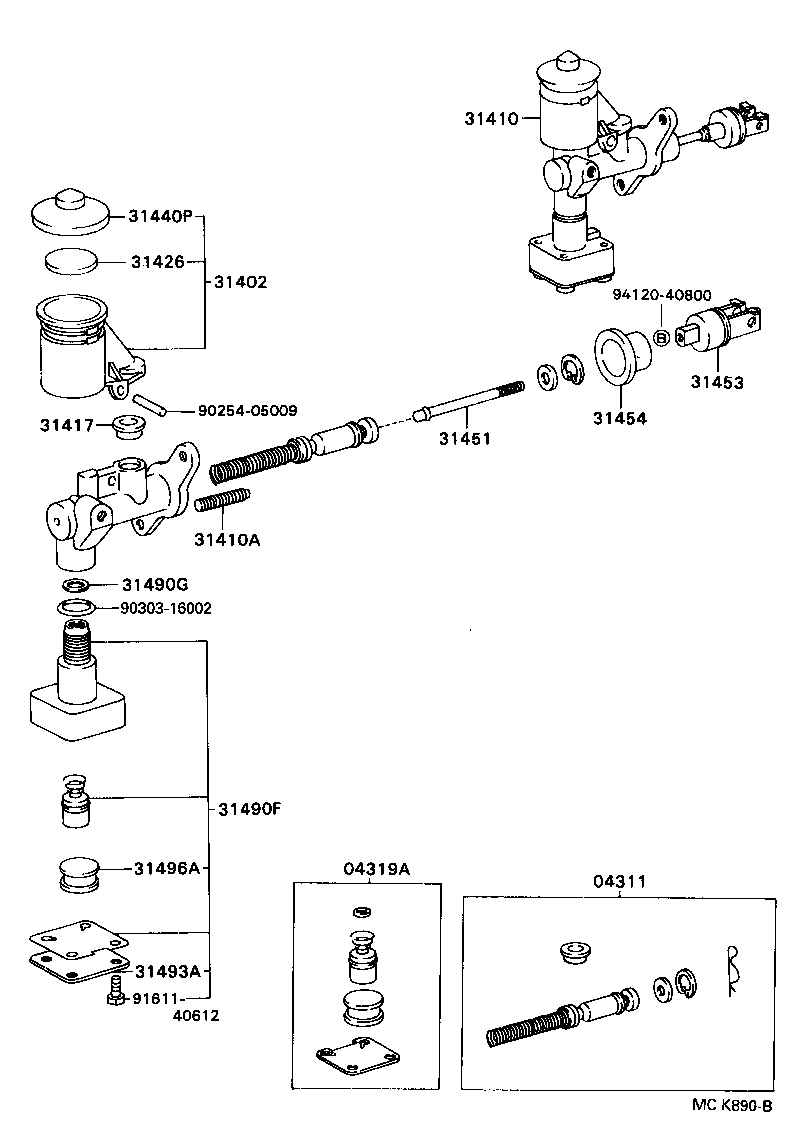

Figure 313743 313743 1990-07 → — Figure MCK890B MCK890B 1990-07 → 1994-02 Figure MCS352 MCS352 1994-02 → —

Part groups

PNCDescription
04311 Cylinder Kit, Clutch Master
04319A Cylinder Kit, Clutch Accumulator
31402 Reservoir Sub-assy, Clutch Master Cylinder
31410 Cylinder Assy, Clutch Master
31410A Bolt(FOR CLUTCH MASTER CYLINDER SETTING)
31417 Grommet, Clutch Reservoir
31426 Float, Clutch Master Cylinder Reservoir
31440P Cap Assy, Clutch Master Cylinder Reservoir Filler
31451 Rod, Clutch Master Cylinder Push
31453 Clevis, Clutch Master Cylinder Push Rod
31454 Boot, Clutch Master Cylinder
31490F Accumulator Assy, Master Cylinder
31490G Gasket(FOR CLUTCH MASTER CYLINDER ACCUMULATOR)
31493A Bracket, Clutch Accumulator
31496A Cushion, Clutch Accumulator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
