Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

11 part groups · 2 illustrations

Illustrations

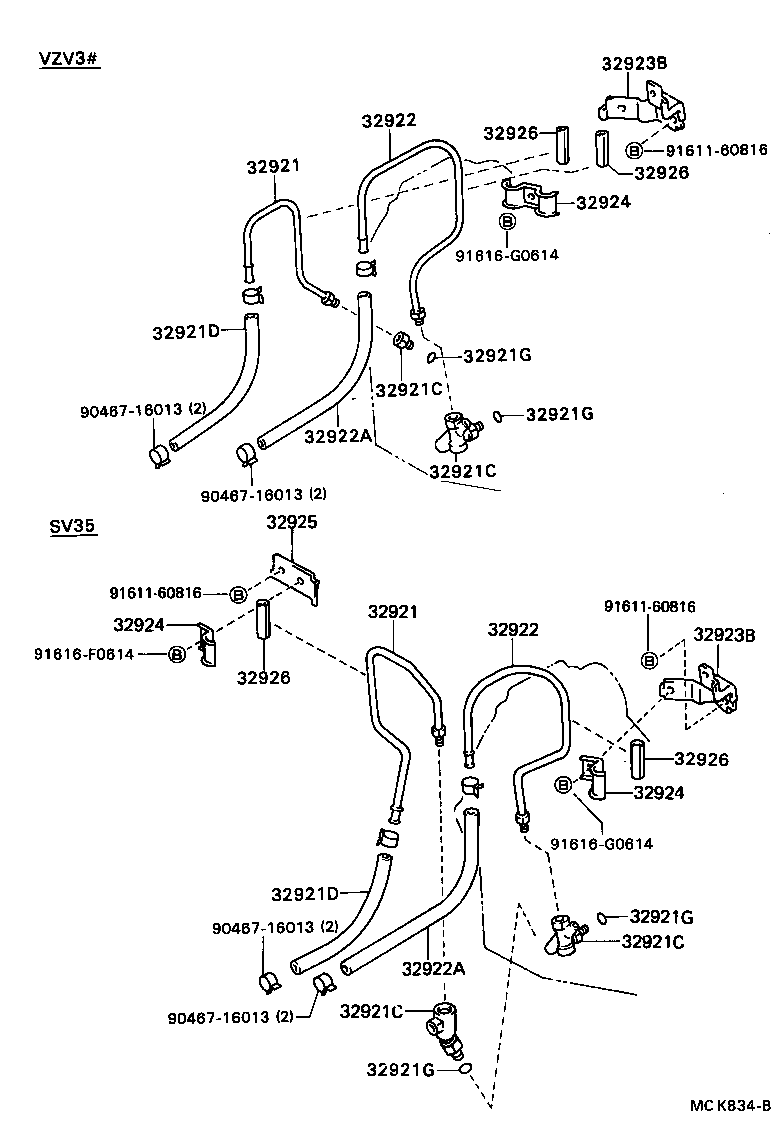

Figure MCK833C MCK833C 1990-07 → — Figure MCK834B MCK834B 1990-07 → —

Part groups

PNCDescription
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921D Hose(FOR OIL COOLER INLET)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32922 Tube, Oil Cooler Outlet, NO.1
32922A Hose(FOR OIL COOLER OUTLET)
32923B Clamp, Automatic Transmission Oil Cooler Tube, NO.1
32924 Clamp, Oil Cooler Tube, NO.2
32924A Clamp(FOR OIL COOLER TUBE, NO.2)
32925 Clamp, Oil Cooler Tube, NO.3
32926 Cushion, Oil Cooler Tube(ATM)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
