Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

25 part groups · 7 illustrations

Illustrations

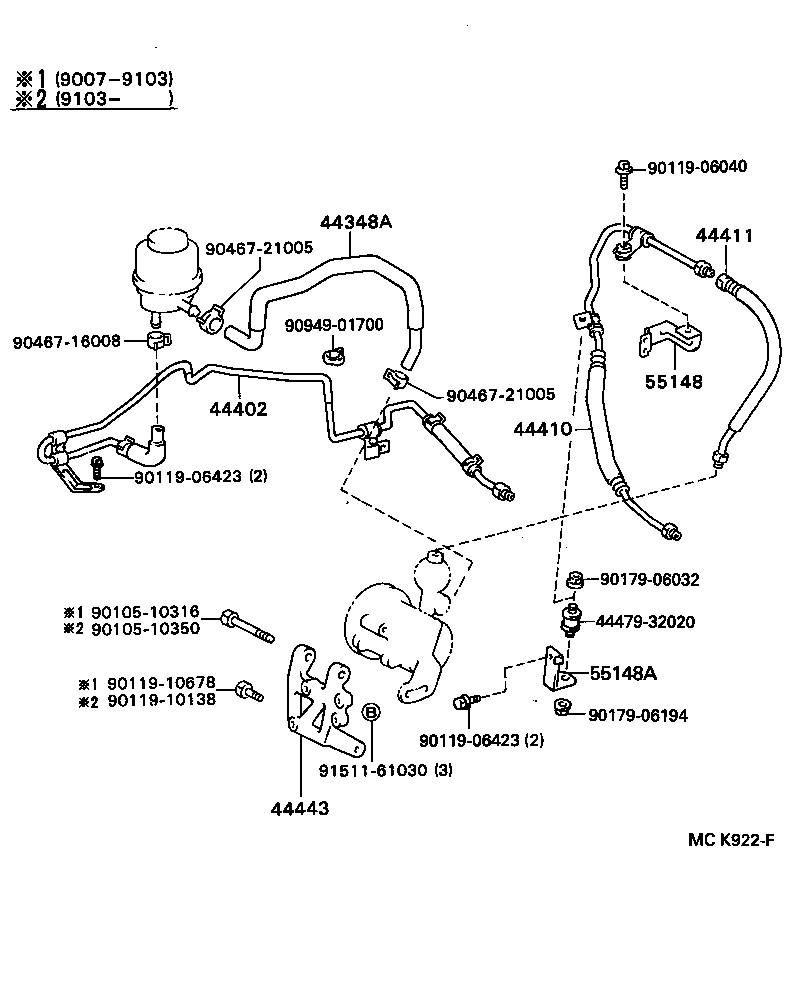

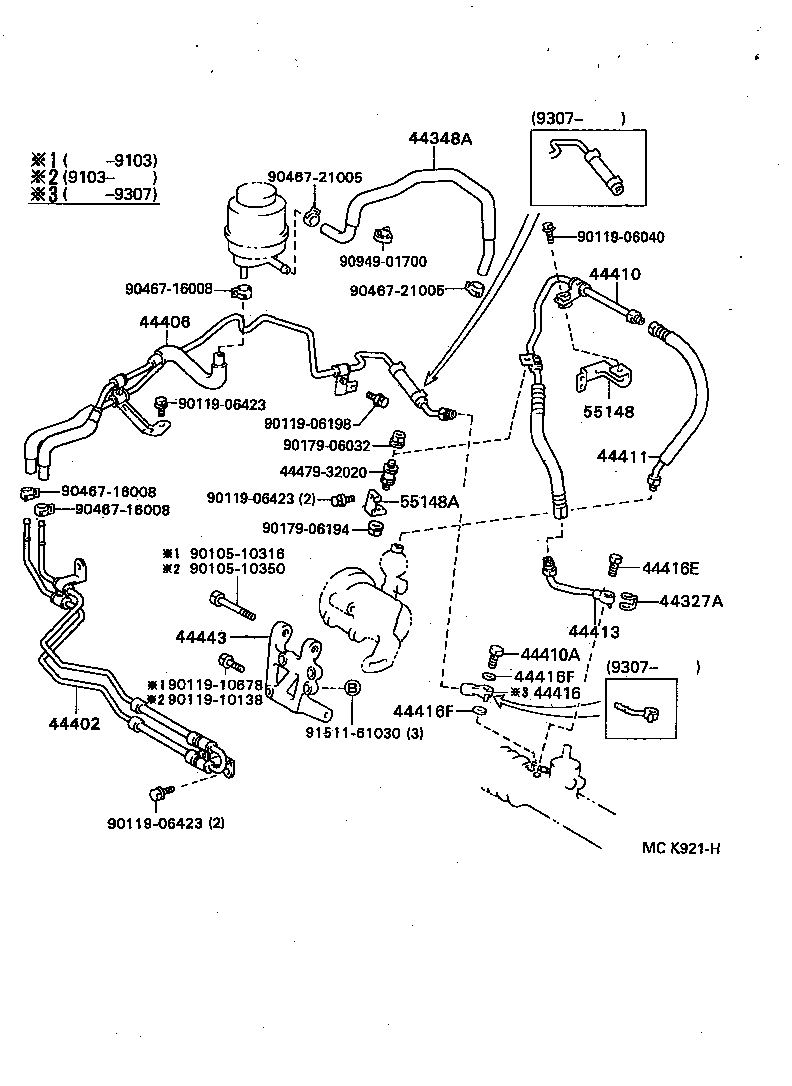

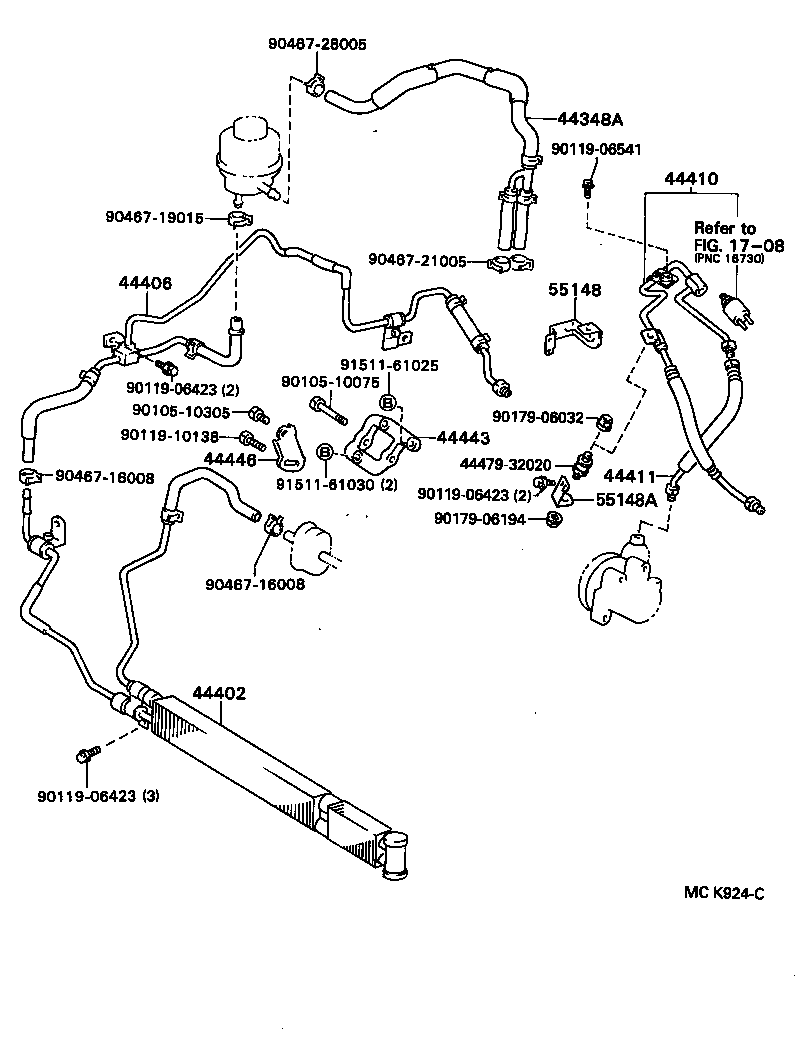

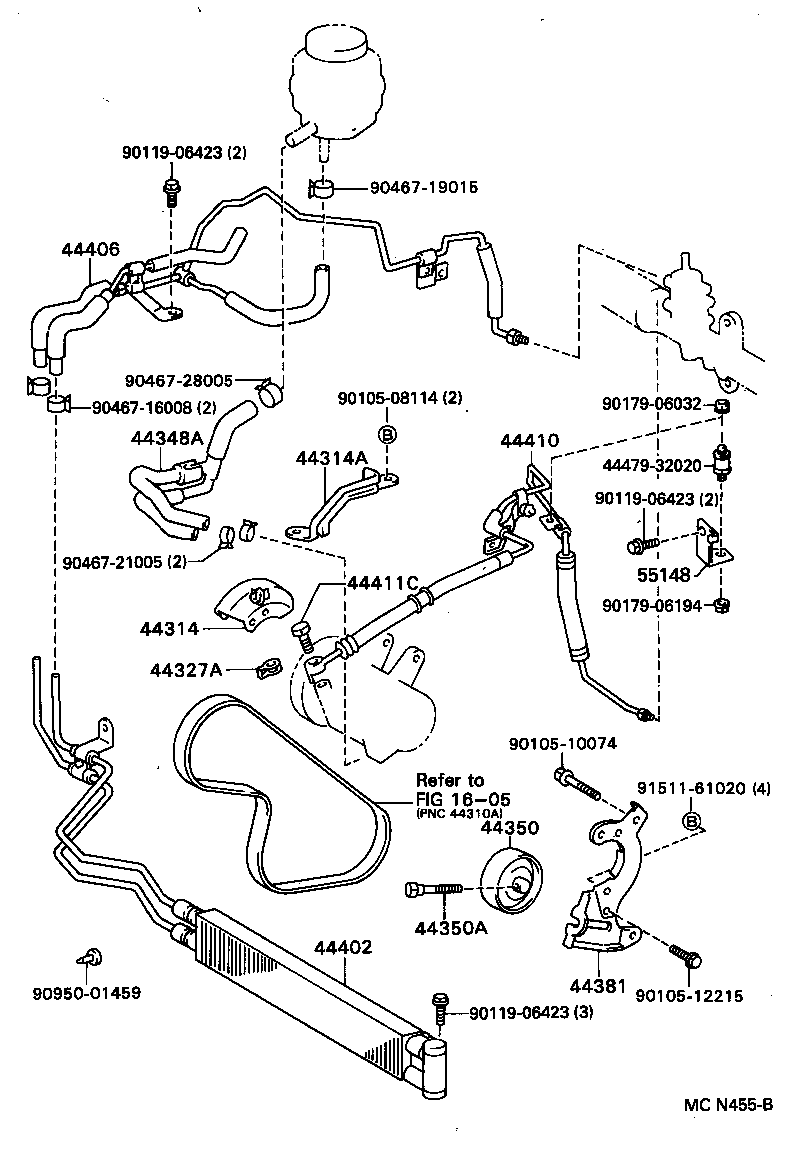

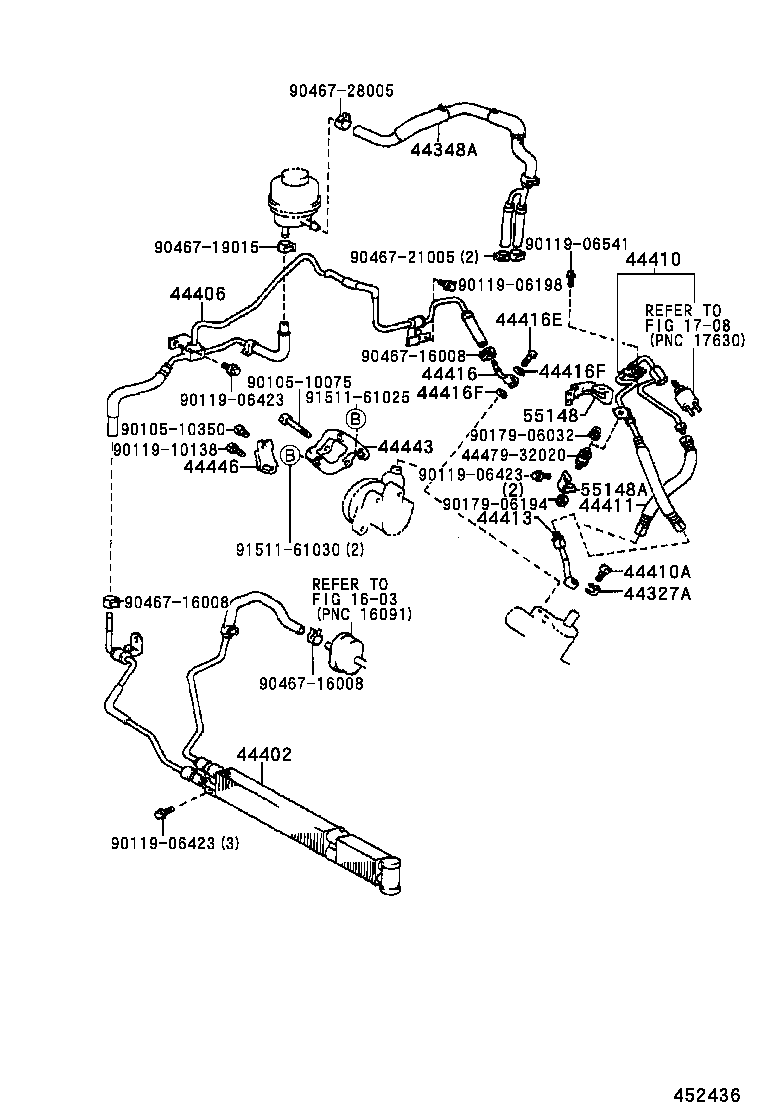

Figure MCK919D MCK919D 1990-07 → 1992-06 Figure MCN455B MCN455B 1992-06 → — Figure MCK920D MCK920D 1990-07 → — Figure MCK921H MCK921H 1990-07 → — Figure MCK922F MCK922F 1990-07 → — Figure 452436 452436 1990-07 → — Figure MCK924C MCK924C 1990-07 → —

Part groups

PNCDescription
44314 Cover, Pulley
44314A Cover, Pulley, NO.2
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44350A Bolt(FOR POWER STEERING IDLE PULLEY)
44381 Bracket, Power Steering Idle Pulley
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44404 Filter Sub-assy, Power Steering Oil
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44412D Hose, Return, NO.1
44412E Hose, Return, NO.2
44413 Tube, Pressure Feed, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416E Bolt, Union(FOR RETURN TUBE)
44416F Gasket(FOR RETURN TUBE)
44441 Bracket, Pump, Front
44443 Bracket, Pump
44446 Strut, Adjusting
55148 Bracket, Power Steering Tube, N0.1
55148A Bracket, Power Steering Tube, N0.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
