Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

21 part groups · 5 illustrations

Illustrations

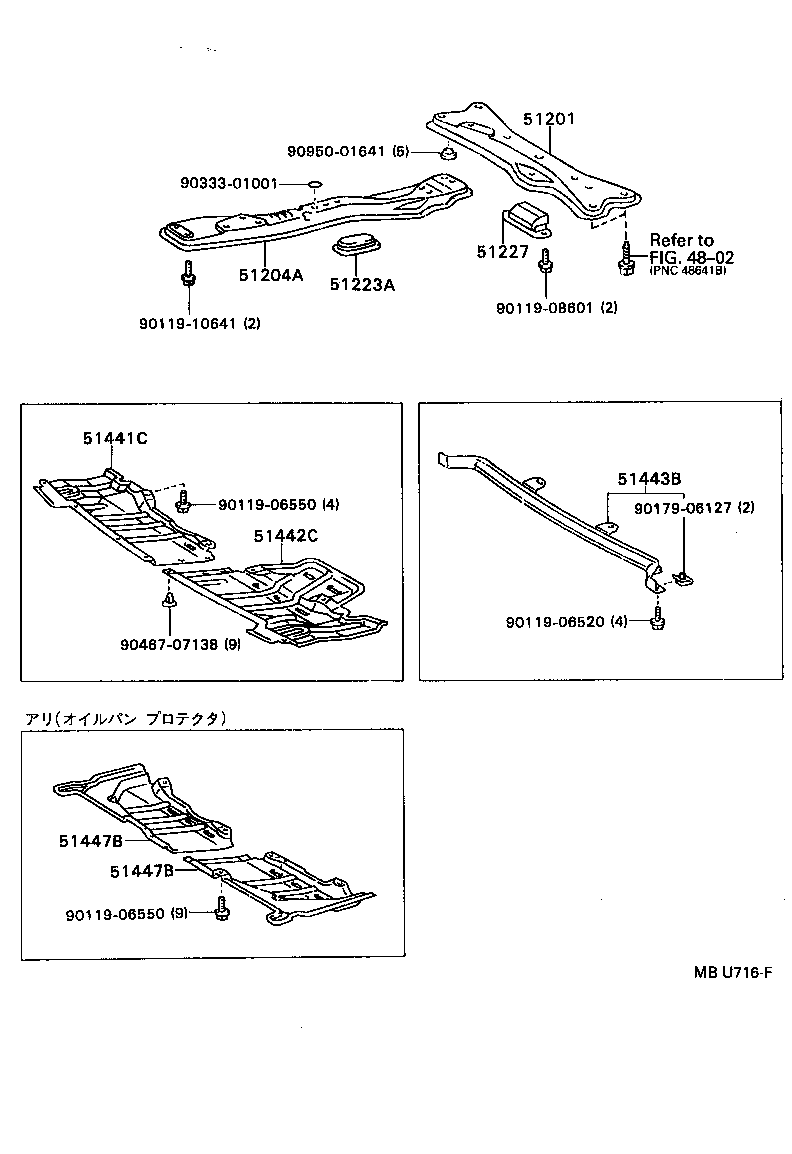

Figure MBW833D MBW833D 1990-07 → — Figure MBU716F MBU716F 1990-07 → — Figure MBU717C MBU717C 1990-07 → — Figure MBU718D MBU718D 1990-07 → — Figure MBU719A MBU719A 1990-07 → —

Part groups

PNCDescription
51073 Bracket Sub-assy, Rear Body Mounting, NO.2 RH
51074 Bracket Sub-assy, Rear Body Mounting, NO.2 LH
51201 Crossmember Sub-assy, Front Suspension
51204A Member Sub-assy, Engine Mounting, Center
51206A Member Sub-assy, Rear Suspension
51223A Cover, Engine Mounting Hole
51227 Weight, Front Suspension Member Damper
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51443B Cover, Engine Under, NO.3
51447B Protector, Oil Pan
51967 Hook, Transport, Rear
52271D Cushion, Rear Suspension Member Body Mounting, Front
52272 Stopper, Rear Suspension Member, Upper
52273A Stopper, Rear Suspension Member, Lower RH
52274A Stopper, Rear Suspension Member, Lower LH
52275A Cushion, Rear Suspension Member Body Mounting, Rear
52277 Retainer, Rear Suspension Member Lower Stopper, RH
52278A Retainer, Rear Suspension Menber Lower Stopper, LH
52295 Brace, Rear Suspension Member, RH
52296 Brace, Rear Suspension Member, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
