Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

10 part groups · 6 illustrations

Illustrations

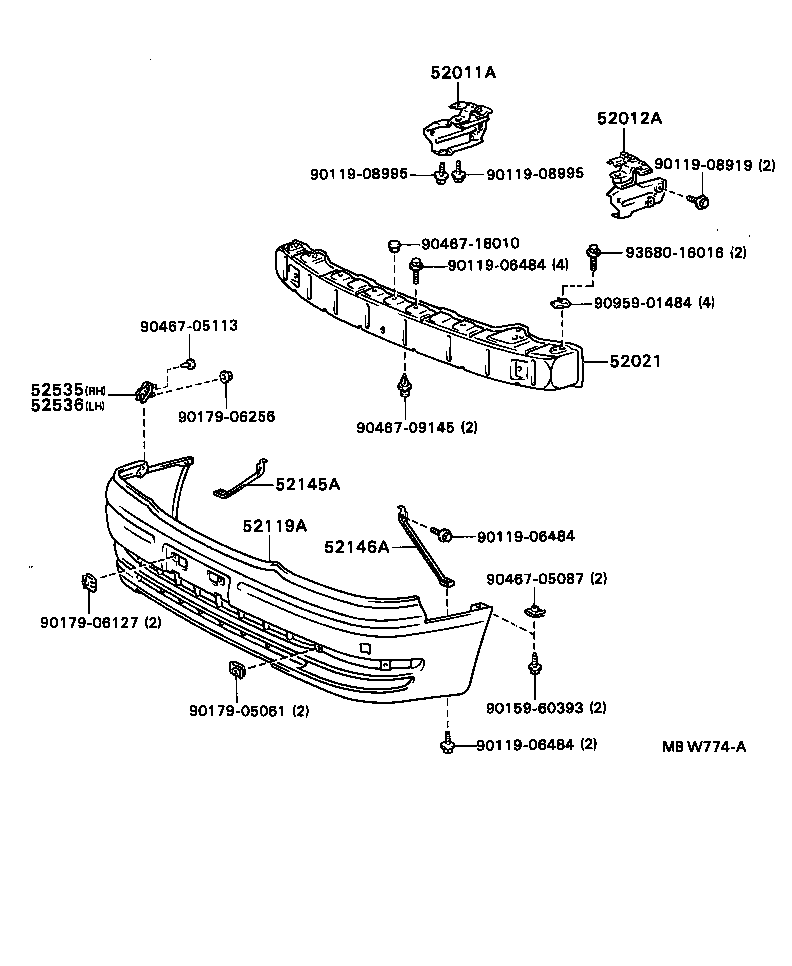

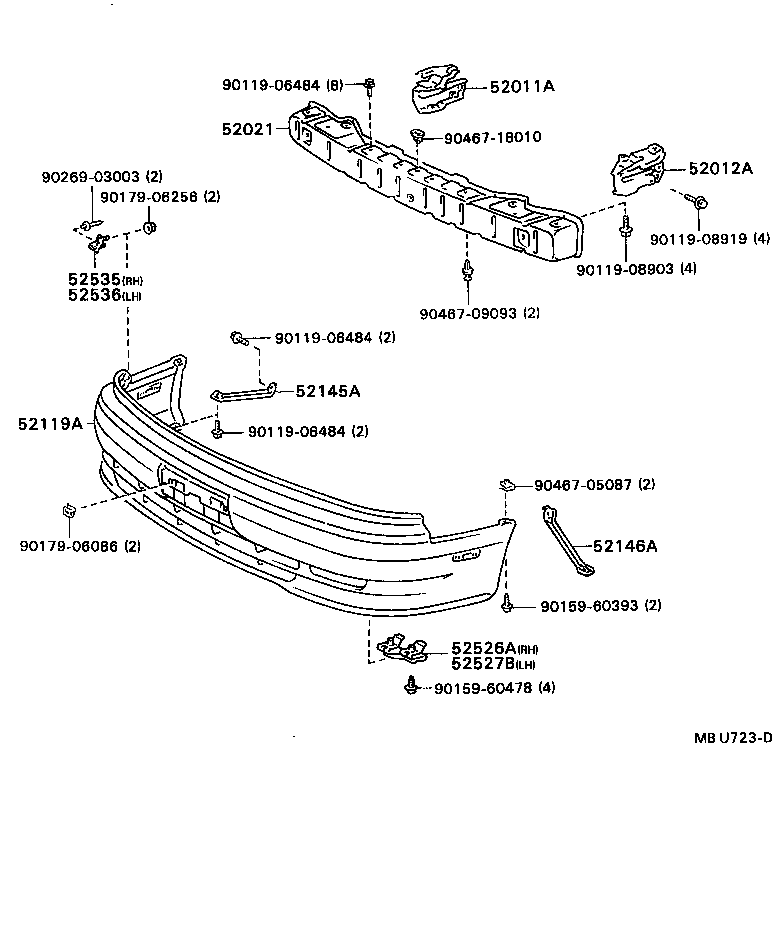

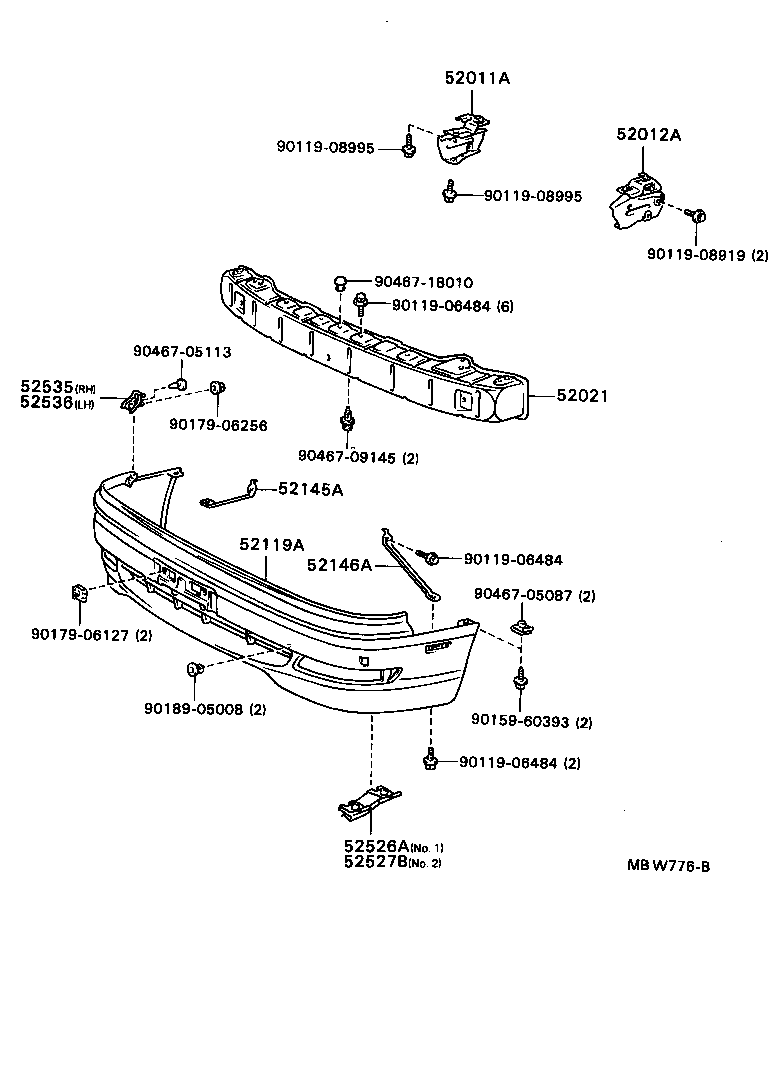

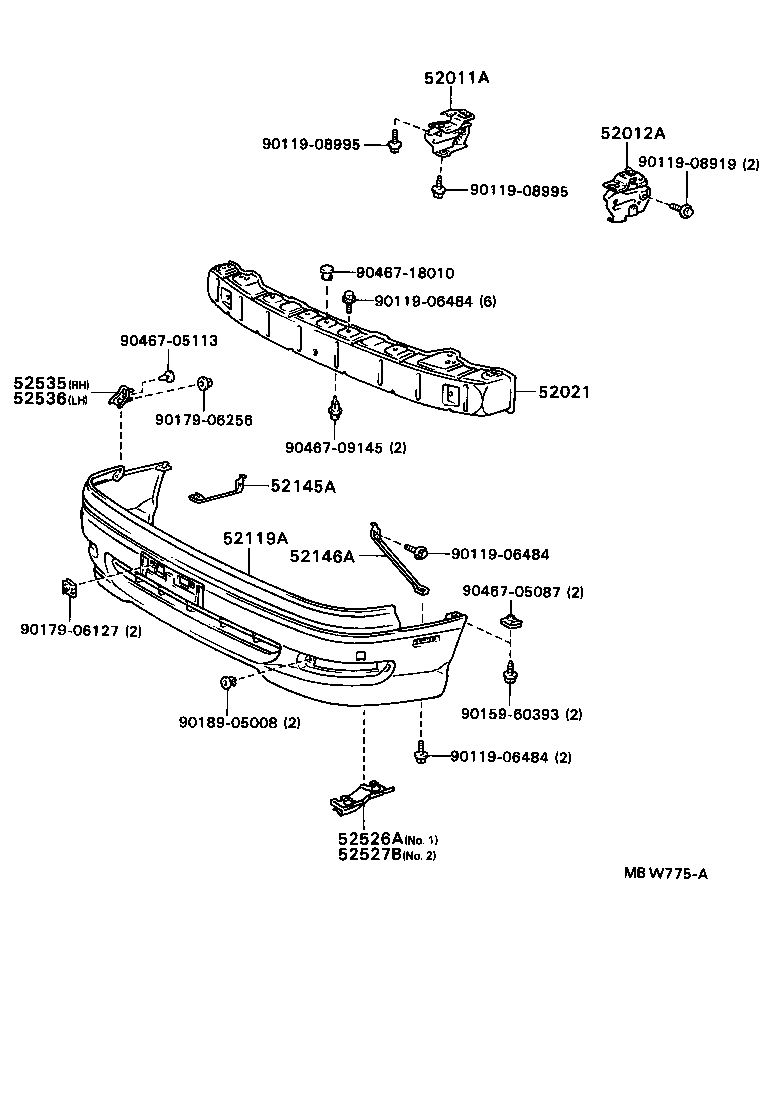

Figure MBU721D MBU721D 1990-07 → 1992-06 Figure MBU722C MBU722C 1990-07 → 1992-06 Figure MBU723D MBU723D 1990-07 → 1992-06 Figure MBW774A MBW774A 1992-06 → — Figure MBW775A MBW775A 1992-06 → — Figure MBW776B MBW776B 1992-06 → —

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52021 Reinforcement Sub-assy, Front Bumper
52119A Cover, Front Bumper
52145A Stay, Front Bumper, NO.2 RH
52146A Stay, Front Bumper, NO.2 LH
52526A Retainer, Front Bumper, Lower NO.1
52527B Retainer, Front Bumper, Lower NO.2
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
