Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

4 part groups · 4 illustrations

Illustrations

Figure MBU732A

MBU732A 1990-07 → 1992-06

Figure MBU727C

MBU727C 1990-07 → 1992-06

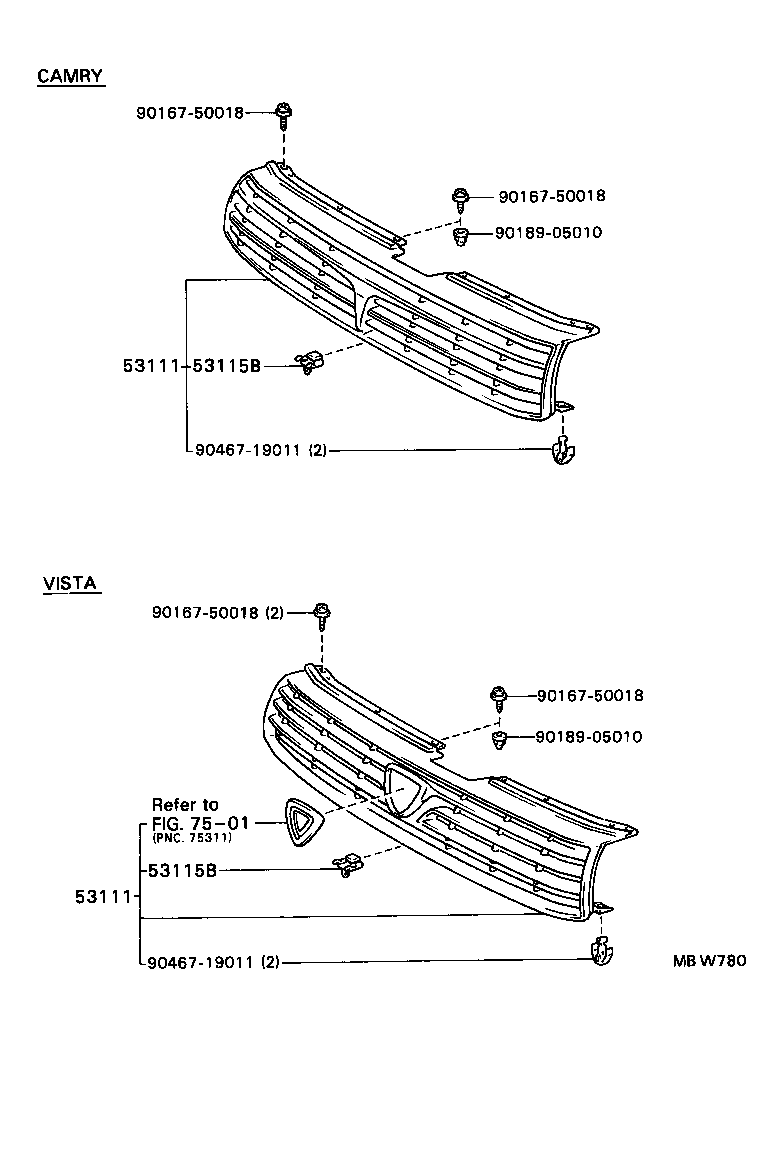

Figure MBW780

MBW780 1992-06 → —

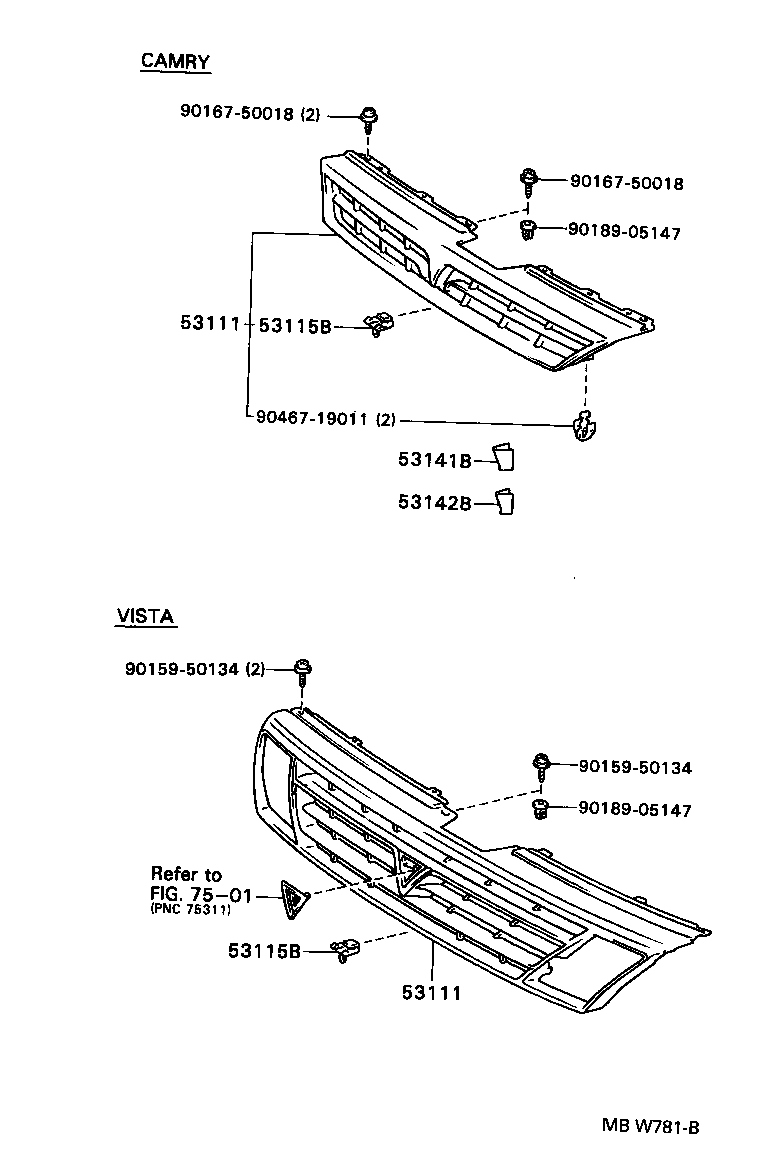

Figure MBW781B

MBW781B 1992-06 → —

Part groups

PNC	Description
53111	Grille, Radiator
53115B	Bracket, Radiator Grille
53141B	Garnish, Radiator Grille, NO.1
53142B	Radiator Grille Garnish, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
