Toyota Camry/Vista
1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan
Discontinued model
Data version 1994-11
Console Box & Bracket

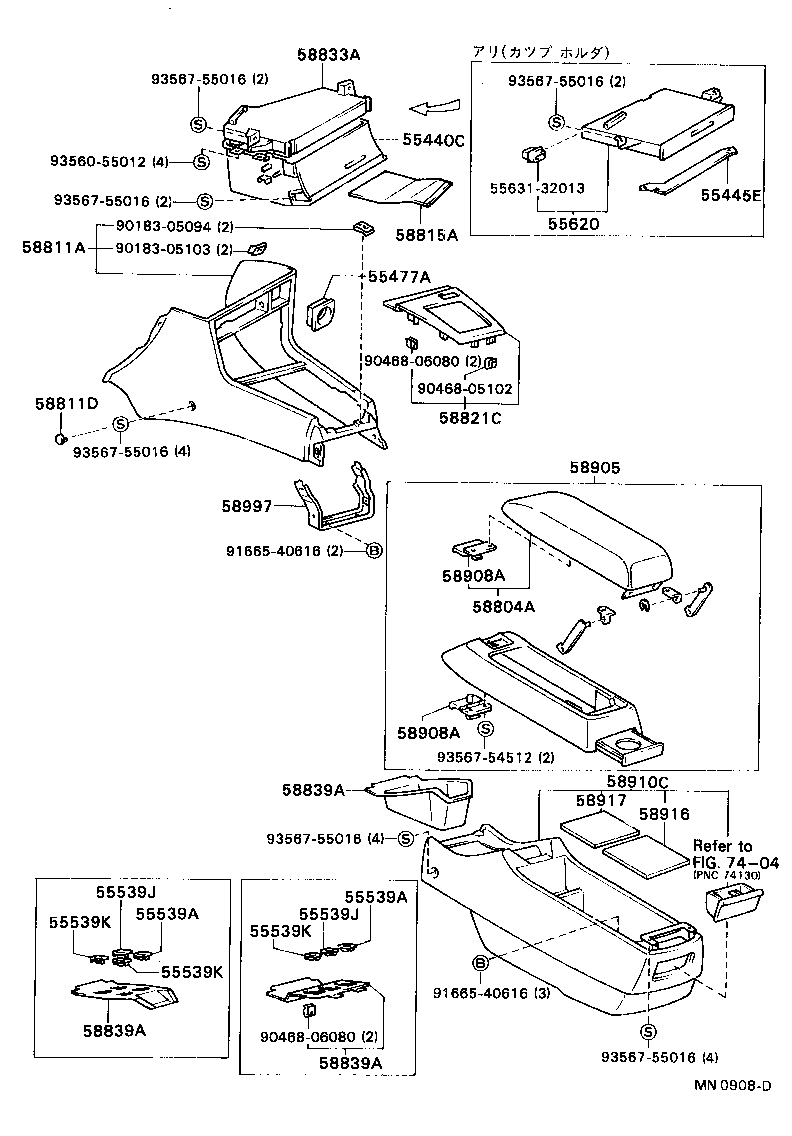

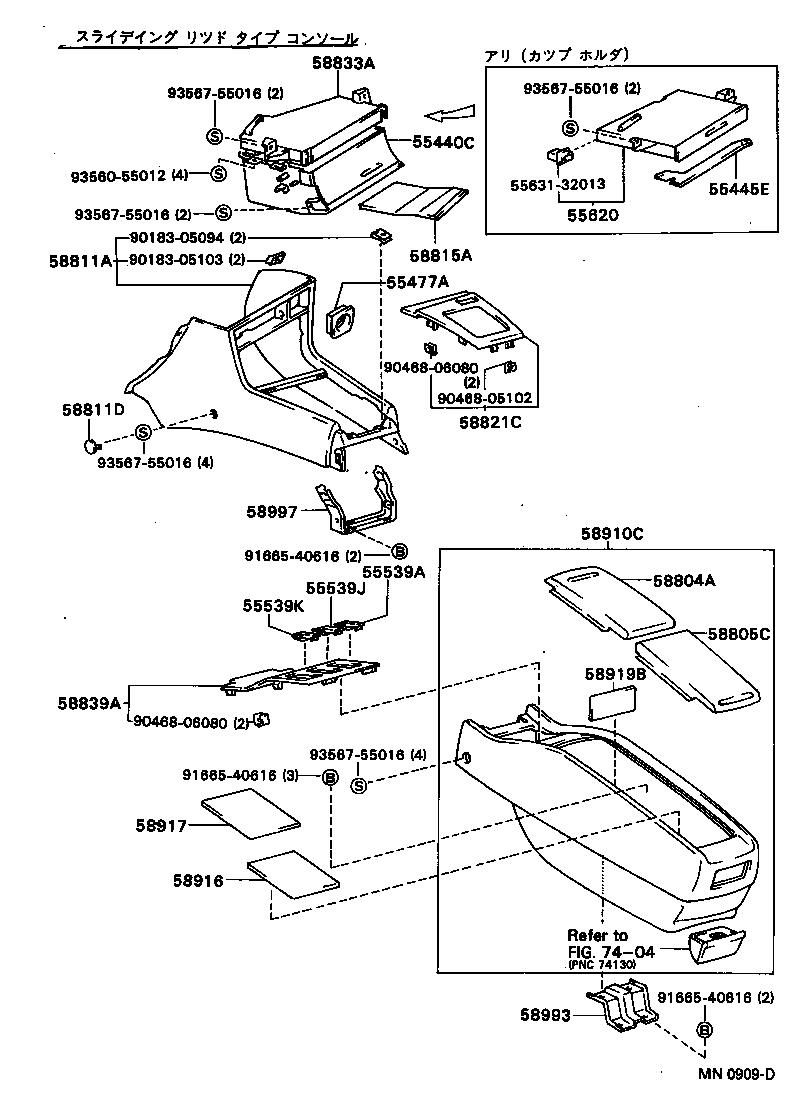

25 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 55440C | Box Assy, Instrument Panel |
| 55445E | Plate, Instrument Panel Finish |
| 55477A | Bezel, Cigarette Lighter Hole |
| 55539A | Cover, Spare Switch Hole |
| 55539J | Cover, Spare Switch Hole |
| 55539K | Cover, Spare Switch Hole |
| 55620 | Holder Assy, Instrument Panel Cup |
| 58804A | Panel Sub-assy, Console, Upper |
| 58805C | Panel Sub-assy, Console, Upper Rear |
| 58811A | Box, Console, Front |
| 58811D | Clip(FOR CONSOLE BOX) |
| 58815A | Carpet, Console Box |
| 58821C | Panel, Console, Upper |
| 58833A | Cover, Console, Upper |
| 58839A | Cover, Console Box Hole |
| 58905 | Door Sub-assy, Console Compartment |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58910C | Box Assy, Console, Rear |
| 58916 | Mat, Box Bottom |
| 58917 | Mat, Box Bottom, NO.2 |
| 58919B | Plate, Console Box |
| 58964 | Stopper, Console Compartment Door, NO.1 |
| 58965A | Stopper, Console Compartment Door, NO.2 |
| 58993 | Bracket, Console Box Mounting, Rear |
| 58997 | Bracket, Console Box Mounting, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
