Toyota Camry/Vista
1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan
Discontinued model
Data version 1994-11

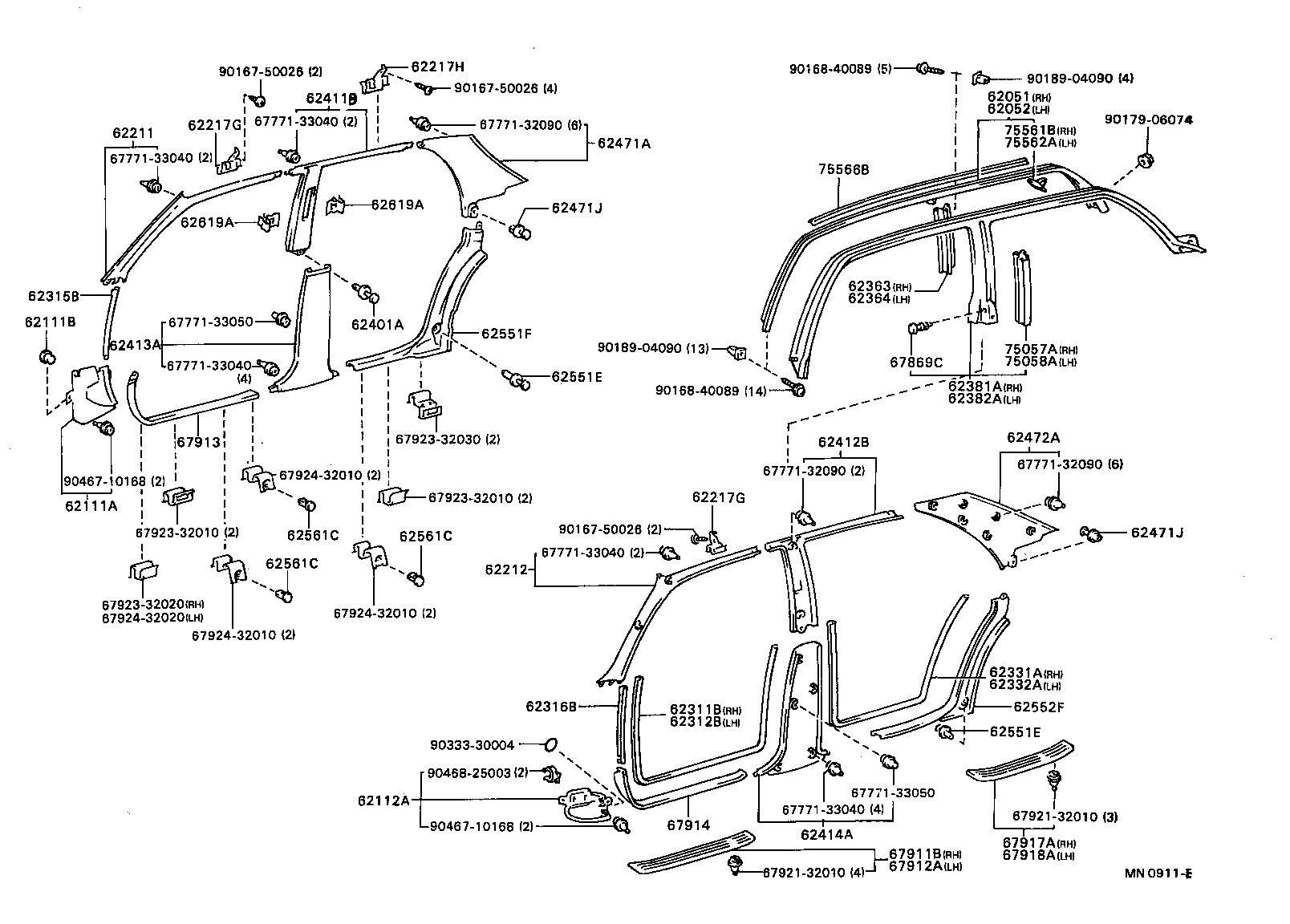

Inside Trim Board & Door Opening Trim Moulding
46 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62051 | Retainer Sub-assy, Roof Side Weatherstrip, Front RH |
| 62052 | Retainer Sub-assy, Roof Side Weatherstrip, Front LH |
| 62111A | Trim Sub-assy, Cowl Side, RH |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62112A | Trim Sub-assy, Cowl Side, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62217H | Clip, Center Piller Garnish |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62315B | Cover, Front Door Opening Trim, RH |
| 62316B | Cover, Front Door Opening Trim, LH |
| 62331A | Weatherstrip, Rear Door Opening Trim, RH |
| 62332A | Weatherstrip, Rear Door Opening Trim, LH |
| 62363 | Retainer, Roof Side Rail Weatherstrip, Rear RH |
| 62364 | Retainer, Roof Side Rail Weatherstrip, Rear LH |
| 62381 | Weatherstrip, Roof Side Rail, Front RH |
| 62381A | Weatherstrip, Roof Side Rail, RH |
| 62382 | Weatherstrip, Roof Side Rail, Front LH |
| 62382A | Weatherstrip, Roof Side Rail, LH |
| 62401A | Clip (FOR CENTER PILLAR GARNISH PANEL, UPPER) |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62471J | Clip (FOR ROOF SIDE GARNISH) |
| 62472A | Garnish, Roof Side, Inner LH |
| 62551E | Clip(FOR REAR SEAT SIDE GARNISH) |
| 62551F | Garnish, Rear Seat Side, RH |
| 62552F | Garnish, Rear Seat Side, LH |
| 62561C | Clip (FOR ROCKER PANEL INNER PROTECTOR) |
| 62619A | Plate, Side Trim Set |
| 67869C | Clip, Roof Side Rail Weatherstrip |
| 67911B | Plate, Front Door Scuff, Outside, RH |
| 67912A | Plate, Front Door Scuff, Outside LH |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
| 75057A | Garnish Sub-assy, Center Pillar, Outer RH |
| 75058A | Garnish Sub-assy, Center Pillar, Outer LH |
| 75561B | Clip, Roof Drip Side Finish Moulding, NO.1 |
| 75562A | Clip, Roof Drip Side Finish Moulding, NO.2 |
| 75566B | Seal, Roof Drip Side Finish Moulding, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
