Toyota Camry/Vista
1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan
Discontinued model
Data version 1994-11

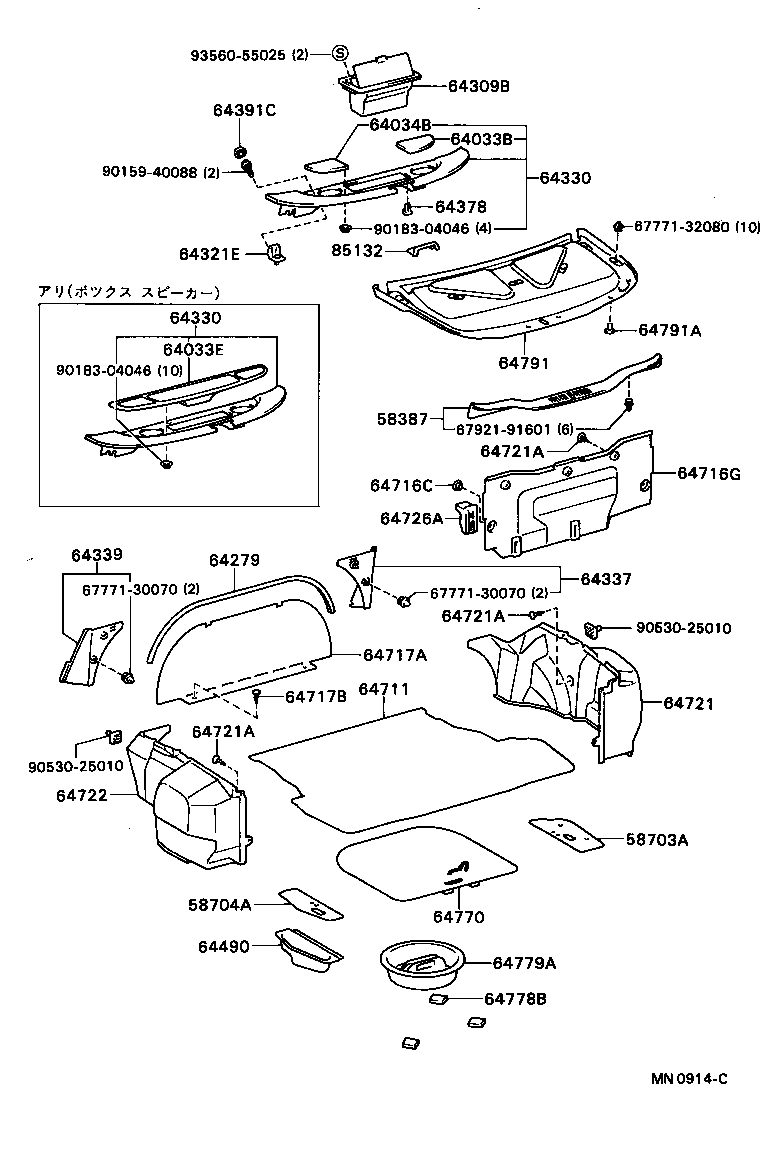

Package Tray Panel & Luggage Compartment Mat
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387 | Plate, Rear Floor Finish |
| 58703A | Cover Sub-assy, Luggage Compartment Side, RH |
| 58704A | Cover Sub-assy, Luggage Compartment Side, LH |
| 64033B | Grille Sub-assy, Rear Speaker, RH |
| 64033E | Grille Sub-assy, Rear Speaker |
| 64034B | Grille Sub-assy, Rear Speaker, LH |
| 64279 | Protector, Room Partition |
| 64309B | Pocket Sub-assy, Package Tray Trim |
| 64321E | Bracket, Package Tray Trim |
| 64330 | Panel Assy, Package Tray Trim |
| 64337 | Garnish, Package Tray Trim, RH |
| 64339 | Garnish, Package Tray Trim, LH |
| 64378 | Grommet, Package Tray Trim Lid |
| 64391C | Cap |
| 64490 | Tray Assy, Luggage Compartment Side |
| 64711 | Mat, Luggage Compartment Floor |
| 64716C | Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) |
| 64716G | Cover, Luggage Compartment Trim, Rear |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64717B | Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) |
| 64721 | Cover, Luggage Compartment Trim, Inner RH |
| 64721A | Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) |
| 64722 | Cover, Luggage Compartment Trim, Inner LH |
| 64726A | Clip, Luggage Trim, Rear |
| 64770 | Cover Assy, Spare Wheel |
| 64778B | Protector, Spare Wheel |
| 64779A | Stopper, Spare Wheel Cover |
| 64791 | Cover, Back Door Trim |
| 64791A | Clip(FOR BACK DOOR TRIM) |
| 85132 | Cover, Rear Wiper Shaft |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
