Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

42 part groups · 6 illustrations

Illustrations

MN0923 1990-07 → —

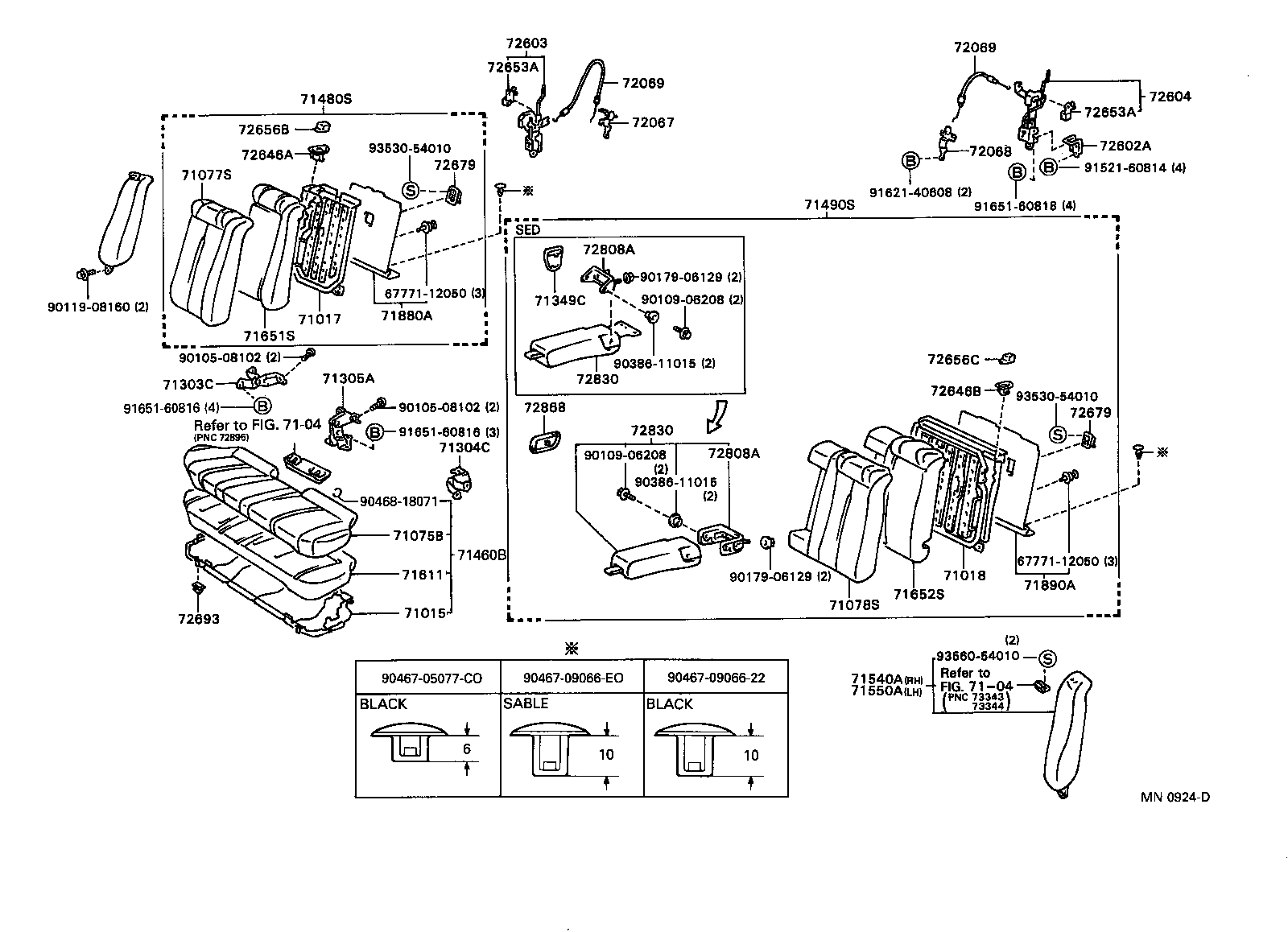

MN0924D 1990-07 → —

MN0924D 1991-05 → 1994-06

MN0924D 1992-12 → 1993-09

MN0924D 1993-04 → 1993-07

MN0924D 1993-12 → 1994-06

Part groups

PNC	Description
71015	Frame Sub-assy, Rear Seat Cushion
71017	Frame Sub-assy, Rear Seatback, RH
71017A	Frame Sub-assy, Rear Seatback
71018	Frame Sub-assy, Rear Seatback, LH
71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B	Cover, Rear Seatback (FOR BENCH TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71303C	Hinge Sub-assy, Rear Seatback, RH
71304C	Hinge Sub-assy, Rear Seatback, LH
71305A	Hinge Sub-assy, Rear Seatback, Center
71349C	Cover, Rear Seatback Hinge
71398A	Holder, Rear Seatback
71460B	Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B	Back Assy, Rear Seat (FOR BENCH TYPE)
71480S	Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S	Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71540A	Back Assy, Rear Side Seat, RH
71550A	Back Assy, Rear Side Seat, LH
71611	Pad, Rear Seat Cushion
71651B	Pad, Rear Seatback(FOR BENCH TYPE)
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71667A	Pad, Rear Seatback, Center A
71880A	Carpet Assy, Rear Seatback Board, RH
71890A	Carpet Assy, Rear Seatback Board, LH
72067	Lever Sub-assy, Rear Back Lock Control, RH
72068	Lever Sub-assy, Rear Back Lock Control, LH
72069	Cable Sub-assy, Rear Seatback Lock Control
72602A	Striker Sub-assy, Rear Seatback Lock, LH
72603	Lock Sub-assy, Rear Seatback, RH
72604	Lock Sub-assy, Rear Seatback, LH
72646A	Grommet, Rear Seatback Stop Button
72646B	Grommet, Rear Seatback Stop Button
72653A	Snap, Rear Seatback Lock Rod
72656B	Button, Rear Seatback Stop Release
72656C	Button, Rear Seatback Stop Release
72679	Bezel, Rear Seatback Lock Control
72693	Hook, Rear Seat Cushion Lock
72808A	Bracket Sub-assy, Seat Center Armrest
72830	Armrest Assy, Rear Seat, Center
72868	Cover, Center Armrest Hinge, RH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
