Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

10 part groups · 2 illustrations

Illustrations

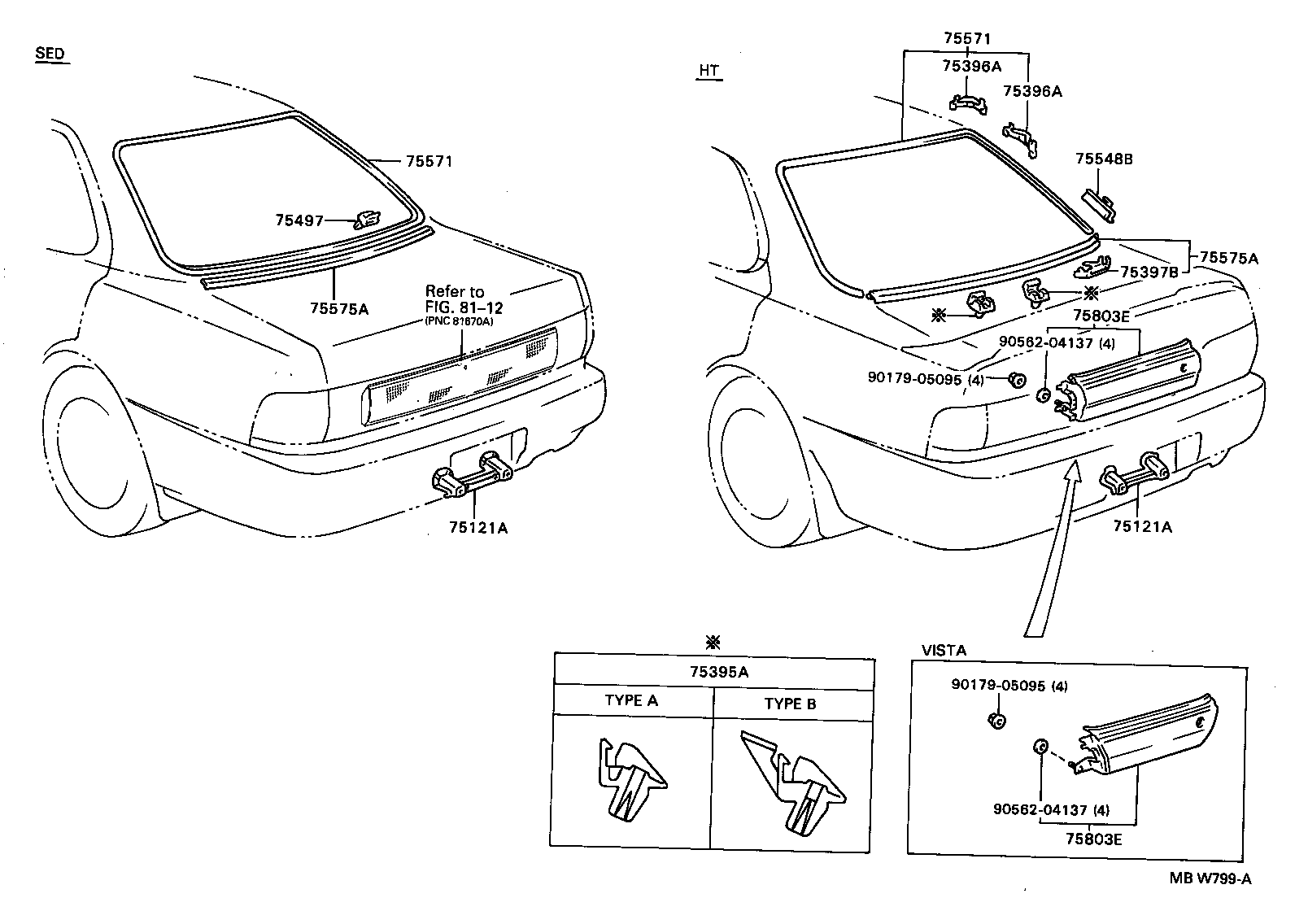

Figure MBU800C MBU800C 1990-07 → 1992-06 Figure MBW799A MBW799A 1992-06 → —

Part groups

PNCDescription
75121A Bracket, Rear License Plate
75395A Clip, Outside Moulding, NO.1
75396A Clip, Outside Moulding, NO.2
75397B Clip, Back Window Moulding, NO.3
75497 Clip, Back Window Outside Moulding, NO.2
75548B Fastener, Back Window Outside Moulding
75571 Moulding, Back Window, Outside Upper
75575A Moulding, Back Window, Outside Lower
75803E Moulding Sub-assy, Lower Back Panel
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
