Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

24 part groups · 2 illustrations

Illustrations

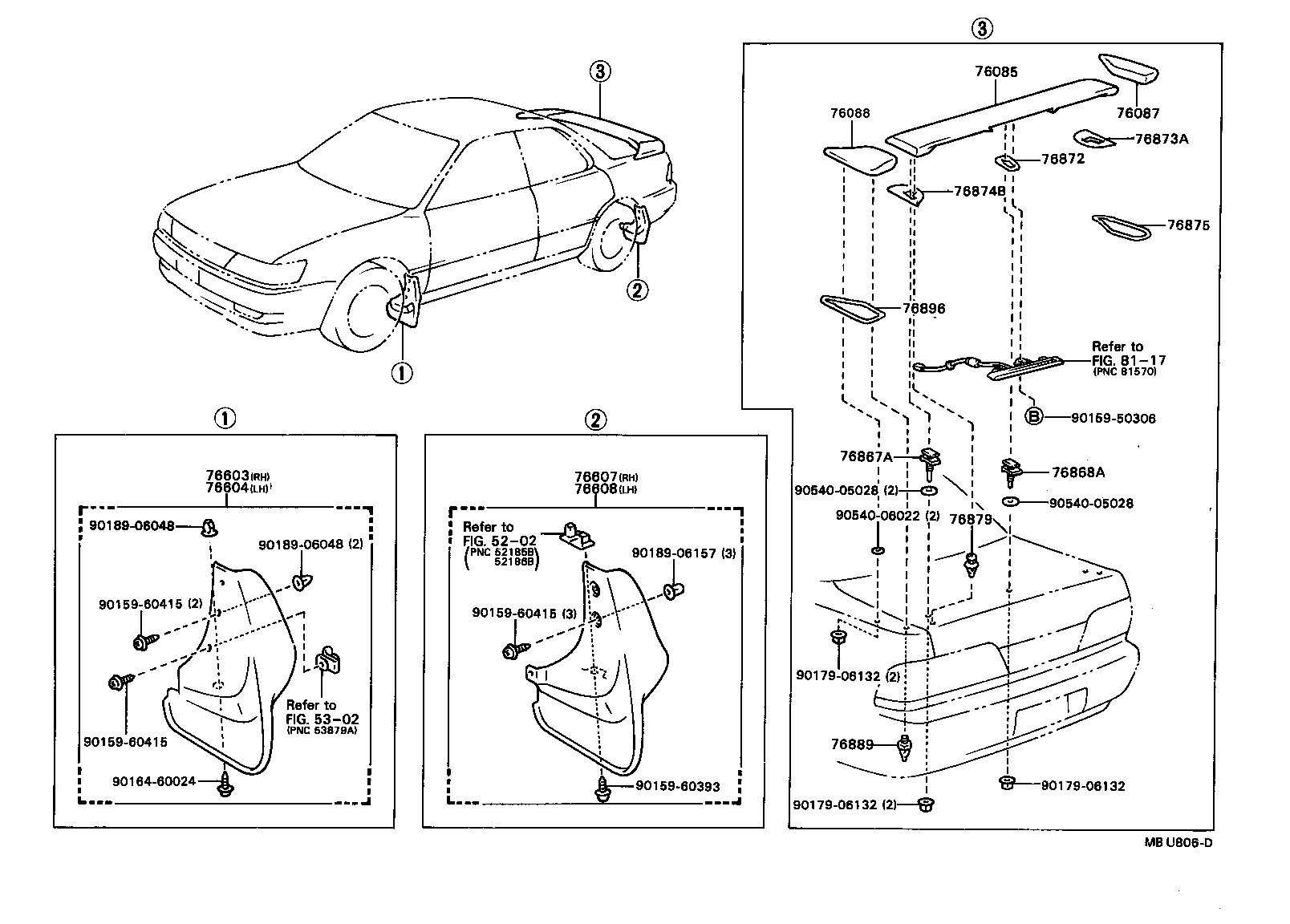

Figure MBU805G MBU805G 1990-07 → — Figure MBU806D MBU806D 1990-07 → —

Part groups

PNCDescription
75392D Retainer, Outside Moulding
76085 Spoiler Sub-assy, Rear
76087 Spoiler Sub-assy, Rear NO.1
76088 Spoiler Sub-assy, Rear NO.2
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76867A Retainer, Rear Spoiler, NO.3
76868A Retainer, Rear Spoiler, NO.4
76872 Protector, Rear Spoiler, NO.1
76872B Protector, Rear Spoiler, Center
76873 Protector, Rear Spoiler, NO.2
76873A Protector, Rear Spoiler, RH
76874B Protector, Rear Spoiler, LH
76875 Protector, Rear Spoiler, NO.4
76879 Clip, Rear Spoiler, NO.1
76887B Protector, Rear Spoiler Side, NO.2
76889 Clip, Rear Spoiler, NO.2
76889B Seal, Rear Spoiler, NO.1
76891 Spoiler, Rear NO.1
76896 Protector, Rear Spoiler, NO.6
76897 Protector, Rear Spoiler, Side RH
76898 Protector, Rear Spoiler, Side LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
