Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

13 part groups · 6 illustrations

Illustrations

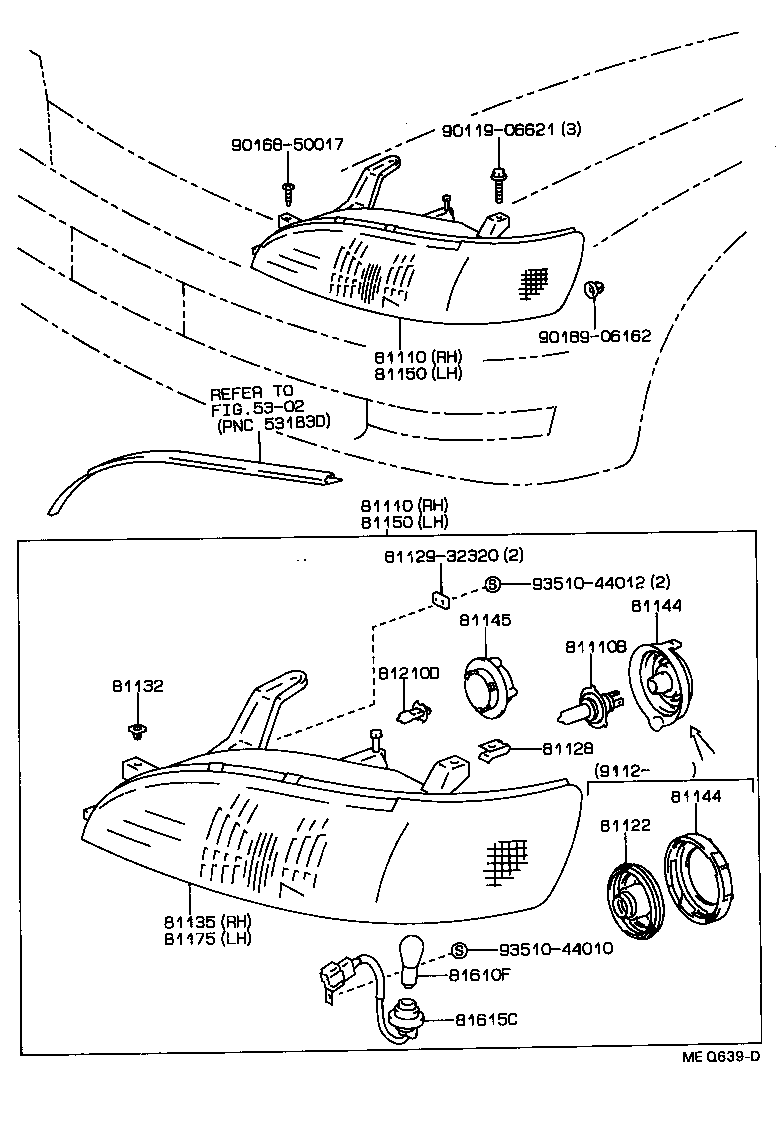

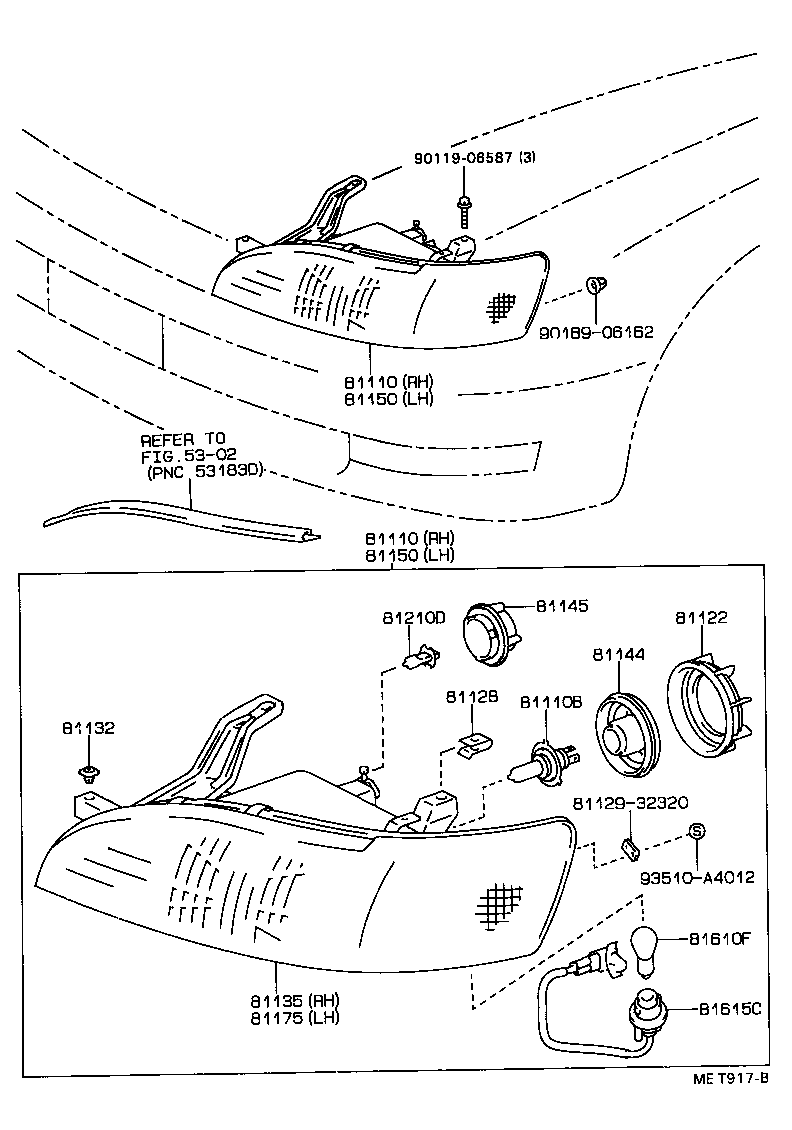

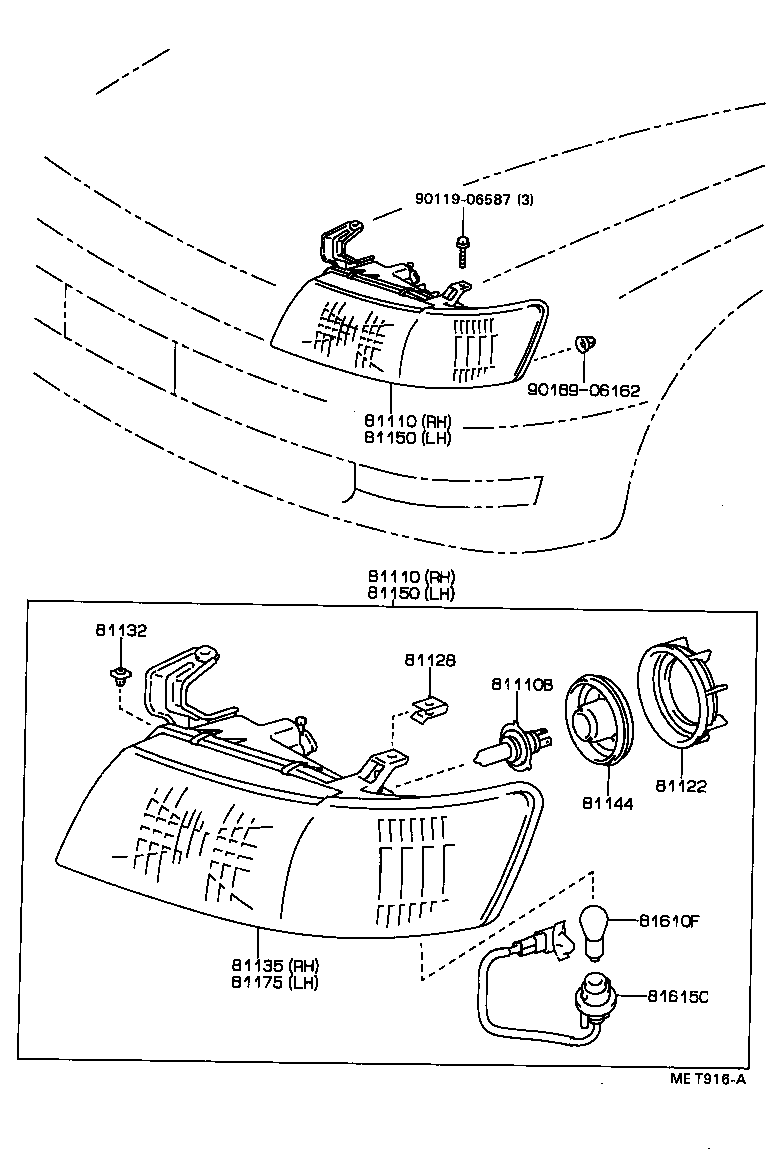

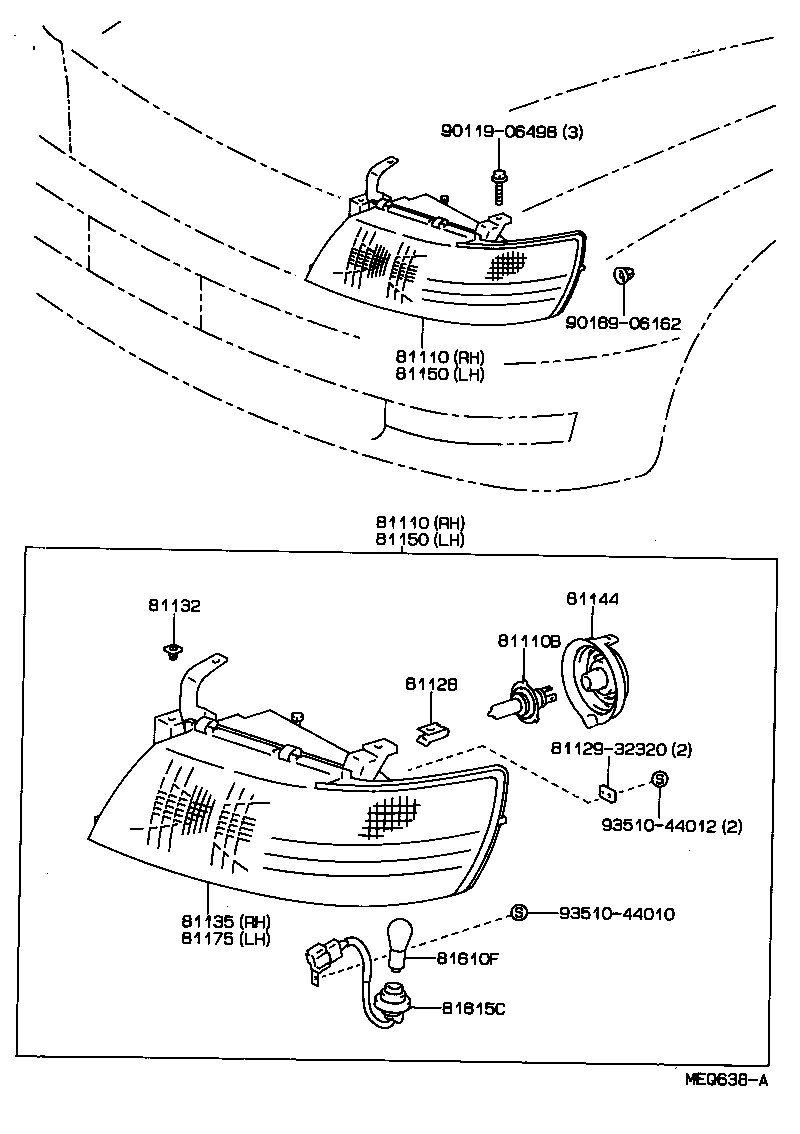

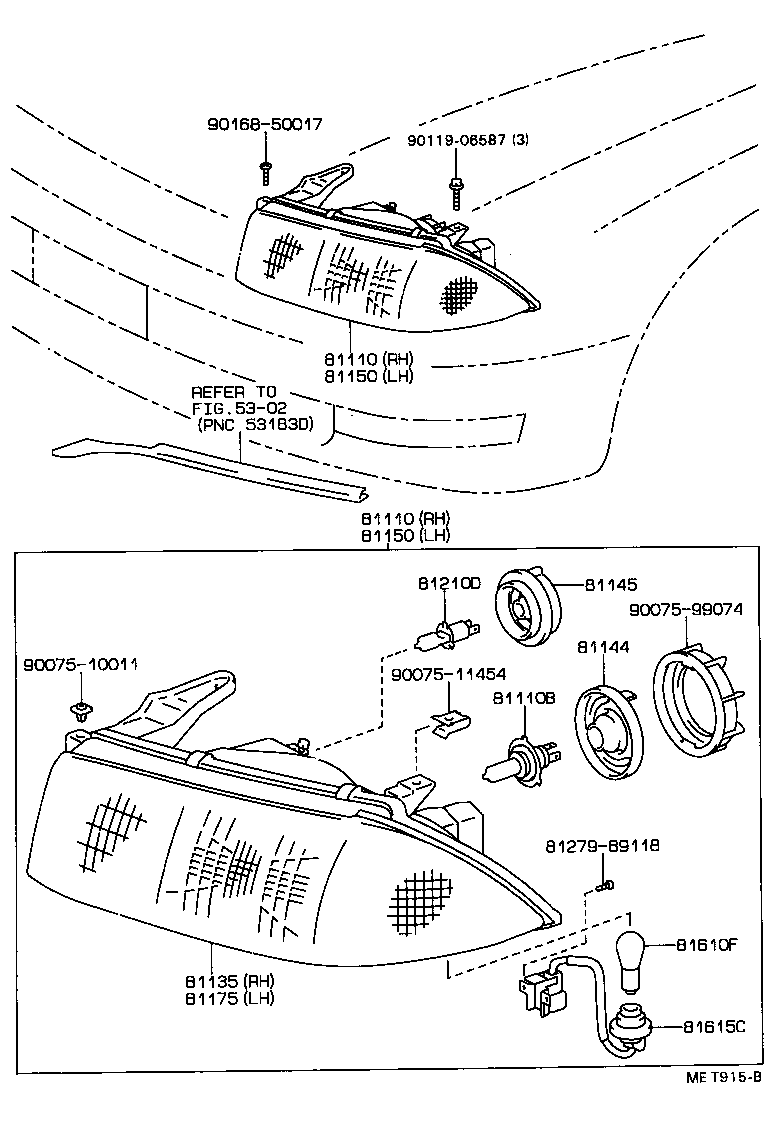

Figure MEQ637C MEQ637C 1990-07 → 1992-06 Figure MET915B MET915B 1992-06 → 1994-06 Figure MEQ638A MEQ638A 1990-07 → 1992-06 Figure MET916A MET916A 1992-06 → 1994-06 Figure MEQ639D MEQ639D 1990-07 → 1992-06 Figure MET917B MET917B 1992-06 → 1994-06

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81122 Holder, Headlamp
81128 Nut, Headlamp
81132 Nut, Headlamp Self Locking
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81145 Cover, Headlamp, NO.2
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81210D Bulb, Fog Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615C Socket & Wire, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
