Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

8 part groups · 2 illustrations

Illustrations

Figure MEQ640B

MEQ640B 1990-07 → 1992-06

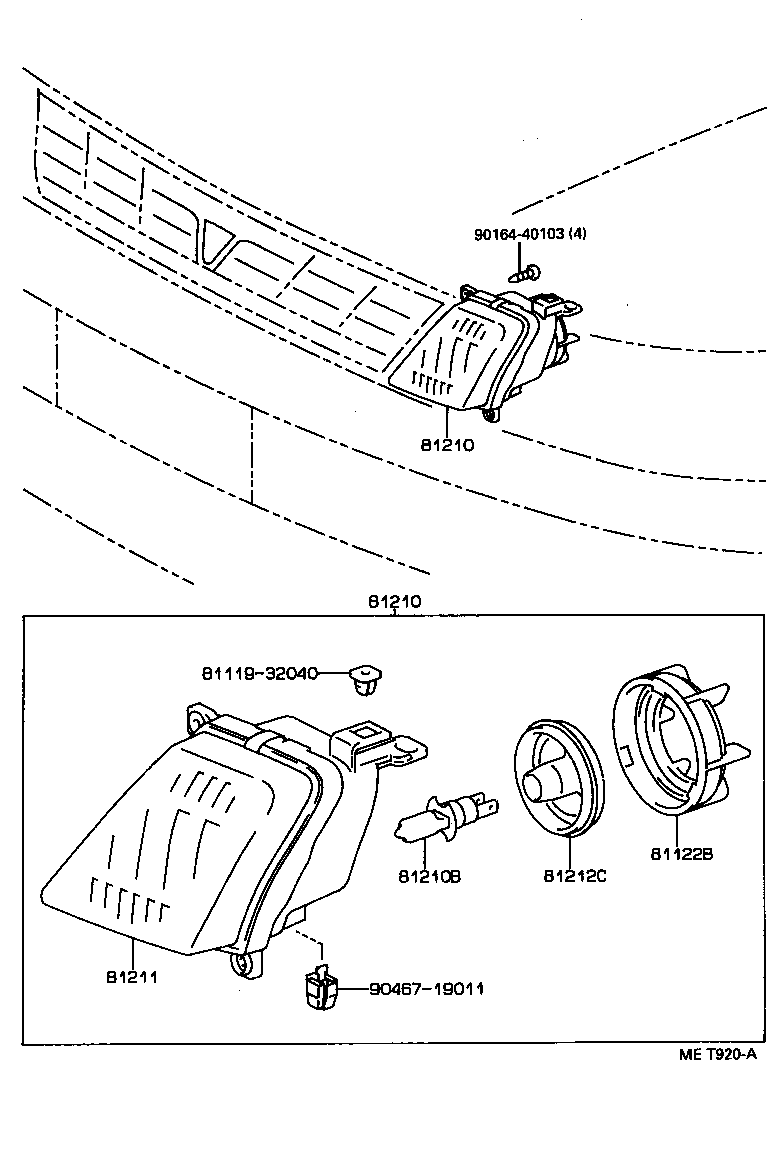

Figure MET920A

MET920A 1992-06 → 1994-06

Part groups

PNC	Description
81122B	Holder, Fog Lamp
81210	Lamp Assy, Fog
81210B	Bulb, Fog Lamp
81211	Lens, Fog Lamp
81211D	Lamp Unit, Fog Lamp
81212C	Cover, Fog Lamp
81213A	Body, Fog Lamp
81214A	Packing, Fog Lamp Body

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
