Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back UP Lamp

6 part groups · 4 illustrations

Illustrations

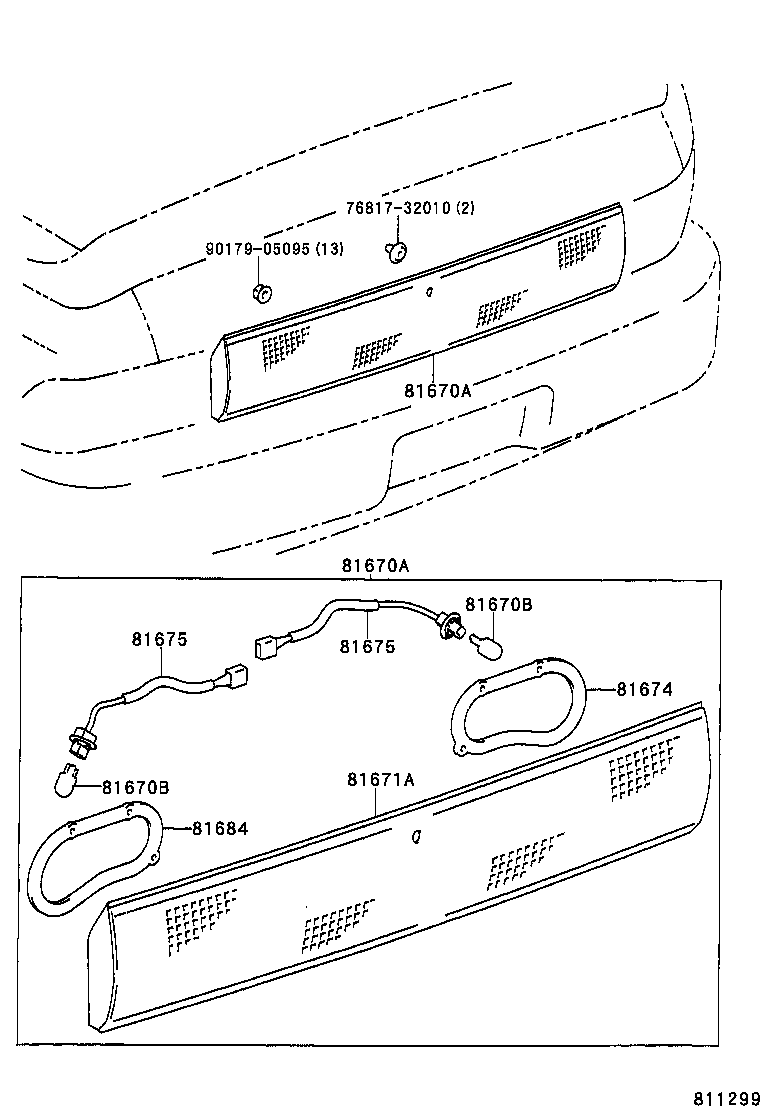

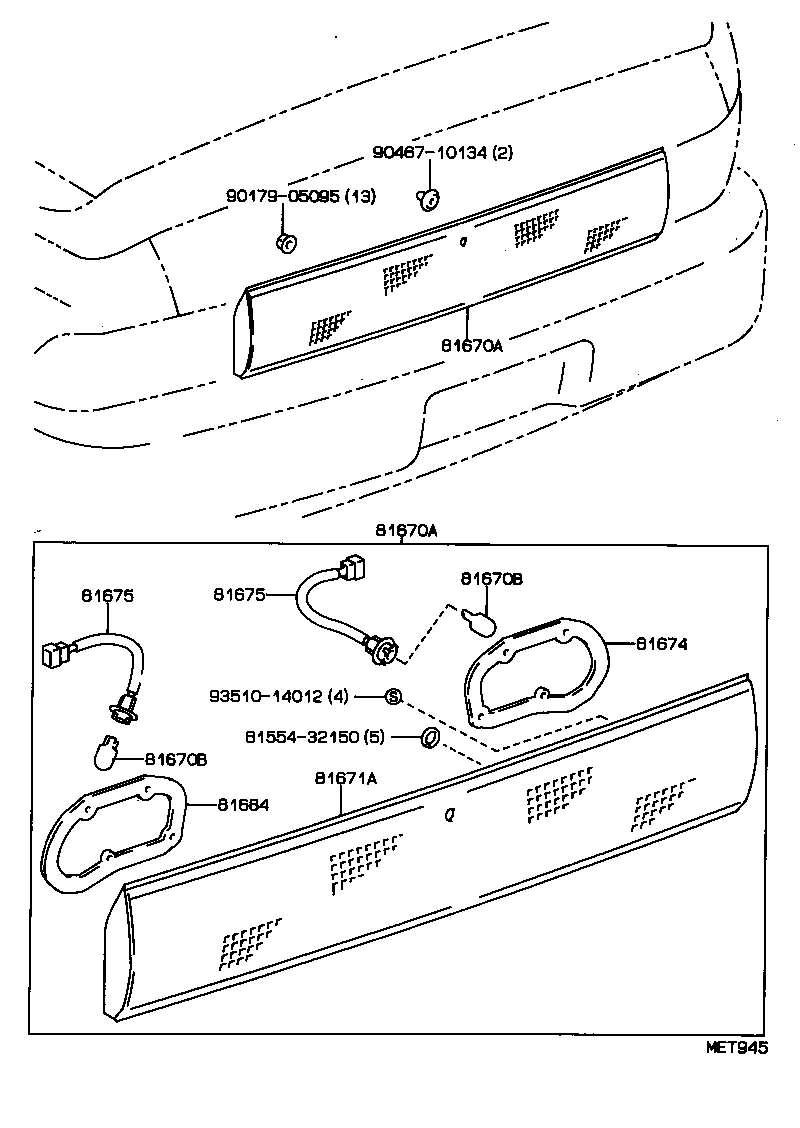

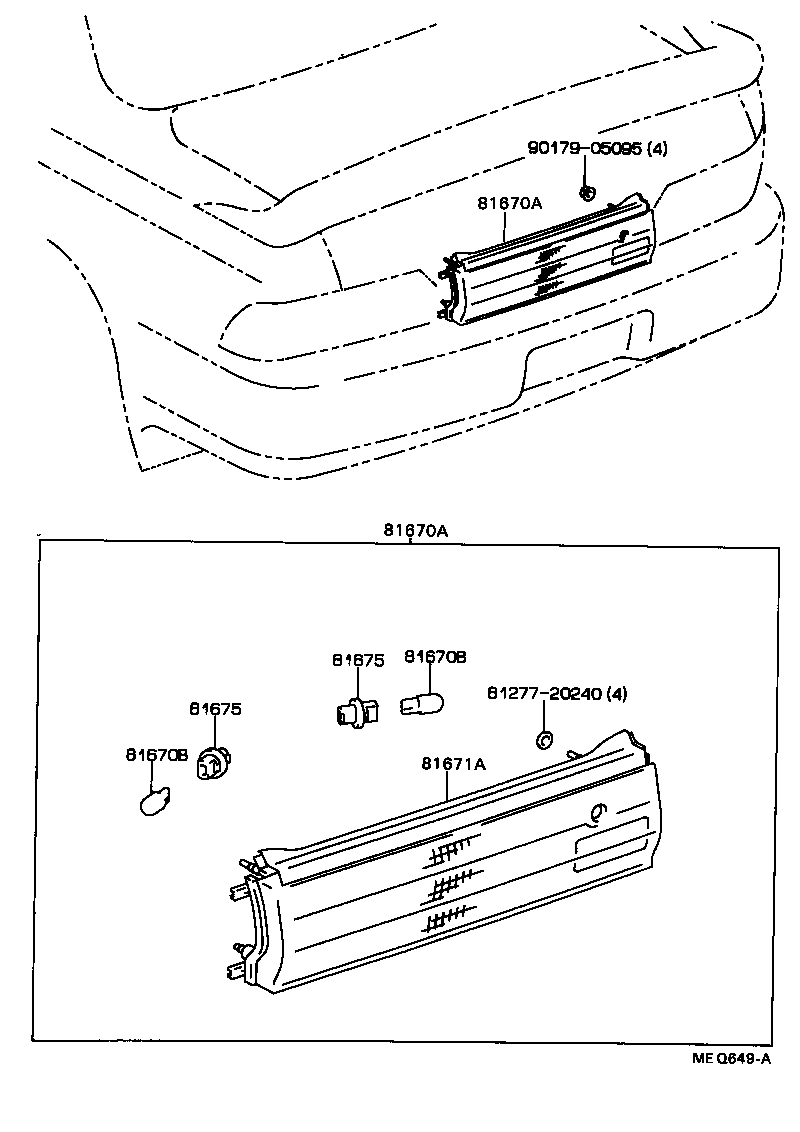

Figure MEQ648B MEQ648B 1990-07 → 1992-06 Figure MEQ649A MEQ649A 1990-07 → 1992-06 Figure 811299 811299 1992-06 → 1994-06 Figure MET945 MET945 1992-06 → 1994-06

Part groups

PNCDescription
81670A Lamp Assy, Back-up
81670B Bulb(FOR BACK-UP LAMP)
81671A Lens & Body, Back-up Lamp
81674 Gasket, Back-up Lamp Body, RH
81675 Socket & Wire, Back-up Lamp
81684 Gasket, Back UP Lamp Body, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
