Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

26 part groups · 6 illustrations

Illustrations

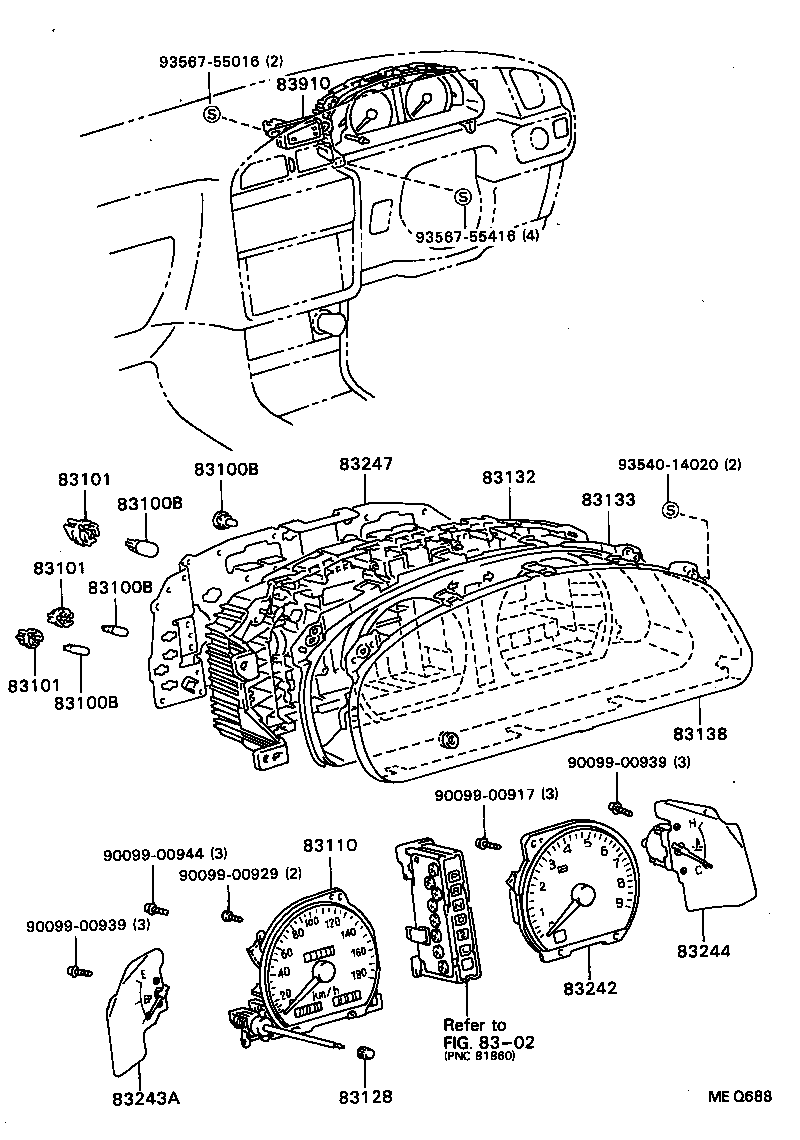

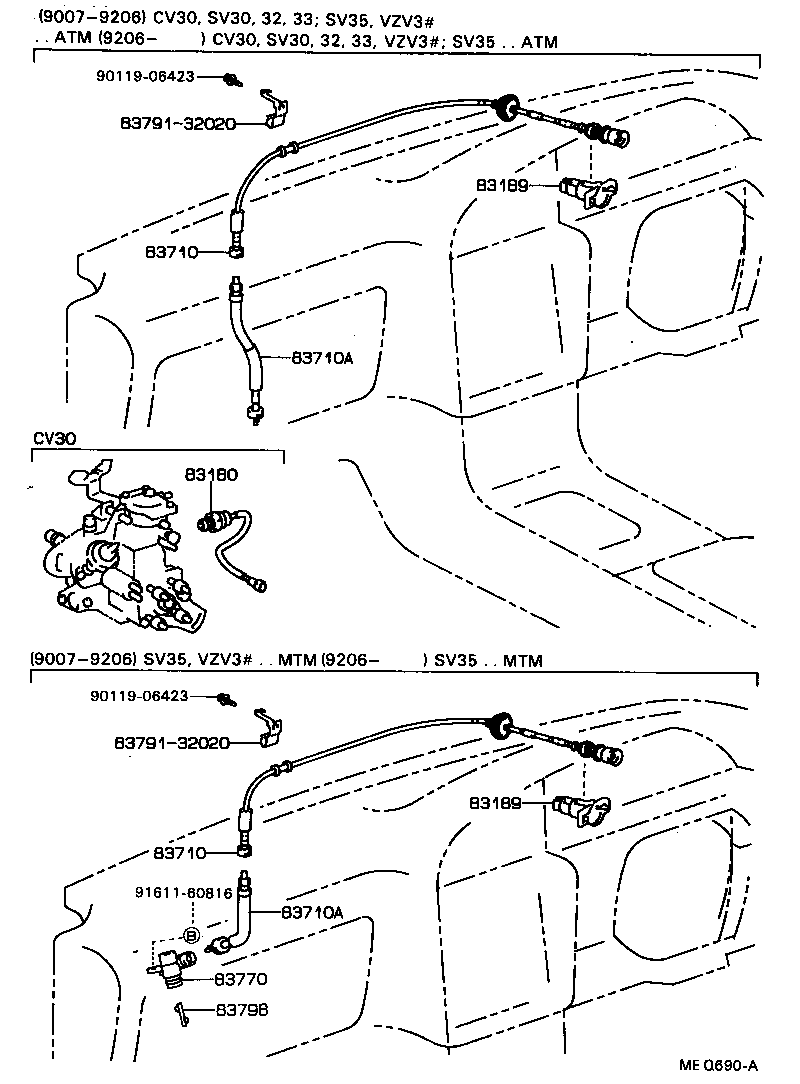

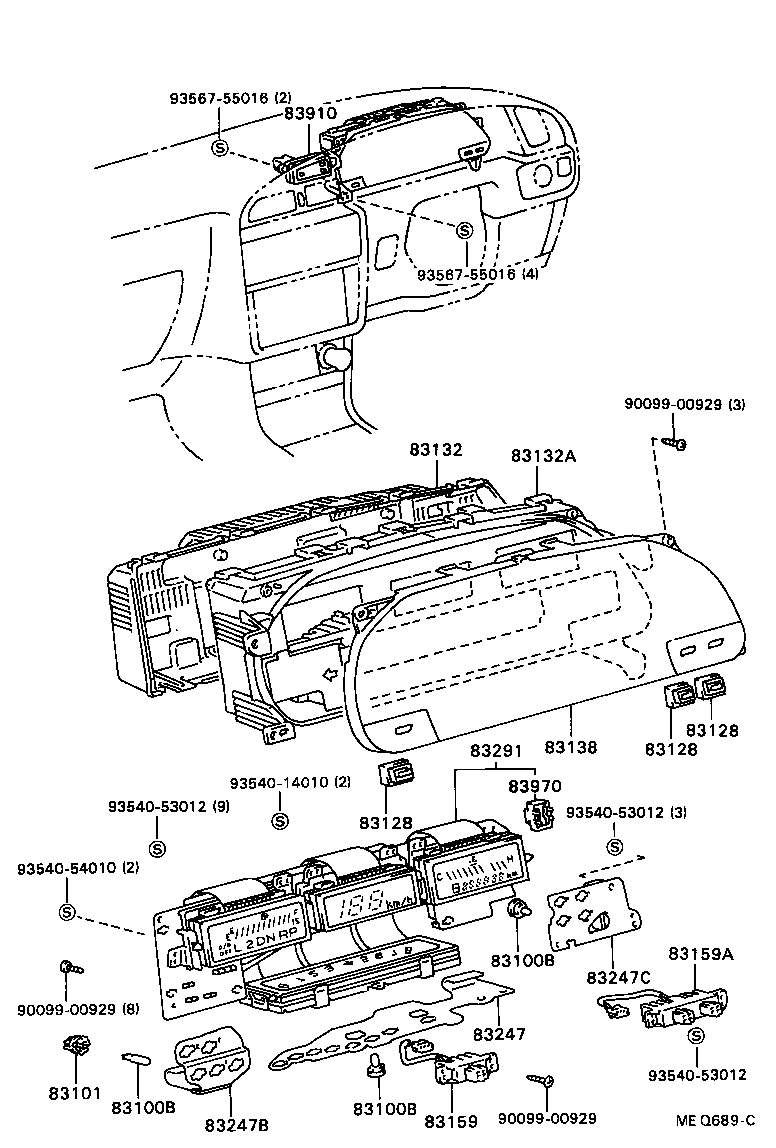

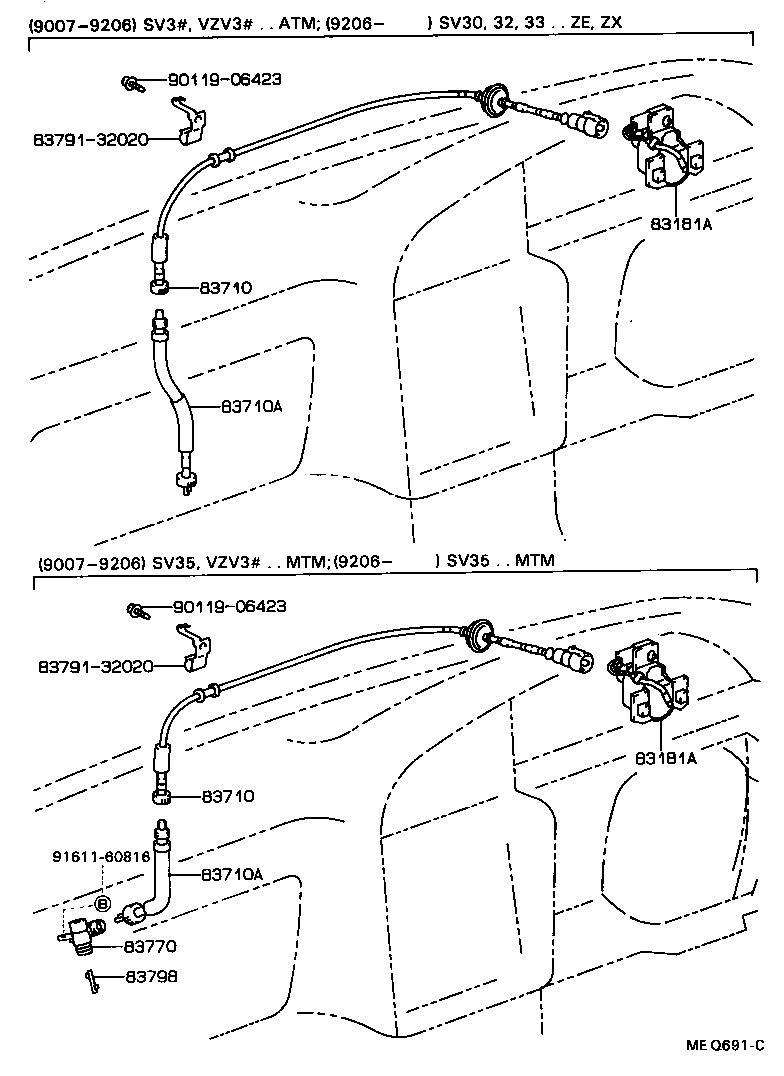

Figure MEQ687 MEQ687 1990-07 → 1994-06 Figure MEQ688 MEQ688 1990-07 → 1992-06 Figure MEQ688 MEQ688 1992-06 → — Figure MEQ689C MEQ689C 1990-07 → 1994-06 Figure MEQ690A MEQ690A 1990-07 → 1994-06 Figure MEQ691C MEQ691C 1990-07 → 1994-06

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83110 Speedometer Assy
83128 Knob, Trip Counter
83132 Case, Combination Meter
83132A Case, Meter
83133 Plate, Combination Meter, NO.1
83138 Glass, Speedometer
83159 Switch, Meter, NO.1
83159A Switch, Meter, NO.2
83180 Detector Assy, Revolution
83181A Sensor, Speedometer
83189 Bracket, Meter
83242 Tachometer Assy, Engine
83243A Gauge Sub-assy, Fuel Receiver
83244 Gauge Sub-assy, Water Temperature Receiver
83247 Plate, Meter Circuit
83247B Plate, Meter Circuit, NO.2
83247C Plate, Mater Circuit, NO.3
83291 Computer, Combination Meter
83710 Cable Assy, Speedometer Drive, NO.1
83710A Cable Assy, Speedometer Drive, NO.2
83770 Adapter Assy, Speedometer Cable
83798 Key, Speedometer Cable Adapter
83910 Clock Assy
83970 Buzzer Assy, Reverse Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
