Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

14 part groups · 2 illustrations

Illustrations

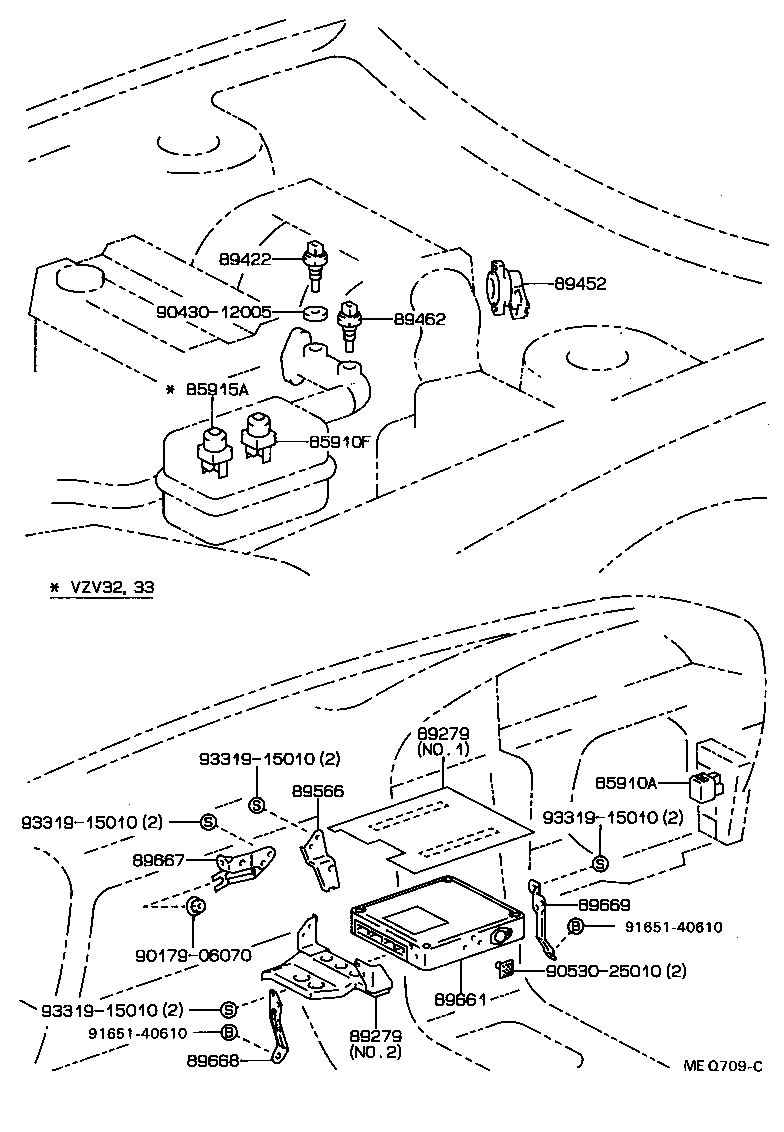

Figure MEQ708A MEQ708A 1990-07 → 1994-06 Figure MEQ709C MEQ709C 1990-07 → 1994-06

Part groups

PNCDescription
85910A Relay Assy, Circuit Opening (FOR EFI)
85910F Relay, Computer (FOR EFI)
85915A Relay, Main
89279 Cover, Engine Control Computer
89420 Sensor Assy, Vacuum
89422 Sensor, Water Temperature (FOR E.F.I.)
89424 Sensor, Inlet Air Temperature (FOR E.F.I.)
89452 Sensor, Throttle Position (FOR E.F.I.)
89462 Switch, Start Injector Time
89566 Bracket, Fuel Injection Computer
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
89669 Bracket, Engine Control Computer, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
