Toyota Camry/Vista
1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan
Discontinued model
Data version 1994-11

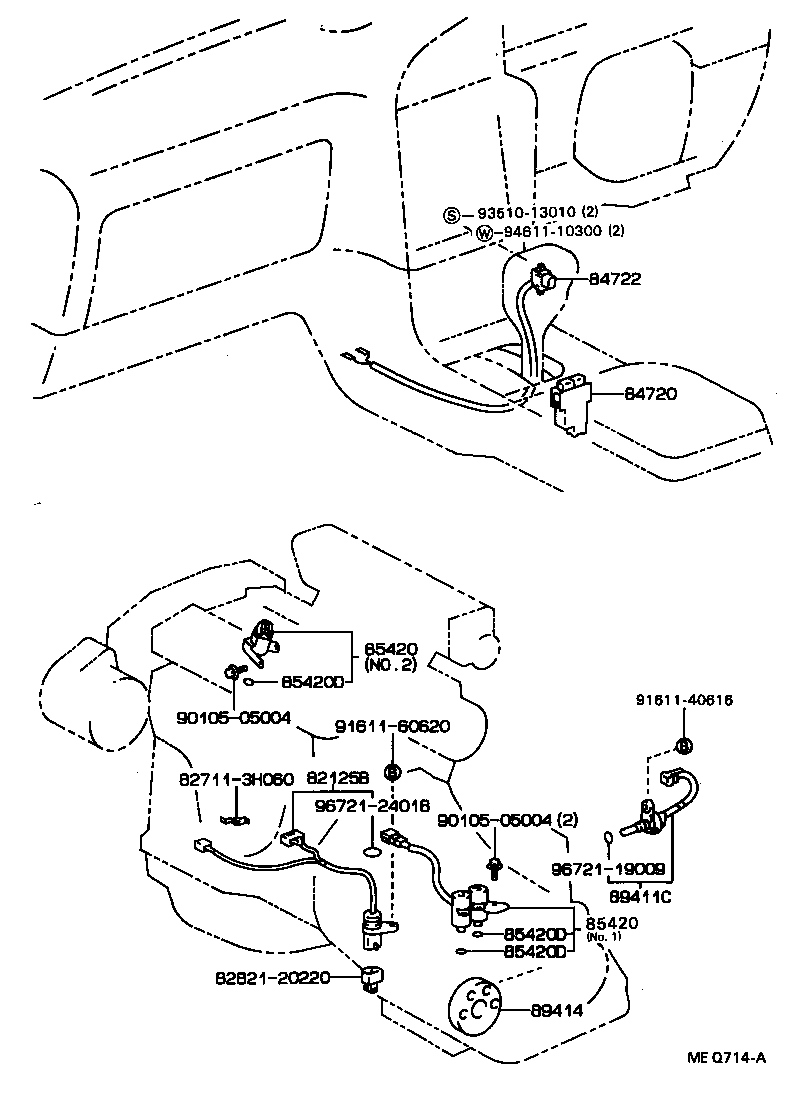

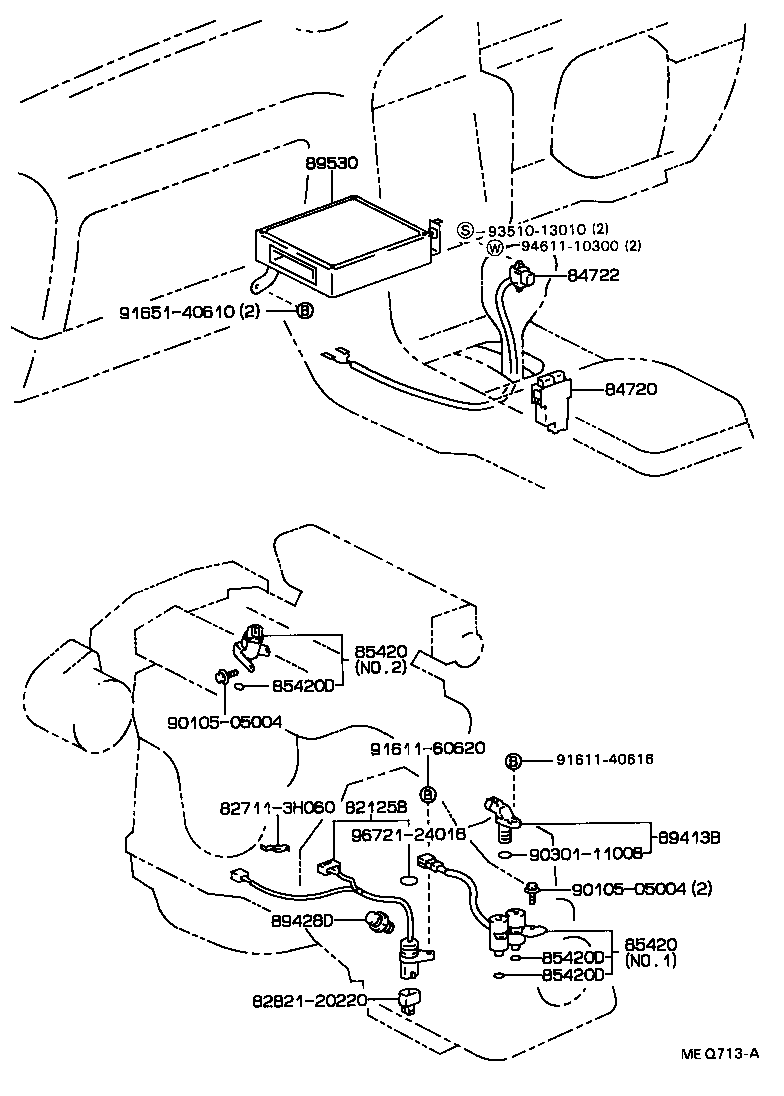

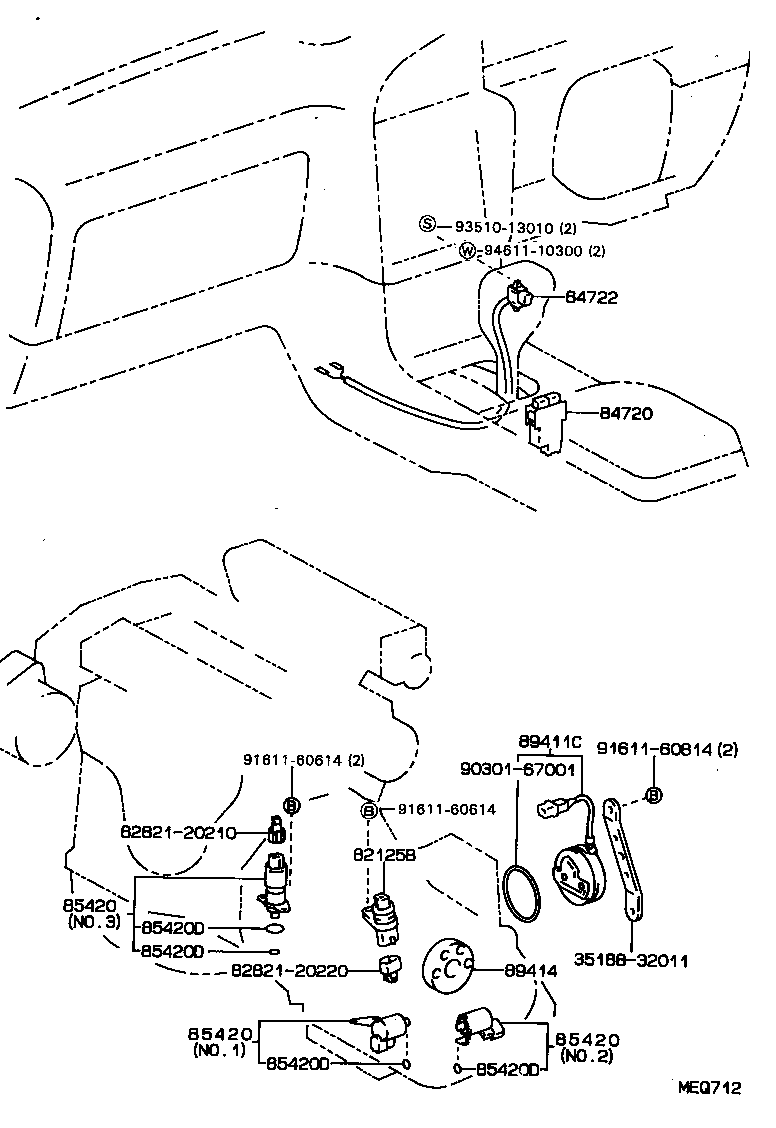

Overdrive & Electronic Controlled Transmission
12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 82125B | Wire, Transmission |
| 84720 | Switch Assy, Pattern Select |
| 84722 | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 85420B | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 85425A | Ring, O (FOR OVERDRIVE SOLENOID) |
| 89411C | Sensor, Speed |
| 89413B | Sensor, Transmission Revolution |
| 89414 | Rotor, Sensor |
| 89428D | Switch, Temperature, NO.2 |
| 89530 | Computer Assy, Transmission Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
