Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

12 part groups · 2 illustrations

Illustrations

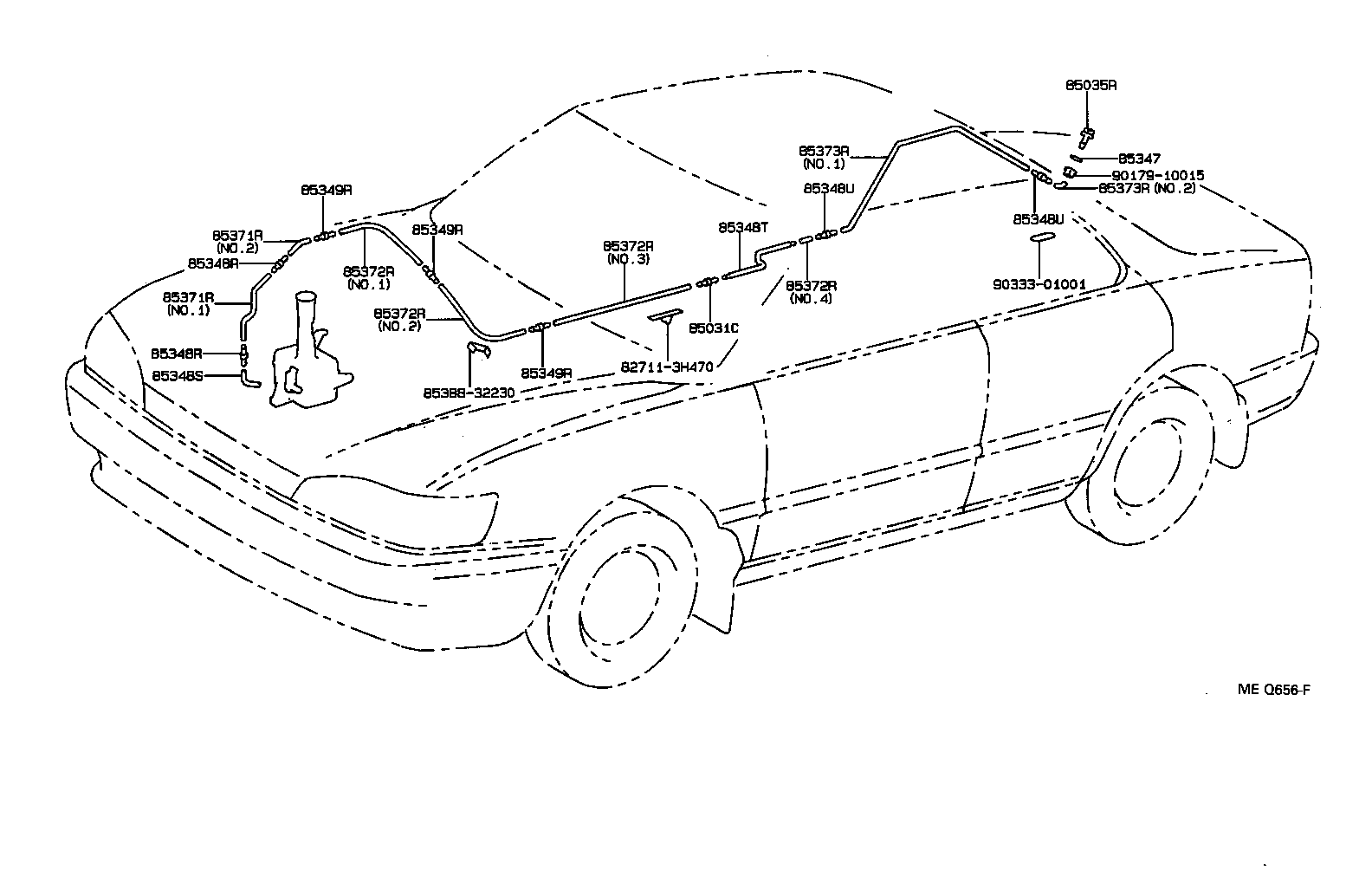

Figure MEQ655B MEQ655B 1990-07 → 1994-06 Figure MEQ656F MEQ656F 1990-07 → 1994-06

Part groups

PNCDescription
85031C Valve Sub-assy, Washer
85035R Nozzle Sub-assy, Rear Washer
85347 Packing, Rear Washer
85348R Joint, Rear Washer Hose, NO.1
85348S Joint, Rear Washer Elbow, NO.1
85348T Joint, Rear Washer Hose, NO.2
85348U Joint, Rear Washer Hose, NO.3
85349P Joint, Rear Washer Elbow, NO.3
85349R Joint, Rear Washer Hose, NO.5
85371R Hose, Rear Washer (FROM MOTOR TO JOINT)
85372R Hose, Rear Washer (FROM JOINT TO JOINT OR NOZZLE)
85373R Hose, Rear Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
