Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

17 part groups · 8 illustrations

Illustrations

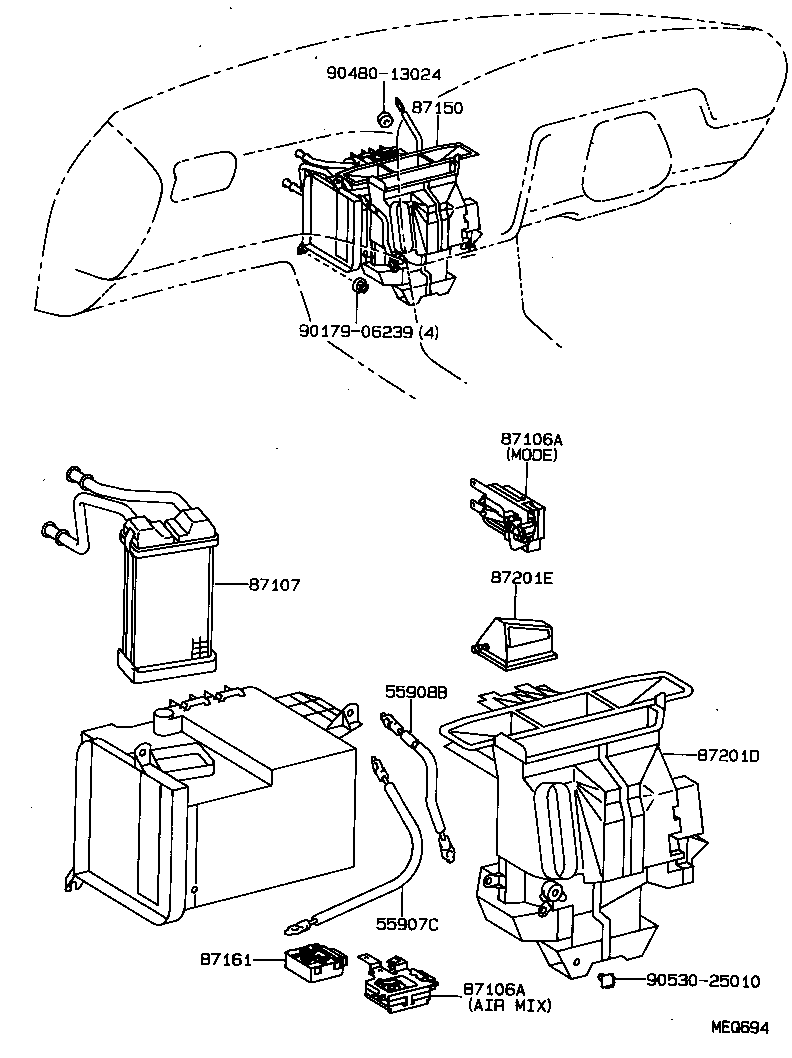

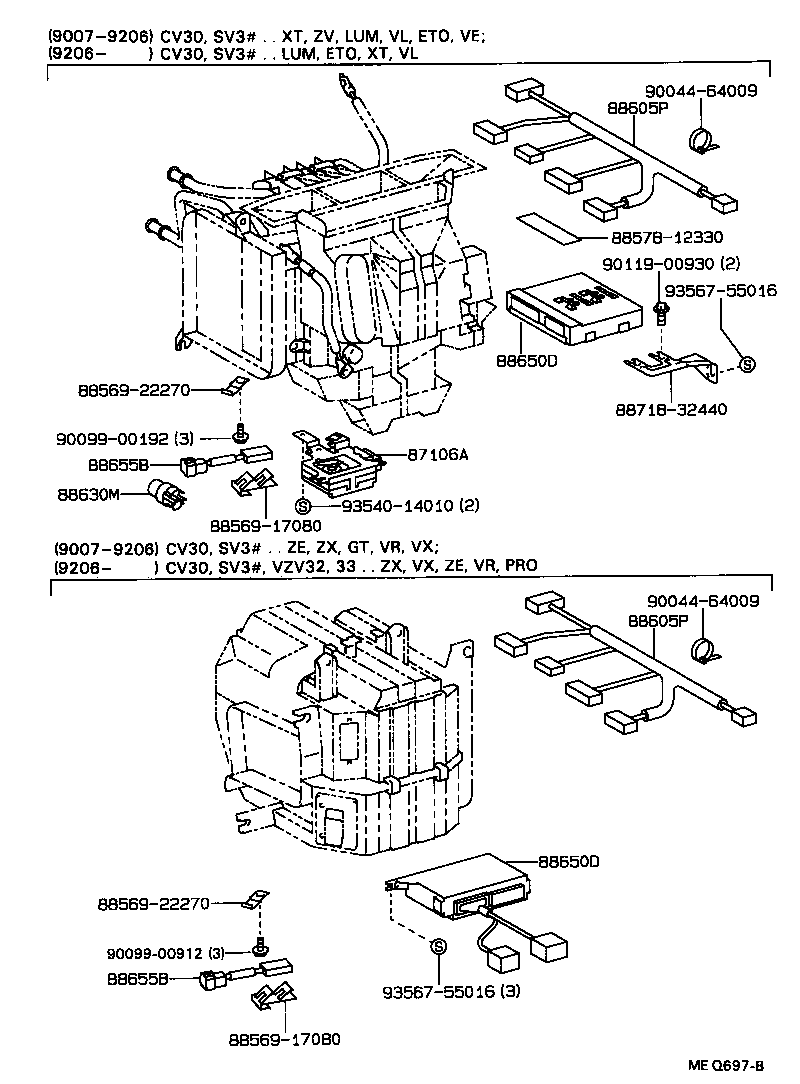

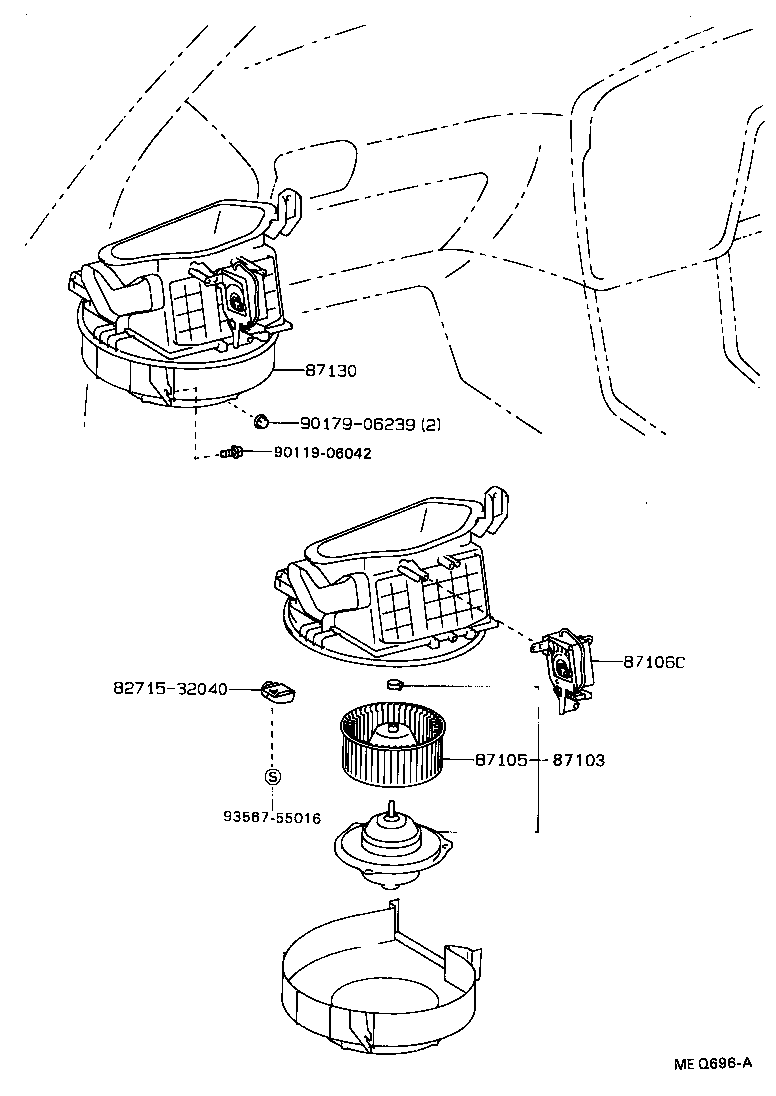

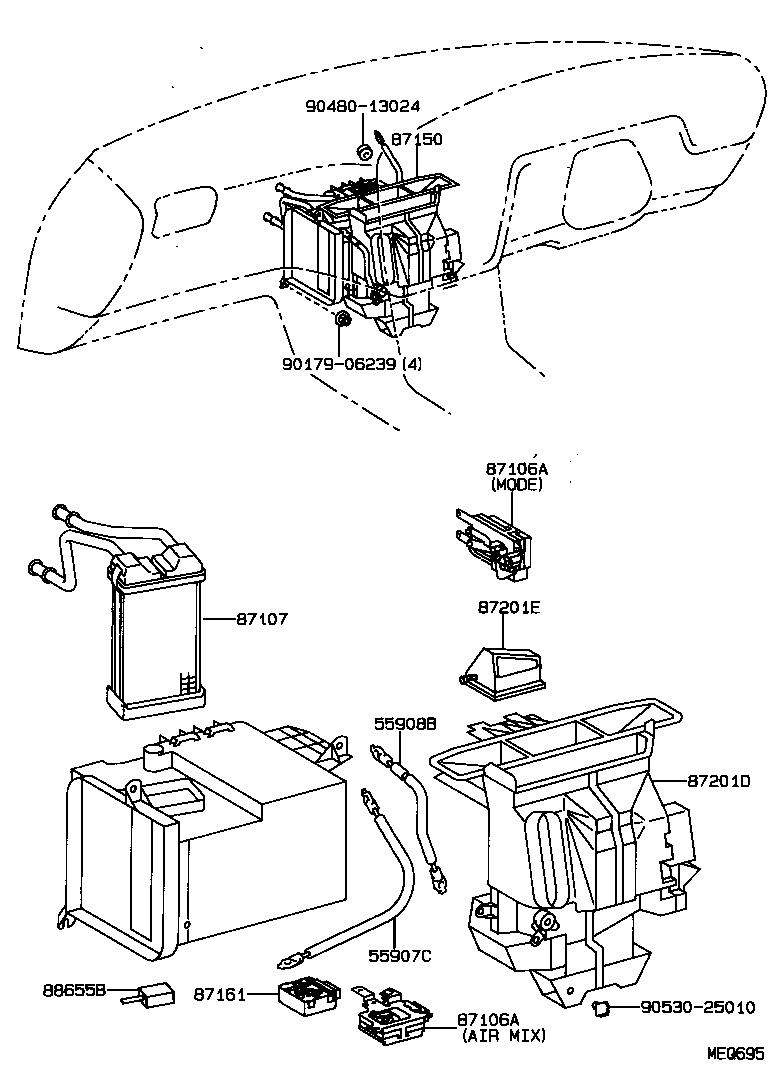

Figure MEQ693 MEQ693 1990-07 → 1992-06 Figure MEQ693 MEQ693 1992-06 → 1994-06 Figure MEQ694 MEQ694 1990-07 → 1992-06 Figure MEQ694 MEQ694 1992-06 → 1994-06 Figure MEQ695 MEQ695 1990-07 → 1992-06 Figure MEQ695 MEQ695 1992-06 → 1994-06 Figure MEQ696A MEQ696A 1990-07 → 1994-06 Figure MEQ697B MEQ697B 1990-07 → 1994-06

Part groups

PNCDescription
55907C Cable Sub-assy, Water Valve Control
55908B Cable Sub-assy, Air Inlet Damper Control
55909B Cable Sub-assy, Airmix Damper Control
87103 Motor Sub-assy, Heater Blower, W/Fan
87105 Fan Sub-assy, Heater Blower
87106A Servo Sub-assy, Damper
87106C Servo Sub-assy, Damper(FOR BLOWER)
87107 Unit Sub-assy, Heater Radiator
87130 Blower Assy, Heater, Front
87150 Radiator Assy, Heater
87161 Amplifier, Heater Servo Motor
87201D Duct Sub-assy, Air
87201E Duct Sub-assy, Air, NO.2
88605P Harness Sub-assy, Air Conditioner Wiring
88630M Relay Assy, Cooler
88650D Amplifier Assy
88655B Switch, Water Temperature
