Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

19 part groups · 6 illustrations

Illustrations

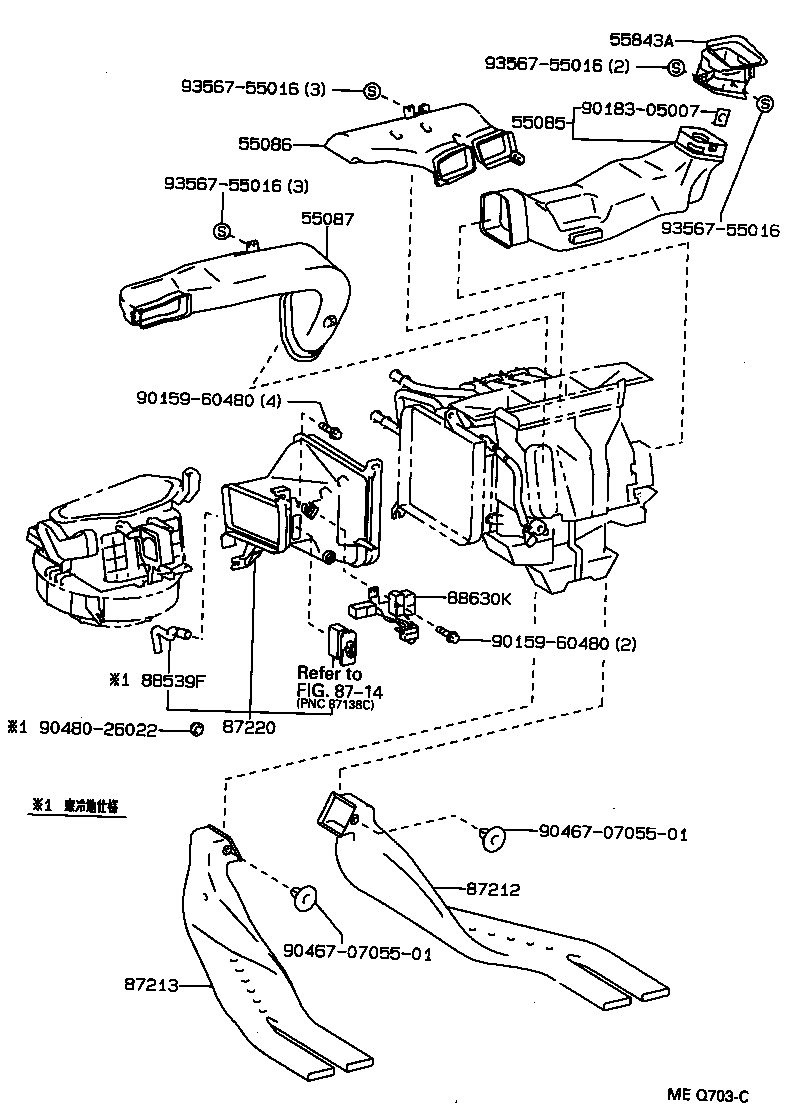

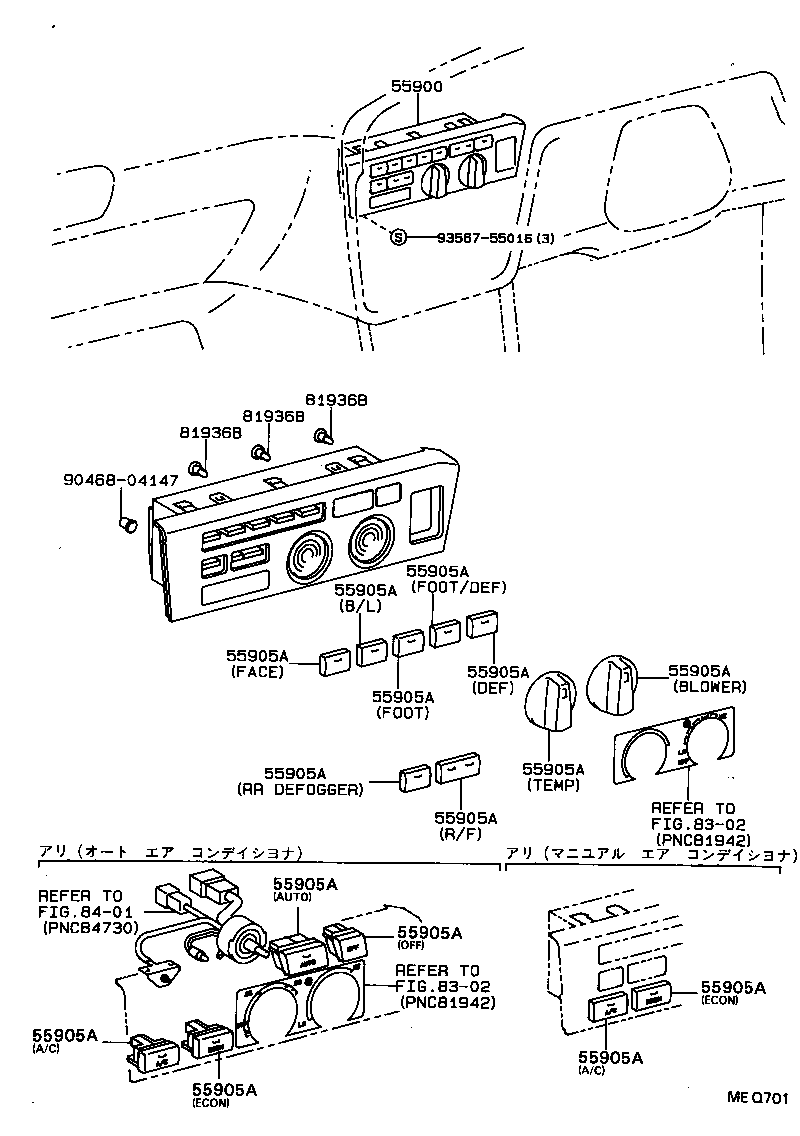

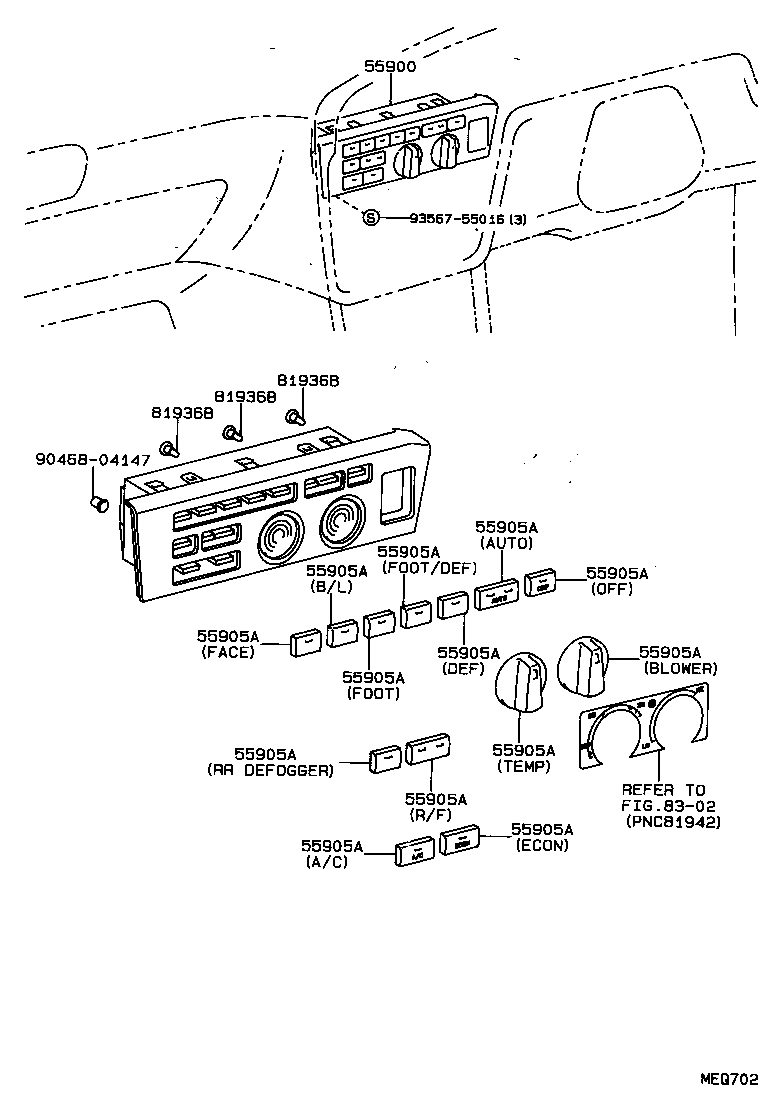

Figure MEQ700B MEQ700B 1990-07 → 1994-06 Figure MEQ701 MEQ701 1990-07 → 1994-06 Figure MEQ702 MEQ702 1990-07 → 1992-06 Figure MEQ702 MEQ702 1992-06 → 1994-06 Figure MEQ703C MEQ703C 1990-07 → 1994-06 Figure MEQ704C MEQ704C 1990-07 → 1994-06

Part groups

PNCDescription
55085 Duct Sub-assy, Heater TO Register, NO.2
55086 Duct Sub-assy, Heater TO Register, NO.3
55087 Duct Sub-assy, Heater TO Register, NO.4
55843A Duct, Heater TO Register, NO.1
55900 Control Assy, Air Conditioner
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55907A Cable Sub-assy, Water Valve Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
81936B Bulb Assy, Cooler Control
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87220 Duct Assy, Air
88539F Hose, Drain
88625C Thermistor, Cooler
88630K Relay Assy
88669A Hose (FOR COOLER THERMISTOR)
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
