Toyota Camry/Vista
1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan
Discontinued model
Data version 1994-11
Heating & Air Conditioning - Compressor
9 part groups · 3 illustrations
Part groups

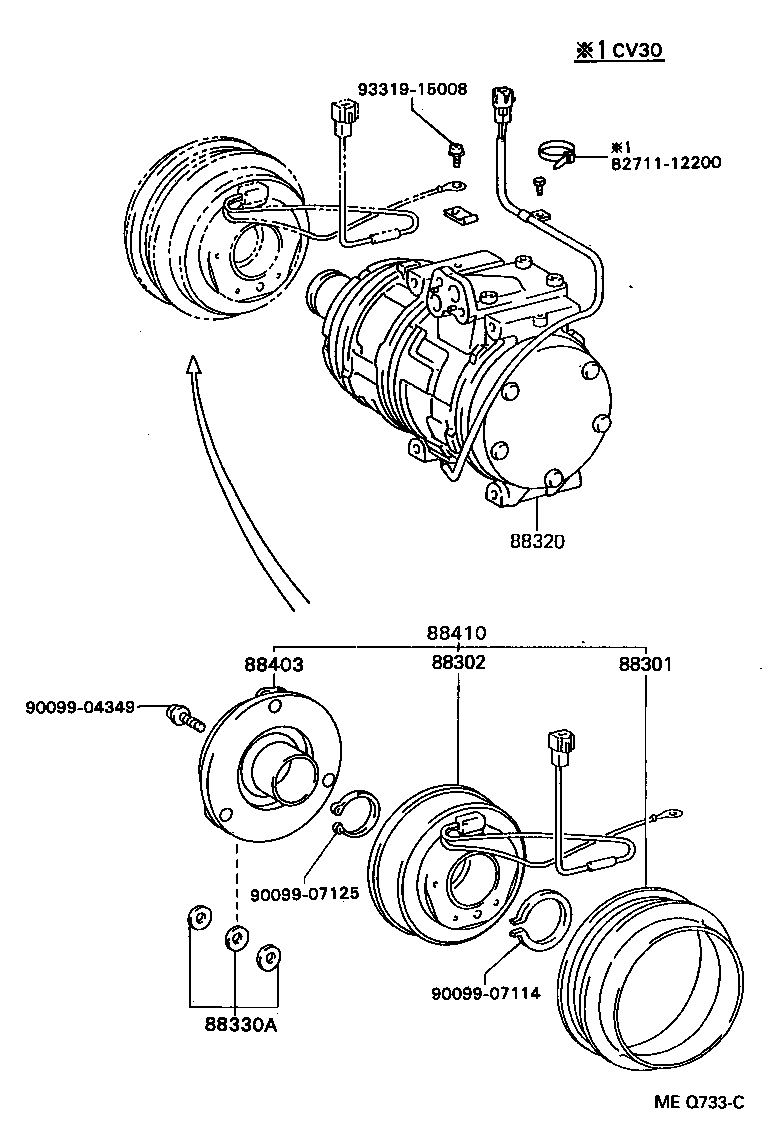

| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88320 | Compressor Assy, Cooler |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88545 | Pulley Assy, Idle |
| 88892F | Cover, Cooler Compressor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
