Toyota Camry/Vista

1990-07 → 1994-06 · chassis SV3#,VZV3#,CV30 · catalogue 281150 · Japan

Discontinued model Data version 1994-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Purifier OR Ion Generator

19 part groups · 2 illustrations

Illustrations

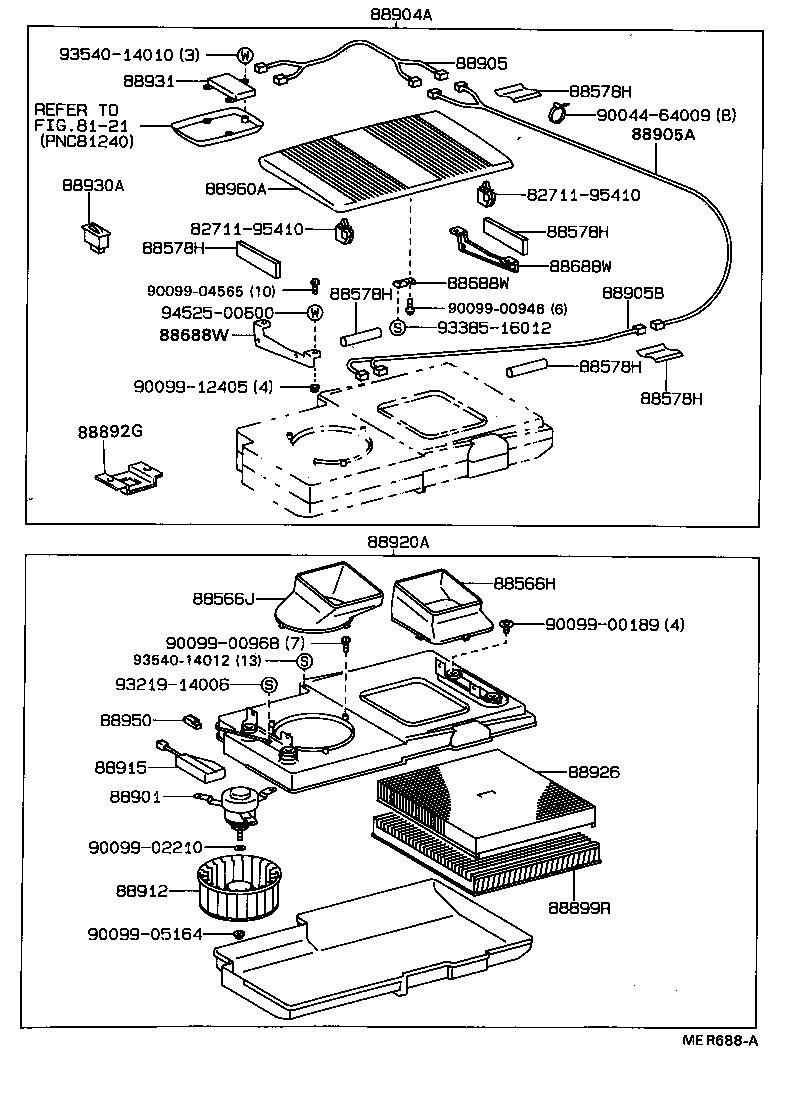

Figure MER687 MER687 1990-07 → 1992-06 Figure MER688A MER688A 1990-07 → 1994-06

Part groups

PNCDescription
88566H Duct, Air, NO.1
88566J Duct, Air, NO.2
88578H Packing, Air Purifier, NO.2
88688W Bracket, Air Purifier, NO.1
88892G Plate Sub-assy
88899R Frame, Air Purifier
88901 Motor Sub-assy, Air Purifier
88904A Accessory Sub-assy, Air Purifire
88905 Wire Sub-assy, Air Purifier, NO.1
88905A Wire Sub-assy, Air Purifier, NO.2
88905B Wire Sub-assy, Air Purifier, NO.3
88912 Fan, Air Purifier
88915 Resistor, Air Purifier
88920A Purifier Assy, Air
88926 Filter, Air Purifier
88930A Switch Assy, Air Purifier
88931 Sensor, Smoke
88950 Amplifier Assy, Air Purifier
88960A Grille Assy, Air Purifier
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
