Toyota Camry/Vista
1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan
Discontinued model
Data version 1999-01

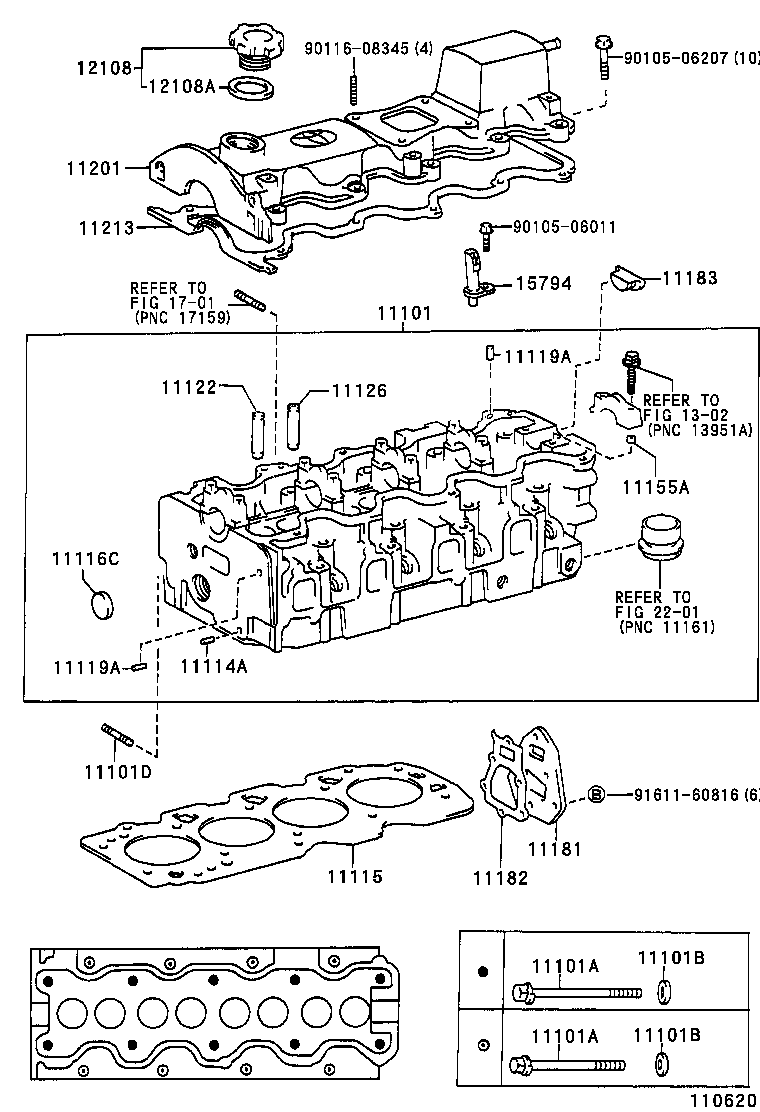

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11101 — Head Sub-assy, Cylinder | ||||
| 11101-64211 |
Head Sub-assy, Cylinder
1995-06 → 1996-05
ended
|
3CT CV4# | ¥128,000 | |
| 11101-64230 |
Head Sub-assy, Cylinder
1994-06 → 1995-06
ended
|
3CT CV4# | ¥128,000 | |
| 11101-64261 |
Head Sub-assy, Cylinder
1996-05 → 1997-05
ended
|
3CT CV4# | ¥128,000 | |
| 11101-64262 |
Head Sub-assy, Cylinder
1997-05 → 1997-08
ended
|
3CT CV4# | ¥128,000 | |
| 11101-64263 |
Head Sub-assy, Cylinder
1997-08 → —
|
3CT CV4# | ¥129,000 | |
| 11101-74900 |
Head Sub-assy, Cylinder
1994-06 → 1996-01
ended
|
3SFE,4SFE SV4# | ¥141,000 | |
| 11101-79156 |
Head Sub-assy, Cylinder
1996-05 → —
|
3SFE,4SFE SV4# | ¥141,000 | |
| 11101-79165 |
Head Sub-assy, Cylinder
1996-01 → 1996-05
ended
|
3SFE,4SFE SV4# | ¥133,000 | |
| 11101A — Bolt(FOR CYLINDER HEAD SET) | ||||
| 90109-10132 |
Bolt(FOR CYLINDER HEAD SET)
1994-06 → —
|
3SFE,4SFE SV4# | ¥390 | |
| 90910-02097 note |
Bolt(FOR CYLINDER HEAD SET)
1994-06 → 1996-05
ended
|
3CT CV4# | ¥460 | |
| 90910-02097 note |
Bolt(FOR CYLINDER HEAD SET)
1996-05 → —
|
3CT CV4# | ¥460 | |
| 90910-02099 note |
Bolt(FOR CYLINDER HEAD SET)
1994-06 → 1996-05
ended
|
3CT CV4# | ¥510 | |
| 90910-02099 note |
Bolt(FOR CYLINDER HEAD SET)
1996-05 → —
|
3CT CV4# | ¥510 | |
| 11101B — Washer, Plate(FOR CYLINDER HEAD SET) | ||||
| 90201-11026 |
Washer, Plate(FOR CYLINDER HEAD SET)
1994-06 → —
|
3SFE,4SFE SV4# | ¥220 | |
| 90201-12222 |
Washer, Plate(FOR CYLINDER HEAD SET)
1994-06 → —
|
3CT CV4# | ¥220 | |
| 11101D — Bolt, Stud(FOR WATER OUTLET) | ||||
| 92122-60820 |
Bolt, Stud(FOR WATER OUTLET)
1994-06 → —
|
3CT CV4# | ¥190 | |
| 11114A — Pin, Straight | ||||
| 90250-06068 note |
Pin, Straight
1994-06 → —
|
3CT CV4# | ¥260 | |
| 11115 — Gasket, Cylinder Head | ||||
| 11115-64130 |
Gasket, Cylinder Head
1994-06 → 1997-08
ended
|
3CT CV4# | ¥7,500 | |
| 11115-64130-01 note |
Gasket, Cylinder Head
1997-08 → —
|
3CT CV4# | ¥7,500 | |
| 11115-64130-02 note |
Gasket, Cylinder Head
1997-08 → —
|
3CT CV4# | ¥7,500 | |
| 11115-64130-03 note |
Gasket, Cylinder Head
1997-08 → —
|
3CT CV4# | ¥7,500 | |
| 11115-74060 note |
Gasket, Cylinder Head
1994-06 → —
|
4SFE SV40 | ¥6,100 | |
| 11115-74070 note |
Gasket, Cylinder Head
1994-06 → 1996-01
ended
|
3SFE SV41,42,43 | ¥6,600 | |
| 11115-74110 |
Gasket, Cylinder Head
1996-01 → —
|
3SFE SV41,42,43 | ¥7,100 | |
| 11116C — Plug, Tight, NO.3 | ||||
| 96411-63000 |
Plug, Tight, NO.3
1997-05 → —
|
3CT CV4# | ¥210 | |
| 11119A — Pin, Straight, NO.1 | ||||
| 90250-06003 note |
Pin, Straight, NO.1
1994-06 → —
|
3SFE,4SFE SV4# | ¥90 | |
| 90250-06013 note |
Pin, Straight, NO.1
1994-06 → —
|
3CT CV4# | ¥80 | |
| 90250-06068 note |
Pin, Straight, NO.1
1994-06 → —
|
3CT CV4# | ¥260 | |
| 11122 — Bush, Intake Valve Guide | ||||
| 11122-64010 note |
Bush, Intake Valve Guide
1994-06 → —
|
3CT CV4# | ¥900 | |
| 11122-74030 note |
Bush, Intake Valve Guide
1994-06 → —
|
3SFE,4SFE SV4# | ¥550 | |
| 11123-64010 note |
Bush, Intake Valve Guide
1994-06 → —
|
3CT CV4# | ¥900 | |
| 11123-74030 note |
Bush, Intake Valve Guide
1994-06 → —
|
3SFE,4SFE SV4# | ¥550 | |
| 11126 — Bush, Exhaust Valve Guide | ||||
| 11122-16010 note |
Bush, Exhaust Valve Guide
1994-06 → —
|
3SFE,4SFE SV4# | ¥850 | |
| 11123-16010 note |
Bush, Exhaust Valve Guide
1994-06 → —
|
3SFE,4SFE SV4# | ¥850 | |
| 11126-64010 note |
Bush, Exhaust Valve Guide
1994-06 → 1997-08
ended
|
3CT CV4# | ¥860 | |
| 11126-64030 note |
Bush, Exhaust Valve Guide
1997-08 → —
|
3CT CV4# | ¥770 | |
| 11127-64010 note |
Bush, Exhaust Valve Guide
1994-06 → 1997-08
ended
|
3CT CV4# | ¥860 | |
| 11127-64030 note |
Bush, Exhaust Valve Guide
1997-08 → —
|
3CT CV4# | ¥770 | |
| 11155A — Pin, Ring W/Head | ||||
| 90253-10004 |
Pin, Ring W/Head
1994-06 → —
|
3SFE,4SFE SV4# | ¥120 | |
| 90253-11021 |
Pin, Ring W/Head
1994-06 → —
|
3CT CV4# | ¥120 | |
| 11181 — Plate, Cylinder Head, Rear | ||||
| 11181-64010 |
Plate, Cylinder Head, Rear
1994-06 → —
|
3CT CV4# | ¥1,260 | |
| 11182 — Gasket, Cylinder Head Rear Plate | ||||
| 11182-64020 |
Gasket, Cylinder Head Rear Plate
1994-06 → 1995-05
ended
|
3CT CV4# | ¥740 | |
| 11182-64021 |
Gasket, Cylinder Head Rear Plate
1995-05 → —
|
3CT CV4# | ¥740 | |
| 11183 — Plug, Semicircular | ||||
| 11183-64010 |
Plug, Semicircular
1994-06 → —
|
3CT CV4# | ¥670 | |
| 11183-74010 |
Plug, Semicircular
1994-06 → —
|
3SFE,4SFE SV4# | ¥610 | |
| 11201 — Cover Sub-assy, Cylinder Head | ||||
| 11201-64110 |
Cover Sub-assy, Cylinder Head
1994-06 → 1996-02
ended
|
3CT CV4# | ¥15,300 | |
| 11201-64111 |
Cover Sub-assy, Cylinder Head
1996-02 → 1996-05
ended
|
3CT CV4# | ¥15,300 | |
| 11201-64141 |
Cover Sub-assy, Cylinder Head
1996-05 → —
|
3CT CV4# | ¥21,600 | |
| 11201-74050 |
Cover Sub-assy, Cylinder Head
1994-06 → 1996-05
ended
|
3SFE,4SFE SV4# | ¥25,900 | |
| 11201-74070 |
Cover Sub-assy, Cylinder Head
1996-05 → —
|
3SFE,4SFE SV4# | ¥22,400 | |
| 11213 — Gasket, Cylinder Head Cover | ||||
| 11213-64060 |
Gasket, Cylinder Head Cover
1994-06 → 1996-05
ended
|
3CT CV4# | ¥1,480 | |
| 11213-64061 |
Gasket, Cylinder Head Cover
1996-05 → —
|
3CT CV4# | ¥1,460 | |
| 11213-74020 |
Gasket, Cylinder Head Cover
1994-06 → —
|
3SFE,4SFE SV4# | ¥1,860 | |
| 12108 — Cap Sub-assy, Oil Filler | ||||
| 12180-55010 |
Cap Sub-assy, Oil Filler
1994-06 → —
|
3CT CV4# | ¥630 | |
| 12180-55010 |
Cap Sub-assy, Oil Filler
1994-06 → —
|
3SFE,4SFE SV4# | ¥630 | |
| 12108A — Gasket(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
Gasket(FOR OIL FILLER CAP)
1994-06 → —
|
3CT CV4# | ¥210 | |
| 90430-37140 |
Gasket(FOR OIL FILLER CAP)
1994-06 → —
|
3SFE,4SFE SV4# | ¥210 | |
| 15794 — Nozzle, Cylinder Head Oil | ||||
| 15794-64011 |
Nozzle, Cylinder Head Oil
1994-06 → —
|
3CT CV4# | ¥780 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
