Toyota Camry/Vista

1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan

Discontinued model Data version 1999-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

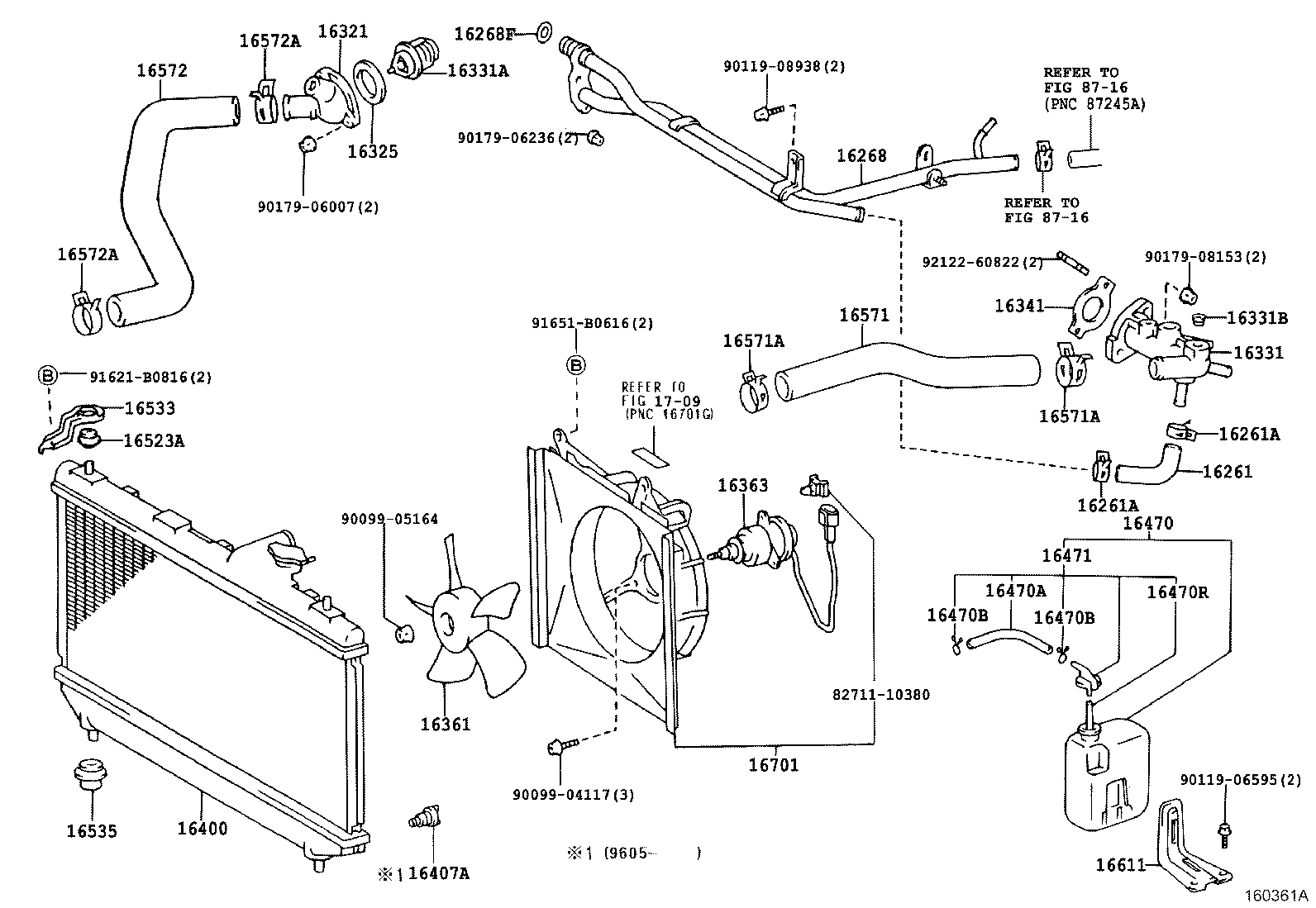

82 parts on this figure

Part number	Description	Fitment	Price
16261 — Hose, Water By-pass
16261-64060	Hose, Water By-pass 1994-06 → 1996-05 ended	3CT CV4#	¥1,280
16261-64110	Hose, Water By-pass 1996-05 → —	3CT CV4#	¥740
16261-74010	Hose, Water By-pass 1994-06 → 1996-05 ended	3SFE,4SFE SV4#	¥640
16261-74100	Hose, Water By-pass 1996-05 → —	3SFE,4SFE SV4#	¥580
16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
90467-15022	Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) 1994-06 → —	3CT CV4#	¥170
90467-22003	Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) 1994-06 → —	3SFE,4SFE SV4#	¥250
16268 — Pipe, Water By-pass, NO.1
16268-64061	Pipe, Water By-pass, NO.1 1994-06 → —	3CT CV4#	¥2,130
16268-74152	Pipe, Water By-pass, NO.1 1994-06 → 1995-02 ended	3SFE,4SFE SV4#	¥8,200
16268-74153	Pipe, Water By-pass, NO.1 1995-02 → 1996-05 ended	3SFE,4SFE SV4#	¥8,500
16268-74190	Pipe, Water By-pass, NO.1 1996-05 → —	3SFE,4SFE SV4#	¥8,200
16268F — Ring, O(FOR WATER BY-PASS PIPE)
96761-24017	Ring, O(FOR WATER BY-PASS PIPE) 1994-06 → —	3SFE,4SFE SV4#	¥380
16321 — Inlet, Water
16321-64020	Inlet, Water 1996-05 → —	3CT CV4#	¥3,780
16321-64050	Inlet, Water 1994-06 → 1996-05 ended	3CT CV4#	¥5,500
16321-74030	Inlet, Water 1994-06 → 1996-05 ended	3SFE,4SFE SV4#	¥4,000
16321-74050	Inlet, Water 1996-05 → —	3SFE,4SFE SV4#	¥2,100
16325 — Gasket, Water Inlet Housing, NO.1
16325-63011	Gasket, Water Inlet Housing, NO.1 1994-06 → —	3CT CV4#	¥680
16325-63011	Gasket, Water Inlet Housing, NO.1 1994-06 → —	3SFE,4SFE SV4#	¥680
16331 — Outlet, Water
16331-64030	Outlet, Water 1994-06 → —	3CT CV4#	¥6,600
16331-74170	Outlet, Water 1994-06 → 1996-05 ended	3SFE,4SFE SV4#	¥5,800
16331-74210	Outlet, Water 1996-05 → 1996-07 ended	3SFE,4SFE SV4#	¥4,590
16331-74210 note	Outlet, Water 1996-07 → 1997-07 ended	3SFE,4SFE SV4#	¥4,590
16331-74220	Outlet, Water 1996-07 → —	3SFE,4SFE SV4#	¥4,730
16331-74260 note	Outlet, Water 1997-07 → —	3SFE,4SFE SV4#	¥4,590
16331A — Thermostat
90916-03046 note	Thermostat 1994-06 → 1996-03 ended	3SFE,4SFE SV4#	¥1,740
90916-03046 note	Thermostat 1994-06 → —	3CT CV4#	¥1,740
90916-03090 note	Thermostat 1996-03 → —	3SFE,4SFE SV4#	¥1,990
16331B — Plug(FOR WATER OUTLET)
90345-53007	Plug(FOR WATER OUTLET) 1996-07 → —	3SFE,4SFE SV4#	¥310
90345-53009	Plug(FOR WATER OUTLET) 1994-06 → 1996-07 ended	3SFE,4SFE SV4#	¥240
90345-53030	Plug(FOR WATER OUTLET) 1994-06 → —	3CT CV4#	¥580
16341 — Gasket, Water Outlet
16341-64021	Gasket, Water Outlet 1994-06 → —	3CT CV4#	¥360
16341-74020	Gasket, Water Outlet 1994-06 → —	3SFE,4SFE SV4#	¥310
16361 — Fan
16361-74050	Fan 1994-06 → —	4SFE SV40 MTM;3SFE SV43 +2	¥4,490
16361-74060	Fan 1994-06 → —	3SFE SV43 HT MTM;3SFE +5	¥4,500
16361-74100	Fan 1994-06 → 1998-04 ended	3SFE SV43 HT ATM	¥4,470
16361-74110	Fan 1998-04 → —	3SFE SV43 HT ATM	¥4,480
16911-64010	Fan 1994-06 → —	3CT CV4#	¥0
16363 — Motor, Cooling Fan
16363-11010	Motor, Cooling Fan 1994-06 → —	4SFE SV40 MTM;3SFE SV43 +2	¥22,300
16363-11020	Motor, Cooling Fan 1994-06 → —	3SFE SV43 HT MTM;3SFE +5	¥23,900
16363-11030	Motor, Cooling Fan 1994-06 → —	3SFE SV43 HT ATM	¥26,800
16400 — Radiator Assy
16400-64770	Radiator Assy 1995-01 → 1996-05 ended	3CT CV43	¥45,500
16400-6A040	Radiator Assy 1994-06 → 1996-05 ended	3CT CV40 MTM	¥39,500
16400-6A050	Radiator Assy 1994-06 → 1996-05 ended	3CT CV40 ATM	¥39,500
16400-6A090	Radiator Assy 1996-05 → —	3CT CV40 MTM	¥88,000
16400-6A100	Radiator Assy 1996-05 → —	3CT CV40 ATM	¥45,500
16400-6A110	Radiator Assy 1996-05 → —	3CT CV43	¥52,400
16400-7A130	Radiator Assy 1994-06 → —	3SFE SV43 MTM	¥43,300
16400-7A140	Radiator Assy 1994-06 → —	4SFE SV40 ATM	¥43,300
16400-7A150	Radiator Assy 1994-06 → —	3SFE SV41,42	¥44,500
16400-7A160	Radiator Assy 1994-06 → —	4SFE SV40 MTM	¥43,300
16400-7A170	Radiator Assy 1994-06 → —	3SFE SV43 ATM	¥44,500
16407A — Cock Sub-assy, Radiator Drain
16407-7A130	Cock Sub-assy, Radiator Drain 1996-05 → —	3SFE,4SFE SV4#	¥580
16470 — Tank Assy, Radiator Reserve
16470-64210	Tank Assy, Radiator Reserve 1994-06 → —	3CT CV4#	¥4,410
16470-74290	Tank Assy, Radiator Reserve 1994-06 → —	3SFE,4SFE SV4#	¥3,380
16470A — Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16477-64210	Hose OR Pipe(FOR RADIATOR RESERVE TANK) 1994-06 → —	3CT CV4#	—
90445-12078 note	Hose OR Pipe(FOR RADIATOR RESERVE TANK) 1994-06 → —	3SFE,4SFE SV4#	¥580
16470B — Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
90467-11085	Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) 1994-06 → —	3CT CV4#	¥100
90467-11085	Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) 1994-06 → —	3SFE,4SFE SV4#	¥100
16470R — Hose, NO.2(FOR RADIATOR RESERVE TANK)
90445-12078 note	Hose, NO.2(FOR RADIATOR RESERVE TANK) 1994-06 → —	3SFE,4SFE SV4#	¥580
16471 — Cap Sub-assy, Reserve Tank
16405-64100	Cap Sub-assy, Reserve Tank 1994-06 → —	3CT CV4#	—
16405-74280	Cap Sub-assy, Reserve Tank 1994-06 → —	3SFE,4SFE SV4#	—
16523A — Cushion, Radiator Support
16523-74010	Cushion, Radiator Support 1994-06 → —	3SFE,4SFE SV4#	¥780
16523-74010	Cushion, Radiator Support 1994-06 → —	3CT CV4#	¥780
16533 — Support, Radiator, Upper
16533-74280	Support, Radiator, Upper 1994-06 → —	3CT CV4#	¥990
16533-74280	Support, Radiator, Upper 1994-06 → —	3SFE,4SFE SV4#	¥990
16535 — Support, Radiator, Lower
16535-64070	Support, Radiator, Lower 1994-06 → —	3CT CV4#	¥2,560
16535-74200	Support, Radiator, Lower 1994-06 → —	3SFE,4SFE SV4#	¥2,390
16571 — Hose, Radiator, Inlet
16571-64240	Hose, Radiator, Inlet 1994-06 → —	3CT CV4#	¥1,620
16571-74320	Hose, Radiator, Inlet 1994-06 → 1996-05 ended	3SFE,4SFE SV4#	¥1,960
16571-74380	Hose, Radiator, Inlet 1996-05 → —	3SFE,4SFE SV4#	¥1,970
16571A — Clamp OR Clip, Hose(FOR RADIATOR INLET)
90467-34003	Clamp OR Clip, Hose(FOR RADIATOR INLET) 1994-06 → —	3CT CV4#	¥400
90467-34003	Clamp OR Clip, Hose(FOR RADIATOR INLET) 1994-06 → —	3SFE,4SFE SV4#	¥400
16572 — Hose, Radiator, Outlet
16572-64260	Hose, Radiator, Outlet 1994-06 → —	3CT CV4#	¥2,390
16572-74260	Hose, Radiator, Outlet 1994-06 → —	3SFE,4SFE SV4#	¥1,970
16572A — Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
90467-34003 note	Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) 1994-06 → —	3CT CV4#	¥400
90467-34003	Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) 1994-06 → —	3SFE,4SFE SV4#	¥400
90467-37002 note	Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) 1994-06 → 1996-05 ended	3CT CV4#	¥480
90467-37002 note	Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) 1996-05 → —	3CT CV4#	¥480
16611 — Bracket, Radiator Reserve Tank
16611-74150	Bracket, Radiator Reserve Tank 1994-06 → —	3SFE,4SFE SV4#	¥1,780
16701 — Shroud Sub-assy, Fan
16711-74550	Shroud Sub-assy, Fan 1994-06 → —	4SFE SV40 MTM;3SFE SV43 +2	¥7,000
16711-74560	Shroud Sub-assy, Fan 1994-06 → —	3SFE SV43 HT MTM;3SFE +5	¥7,000
16711-74570	Shroud Sub-assy, Fan 1994-06 → —	3SFE SV43 HT ATM	¥7,000
16912-64030	Shroud Sub-assy, Fan 1994-06 → —	3CT CV4#	¥13,300

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
