Toyota Camry/Vista

1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan

Discontinued model Data version 1999-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

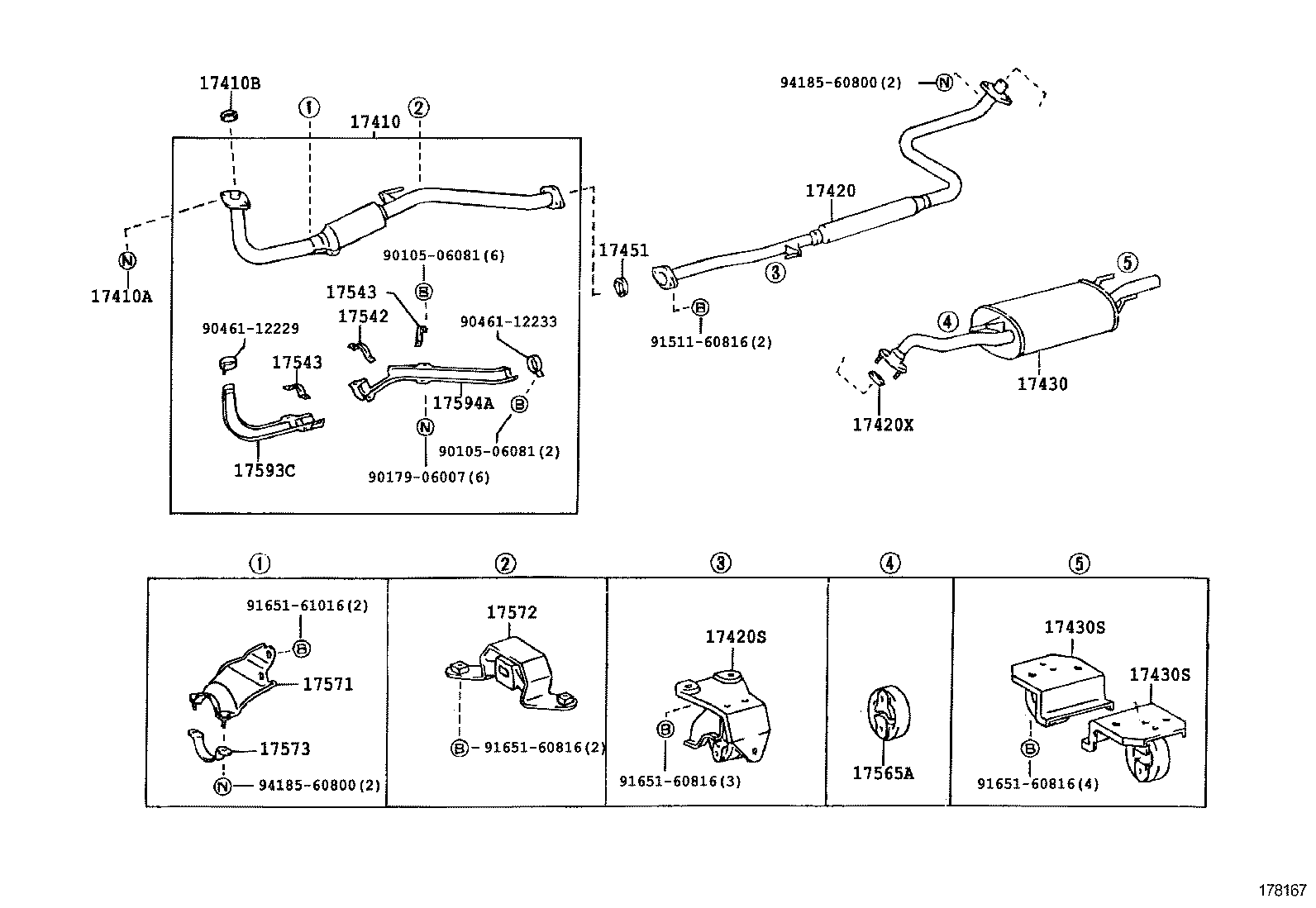

49 parts on this figure

Part number	Description	Fitment	Price
17410 — Pipe Assy, Exhaust, Front
17410-64640	Pipe Assy, Exhaust, Front 1994-06 → —	3CT CV40	¥14,100
17410-64660	Pipe Assy, Exhaust, Front 1995-01 → —	3CT CV43	¥13,600
17410-74780	Pipe Assy, Exhaust, Front 1994-06 → —	3SFE SV41,42	¥41,800
17410-74810	Pipe Assy, Exhaust, Front 1994-06 → —	3SFE SV43	¥27,900
17410-7A390	Pipe Assy, Exhaust, Front 1994-06 → —	4SFE SV40	¥18,300
17410A — Nut, Exhaust Pipe Set Stud Bolt
90179-10070	Nut, Exhaust Pipe Set Stud Bolt 1994-06 → —	3CT,3SFE,4SFE CV4#,SV4#	¥120
17410B — Gasket, Exhaust Pipe
90917-06039	Gasket, Exhaust Pipe 1994-06 → —	3SFE SV41,42	¥240
90917-06042	Gasket, Exhaust Pipe 1994-06 → —	3CT,3SFE CV4#,SV43	¥570
90917-06045	Gasket, Exhaust Pipe 1994-06 → —	4SFE SV40	¥580
17420 — Pipe Assy, Exhaust, Center
17420-64240	Pipe Assy, Exhaust, Center 1994-06 → —	3CT CV40	¥33,200
17420-64260	Pipe Assy, Exhaust, Center 1995-01 → —	3CT CV43	¥15,900
17420-74840	Pipe Assy, Exhaust, Center 1994-06 → —	4SFE SV40	¥20,800
17420-74850	Pipe Assy, Exhaust, Center 1994-06 → —	3SFE SV41,42	¥32,300
17420-74860	Pipe Assy, Exhaust, Center 1994-06 → 1994-12 ended	3SFE SV43	¥33,100
17420-74861	Pipe Assy, Exhaust, Center 1994-12 → —	3SFE SV43	¥33,200
17420S — Bracket, Exhaust Pipe Center, Rear
17507-64070	Bracket, Exhaust Pipe Center, Rear 1995-01 → —	3CT CV43	¥1,530
17507-74050	Bracket, Exhaust Pipe Center, Rear 1994-06 → 1997-12 ended	3CT,4SFE CV40,SV40	¥1,730
17507-74050	Bracket, Exhaust Pipe Center, Rear 1997-12 → —	3CT,3SFE,4SFE CV40,SV40,41,42	¥1,730
17507-74070	Bracket, Exhaust Pipe Center, Rear 1994-06 → 1997-12 ended	3SFE SV41,42	¥1,730
17420X — Gasket, Exhaust Pipe, Center
90917-06039	Gasket, Exhaust Pipe, Center 1994-06 → —	4SFE SV40	¥240
90917-06045	Gasket, Exhaust Pipe, Center 1994-06 → —	3CT,3SFE CV4#,SV41,42,43	¥580
17430 — Pipe Assy, Exhaust, Tail
17430-6A050	Pipe Assy, Exhaust, Tail 1994-06 → —	3CT CV40	¥35,000
17430-6A070	Pipe Assy, Exhaust, Tail 1995-01 → —	3CT CV43	¥44,900
17430-7A540	Pipe Assy, Exhaust, Tail 1994-06 → —	4SFE SV40	¥35,000
17430-7A550	Pipe Assy, Exhaust, Tail 1994-06 → —	3SFE SV41,42	¥35,000
17430-7A560	Pipe Assy, Exhaust, Tail 1994-06 → —	3SFE SV43	¥38,500
17430S — Bracket, Exhaust Tailpipe (FOR REAR)
17509-74100	Bracket, Exhaust Tailpipe (FOR REAR) 1994-06 → —	3CT,3SFE,4SFE CV4#,SV4#	¥1,730
17451 — Gasket, Exhaust Pipe
90917-06039	Gasket, Exhaust Pipe 1994-06 → —	3CT,4SFE CV43,SV40	¥240
90917-06043 note	Gasket, Exhaust Pipe 1994-06 → —	3SFE SV41,42	¥550
90917-06045	Gasket, Exhaust Pipe 1994-06 → —	3CT,3SFE CV40,SV43	¥580
90917-06054 note	Gasket, Exhaust Pipe 1994-06 → —	3SFE SV41,42	¥350
17542 — Stay, Exhaust Pipe Protector, NO.2
17542-11020	Stay, Exhaust Pipe Protector, NO.2 1994-06 → —	4SFE SV40	¥670
17542-74030 note	Stay, Exhaust Pipe Protector, NO.2 1994-06 → —	4SFE SV40	¥930
17543 — Stay, Exhaust Pipe Protector, NO.3
17543-63010	Stay, Exhaust Pipe Protector, NO.3 1994-06 → —	4SFE SV40	¥630
17544-14010 note	Stay, Exhaust Pipe Protector, NO.3 1994-06 → —	4SFE SV40	¥800
17565A — Support, Exhaust Pipe, NO.4
17565-46010	Support, Exhaust Pipe, NO.4 1994-06 → —	3CT,3SFE,4SFE CV4#,SV4#	¥1,290
17571 — Bracket, Exhaust Pipe Support, NO.1
17571-74280	Bracket, Exhaust Pipe Support, NO.1 1994-06 → 1996-05 ended	3SFE SV41,42	¥1,410
17571-74420	Bracket, Exhaust Pipe Support, NO.1 1994-06 → —	4SFE SV40	¥1,530
17571-74460	Bracket, Exhaust Pipe Support, NO.1 1996-05 → —	3SFE SV41,42	¥1,390
17572 — Bracket, Exhaust Pipe NO.1 Support
17572-74080	Bracket, Exhaust Pipe NO.1 Support 1994-06 → —	3SFE,4SFE SV4#	¥980
17573 — Bracket, Exhaust Pipe NO.1 Support, Lower
17573-74180	Bracket, Exhaust Pipe NO.1 Support, Lower 1994-06 → —	4SFE SV40	¥780
90917-04041	Bracket, Exhaust Pipe NO.1 Support, Lower 1994-06 → —	3SFE SV41,42	¥880
17593C — Protector, Exhaust Pipe, Lower NO.1
17593-64070	Protector, Exhaust Pipe, Lower NO.1 1994-06 → —	3CT CV40	¥1,270
17593-64120	Protector, Exhaust Pipe, Lower NO.1 1995-01 → —	3CT CV43	¥1,740
17593-74410	Protector, Exhaust Pipe, Lower NO.1 1994-06 → —	3SFE SV43	¥2,030
17593-74660	Protector, Exhaust Pipe, Lower NO.1 1994-06 → —	4SFE SV40	¥2,030
17594A — Protector, Exhaust Pipe, Lower NO.2
17594-64030	Protector, Exhaust Pipe, Lower NO.2 1995-01 → —	3CT CV43	¥2,030
17594-74370	Protector, Exhaust Pipe, Lower NO.2 1994-06 → —	3SFE SV43	¥3,970
17594-74380	Protector, Exhaust Pipe, Lower NO.2 1994-06 → —	4SFE SV40	¥3,240

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
