Toyota Camry/Vista
1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan
Discontinued model
Data version 1999-01

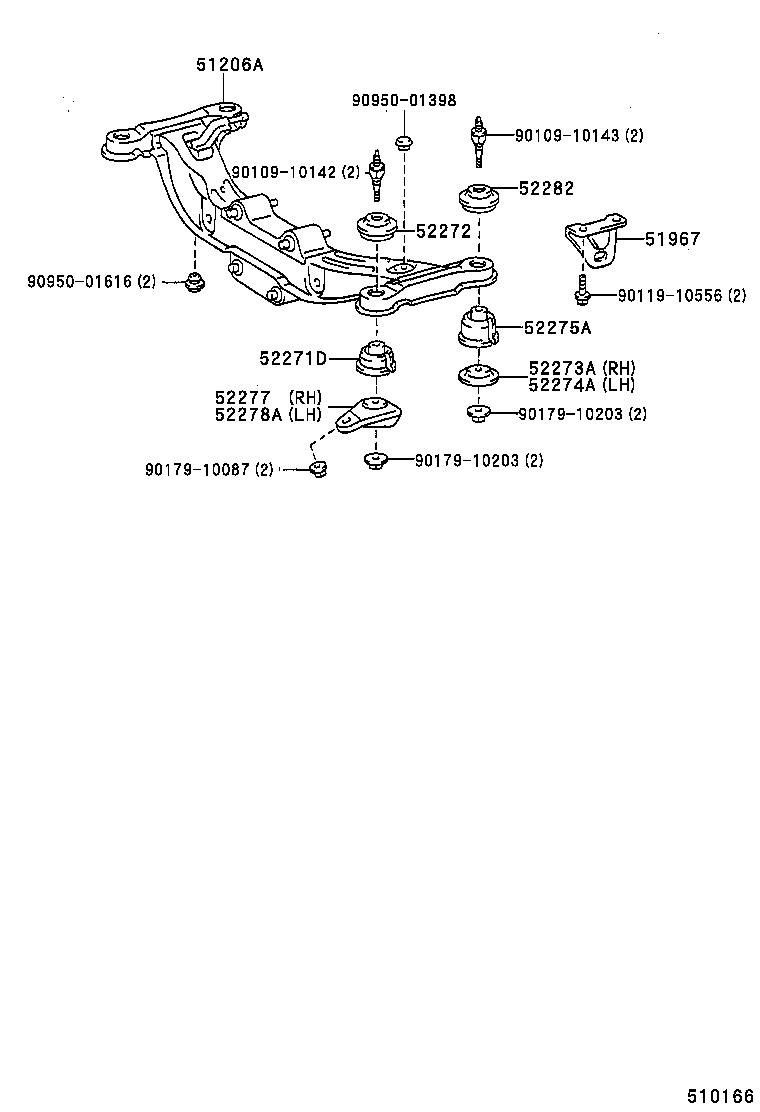

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51206A — Member Sub-assy, Rear Suspension | ||||
| 51206-32020 |
Member Sub-assy, Rear Suspension
1994-06 → —
|
CV43,SV43 | ¥66,700 | |
| 51206-32050 |
Member Sub-assy, Rear Suspension
1994-06 → —
|
CV40,SV40,41 | ¥23,100 | |
| 51206-32060 |
Member Sub-assy, Rear Suspension
1994-06 → —
|
SV42 | ¥34,500 | |
| 51967 — Hook, Transport, Rear | ||||
| 51967-32060 |
Hook, Transport, Rear
1994-06 → —
|
CV4#,SV4# | ¥1,270 | |
| 52271D — Cushion, Rear Suspension Member Body Mounting, Front | ||||
| 52271-32010 |
Cushion, Rear Suspension Member Body Mounting, Front
1994-06 → —
|
CV43,SV43 | ¥4,570 | |
| 52271-33010 |
Cushion, Rear Suspension Member Body Mounting, Front
1994-06 → —
|
SV42 | ¥2,240 | |
| 52272 — Stopper, Rear Suspension Member, Upper | ||||
| 52272-32010 |
Stopper, Rear Suspension Member, Upper
1994-06 → —
|
CV43,SV43 | ¥810 | |
| 52272-33010 |
Stopper, Rear Suspension Member, Upper
1994-06 → —
|
SV42 | ¥1,000 | |
| 52273A — Stopper, Rear Suspension Member, Lower RH | ||||
| 52273-32010 |
Stopper, Rear Suspension Member, Lower RH
1994-06 → —
|
SV42 | ¥480 | |
| 52274A — Stopper, Rear Suspension Member, Lower LH | ||||
| 52273-32010 |
Stopper, Rear Suspension Member, Lower LH
1994-06 → —
|
SV42 | ¥480 | |
| 52275A — Cushion, Rear Suspension Member Body Mounting, Rear | ||||
| 52275-32011 |
Cushion, Rear Suspension Member Body Mounting, Rear
1994-06 → —
|
CV43,SV43 | ¥4,020 | |
| 52275-33010 |
Cushion, Rear Suspension Member Body Mounting, Rear
1994-06 → —
|
SV42 | ¥2,490 | |
| 52277 — Retainer, Rear Suspension Member Lower Stopper, RH | ||||
| 52203-32010 |
Retainer, Rear Suspension Member Lower Stopper, RH
1994-06 → —
|
SV42 | ¥2,300 | |
| 52277-32010 |
Retainer, Rear Suspension Member Lower Stopper, RH
1994-06 → —
|
CV43,SV43 | ¥1,350 | |
| 52278A — Retainer, Rear Suspension Menber Lower Stopper, LH | ||||
| 52204-32010 |
Retainer, Rear Suspension Menber Lower Stopper, LH
1994-06 → —
|
SV42 | ¥2,150 | |
| 52277-32010 |
Retainer, Rear Suspension Menber Lower Stopper, LH
1994-06 → —
|
CV43,SV43 | ¥1,350 | |
| 52282 — Stopper, Differential Support Member, Upper | ||||
| 52282-33010 |
Stopper, Differential Support Member, Upper
1994-06 → —
|
SV42 | ¥750 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
