Toyota Camry/Vista

1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan

Discontinued model Data version 1999-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

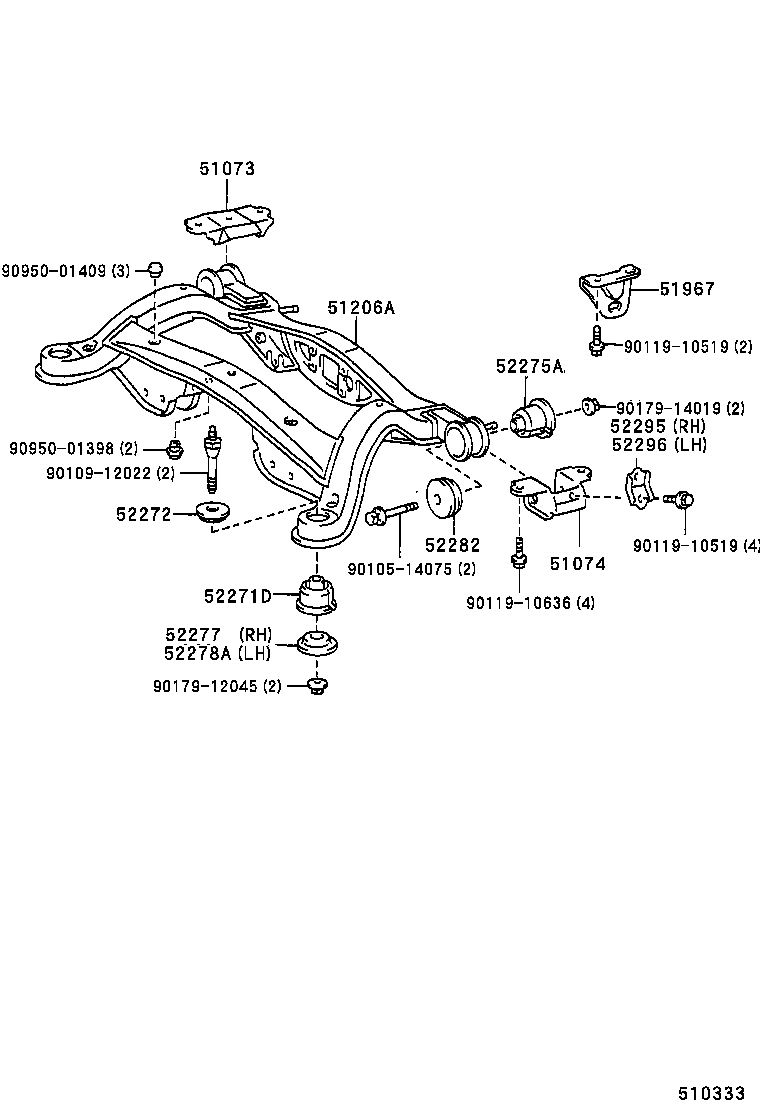

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

21 parts on this figure

Part number	Description	Fitment	Price
51073 — Bracket Sub-assy, Rear Body Mounting, NO.2 RH
51073-32010	Bracket Sub-assy, Rear Body Mounting, NO.2 RH 1994-06 → —	CV43,SV43	¥4,630
51074 — Bracket Sub-assy, Rear Body Mounting, NO.2 LH
51074-32010	Bracket Sub-assy, Rear Body Mounting, NO.2 LH 1994-06 → —	CV43,SV43	¥4,630
51206A — Member Sub-assy, Rear Suspension
51206-32020	Member Sub-assy, Rear Suspension 1994-06 → —	CV43,SV43	¥66,700
51206-32050	Member Sub-assy, Rear Suspension 1994-06 → —	CV40,SV40,41	¥23,100
51206-32060	Member Sub-assy, Rear Suspension 1994-06 → —	SV42	¥34,500
51967 — Hook, Transport, Rear
51967-32060	Hook, Transport, Rear 1994-06 → —	CV4#,SV4#	¥1,270
52271D — Cushion, Rear Suspension Member Body Mounting, Front
52271-32010	Cushion, Rear Suspension Member Body Mounting, Front 1994-06 → —	CV43,SV43	¥4,570
52271-33010	Cushion, Rear Suspension Member Body Mounting, Front 1994-06 → —	SV42	¥2,240
52272 — Stopper, Rear Suspension Member, Upper
52272-32010	Stopper, Rear Suspension Member, Upper 1994-06 → —	CV43,SV43	¥810
52272-33010	Stopper, Rear Suspension Member, Upper 1994-06 → —	SV42	¥1,000
52275A — Cushion, Rear Suspension Member Body Mounting, Rear
52275-32011	Cushion, Rear Suspension Member Body Mounting, Rear 1994-06 → —	CV43,SV43	¥4,020
52275-33010	Cushion, Rear Suspension Member Body Mounting, Rear 1994-06 → —	SV42	¥2,490
52277 — Retainer, Rear Suspension Member Lower Stopper, RH
52203-32010	Retainer, Rear Suspension Member Lower Stopper, RH 1994-06 → —	SV42	¥2,300
52277-32010	Retainer, Rear Suspension Member Lower Stopper, RH 1994-06 → —	CV43,SV43	¥1,350
52278A — Retainer, Rear Suspension Menber Lower Stopper, LH
52204-32010	Retainer, Rear Suspension Menber Lower Stopper, LH 1994-06 → —	SV42	¥2,150
52277-32010	Retainer, Rear Suspension Menber Lower Stopper, LH 1994-06 → —	CV43,SV43	¥1,350
52282 — Stopper, Differential Support Member, Upper
52282-33010	Stopper, Differential Support Member, Upper 1994-06 → —	SV42	¥750
52295 — Brace, Rear Suspension Member, RH
52295-32010	Brace, Rear Suspension Member, RH 1994-06 → 1996-05 ended	CV43,SV43	¥1,080
52295-32020	Brace, Rear Suspension Member, RH 1996-05 → —	CV43,SV43	¥1,340
52296 — Brace, Rear Suspension Member, LH
52296-32010	Brace, Rear Suspension Member, LH 1994-06 → 1996-05 ended	CV43,SV43	¥1,080
52296-32020	Brace, Rear Suspension Member, LH 1996-05 → —	CV43,SV43	¥1,340

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
