Toyota Camry/Vista

1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

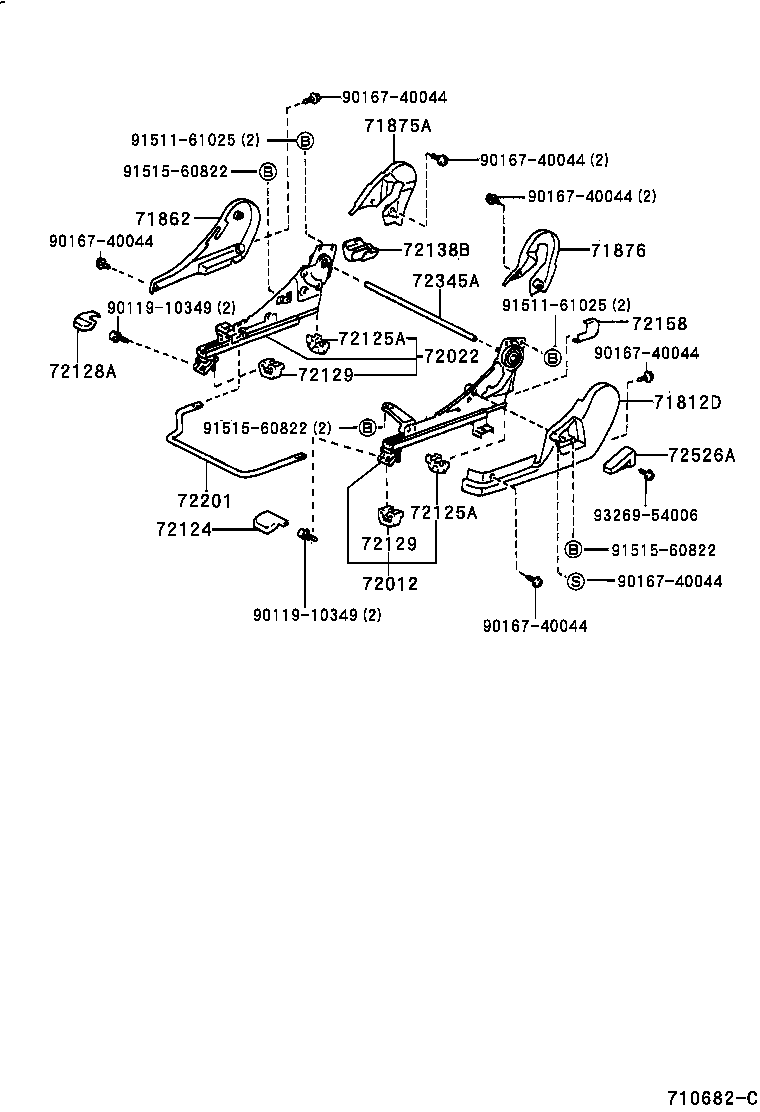

Exploded illustration 710682C 9016740044 — not listed in this catalogue 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (14 parts) 9151161025 — not listed in this catalogue 9016740044 — not listed in this catalogue 9151560822 — not listed in this catalogue 9016740044 — not listed in this catalogue 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (4 parts) 9016740044 — not listed in this catalogue 72138B — COVER, SEAT TRACK, LH (4 parts) 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (4 parts) 72345A — PIPE, RECLINING CONNECTING (1 parts) 9151161025 — not listed in this catalogue 9011910349 — not listed in this catalogue 72158 — COVER, SEAT TRACK BRACKET, INNER LH (4 parts) 72125A — COVER, SEAT TRACK, UPPER REAR (2 parts) 9016740044 — not listed in this catalogue 72022 — ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH (1 parts) 72128A — COVER, SEAT TRACK BRACKET, INNER FRONT LH (4 parts) 72129 — PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 (3 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (4 parts) 9151560822 — not listed in this catalogue 72526A — HANDLE, RECLINING ADJUSTER RELEASE, LH (4 parts) 72201 — HANDLE SUB-ASSY, SEAT TRACK (1 parts) 72125A — COVER, SEAT TRACK, UPPER REAR (2 parts) 9326954006 — not listed in this catalogue 72124 — COVER, SEAT TRACK BRACKET, OUTER FRONT LH (4 parts) 72129 — PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 (3 parts) 9151560822 — not listed in this catalogue 9016740044 — not listed in this catalogue 72012 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH (2 parts) 9011910349 — not listed in this catalogue 9016740044 — not listed in this catalogue
710682C · 17 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
56 parts on this figure
Part number Description Fitment Price
71812D — Shield, Front Seat Cushion, LH
71812-32100-B0 note Shield, Front Seat Cushion, LH
1994-06 → 1996-05 ended
CV4#,SV4# ¥2,260
71812-32100-E0 note Shield, Front Seat Cushion, LH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥2,190
71812-32110-B0 note Shield, Front Seat Cushion, LH
1996-05 → —
CV4#,SV4# ¥5,100
71812-32110-E0 note Shield, Front Seat Cushion, LH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥5,100
71862 — Shield, Front Seat Cushion, Inner LH
71862-32070-B0 note Shield, Front Seat Cushion, Inner LH
1994-06 → 1996-05 ended
CV4#,SV4# ¥1,570
71862-32070-E0 note Shield, Front Seat Cushion, Inner LH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,530
71862-32080-B0 note Shield, Front Seat Cushion, Inner LH
1996-05 → —
CV4#,SV4# ¥3,140
71862-32080-E0 note Shield, Front Seat Cushion, Inner LH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥3,140
71875A — Cover, Reclining Adjuster Inside, RH
71875-32010-B0 note Cover, Reclining Adjuster Inside, RH
1994-06 → 1996-05 ended
CV4#,SV4# ¥1,470
71875-32010-E0 note Cover, Reclining Adjuster Inside, RH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,470
71875-32020-B0 note Cover, Reclining Adjuster Inside, RH
1995-04 → 1995-07 ended
SV41,42,43 VX ¥1,480
71875-32020-B0 note Cover, Reclining Adjuster Inside, RH
1994-06 → 1996-05 ended
SV41,42,43 VX,ZX ¥1,480
71875-32020-B0 note Cover, Reclining Adjuster Inside, RH
1995-09 → 1996-05 ended
SV41,43 ATM VX ¥1,480
71875-32020-E0 note Cover, Reclining Adjuster Inside, RH
1995-09 → 1996-05 ended
SV41,43 ATM VX ¥1,480
71875-32020-E0 note Cover, Reclining Adjuster Inside, RH
1994-06 → 1996-05 ended
SV41,42,43 VX,ZX ¥1,480
71875-32020-E0 note Cover, Reclining Adjuster Inside, RH
1995-04 → 1995-07 ended
SV41,42,43 VX ¥1,480
71875-32030-B0 note Cover, Reclining Adjuster Inside, RH
1996-05 → —
CV4#,SV4# ¥1,600
71875-32030-B0 note Cover, Reclining Adjuster Inside, RH
1996-05 → —
SV41,42,43 VX,ZX ¥1,600
71875-32030-E0 note Cover, Reclining Adjuster Inside, RH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,600
71875-32030-E0 note Cover, Reclining Adjuster Inside, RH
1996-05 → —
SV41,42,43 VX,ZX ¥1,600
71875-32040-B0 note Cover, Reclining Adjuster Inside, RH
1996-05 → —
SV41,42,43 VX,ZX ¥1,780
71875-32040-E0 note Cover, Reclining Adjuster Inside, RH
1996-05 → —
SV41,42,43 VX,ZX ¥1,780
71876 — Cover, Reclining Adjuster Inside, LH
71876-32010-B0 note Cover, Reclining Adjuster Inside, LH
1994-06 → 1996-05 ended
CV4#,SV4# ¥1,470
71876-32010-E0 note Cover, Reclining Adjuster Inside, LH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,470
71876-32030-B0 note Cover, Reclining Adjuster Inside, LH
1996-05 → 1998-06 ended
CV4#,SV4# ¥1,600
71876-32030-E0 note Cover, Reclining Adjuster Inside, LH
1996-05 → 1998-06 ended
CV4#,SV4# ¥1,600
72012 — Adjuster Sub-assy, Front Seat, Outer LH
72012-32110 Adjuster Sub-assy, Front Seat, Outer LH
1996-05 → —
CV4#,SV4# ¥21,100
72020-32050 Adjuster Sub-assy, Front Seat, Outer LH
1994-06 → 1996-05 ended
CV4#,SV4# ¥22,900
72022 — Adjuster Sub-assy, Front Seat, Inner LH
72022-32090 Adjuster Sub-assy, Front Seat, Inner LH
1996-05 → —
CV4#,SV4# ¥21,100
72124 — Cover, Seat Track Bracket, Outer Front LH
72123-32040-B1 note Cover, Seat Track Bracket, Outer Front LH
1994-06 → 1996-05 ended
CV4#,SV4# ¥580
72123-32040-E0 note Cover, Seat Track Bracket, Outer Front LH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥580
72124-32020-B0 note Cover, Seat Track Bracket, Outer Front LH
1996-05 → —
CV4#,SV4# ¥740
72124-32020-E0 note Cover, Seat Track Bracket, Outer Front LH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥740
72125A — Cover, Seat Track, Upper Rear
72125-16020 Cover, Seat Track, Upper Rear
1996-05 → —
CV4#,SV4# ¥110
72125-33010 note Cover, Seat Track, Upper Rear
1996-05 → —
SV41,42,43 VX,ZX ¥280
72128A — Cover, Seat Track Bracket, Inner Front LH
72127-32020-B1 note Cover, Seat Track Bracket, Inner Front LH
1994-06 → 1996-05 ended
CV4#,SV4# ¥580
72127-32020-E0 note Cover, Seat Track Bracket, Inner Front LH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥580
72128-32020-B0 note Cover, Seat Track Bracket, Inner Front LH
1996-05 → 1998-06 ended
CV4#,SV4# ¥650
72128-32020-E0 note Cover, Seat Track Bracket, Inner Front LH
1996-05 → 1998-06 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥650
72129 — Protector, Seat Track Lower Rail, NO.1
72129-16010 note Protector, Seat Track Lower Rail, NO.1
1996-05 → —
CV4#,SV4# ¥190
72129-16020 note Protector, Seat Track Lower Rail, NO.1
1996-05 → —
CV4#,SV4# ¥120
72129-33030 note Protector, Seat Track Lower Rail, NO.1
1996-05 → —
SV41,42,43 VX,ZX ¥280
72138B — Cover, Seat Track, LH
72138-32010-C0 note Cover, Seat Track, LH
1994-06 → 1996-05 ended
CV4#,SV4# ALPX,TOU ¥740
72138-32010-C0 note Cover, Seat Track, LH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥740
72138-32020-C0 note Cover, Seat Track, LH
1996-05 → —
CV4#,SV4# ALPX,TOU ¥1,480
72138-32020-C0 note Cover, Seat Track, LH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,480
72158 — Cover, Seat Track Bracket, Inner LH
72158-32020-C0 note Cover, Seat Track Bracket, Inner LH
1994-06 → 1996-05 ended
CV4#,SV4# ALPX,TOU ¥580
72158-32020-C0 note Cover, Seat Track Bracket, Inner LH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥580
72158-32030-C0 note Cover, Seat Track Bracket, Inner LH
1996-05 → —
CV4#,SV4# ALPX,TOU ¥740
72158-32030-C0 note Cover, Seat Track Bracket, Inner LH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥740
72201 — Handle Sub-assy, Seat Track
72201-32010 Handle Sub-assy, Seat Track
1996-05 → —
CV4#,SV4# ¥2,160
72345A — Pipe, Reclining Connecting
72345-32030 Pipe, Reclining Connecting
1996-05 → —
CV4#,SV4# ¥3,190
72526A — Handle, Reclining Adjuster Release, LH
72526-32010-B0 note Handle, Reclining Adjuster Release, LH
1994-06 → 1996-05 ended
CV4#,SV4# ¥1,390
72526-32010-E0 note Handle, Reclining Adjuster Release, LH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,390
72526-32020-B0 note Handle, Reclining Adjuster Release, LH
1996-05 → —
CV4#,SV4# ¥1,070
72526-32020-E0 note Handle, Reclining Adjuster Release, LH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,070
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
