Toyota Camry/Vista

1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

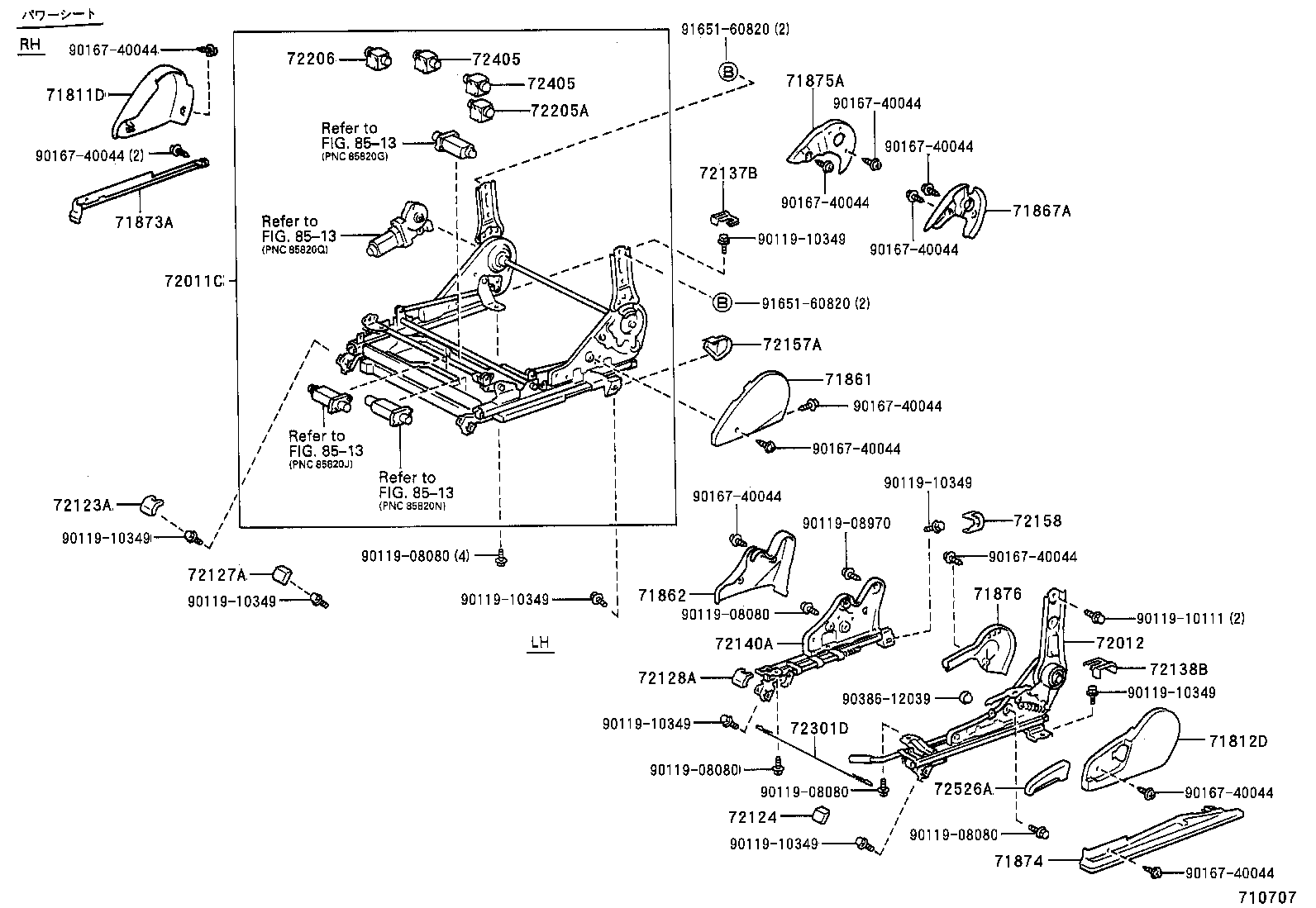

Exploded illustration 710707 9165160820 — not listed in this catalogue 9016740044 — not listed in this catalogue 72206 — HOUSING SUB-ASSY, POWER SEAT, NO.2 (3 parts) 72405 — HOUSING SUB-ASSY, FRONT SEAT VERTICAL (3 parts) 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (14 parts) 72405 — HOUSING SUB-ASSY, FRONT SEAT VERTICAL (3 parts) 71811D — SHIELD, FRONT SEAT CUSHION, RH (12 parts) 9016740044 — not listed in this catalogue 72205A — HOUSING SUB-ASSY, POWER SEAT, NO.1 (3 parts) 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 72137B — COVER, SEAT TRACK, RH (4 parts) 9016740044 — not listed in this catalogue 71867A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH (8 parts) 71873A — SHIELD, FRONT SEAT CUSHION, LOWER (8 parts) 9011910349 — not listed in this catalogue 9016740044 — not listed in this catalogue 72011C — ADJUSTER SUB-ASSY, FRONT SEAT, RH (4 parts) 9165160820 — not listed in this catalogue 72157A — COVER, SEAT TRACK BRACKET, INNER RH (4 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (12 parts) 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9011910349 — not listed in this catalogue 9016740044 — not listed in this catalogue 72123A — COVER, SEAT TRACK BRACKET, OUTER FRONT RH (4 parts) 72158 — COVER, SEAT TRACK BRACKET, INNER LH (4 parts) 9011908970 — not listed in this catalogue 9011910349 — not listed in this catalogue 9011908080 — not listed in this catalogue 9016740044 — not listed in this catalogue 72127A — COVER, SEAT TRACK BRACKET, INNER FRONT RH (4 parts) 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (4 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (4 parts) 9011910349 — not listed in this catalogue 9011910349 — not listed in this catalogue 9011908080 — not listed in this catalogue 9011910111 — not listed in this catalogue 72012 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH (2 parts) 72140A — TRACK ASSY, FRONT SEAT,INNER LH (1 parts) 72138B — COVER, SEAT TRACK, LH (4 parts) 72128A — COVER, SEAT TRACK BRACKET, INNER FRONT LH (4 parts) 9011910349 — not listed in this catalogue 9038612039 — not listed in this catalogue 9011910349 — not listed in this catalogue 72301D — WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH (1 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (4 parts) 9011908080 — not listed in this catalogue 72526A — HANDLE, RECLINING ADJUSTER RELEASE, LH (4 parts) 9011908080 — not listed in this catalogue 9016740044 — not listed in this catalogue 72124 — COVER, SEAT TRACK BRACKET, OUTER FRONT LH (4 parts) 9011908080 — not listed in this catalogue 9011910349 — not listed in this catalogue 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (2 parts) 9016740044 — not listed in this catalogue
710707 · 26 callouts, 30 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
121 parts on this figure
Part number Description Fitment Price
71811D — Shield, Front Seat Cushion, RH
71811-32090-B0 note Shield, Front Seat Cushion, RH
1994-06 → 1996-05 ended
CV4#,SV4# ¥2,260
71811-32090-E0 note Shield, Front Seat Cushion, RH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥2,190
71811-32100-B0 note Shield, Front Seat Cushion, RH
1995-04 → 1995-07 ended
SV41,42,43 VX ¥2,170
71811-32100-B0 note Shield, Front Seat Cushion, RH
1994-06 → 1996-05 ended
SV41,42,43 VX,ZX ¥2,170
71811-32100-B0 note Shield, Front Seat Cushion, RH
1995-09 → 1996-05 ended
SV41,43 ATM VX ¥2,170
71811-32100-E0 note Shield, Front Seat Cushion, RH
1995-04 → 1995-07 ended
SV41,42,43 VX ¥2,170
71811-32100-E0 note Shield, Front Seat Cushion, RH
1995-09 → 1996-05 ended
SV41,43 ATM VX ¥2,170
71811-32100-E0 note Shield, Front Seat Cushion, RH
1994-06 → 1996-05 ended
SV41,42,43 VX,ZX ¥2,170
71811-32110-B0 note Shield, Front Seat Cushion, RH
1996-05 → —
CV4#,SV4# ¥5,100
71811-32110-E0 note Shield, Front Seat Cushion, RH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥5,100
71811-32120-B0 note Shield, Front Seat Cushion, RH
1996-05 → —
SV41,42,43 VX,ZX ¥5,100
71811-32120-E0 note Shield, Front Seat Cushion, RH
1996-05 → —
SV41,42,43 VX,ZX ¥5,100
71812D — Shield, Front Seat Cushion, LH
71812-32100-B0 note Shield, Front Seat Cushion, LH
1994-06 → 1996-05 ended
CV4#,SV4# ¥2,260
71812-32100-E0 note Shield, Front Seat Cushion, LH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥2,190
71812-32110-B0 note Shield, Front Seat Cushion, LH
1996-05 → —
CV4#,SV4# ¥5,100
71812-32110-E0 note Shield, Front Seat Cushion, LH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥5,100
71861 — Shield, Front Seat Cushion, Inner RH
71861-32060-B0 note Shield, Front Seat Cushion, Inner RH
1994-06 → 1996-05 ended
CV4#,SV4# ¥1,730
71861-32060-E0 note Shield, Front Seat Cushion, Inner RH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,730
71861-32070-B0 note Shield, Front Seat Cushion, Inner RH
1995-04 → 1995-07 ended
SV41,42,43 VX ¥1,730
71861-32070-B0 note Shield, Front Seat Cushion, Inner RH
1994-06 → 1996-05 ended
SV41,42,43 VX,ZX ¥1,730
71861-32070-B0 note Shield, Front Seat Cushion, Inner RH
1995-09 → 1996-05 ended
SV41,43 ATM VX ¥1,730
71861-32070-E0 note Shield, Front Seat Cushion, Inner RH
1994-06 → 1996-05 ended
SV41,42,43 VX,ZX ¥1,730
71861-32070-E0 note Shield, Front Seat Cushion, Inner RH
1995-09 → 1996-05 ended
SV41,43 ATM VX ¥1,730
71861-32070-E0 note Shield, Front Seat Cushion, Inner RH
1995-04 → 1995-07 ended
SV41,42,43 VX ¥1,730
71861-32080-B0 note Shield, Front Seat Cushion, Inner RH
1996-05 → —
CV4#,SV4# ¥3,140
71861-32080-E0 note Shield, Front Seat Cushion, Inner RH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥3,140
71861-32090-B0 note Shield, Front Seat Cushion, Inner RH
1996-05 → —
SV41,42,43 VX,ZX ¥3,140
71861-32090-E0 note Shield, Front Seat Cushion, Inner RH
1996-05 → —
SV41,42,43 VX,ZX ¥3,140
71862 — Shield, Front Seat Cushion, Inner LH
71862-32070-B0 note Shield, Front Seat Cushion, Inner LH
1994-06 → 1996-05 ended
CV4#,SV4# ¥1,570
71862-32070-E0 note Shield, Front Seat Cushion, Inner LH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,530
71862-32080-B0 note Shield, Front Seat Cushion, Inner LH
1996-05 → —
CV4#,SV4# ¥3,140
71862-32080-E0 note Shield, Front Seat Cushion, Inner LH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥3,140
71867A — Shield, Front Seat Cushion, Inner NO.1 RH
71867-32010-B0 note Shield, Front Seat Cushion, Inner NO.1 RH
1995-09 → 1996-05 ended
SV41,43 ATM VX ¥1,480
71867-32010-B0 note Shield, Front Seat Cushion, Inner NO.1 RH
1994-06 → 1996-05 ended
SV41,42,43 VX,ZX ¥1,480
71867-32010-B0 note Shield, Front Seat Cushion, Inner NO.1 RH
1995-04 → 1995-07 ended
SV41,42,43 VX ¥1,480
71867-32010-E0 note Shield, Front Seat Cushion, Inner NO.1 RH
1994-06 → 1996-05 ended
SV41,42,43 VX,ZX ¥1,480
71867-32010-E0 note Shield, Front Seat Cushion, Inner NO.1 RH
1995-09 → 1996-05 ended
SV41,43 ATM VX ¥1,480
71867-32010-E0 note Shield, Front Seat Cushion, Inner NO.1 RH
1995-04 → 1995-07 ended
SV41,42,43 VX ¥1,480
71867-32030-B0 note Shield, Front Seat Cushion, Inner NO.1 RH
1996-05 → —
SV41,42,43 VX,ZX ¥1,780
71867-32030-E0 note Shield, Front Seat Cushion, Inner NO.1 RH
1996-05 → —
SV41,42,43 VX,ZX ¥1,780
71873A — Shield, Front Seat Cushion, Lower
71873-32020-B0 note Shield, Front Seat Cushion, Lower
1994-06 → 1996-05 ended
CV4#,SV4# ¥1,470
71873-32020-E0 note Shield, Front Seat Cushion, Lower
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,470
71873-32031-B0 note Shield, Front Seat Cushion, Lower
1995-04 → 1995-07 ended
SV41,42,43 VX ¥1,480
71873-32031-B0 note Shield, Front Seat Cushion, Lower
1994-06 → 1996-05 ended
SV41,42,43 VX,ZX ¥1,480
71873-32031-B0 note Shield, Front Seat Cushion, Lower
1995-09 → 1996-05 ended
SV41,43 ATM VX ¥1,480
71873-32031-E0 note Shield, Front Seat Cushion, Lower
1995-09 → 1996-05 ended
SV41,43 ATM VX ¥1,460
71873-32031-E0 note Shield, Front Seat Cushion, Lower
1994-06 → 1996-05 ended
SV41,42,43 VX,ZX ¥1,460
71873-32031-E0 note Shield, Front Seat Cushion, Lower
1995-04 → 1995-07 ended
SV41,42,43 VX ¥1,460
71874 — Shield, Front Seat Cushion, Lower LH
71874-32010-B0 note Shield, Front Seat Cushion, Lower LH
1994-06 → 1996-05 ended
CV4#,SV4# ¥1,470
71874-32010-E0 note Shield, Front Seat Cushion, Lower LH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,470
71875A — Cover, Reclining Adjuster Inside, RH
71875-32010-B0 note Cover, Reclining Adjuster Inside, RH
1994-06 → 1996-05 ended
CV4#,SV4# ¥1,470
71875-32010-E0 note Cover, Reclining Adjuster Inside, RH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,470
71875-32020-B0 note Cover, Reclining Adjuster Inside, RH
1995-04 → 1995-07 ended
SV41,42,43 VX ¥1,480
71875-32020-B0 note Cover, Reclining Adjuster Inside, RH
1994-06 → 1996-05 ended
SV41,42,43 VX,ZX ¥1,480
71875-32020-B0 note Cover, Reclining Adjuster Inside, RH
1995-09 → 1996-05 ended
SV41,43 ATM VX ¥1,480
71875-32020-E0 note Cover, Reclining Adjuster Inside, RH
1995-04 → 1995-07 ended
SV41,42,43 VX ¥1,480
71875-32020-E0 note Cover, Reclining Adjuster Inside, RH
1994-06 → 1996-05 ended
SV41,42,43 VX,ZX ¥1,480
71875-32020-E0 note Cover, Reclining Adjuster Inside, RH
1995-09 → 1996-05 ended
SV41,43 ATM VX ¥1,480
71875-32030-B0 note Cover, Reclining Adjuster Inside, RH
1996-05 → —
CV4#,SV4# ¥1,600
71875-32030-B0 note Cover, Reclining Adjuster Inside, RH
1996-05 → —
SV41,42,43 VX,ZX ¥1,600
71875-32030-E0 note Cover, Reclining Adjuster Inside, RH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,600
71875-32030-E0 note Cover, Reclining Adjuster Inside, RH
1996-05 → —
SV41,42,43 VX,ZX ¥1,600
71875-32040-B0 note Cover, Reclining Adjuster Inside, RH
1996-05 → —
SV41,42,43 VX,ZX ¥1,780
71875-32040-E0 note Cover, Reclining Adjuster Inside, RH
1996-05 → —
SV41,42,43 VX,ZX ¥1,780
71876 — Cover, Reclining Adjuster Inside, LH
71876-32010-B0 note Cover, Reclining Adjuster Inside, LH
1994-06 → 1996-05 ended
CV4#,SV4# ¥1,470
71876-32010-E0 note Cover, Reclining Adjuster Inside, LH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,470
71876-32030-B0 note Cover, Reclining Adjuster Inside, LH
1996-05 → 1998-06 ended
CV4#,SV4# ¥1,600
71876-32030-E0 note Cover, Reclining Adjuster Inside, LH
1996-05 → 1998-06 ended
CV4#,SV4# ¥1,600
72011C — Adjuster Sub-assy, Front Seat, RH
72010-32080 note Adjuster Sub-assy, Front Seat, RH
1995-04 → 1995-07 ended
SV41,42,43 VX ¥118,000
72010-32080 note Adjuster Sub-assy, Front Seat, RH
1994-06 → 1996-05 ended
SV41,42,43 VX,ZX ¥118,000
72010-32080 note Adjuster Sub-assy, Front Seat, RH
1995-09 → 1996-05 ended
SV41,43 ATM VX ¥118,000
72010-32090 Adjuster Sub-assy, Front Seat, RH
1996-05 → —
SV41,42,43 VX,ZX ¥118,000
72012 — Adjuster Sub-assy, Front Seat, Outer LH
72012-32110 Adjuster Sub-assy, Front Seat, Outer LH
1996-05 → —
CV4#,SV4# ¥21,100
72020-32050 Adjuster Sub-assy, Front Seat, Outer LH
1994-06 → 1996-05 ended
CV4#,SV4# ¥22,900
72123A — Cover, Seat Track Bracket, Outer Front RH
72123-32040-B1 note Cover, Seat Track Bracket, Outer Front RH
1994-06 → 1996-05 ended
CV4#,SV4# ¥580
72123-32040-E0 note Cover, Seat Track Bracket, Outer Front RH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥580
72123-32050-B0 note Cover, Seat Track Bracket, Outer Front RH
1996-05 → —
CV4#,SV4# ¥740
72123-32050-E0 note Cover, Seat Track Bracket, Outer Front RH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥740
72124 — Cover, Seat Track Bracket, Outer Front LH
72123-32040-B1 note Cover, Seat Track Bracket, Outer Front LH
1994-06 → 1996-05 ended
CV4#,SV4# ¥580
72123-32040-E0 note Cover, Seat Track Bracket, Outer Front LH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥580
72124-32020-B0 note Cover, Seat Track Bracket, Outer Front LH
1996-05 → —
CV4#,SV4# ¥740
72124-32020-E0 note Cover, Seat Track Bracket, Outer Front LH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥740
72127A — Cover, Seat Track Bracket, Inner Front RH
72127-32020-B1 note Cover, Seat Track Bracket, Inner Front RH
1994-06 → 1996-05 ended
CV4#,SV4# ¥580
72127-32020-E0 note Cover, Seat Track Bracket, Inner Front RH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥580
72127-32030-B0 note Cover, Seat Track Bracket, Inner Front RH
1996-05 → —
CV4#,SV4# ¥650
72127-32030-E0 note Cover, Seat Track Bracket, Inner Front RH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥650
72128A — Cover, Seat Track Bracket, Inner Front LH
72127-32020-B1 note Cover, Seat Track Bracket, Inner Front LH
1994-06 → 1996-05 ended
CV4#,SV4# ¥580
72127-32020-E0 note Cover, Seat Track Bracket, Inner Front LH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥580
72128-32020-B0 note Cover, Seat Track Bracket, Inner Front LH
1996-05 → 1998-06 ended
CV4#,SV4# ¥650
72128-32020-E0 note Cover, Seat Track Bracket, Inner Front LH
1996-05 → 1998-06 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥650
72137B — Cover, Seat Track, RH
72137-32030-C0 note Cover, Seat Track, RH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥740
72137-32030-C0 note Cover, Seat Track, RH
1994-06 → 1996-05 ended
CV4#,SV4# ALPX,TOU ¥740
72137-32040-C0 note Cover, Seat Track, RH
1996-05 → —
CV4#,SV4# ALPX,TOU ¥1,480
72137-32040-C0 note Cover, Seat Track, RH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,480
72138B — Cover, Seat Track, LH
72138-32010-C0 note Cover, Seat Track, LH
1994-06 → 1996-05 ended
CV4#,SV4# ALPX,TOU ¥740
72138-32010-C0 note Cover, Seat Track, LH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥740
72138-32020-C0 note Cover, Seat Track, LH
1996-05 → —
CV4#,SV4# ALPX,TOU ¥1,480
72138-32020-C0 note Cover, Seat Track, LH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,480
72140A — Track Assy, Front Seat,Inner LH
72140-32030 Track Assy, Front Seat,Inner LH
1994-06 → 1996-05 ended
CV4#,SV4# ¥13,000
72157A — Cover, Seat Track Bracket, Inner RH
72157-32020-C0 note Cover, Seat Track Bracket, Inner RH
1994-06 → 1996-05 ended
CV4#,SV4# ALPX,TOU ¥580
72157-32020-C0 note Cover, Seat Track Bracket, Inner RH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥580
72157-32030-C0 note Cover, Seat Track Bracket, Inner RH
1996-05 → —
CV4#,SV4# ALPX,TOU ¥740
72157-32030-C0 note Cover, Seat Track Bracket, Inner RH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥740
72158 — Cover, Seat Track Bracket, Inner LH
72158-32020-C0 note Cover, Seat Track Bracket, Inner LH
1994-06 → 1996-05 ended
CV4#,SV4# ALPX,TOU ¥580
72158-32020-C0 note Cover, Seat Track Bracket, Inner LH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥580
72158-32030-C0 note Cover, Seat Track Bracket, Inner LH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥740
72158-32030-C0 note Cover, Seat Track Bracket, Inner LH
1996-05 → —
CV4#,SV4# ALPX,TOU ¥740
72205A — Housing Sub-assy, Power Seat, NO.1
72205-50020 note Housing Sub-assy, Power Seat, NO.1
1995-04 → 1995-07 ended
SV41,42,43 VX ¥9,400
72205-50020 note Housing Sub-assy, Power Seat, NO.1
1994-06 → 1996-05 ended
SV41,42,43 VX,ZX ¥9,400
72205-50020 note Housing Sub-assy, Power Seat, NO.1
1995-09 → 1996-05 ended
SV41,43 ATM VX ¥9,400
72206 — Housing Sub-assy, Power Seat, NO.2
72206-22020 note Housing Sub-assy, Power Seat, NO.2
1995-04 → 1995-07 ended
SV41,42,43 VX ¥9,400
72206-22020 note Housing Sub-assy, Power Seat, NO.2
1994-06 → 1996-05 ended
SV41,42,43 VX,ZX ¥9,400
72206-22020 note Housing Sub-assy, Power Seat, NO.2
1995-09 → 1996-05 ended
SV41,43 ATM VX ¥9,400
72301D — Wire Sub-assy, Seat Track Equalizing, LH
72301-32030 Wire Sub-assy, Seat Track Equalizing, LH
1994-06 → 1996-05 ended
CV4#,SV4# ¥350
72405 — Housing Sub-assy, Front Seat Vertical
72405-24020 note Housing Sub-assy, Front Seat Vertical
1995-04 → 1995-07 ended
SV41,42,43 VX ¥9,400
72405-24020 note Housing Sub-assy, Front Seat Vertical
1994-06 → 1996-05 ended
SV41,42,43 VX,ZX ¥9,400
72405-24020 note Housing Sub-assy, Front Seat Vertical
1995-09 → 1996-05 ended
SV41,43 ATM VX ¥9,400
72526A — Handle, Reclining Adjuster Release, LH
72526-32010-B0 note Handle, Reclining Adjuster Release, LH
1994-06 → 1996-05 ended
CV4#,SV4# ¥1,390
72526-32010-E0 note Handle, Reclining Adjuster Release, LH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,390
72526-32020-B0 note Handle, Reclining Adjuster Release, LH
1996-05 → —
CV4#,SV4# ¥1,070
72526-32020-E0 note Handle, Reclining Adjuster Release, LH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,070
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
