Toyota Camry/Vista

1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

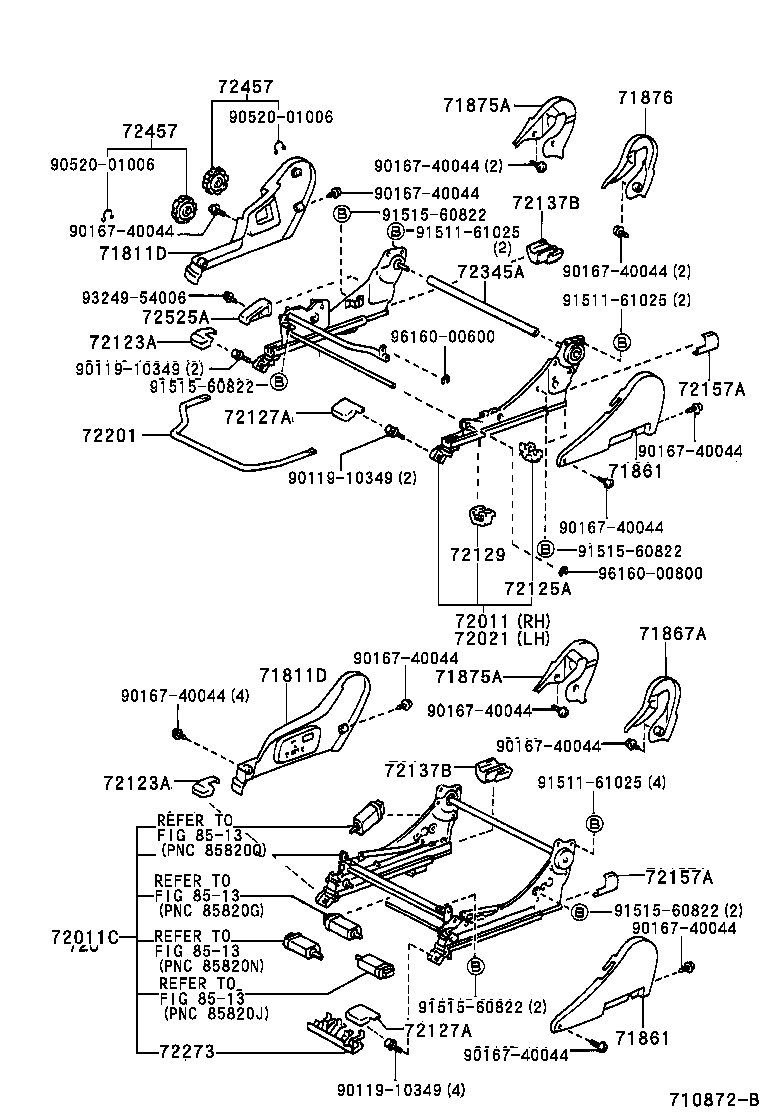

Exploded illustration 710872B 72457 — KNOB, VERTICAL SEAT ADJUSTER (4 parts) 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (4 parts) 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (14 parts) 9052001006 — not listed in this catalogue 72457 — KNOB, VERTICAL SEAT ADJUSTER (4 parts) 9052001006 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 72137B — COVER, SEAT TRACK, RH (4 parts) 9151560822 — not listed in this catalogue 9016740044 — not listed in this catalogue 9151161025 — not listed in this catalogue 71811D — SHIELD, FRONT SEAT CUSHION, RH (12 parts) 72345A — PIPE, RECLINING CONNECTING (1 parts) 9016740044 — not listed in this catalogue 9324954006 — not listed in this catalogue 9151161025 — not listed in this catalogue 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (4 parts) 9616000600 — not listed in this catalogue 72123A — COVER, SEAT TRACK BRACKET, OUTER FRONT RH (4 parts) 9011910349 — not listed in this catalogue 9151560822 — not listed in this catalogue 72157A — COVER, SEAT TRACK BRACKET, INNER RH (4 parts) 72127A — COVER, SEAT TRACK BRACKET, INNER FRONT RH (4 parts) 72201 — HANDLE SUB-ASSY, SEAT TRACK (1 parts) 9016740044 — not listed in this catalogue 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (12 parts) 9011910349 — not listed in this catalogue 9016740044 — not listed in this catalogue 9151560822 — not listed in this catalogue 72129 — PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 (3 parts) 9616000800 — not listed in this catalogue 72125A — COVER, SEAT TRACK, UPPER REAR (2 parts) 72011 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH (2 parts) 71867A — SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH (8 parts) 72021 — ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH (1 parts) 9016740044 — not listed in this catalogue 71811D — SHIELD, FRONT SEAT CUSHION, RH (12 parts) 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (14 parts) 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 72137B — COVER, SEAT TRACK, RH (4 parts) 72123A — COVER, SEAT TRACK BRACKET, OUTER FRONT RH (4 parts) 9151161025 — not listed in this catalogue 8513 — not listed in this catalogue 72157A — COVER, SEAT TRACK BRACKET, INNER RH (4 parts) 8513 — not listed in this catalogue 9151560822 — not listed in this catalogue 9016740044 — not listed in this catalogue 72011C — ADJUSTER SUB-ASSY, FRONT SEAT, RH (4 parts) 8513 — not listed in this catalogue 8513 — not listed in this catalogue 9151560822 — not listed in this catalogue 72127A — COVER, SEAT TRACK BRACKET, INNER FRONT RH (4 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (12 parts) 72273 — SUPPORT, SEAT TRACK CONTROL CABLE (1 parts) 9016740044 — not listed in this catalogue 9011910349 — not listed in this catalogue
710872B · 27 callouts, 32 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
89 parts on this figure
Part number Description Fitment Price
71811D — Shield, Front Seat Cushion, RH
71811-32090-B0 note Shield, Front Seat Cushion, RH
1994-06 → 1996-05 ended
CV4#,SV4# ¥2,260
71811-32090-E0 note Shield, Front Seat Cushion, RH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥2,190
71811-32100-B0 note Shield, Front Seat Cushion, RH
1995-04 → 1995-07 ended
SV41,42,43 VX ¥2,170
71811-32100-B0 note Shield, Front Seat Cushion, RH
1994-06 → 1996-05 ended
SV41,42,43 VX,ZX ¥2,170
71811-32100-B0 note Shield, Front Seat Cushion, RH
1995-09 → 1996-05 ended
SV41,43 ATM VX ¥2,170
71811-32100-E0 note Shield, Front Seat Cushion, RH
1995-04 → 1995-07 ended
SV41,42,43 VX ¥2,170
71811-32100-E0 note Shield, Front Seat Cushion, RH
1995-09 → 1996-05 ended
SV41,43 ATM VX ¥2,170
71811-32100-E0 note Shield, Front Seat Cushion, RH
1994-06 → 1996-05 ended
SV41,42,43 VX,ZX ¥2,170
71811-32110-B0 note Shield, Front Seat Cushion, RH
1996-05 → —
CV4#,SV4# ¥5,100
71811-32110-E0 note Shield, Front Seat Cushion, RH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥5,100
71811-32120-B0 note Shield, Front Seat Cushion, RH
1996-05 → —
SV41,42,43 VX,ZX ¥5,100
71811-32120-E0 note Shield, Front Seat Cushion, RH
1996-05 → —
SV41,42,43 VX,ZX ¥5,100
71861 — Shield, Front Seat Cushion, Inner RH
71861-32060-B0 note Shield, Front Seat Cushion, Inner RH
1994-06 → 1996-05 ended
CV4#,SV4# ¥1,730
71861-32060-E0 note Shield, Front Seat Cushion, Inner RH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,730
71861-32070-B0 note Shield, Front Seat Cushion, Inner RH
1995-04 → 1995-07 ended
SV41,42,43 VX ¥1,730
71861-32070-B0 note Shield, Front Seat Cushion, Inner RH
1994-06 → 1996-05 ended
SV41,42,43 VX,ZX ¥1,730
71861-32070-B0 note Shield, Front Seat Cushion, Inner RH
1995-09 → 1996-05 ended
SV41,43 ATM VX ¥1,730
71861-32070-E0 note Shield, Front Seat Cushion, Inner RH
1994-06 → 1996-05 ended
SV41,42,43 VX,ZX ¥1,730
71861-32070-E0 note Shield, Front Seat Cushion, Inner RH
1995-09 → 1996-05 ended
SV41,43 ATM VX ¥1,730
71861-32070-E0 note Shield, Front Seat Cushion, Inner RH
1995-04 → 1995-07 ended
SV41,42,43 VX ¥1,730
71861-32080-B0 note Shield, Front Seat Cushion, Inner RH
1996-05 → —
CV4#,SV4# ¥3,140
71861-32080-E0 note Shield, Front Seat Cushion, Inner RH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥3,140
71861-32090-B0 note Shield, Front Seat Cushion, Inner RH
1996-05 → —
SV41,42,43 VX,ZX ¥3,140
71861-32090-E0 note Shield, Front Seat Cushion, Inner RH
1996-05 → —
SV41,42,43 VX,ZX ¥3,140
71867A — Shield, Front Seat Cushion, Inner NO.1 RH
71867-32010-B0 note Shield, Front Seat Cushion, Inner NO.1 RH
1995-09 → 1996-05 ended
SV41,43 ATM VX ¥1,480
71867-32010-B0 note Shield, Front Seat Cushion, Inner NO.1 RH
1994-06 → 1996-05 ended
SV41,42,43 VX,ZX ¥1,480
71867-32010-B0 note Shield, Front Seat Cushion, Inner NO.1 RH
1995-04 → 1995-07 ended
SV41,42,43 VX ¥1,480
71867-32010-E0 note Shield, Front Seat Cushion, Inner NO.1 RH
1994-06 → 1996-05 ended
SV41,42,43 VX,ZX ¥1,480
71867-32010-E0 note Shield, Front Seat Cushion, Inner NO.1 RH
1995-09 → 1996-05 ended
SV41,43 ATM VX ¥1,480
71867-32010-E0 note Shield, Front Seat Cushion, Inner NO.1 RH
1995-04 → 1995-07 ended
SV41,42,43 VX ¥1,480
71867-32030-B0 note Shield, Front Seat Cushion, Inner NO.1 RH
1996-05 → —
SV41,42,43 VX,ZX ¥1,780
71867-32030-E0 note Shield, Front Seat Cushion, Inner NO.1 RH
1996-05 → —
SV41,42,43 VX,ZX ¥1,780
71875A — Cover, Reclining Adjuster Inside, RH
71875-32010-B0 note Cover, Reclining Adjuster Inside, RH
1994-06 → 1996-05 ended
CV4#,SV4# ¥1,470
71875-32010-E0 note Cover, Reclining Adjuster Inside, RH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,470
71875-32020-B0 note Cover, Reclining Adjuster Inside, RH
1995-04 → 1995-07 ended
SV41,42,43 VX ¥1,480
71875-32020-B0 note Cover, Reclining Adjuster Inside, RH
1994-06 → 1996-05 ended
SV41,42,43 VX,ZX ¥1,480
71875-32020-B0 note Cover, Reclining Adjuster Inside, RH
1995-09 → 1996-05 ended
SV41,43 ATM VX ¥1,480
71875-32020-E0 note Cover, Reclining Adjuster Inside, RH
1995-04 → 1995-07 ended
SV41,42,43 VX ¥1,480
71875-32020-E0 note Cover, Reclining Adjuster Inside, RH
1994-06 → 1996-05 ended
SV41,42,43 VX,ZX ¥1,480
71875-32020-E0 note Cover, Reclining Adjuster Inside, RH
1995-09 → 1996-05 ended
SV41,43 ATM VX ¥1,480
71875-32030-B0 note Cover, Reclining Adjuster Inside, RH
1996-05 → —
CV4#,SV4# ¥1,600
71875-32030-B0 note Cover, Reclining Adjuster Inside, RH
1996-05 → —
SV41,42,43 VX,ZX ¥1,600
71875-32030-E0 note Cover, Reclining Adjuster Inside, RH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,600
71875-32030-E0 note Cover, Reclining Adjuster Inside, RH
1996-05 → —
SV41,42,43 VX,ZX ¥1,600
71875-32040-B0 note Cover, Reclining Adjuster Inside, RH
1996-05 → —
SV41,42,43 VX,ZX ¥1,780
71875-32040-E0 note Cover, Reclining Adjuster Inside, RH
1996-05 → —
SV41,42,43 VX,ZX ¥1,780
71876 — Cover, Reclining Adjuster Inside, LH
71876-32010-B0 note Cover, Reclining Adjuster Inside, LH
1994-06 → 1996-05 ended
CV4#,SV4# ¥1,470
71876-32010-E0 note Cover, Reclining Adjuster Inside, LH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,470
71876-32030-B0 note Cover, Reclining Adjuster Inside, LH
1996-05 → 1998-06 ended
CV4#,SV4# ¥1,600
71876-32030-E0 note Cover, Reclining Adjuster Inside, LH
1996-05 → 1998-06 ended
CV4#,SV4# ¥1,600
72011 — Adjuster Sub-assy, Front Seat, Outer RH
72010-32070 Adjuster Sub-assy, Front Seat, Outer RH
1994-06 → 1996-05 ended
CV4#,SV4# ¥34,000
72011-32100 Adjuster Sub-assy, Front Seat, Outer RH
1996-05 → —
CV4#,SV4# ¥32,300
72011C — Adjuster Sub-assy, Front Seat, RH
72010-32080 note Adjuster Sub-assy, Front Seat, RH
1995-04 → 1995-07 ended
SV41,42,43 VX ¥118,000
72010-32080 note Adjuster Sub-assy, Front Seat, RH
1994-06 → 1996-05 ended
SV41,42,43 VX,ZX ¥118,000
72010-32080 note Adjuster Sub-assy, Front Seat, RH
1995-09 → 1996-05 ended
SV41,43 ATM VX ¥118,000
72010-32090 Adjuster Sub-assy, Front Seat, RH
1996-05 → —
SV41,42,43 VX,ZX ¥118,000
72021 — Adjuster Sub-assy, Front Seat, Inner RH
72021-32100 Adjuster Sub-assy, Front Seat, Inner RH
1996-05 → —
CV4#,SV4# ¥21,100
72123A — Cover, Seat Track Bracket, Outer Front RH
72123-32040-B1 note Cover, Seat Track Bracket, Outer Front RH
1994-06 → 1996-05 ended
CV4#,SV4# ¥580
72123-32040-E0 note Cover, Seat Track Bracket, Outer Front RH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥580
72123-32050-B0 note Cover, Seat Track Bracket, Outer Front RH
1996-05 → —
CV4#,SV4# ¥740
72123-32050-E0 note Cover, Seat Track Bracket, Outer Front RH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥740
72125A — Cover, Seat Track, Upper Rear
72125-16020 Cover, Seat Track, Upper Rear
1996-05 → —
CV4#,SV4# ¥110
72125-33010 note Cover, Seat Track, Upper Rear
1996-05 → —
SV41,42,43 VX,ZX ¥280
72127A — Cover, Seat Track Bracket, Inner Front RH
72127-32020-B1 note Cover, Seat Track Bracket, Inner Front RH
1994-06 → 1996-05 ended
CV4#,SV4# ¥580
72127-32020-E0 note Cover, Seat Track Bracket, Inner Front RH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥580
72127-32030-B0 note Cover, Seat Track Bracket, Inner Front RH
1996-05 → —
CV4#,SV4# ¥650
72127-32030-E0 note Cover, Seat Track Bracket, Inner Front RH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥650
72129 — Protector, Seat Track Lower Rail, NO.1
72129-16010 note Protector, Seat Track Lower Rail, NO.1
1996-05 → —
CV4#,SV4# ¥190
72129-16020 note Protector, Seat Track Lower Rail, NO.1
1996-05 → —
CV4#,SV4# ¥120
72129-33030 note Protector, Seat Track Lower Rail, NO.1
1996-05 → —
SV41,42,43 VX,ZX ¥280
72137B — Cover, Seat Track, RH
72137-32030-C0 note Cover, Seat Track, RH
1994-06 → 1996-05 ended
CV4#,SV4# ALPX,TOU ¥740
72137-32030-C0 note Cover, Seat Track, RH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥740
72137-32040-C0 note Cover, Seat Track, RH
1996-05 → —
CV4#,SV4# ALPX,TOU ¥1,480
72137-32040-C0 note Cover, Seat Track, RH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,480
72157A — Cover, Seat Track Bracket, Inner RH
72157-32020-C0 note Cover, Seat Track Bracket, Inner RH
1994-06 → 1996-05 ended
CV4#,SV4# ALPX,TOU ¥580
72157-32020-C0 note Cover, Seat Track Bracket, Inner RH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥580
72157-32030-C0 note Cover, Seat Track Bracket, Inner RH
1996-05 → —
CV4#,SV4# ALPX,TOU ¥740
72157-32030-C0 note Cover, Seat Track Bracket, Inner RH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥740
72201 — Handle Sub-assy, Seat Track
72201-32010 Handle Sub-assy, Seat Track
1996-05 → —
CV4#,SV4# ¥2,160
72273 — Support, Seat Track Control Cable
72273-22020 Support, Seat Track Control Cable
1997-08 → —
SV41,42,43 VX,ZX ¥1,420
72345A — Pipe, Reclining Connecting
72345-32030 Pipe, Reclining Connecting
1996-05 → —
CV4#,SV4# ¥3,190
72457 — Knob, Vertical Seat Adjuster
72457-22020-B1 note Knob, Vertical Seat Adjuster
1994-06 → 1996-05 ended
CV4#,SV4# ¥1,140
72457-22020-B5 note Knob, Vertical Seat Adjuster
1996-05 → —
CV4#,SV4# ¥710
72457-22020-E0 note Knob, Vertical Seat Adjuster
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,140
72457-22020-E4 note Knob, Vertical Seat Adjuster
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,150
72525A — Handle, Reclining Adjuster Release, RH
72525-32010-B0 note Handle, Reclining Adjuster Release, RH
1994-06 → 1996-05 ended
CV4#,SV4# ¥1,390
72525-32010-E0 note Handle, Reclining Adjuster Release, RH
1994-06 → 1996-05 ended
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,390
72525-32020-B0 note Handle, Reclining Adjuster Release, RH
1996-05 → —
CV4#,SV4# ¥1,070
72525-32020-E0 note Handle, Reclining Adjuster Release, RH
1996-05 → —
CV4#,SV4# ETO,LUM,VJ,VX,XJ,ZX ¥1,070
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
