Toyota Camry/Vista

1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

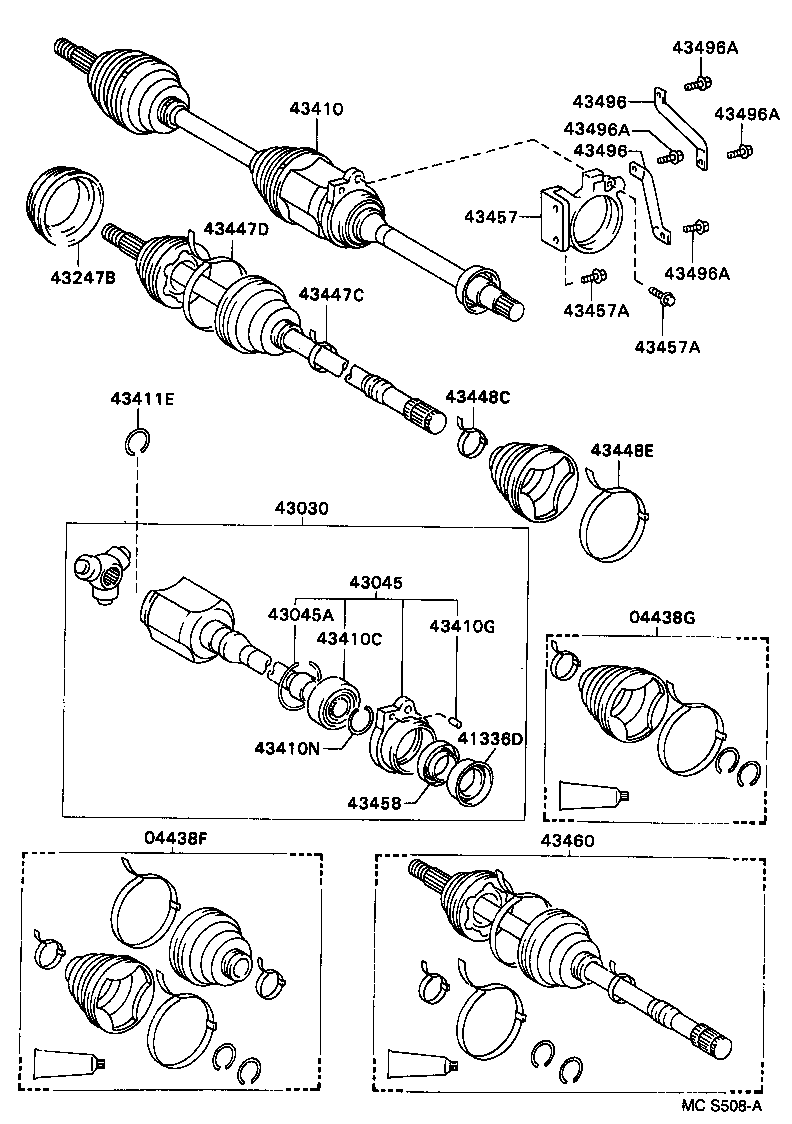

Exploded illustration MCS508A 43496A — BOLT (FOR DRIVE SHAFT BEARING BRACKET STAY) (1 parts) 43496 — STAY, FRONT DRIVE SHAFT BEARING BRACKET, NO.1 (2 parts) 43410 — SHAFT ASSY, FRONT DRIVE, RH (14 parts) 43496A — BOLT (FOR DRIVE SHAFT BEARING BRACKET STAY) (1 parts) 43496A — BOLT (FOR DRIVE SHAFT BEARING BRACKET STAY) (1 parts) 43496 — STAY, FRONT DRIVE SHAFT BEARING BRACKET, NO.1 (2 parts) 43457 — BRACKET, DRIVE SHAFT BEARING (2 parts) 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (2 parts) 43496A — BOLT (FOR DRIVE SHAFT BEARING BRACKET STAY) (1 parts) 43247B — DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2 (3 parts) 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (2 parts) 43457A — BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) (3 parts) 43457A — BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) (3 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (2 parts) 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (2 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (2 parts) 43030 — JOINT ASSY, FRONT DRIVE INBOARD, RH (2 parts) 43045 — CASE SUB ASSY, DRIVE SHAFT BEARING (2 parts) 43045A — RING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING) (1 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (8 parts) 43410G — PIN, STRAIGHT (FOR FRONT DRIVE SHAFT) (1 parts) 43410C — BEARING (FOR FRONT DRIVE SHAFT) (3 parts) 41336D — COVER, FRONT DRIVE SHAFT DUST, RH (2 parts) 43410N — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) (1 parts) 43458 — COVER, FRONT DRIVE SHAFT DUST (1 parts) 04438F — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH (6 parts) 43460 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH (16 parts)
MCS508A · 27 callouts Full size ↗
78 parts on this figure
Part number Description Fitment Price
04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH
04438-12300 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1994-06 → 1998-04 ended
CV43,SV43 ¥10,800
04438-12300 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1998-04 → 1998-06 ended
SV43 ¥10,800
04438-12301 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1998-04 → 1998-06 ended
CV43 ¥10,800
04438-20070 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1994-06 → 1998-06 ended
CV40 ¥10,800
04438-20110 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1994-06 → 1998-04 ended
SV40,41,42 ¥10,800
04438-20131 Boot Kit, Front Drive Shaft, IN & Outboard, RH
1998-04 → 1998-06 ended
SV40,41,42 ¥10,800
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04438-12410 Boot Kit, Front Drive Shaft Inboard Joint, RH
1994-06 → 1998-04 ended
SV40,41,42 ¥6,700
04438-20060 Boot Kit, Front Drive Shaft Inboard Joint, RH
1994-06 → 1995-11 ended
CV40 ¥6,700
04438-20121 Boot Kit, Front Drive Shaft Inboard Joint, RH
1998-04 → 1998-06 ended
SV40,41,42 ¥6,700
04438-20330 Boot Kit, Front Drive Shaft Inboard Joint, RH
1995-11 → 1998-06 ended
CV40 ¥6,700
04438-32161 Boot Kit, Front Drive Shaft Inboard Joint, RH
1994-06 → 1995-11 ended
CV43,SV43 ¥6,700
04438-32230 Boot Kit, Front Drive Shaft Inboard Joint, RH
1995-11 → 1998-04 ended
CV43,SV43 ¥6,700
04438-32230 Boot Kit, Front Drive Shaft Inboard Joint, RH
1998-04 → 1998-06 ended
SV43 ¥6,700
04438-32231 Boot Kit, Front Drive Shaft Inboard Joint, RH
1998-04 → 1998-06 ended
CV43 ¥6,700
41336D — Cover, Front Drive Shaft Dust, RH
41336-20011 Cover, Front Drive Shaft Dust, RH
1994-06 → —
CV40,SV40,41,42 ¥510
41336-20040 Cover, Front Drive Shaft Dust, RH
1994-06 → —
CV43,SV43 ¥950
43030 — Joint Assy, Front Drive Inboard, RH
43030-20030 Joint Assy, Front Drive Inboard, RH
1994-06 → —
SV40,41,42 ¥32,500
43030-32040 Joint Assy, Front Drive Inboard, RH
1994-06 → —
CV40 ¥34,200
43045 — Case Sub Assy, Drive Shaft Bearing
43045-20010 Case Sub Assy, Drive Shaft Bearing
1994-06 → 1994-07 ended
SV40,41,42 ¥4,830
43045-20010 Case Sub Assy, Drive Shaft Bearing
1994-07 → —
SV40,41,42 ¥4,830
43045A — Ring, Snap (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)
96153-00680 Ring, Snap (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)
1994-06 → —
SV40,41,42 ¥280
43247B — Deflector, Front Wheel Bearing Dust, RH NO.2
43247-12010 Deflector, Front Wheel Bearing Dust, RH NO.2
1996-05 → —
CV4#,SV4# ¥780
43247-12010 note Deflector, Front Wheel Bearing Dust, RH NO.2
1994-06 → 1996-05 ended
CV4#,SV4# ¥780
43247-33010 Deflector, Front Wheel Bearing Dust, RH NO.2
1994-06 → 1996-05 ended
CV4#,SV4# ¥2,400
43410 — Shaft Assy, Front Drive, RH
43410-12400 Shaft Assy, Front Drive, RH
1994-06 → 1996-05 ended
CV43,SV43 ¥75,000
43410-12410 note Shaft Assy, Front Drive, RH
1994-06 → 1996-05 ended
CV43,SV43 ¥75,000
43410-12410 Shaft Assy, Front Drive, RH
1997-09 → 1998-06 ended
SV43 ¥75,000
43410-12410 Shaft Assy, Front Drive, RH
1996-05 → 1997-09 ended
CV43,SV43 ¥75,000
43410-12411 Shaft Assy, Front Drive, RH
1997-09 → 1998-06 ended
CV43 ¥75,100
43410-20221 Shaft Assy, Front Drive, RH
1994-06 → 1996-05 ended
SV40,41,42 ¥79,200
43410-20231 Shaft Assy, Front Drive, RH
1996-05 → 1997-09 ended
SV40,41,42 ¥79,500
43410-20231 note Shaft Assy, Front Drive, RH
1994-06 → 1996-05 ended
SV40,41,42 ¥79,500
43410-20232 Shaft Assy, Front Drive, RH
1997-09 → 1998-06 ended
SV40,41,42 ¥79,600
43410-32150 Shaft Assy, Front Drive, RH
1996-05 → 1998-04 ended
CV40 ¥76,700
43410-32150 note Shaft Assy, Front Drive, RH
1994-06 → 1996-05 ended
CV40 ¥76,700
43410-32151 Shaft Assy, Front Drive, RH
1998-04 → 1998-05 ended
CV40 ¥76,700
43410-32152 Shaft Assy, Front Drive, RH
1998-05 → 1998-06 ended
CV40 ¥76,300
43410-32181 Shaft Assy, Front Drive, RH
1994-06 → 1996-05 ended
CV40 ¥79,200
43410C — Bearing (FOR FRONT DRIVE SHAFT)
90363-36001 Bearing (FOR FRONT DRIVE SHAFT)
1994-06 → 1994-07 ended
SV40,41,42 ¥2,470
90363-36001 Bearing (FOR FRONT DRIVE SHAFT)
1994-07 → —
SV40,41,42 ¥2,470
90369-36001 Bearing (FOR FRONT DRIVE SHAFT)
1994-06 → 1997-01 ended
CV40 ¥3,060
43410G — Pin, Straight (FOR FRONT DRIVE SHAFT)
90250-06003 Pin, Straight (FOR FRONT DRIVE SHAFT)
1994-06 → —
SV40,41,42 ¥90
43410N — Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
90520-33008 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
1994-06 → —
CV40,SV40,41,42 ¥110
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
90520-22005 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
1994-06 → —
CV43,SV4# ¥100
90520-26048 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
1994-06 → —
CV40 ¥120
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-16030 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1994-06 → —
CV43,SV4# ¥660
42345-16050 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1994-06 → —
CV40 ¥330
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-16040 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1994-06 → —
CV43,SV4# ¥550
42345-16060 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
1994-06 → —
CV40 ¥210
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-16010 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1994-06 → —
CV43,SV4# ¥140
42345-16050 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1994-06 → —
CV40 ¥330
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-16040 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1994-06 → —
CV43,SV4# ¥550
42345-16090 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
1994-06 → —
CV40 ¥870
43457 — Bracket, Drive Shaft Bearing
43457-20030 Bracket, Drive Shaft Bearing
1994-06 → —
SV40,41,42 ¥5,400
43457-32060 Bracket, Drive Shaft Bearing
1994-06 → —
CV40 ¥7,400
43457A — Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90105-10285 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
1994-06 → —
CV40 ¥250
90105-10285 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
1994-06 → —
SV40,41,42 ¥250
90119-10461 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
1994-06 → —
CV40 ¥200
43458 — Cover, Front Drive Shaft Dust
43458-20011 Cover, Front Drive Shaft Dust
1994-06 → —
CV40,SV40,41,42 ¥930
43460 — Shaft Assy, Front Drive Outboard Joint, RH
43460-19307 note Shaft Assy, Front Drive Outboard Joint, RH
1994-06 → 1996-05 ended
SV43 ¥41,800
43460-19307 Shaft Assy, Front Drive Outboard Joint, RH
1996-05 → 1997-05 ended
SV43 ¥41,800
43470-19306 note Shaft Assy, Front Drive Outboard Joint, RH
1995-01 → 1996-05 ended
CV43 ¥41,200
43470-19306 Shaft Assy, Front Drive Outboard Joint, RH
1996-05 → 1997-05 ended
CV43 ¥41,200
43470-19306 Shaft Assy, Front Drive Outboard Joint, RH
1997-05 → 1997-09 ended
CV43,SV43 ¥41,200
43470-19306 Shaft Assy, Front Drive Outboard Joint, RH
1997-09 → 1998-06 ended
SV43 ¥41,200
43470-19307 Shaft Assy, Front Drive Outboard Joint, RH
1997-09 → 1998-04 ended
CV43 ¥41,300
43470-19308 Shaft Assy, Front Drive Outboard Joint, RH
1998-04 → 1998-06 ended
CV43 ¥41,300
43470-29136 Shaft Assy, Front Drive Outboard Joint, RH
1994-06 → 1996-05 ended
SV40,41,42 ¥41,200
43470-29146 note Shaft Assy, Front Drive Outboard Joint, RH
1994-06 → 1996-05 ended
SV40,41,42 ¥41,200
43470-29146 Shaft Assy, Front Drive Outboard Joint, RH
1996-05 → 1997-09 ended
SV40,41,42 ¥41,200
43470-29148 Shaft Assy, Front Drive Outboard Joint, RH
1997-09 → 1998-04 ended
SV40,41,42 ¥41,300
43470-29150 Shaft Assy, Front Drive Outboard Joint, RH
1998-04 → 1998-06 ended
SV40,41,42 ¥41,300
43470-29156 Shaft Assy, Front Drive Outboard Joint, RH
1994-06 → 1996-05 ended
CV40 ¥41,300
43470-29166 note Shaft Assy, Front Drive Outboard Joint, RH
1994-06 → 1998-06 ended
CV40 ¥41,500
43470-39087 Shaft Assy, Front Drive Outboard Joint, RH
1994-06 → 1996-05 ended
CV43,SV43 ¥42,200
43496 — Stay, Front Drive Shaft Bearing Bracket, NO.1
43496-20010 note Stay, Front Drive Shaft Bearing Bracket, NO.1
1994-06 → —
SV40,41,42 ¥1,670
43496-20030 note Stay, Front Drive Shaft Bearing Bracket, NO.1
1994-06 → —
SV40,41,42 ¥1,000
43496A — Bolt (FOR DRIVE SHAFT BEARING BRACKET STAY)
90105-10263 Bolt (FOR DRIVE SHAFT BEARING BRACKET STAY)
1994-06 → —
SV40,41,42 ¥190
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
