Factory parts data · Europe

Toyota Camry/Vista

1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan

Discontinued model Data version 1999-01

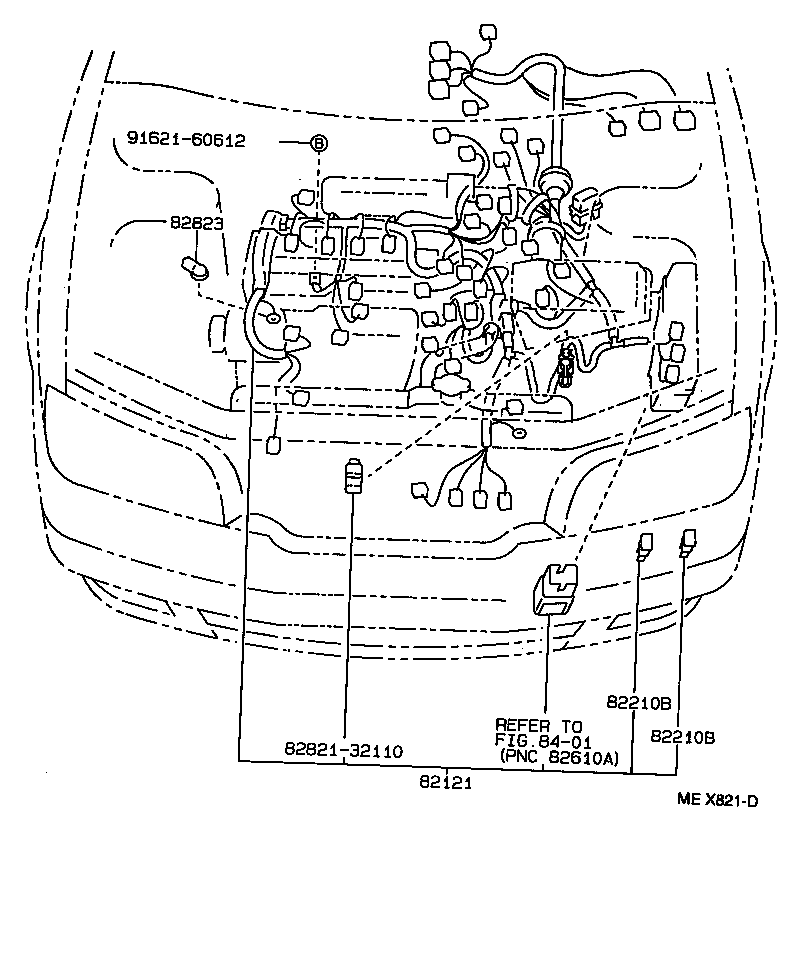

Exploded illustration MEX821D 9162160612 — not listed in this catalogue 82823 — CAP, TERMINAL, NO.1 (1 parts) 82210B — FUSIBLE LINK (2 parts) 82210B — FUSIBLE LINK (2 parts) 8401 — not listed in this catalogue 8282132110 — not listed in this catalogue 82121 — WIRE, ENGINE (24 parts)
MEX821D · 4 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
27 parts on this figure
Part number Description Fitment Price
82121 — Wire, Engine
82121-3H660 Wire, Engine
1994-06 → 1996-05 ended
SV40 MTM ¥48,700
82121-3H670 Wire, Engine
1994-06 → 1996-05 ended
SV40 ATM ¥92,500
82121-3H680 Wire, Engine
1994-06 → 1996-05 ended
SV43 MTM ¥48,700
82121-3H690 Wire, Engine
1994-06 → 1996-05 ended
SV41,42 ¥92,500
82121-3H700 Wire, Engine
1994-06 → 1996-05 ended
SV43 ATM ¥92,500
82121-3H710 note Wire, Engine
1994-06 → 1996-05 ended
SV41,42 ALPX,TOU,VX,ZX ¥105,000
82121-3H720 Wire, Engine
1994-06 → 1996-05 ended
CV40 MTM ¥45,900
82121-3H730 Wire, Engine
1994-06 → 1996-05 ended
CV40 ATM ¥48,700
82121-3H740 Wire, Engine
1995-01 → 1996-05 ended
CV43 ¥92,500
82121-3H750 Wire, Engine
1996-05 → 1997-10 ended
SV40 MTM ¥48,900
82121-3H751 Wire, Engine
1997-10 → —
SV40 MTM ¥49,000
82121-3H760 Wire, Engine
1996-05 → 1997-10 ended
SV40 ATM ¥92,700
82121-3H761 Wire, Engine
1997-10 → —
SV40 ATM ¥92,800
82121-3H770 Wire, Engine
1996-05 → 1997-10 ended
SV43 MTM ¥48,900
82121-3H771 Wire, Engine
1997-10 → —
SV43 MTM ¥92,800
82121-3H780 Wire, Engine
1996-05 → 1997-10 ended
SV42 ¥92,700
82121-3H781 Wire, Engine
1997-10 → —
SV42 ¥92,800
82121-3H790 Wire, Engine
1996-05 → 1997-10 ended
SV43 ATM ¥92,700
82121-3H791 Wire, Engine
1997-10 → —
SV43 ATM ¥92,800
82121-3H800 Wire, Engine
1996-05 → —
CV40 MTM ¥46,000
82121-3H810 Wire, Engine
1996-05 → —
CV40 ATM ¥49,000
82121-3H820 Wire, Engine
1996-05 → —
CV43 ¥92,800
82121-3H830 Wire, Engine
1996-05 → 1997-10 ended
SV41 ¥92,700
82121-3H831 Wire, Engine
1997-10 → —
SV41 ¥92,800
82210B — Fusible Link
90982-08202 note Fusible Link
1994-06 → —
CV4#,SV4# ¥700
90982-08246 note Fusible Link
1994-06 → —
CV4#,SV4# ¥440
82823 — Cap, Terminal, NO.1
82823-22050 Cap, Terminal, NO.1
1994-06 → —
CV4#,SV4# ¥390
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
