Toyota Camry/Vista
1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan
Discontinued model
Data version 1999-01

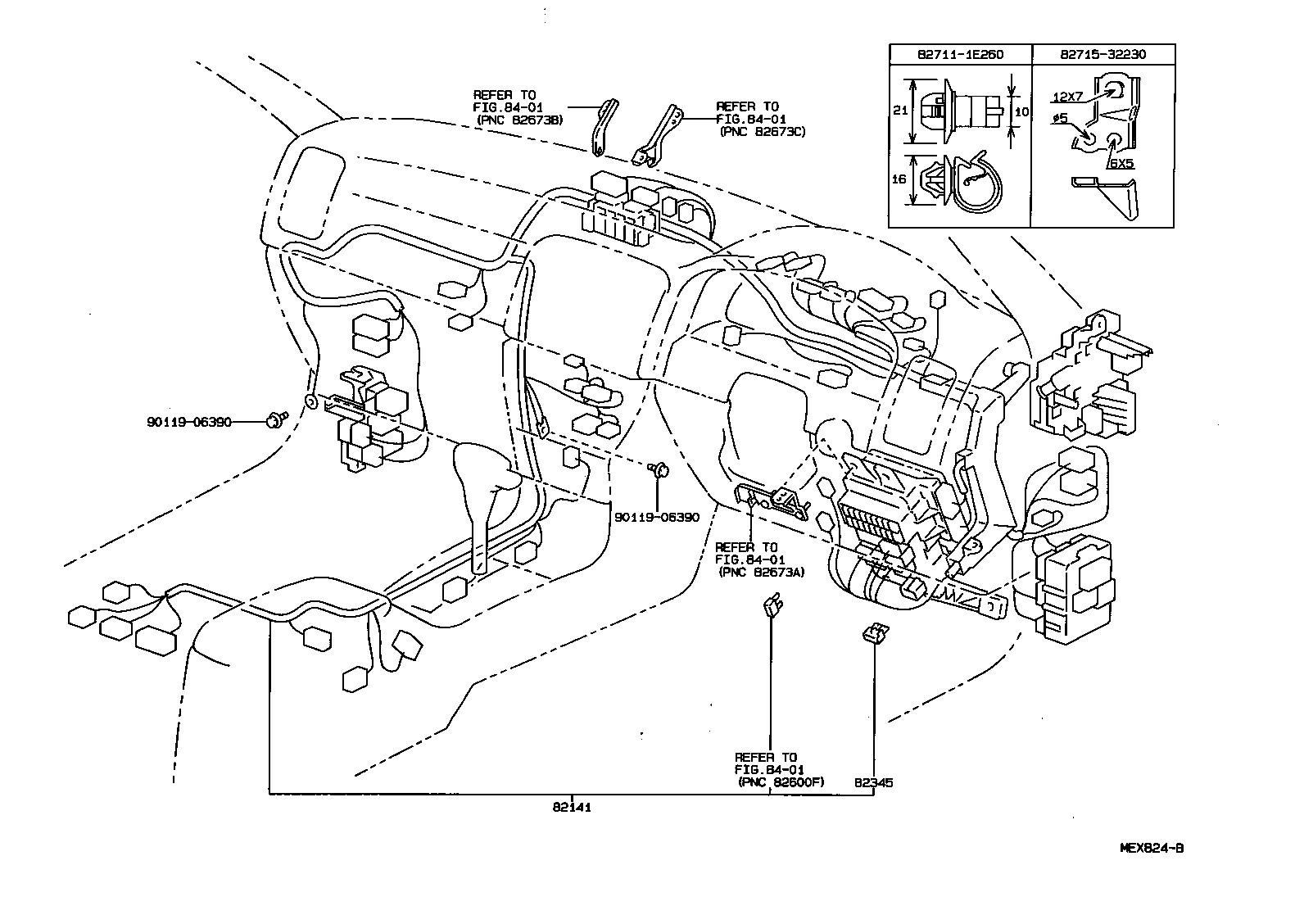

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82141 — Wire, Instrument Panel | ||||
| 82141-3H010 |
Wire, Instrument Panel
1994-06 → 1996-05
ended
|
CV40,SV40,43 MTM | ¥92,500 | |
| 82141-3H020 |
Wire, Instrument Panel
1994-06 → 1996-05
ended
|
SV40 ATM (ALPX,ETO,LUM,VJ,XJ) | ¥48,700 | |
| 82141-3H030 |
Wire, Instrument Panel
1994-06 → 1996-05
ended
|
SV41;SV40 ATM (VX,ZX) | ¥119,000 | |
| 82141-3H040 |
Wire, Instrument Panel
1994-06 → 1996-05
ended
|
CV4#,SV42,43 ATM | ¥92,500 | |
| 82141-3H040 note |
Wire, Instrument Panel
1994-06 → 1996-05
ended
|
SV40,41 ATM | ¥92,500 | |
| 82141-3H050 note |
Wire, Instrument Panel
1994-06 → 1996-05
ended
|
CV40,SV40,43 MTM (VX,ZX) | ¥105,000 | |
| 82141-3H060 note |
Wire, Instrument Panel
1994-06 → 1996-05
ended
|
SV41,42 ALPX,TOU,VX,ZX;CV4#,SV40,43 ATM (VX,ZX) | ¥119,000 | |
| 82141-3H070 note |
Wire, Instrument Panel
1994-06 → 1996-05
ended
|
SV43 MTM ALPX | ¥92,500 | |
| 82141-3H070 note |
Wire, Instrument Panel
1994-06 → 1996-05
ended
|
SV43 MTM (VX,ZX) | ¥92,500 | |
| 82141-3H080 note |
Wire, Instrument Panel
1994-06 → 1996-05
ended
|
SV41,42,43 ATM (VX,ZX) | ¥105,000 | |
| 82141-3H090 note |
Wire, Instrument Panel
1994-06 → 1996-05
ended
|
SV43 MTM (VX,ZX) | ¥105,000 | |
| 82141-3H100 note |
Wire, Instrument Panel
1994-06 → 1996-05
ended
|
SV42,43 ATM (VX,ZX) | ¥119,000 | |
| 82141-3H100 note |
Wire, Instrument Panel
1994-06 → 1996-05
ended
|
SV41 ALPX | ¥119,000 | |
| 82141-3H100 note |
Wire, Instrument Panel
1994-06 → 1996-05
ended
|
SV42 ALPX;SV41 VX,ZX | ¥119,000 | |
| 82141-3H110 note |
Wire, Instrument Panel
1994-06 → 1996-05
ended
|
SV41,42,43 ATM (ALPX,VX,ZX) | ¥45,900 | |
| 82141-3H120 note |
Wire, Instrument Panel
1995-04 → 1996-05
ended
|
SV43 MTM VX | ¥92,500 | |
| 82141-3H130 note |
Wire, Instrument Panel
1995-04 → 1996-05
ended
|
SV41 VX | ¥119,000 | |
| 82141-3H140 note |
Wire, Instrument Panel
1995-04 → 1996-05
ended
|
SV42,43 ATM VX | ¥92,500 | |
| 82141-3H150 |
Wire, Instrument Panel
1996-05 → 1997-03
ended
|
CV40,SV40,43 MTM | ¥40,000 | |
| 82141-3H151 |
Wire, Instrument Panel
1997-03 → 1997-11
ended
|
CV40,SV40,43 MTM | ¥40,100 | |
| 82141-3H152 |
Wire, Instrument Panel
1997-11 → 1998-06
ended
|
CV40,SV40,43 MTM | ¥46,000 | |
| 82141-3H160 |
Wire, Instrument Panel
1996-05 → 1997-03
ended
|
SV40 ATM (ALPX,ETO,LUM,VJ,XJ) | ¥40,000 | |
| 82141-3H161 |
Wire, Instrument Panel
1997-03 → 1997-11
ended
|
SV40 ATM (ALPX,ETO,LUM,VJ,XJ) | ¥40,100 | |
| 82141-3H162 |
Wire, Instrument Panel
1997-11 → 1998-06
ended
|
SV40 ATM (ALPX,ETO,LUM,VJ,XJ) | ¥42,900 | |
| 82141-3H170 |
Wire, Instrument Panel
1996-05 → 1997-03
ended
|
SV41;SV40 ATM (VX,ZX) | ¥42,900 | |
| 82141-3H170 note |
Wire, Instrument Panel
1996-12 → —
|
SV40 ATM LUM | ¥42,900 | |
| 82141-3H170 note |
Wire, Instrument Panel
1996-12 → 1998-06
ended
|
SV40 ATM ETO | ¥42,900 | |
| 82141-3H171 |
Wire, Instrument Panel
1997-03 → 1997-11
ended
|
SV41;SV40 ATM (VX,ZX) | ¥42,900 | |
| 82141-3H172 |
Wire, Instrument Panel
1997-11 → 1998-06
ended
|
SV41;SV40 ATM (VX,ZX) | ¥49,000 | |
| 82141-3H180 |
Wire, Instrument Panel
1996-05 → 1997-03
ended
|
CV4#,SV42,43 ATM | ¥42,900 | |
| 82141-3H181 |
Wire, Instrument Panel
1997-03 → 1997-11
ended
|
CV4#,SV42,43 ATM | ¥42,900 | |
| 82141-3H182 |
Wire, Instrument Panel
1997-11 → 1998-06
ended
|
CV4#,SV42,43 ATM | ¥46,000 | |
| 82141-3H190 note |
Wire, Instrument Panel
1996-05 → 1997-03
ended
|
SV43 MTM (VX,ZX) | ¥92,700 | |
| 82141-3H190 note |
Wire, Instrument Panel
1996-05 → 1997-03
ended
|
SV43 MTM ALPX | ¥92,700 | |
| 82141-3H191 note |
Wire, Instrument Panel
1997-03 → 1997-11
ended
|
SV43 MTM (VX,ZX) | ¥92,800 | |
| 82141-3H191 note |
Wire, Instrument Panel
1997-03 → 1997-11
ended
|
SV43 MTM ALPX | ¥92,800 | |
| 82141-3H192 note |
Wire, Instrument Panel
1997-11 → 1998-06
ended
|
SV43 MTM ALPX | ¥42,900 | |
| 82141-3H192 note |
Wire, Instrument Panel
1997-11 → 1998-06
ended
|
SV43 MTM (VX,ZX) | ¥42,900 | |
| 82141-3H200 note |
Wire, Instrument Panel
1996-05 → 1997-03
ended
|
SV41,42,43 ATM (VX,ZX) | ¥46,000 | |
| 82141-3H200 note |
Wire, Instrument Panel
1996-05 → 1997-03
ended
|
SV41,42,43 ATM ALPX | ¥46,000 | |
| 82141-3H201 note |
Wire, Instrument Panel
1997-03 → 1997-11
ended
|
SV41,42,43 ATM (VX,ZX) | ¥46,000 | |
| 82141-3H201 note |
Wire, Instrument Panel
1997-03 → 1997-11
ended
|
SV41,42,43 ATM ALPX | ¥46,000 | |
| 82141-3H202 note |
Wire, Instrument Panel
1997-11 → 1998-06
ended
|
SV41,42,43 ATM ALPX | ¥49,000 | |
| 82141-3H202 note |
Wire, Instrument Panel
1997-11 → 1998-06
ended
|
SV41,42,43 ATM (VX,ZX) | ¥49,000 | |
| 82345 — Diode | ||||
| 82345-12040 |
Diode
1994-06 → 1998-06
ended
|
CV4#,SV4# | ¥2,110 | |
| 82345-20040 note |
Diode
1994-06 → 1998-06
ended
|
CV4#,SV4# | ¥850 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
