Toyota Camry/Vista

1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan

Discontinued model Data version 1999-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

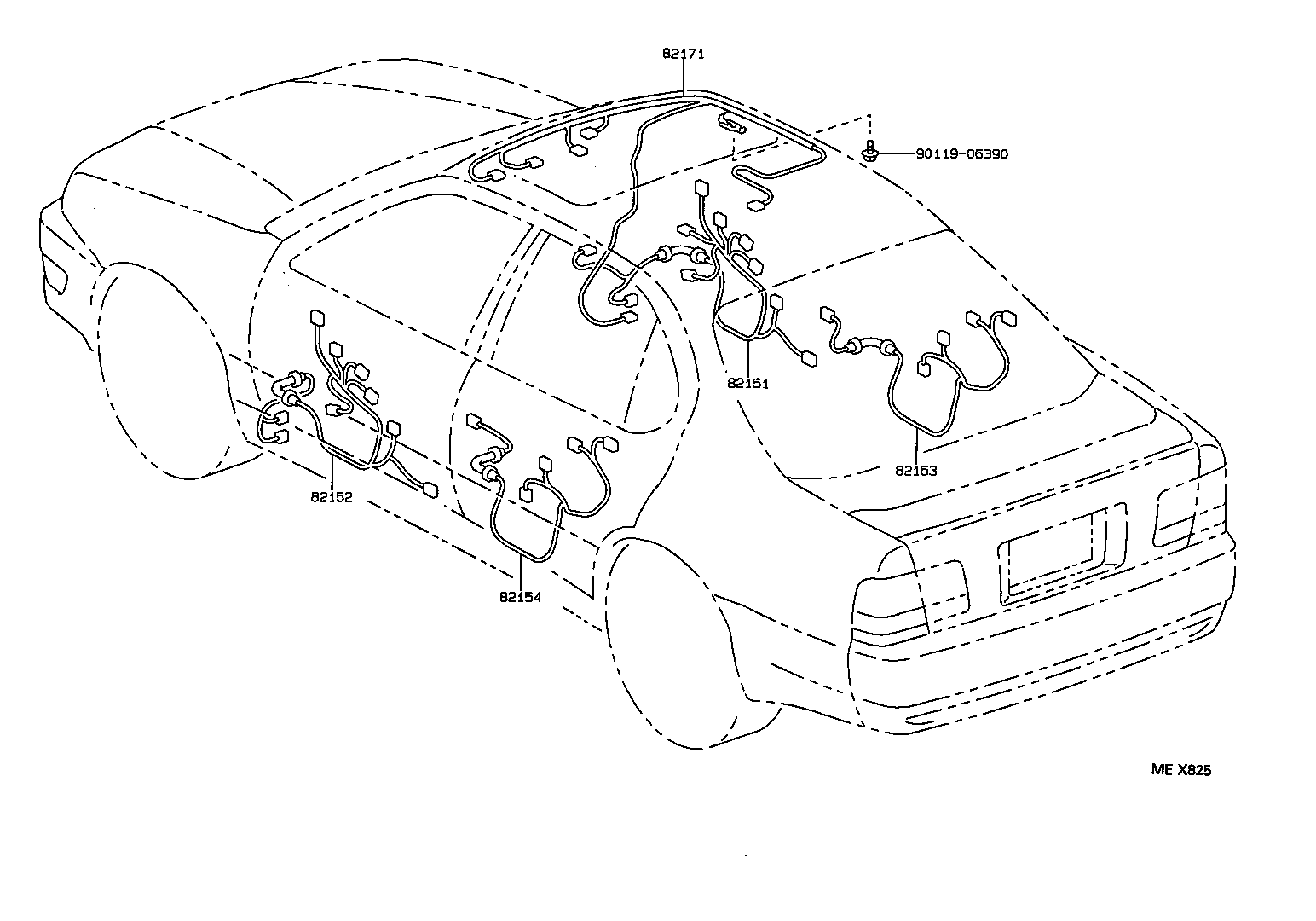

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

73 parts on this figure

Part number	Description	Fitment	Price
82151 — Wire, Front Door, RH
82151-3H010	Wire, Front Door, RH 1994-06 → 1996-05 ended	CV4#,SV4# SED (ALPX,LUM,TOU,XJ)	¥10,500
82151-3H020	Wire, Front Door, RH 1994-06 → 1996-05 ended	CV4#,SV4# ZX	¥10,500
82151-3H030 note	Wire, Front Door, RH 1994-06 → 1996-05 ended	CV4#,SV4# ZX	¥12,000
82151-3H040 note	Wire, Front Door, RH 1994-06 → 1996-05 ended	SV41,42 SED (ALPX,TOU)	¥10,500
82151-3H050	Wire, Front Door, RH 1994-06 → 1996-05 ended	CV4#,SV4# HT (ETO,TOU,VJ)	¥10,500
82151-3H060	Wire, Front Door, RH 1994-06 → 1996-05 ended	CV4#,SV4# VX	¥10,500
82151-3H070 note	Wire, Front Door, RH 1994-06 → 1996-05 ended	CV4#,SV4# VX	¥10,500
82151-3H080 note	Wire, Front Door, RH 1994-06 → 1996-05 ended	SV42 HT TOU	¥10,500
82151-3H090	Wire, Front Door, RH 1996-05 → 1996-12 ended	CV4#,SV4# SED (ALPX,LUM,TOU,XJ)	¥10,500
82151-3H091	Wire, Front Door, RH 1996-12 → 1997-03 ended	CV4#,SV4# SED (ALPX,LUM,TOU,XJ)	¥10,500
82151-3H092	Wire, Front Door, RH 1997-03 → 1997-04 ended	CV4#,SV4# SED (ALPX,LUM,TOU,XJ)	¥10,500
82151-3H093	Wire, Front Door, RH 1997-04 → 1998-06 ended	CV4#,SV4# SED (ALPX,LUM,TOU,XJ)	¥10,500
82151-3H100	Wire, Front Door, RH 1996-05 → 1997-03 ended	CV4#,SV4# ZX	¥10,500
82151-3H101	Wire, Front Door, RH 1997-03 → 1997-04 ended	CV4#,SV4# ZX	¥10,500
82151-3H102	Wire, Front Door, RH 1997-04 → 1998-06 ended	CV4#,SV4# ZX	¥10,500
82151-3H110 note	Wire, Front Door, RH 1996-05 → 1997-03 ended	SV41,42 ZX	¥12,000
82151-3H111 note	Wire, Front Door, RH 1997-03 → 1997-04 ended	SV41,42 ZX	¥12,000
82151-3H112 note	Wire, Front Door, RH 1997-04 → 1998-06 ended	SV41,42 ZX	¥12,000
82151-3H120 note	Wire, Front Door, RH 1996-05 → 1997-03 ended	SV41,42 SED (ALPX,TOU)	¥10,500
82151-3H121 note	Wire, Front Door, RH 1997-03 → 1997-04 ended	SV41,42 SED (ALPX,TOU)	¥10,500
82151-3H122 note	Wire, Front Door, RH 1997-04 → 1998-06 ended	SV41,42 SED (ALPX,TOU)	¥10,500
82151-3H130	Wire, Front Door, RH 1996-05 → 1996-11 ended	CV4#,SV4# HT (ETO,TOU,VJ)	¥10,500
82151-3H131	Wire, Front Door, RH 1996-11 → 1997-04 ended	CV4#,SV4# HT (ETO,TOU,VJ)	¥10,500
82151-3H132	Wire, Front Door, RH 1997-05 → 1998-06 ended	CV40 ATM VJ;CV43,SV4# HT +1	¥10,500
82151-3H132	Wire, Front Door, RH 1997-04 → 1997-05 ended	CV4#,SV4# HT (ETO,TOU,VJ)	¥10,500
82151-3H140	Wire, Front Door, RH 1996-05 → 1997-04 ended	CV4#,SV4# VX	¥10,500
82151-3H141	Wire, Front Door, RH 1997-04 → 1998-06 ended	CV4#,SV4# VX	¥10,500
82151-3H150 note	Wire, Front Door, RH 1996-05 → 1997-04 ended	SV41,42 VX	¥10,500
82151-3H151 note	Wire, Front Door, RH 1997-04 → 1998-06 ended	SV41,42 VX	¥12,000
82151-3H160 note	Wire, Front Door, RH 1996-05 → 1997-04 ended	SV42 HT TOU	¥10,500
82151-3H161 note	Wire, Front Door, RH 1997-04 → 1998-06 ended	SV42 HT TOU	¥10,500
82152 — Wire, Front Door, LH
82152-3H020	Wire, Front Door, LH 1994-06 → 1998-06 ended	CV4#,SV4# SED (ALPX,LUM,TOU,XJ)	¥9,100
82152-3H030	Wire, Front Door, LH 1994-06 → 1998-06 ended	CV4#,SV4# ZX	¥10,500
82152-3H040 note	Wire, Front Door, LH 1994-06 → 1996-05 ended	CV4#,SV4# ZX	¥10,500
82152-3H050 note	Wire, Front Door, LH 1994-06 → 1996-05 ended	SV41,42 SED (ALPX,TOU)	¥10,500
82152-3H060	Wire, Front Door, LH 1994-06 → 1998-06 ended	CV4#,SV4# HT (ETO,TOU,VJ)	¥9,100
82152-3H070	Wire, Front Door, LH 1994-06 → 1998-06 ended	CV4#,SV4# VX	¥9,100
82152-3H080 note	Wire, Front Door, LH 1994-06 → 1996-05 ended	CV4#,SV4# VX	¥8,900
82152-3H090 note	Wire, Front Door, LH 1994-06 → 1996-05 ended	SV42 HT TOU	¥8,900
82152-3H120 note	Wire, Front Door, LH 1996-05 → 1998-06 ended	SV41,42 ZX	¥10,500
82152-3H130 note	Wire, Front Door, LH 1996-05 → 1998-06 ended	SV41,42 SED (ALPX,TOU)	¥10,500
82152-3H160 note	Wire, Front Door, LH 1996-05 → 1998-06 ended	SV41,42 VX	¥10,500
82152-3H170 note	Wire, Front Door, LH 1996-05 → 1998-06 ended	SV42 HT TOU	¥9,100
82153 — Wire, Rear Door, NO.1
82153-32220	Wire, Rear Door, NO.1 1996-05 → —	CV4#,SV40 XJ	¥5,100
82153-32230	Wire, Rear Door, NO.1 1994-06 → 1996-05 ended	CV4#,SV40 XJ	¥4,970
82153-32240	Wire, Rear Door, NO.1 1994-06 → 1996-05 ended	CV4#,SV4# SED (ALPX,LUM,TOU,ZX)	¥6,600
82153-32240 note	Wire, Rear Door, NO.1 1994-06 → 1996-05 ended	CV4#,SV40 XJ	¥6,600
82153-32250	Wire, Rear Door, NO.1 1996-05 → —	CV4#,SV4# SED (ALPX,LUM,TOU,ZX)	¥6,600
82153-32250 note	Wire, Rear Door, NO.1 1996-05 → —	CV4#,SV40 XJ	¥6,600
82153-32260	Wire, Rear Door, NO.1 1994-06 → 1996-05 ended	CV4#,SV4# HT (ETO,TOU,VX)	¥6,600
82153-32260 note	Wire, Rear Door, NO.1 1994-06 → 1996-05 ended	CV4#,SV40 VJ	¥6,600
82153-32270	Wire, Rear Door, NO.1 1994-06 → 1996-05 ended	CV4#,SV40 VJ	¥4,300
82153-32280	Wire, Rear Door, NO.1 1996-05 → —	CV4#,SV40 VJ	¥5,700
82153-32290	Wire, Rear Door, NO.1 1996-05 → —	CV4#,SV4# HT (ETO,TOU,VX)	¥9,100
82153-32290 note	Wire, Rear Door, NO.1 1996-05 → —	CV4#,SV40 VJ	¥9,100
82154 — Wire, Rear Door, NO.2
82154-32170	Wire, Rear Door, NO.2 1994-06 → 1996-05 ended	CV4#,SV40 XJ	¥4,970
82154-32180	Wire, Rear Door, NO.2 1994-06 → 1996-05 ended	CV4#,SV4# SED (ALPX,LUM,TOU,ZX)	¥6,600
82154-32180 note	Wire, Rear Door, NO.2 1994-06 → 1996-05 ended	CV4#,SV40 XJ	¥6,600
82154-32190	Wire, Rear Door, NO.2 1996-05 → —	CV4#,SV40 XJ	¥5,100
82154-32200	Wire, Rear Door, NO.2 1994-06 → 1996-05 ended	CV4#,SV4# HT (ETO,TOU,VX)	¥6,600
82154-32200 note	Wire, Rear Door, NO.2 1994-06 → 1996-05 ended	CV4#,SV40 VJ	¥6,600
82154-32210	Wire, Rear Door, NO.2 1994-06 → 1996-05 ended	CV4#,SV40 VJ	¥4,300
82154-32220 note	Wire, Rear Door, NO.2 1996-05 → —	CV4#,SV40 XJ	¥6,600
82154-32220	Wire, Rear Door, NO.2 1996-05 → —	CV4#,SV4# SED (ALPX,LUM,TOU,ZX)	¥6,600
82154-32230	Wire, Rear Door, NO.2 1996-05 → —	CV4#,SV40 VJ	¥5,700
82154-32240	Wire, Rear Door, NO.2 1996-05 → —	CV4#,SV4# HT (ETO,TOU,VX)	¥9,100
82154-32240 note	Wire, Rear Door, NO.2 1996-05 → —	CV4#,SV40 VJ	¥9,100
82171 — Wire, Roof, NO.1
82171-32570	Wire, Roof, NO.1 1994-06 → —	CV4#,SV4# SED (ALPX,LUM,TOU,ZX)	¥5,700
82171-32580 note	Wire, Roof, NO.1 1994-06 → —	CV4#,SV4# SED (ALPX,TOU,ZX)	¥9,100
82171-32590	Wire, Roof, NO.1 1994-06 → —	CV4#,SV4# HT (ETO,TOU,VX)	¥2,630
82171-32600 note	Wire, Roof, NO.1 1994-06 → —	CV4#,SV4# HT (TOU,VX)	¥5,100
82171-32610	Wire, Roof, NO.1 1994-06 → —	CV4#,SV40 XJ	¥5,100
82171-32620	Wire, Roof, NO.1 1994-06 → —	CV4#,SV40 VJ	¥2,630

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
