Toyota Camry/Vista

1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

14 part groups · 3 illustrations

Illustrations

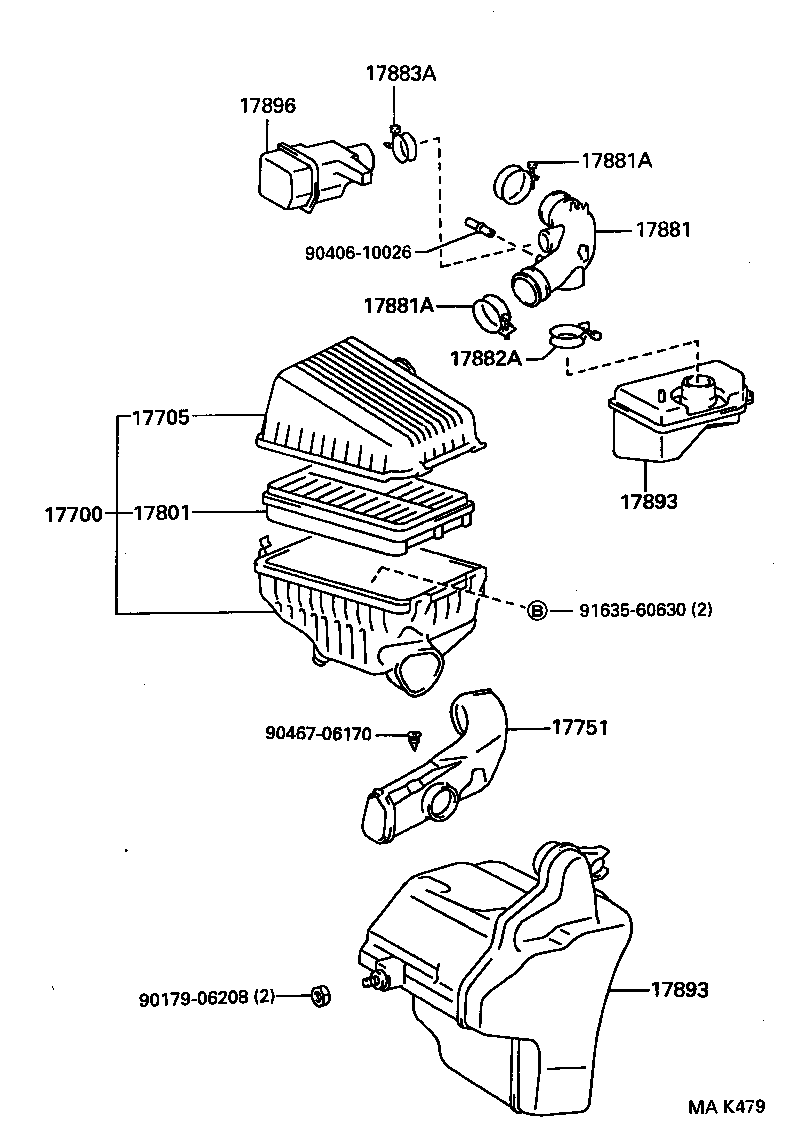

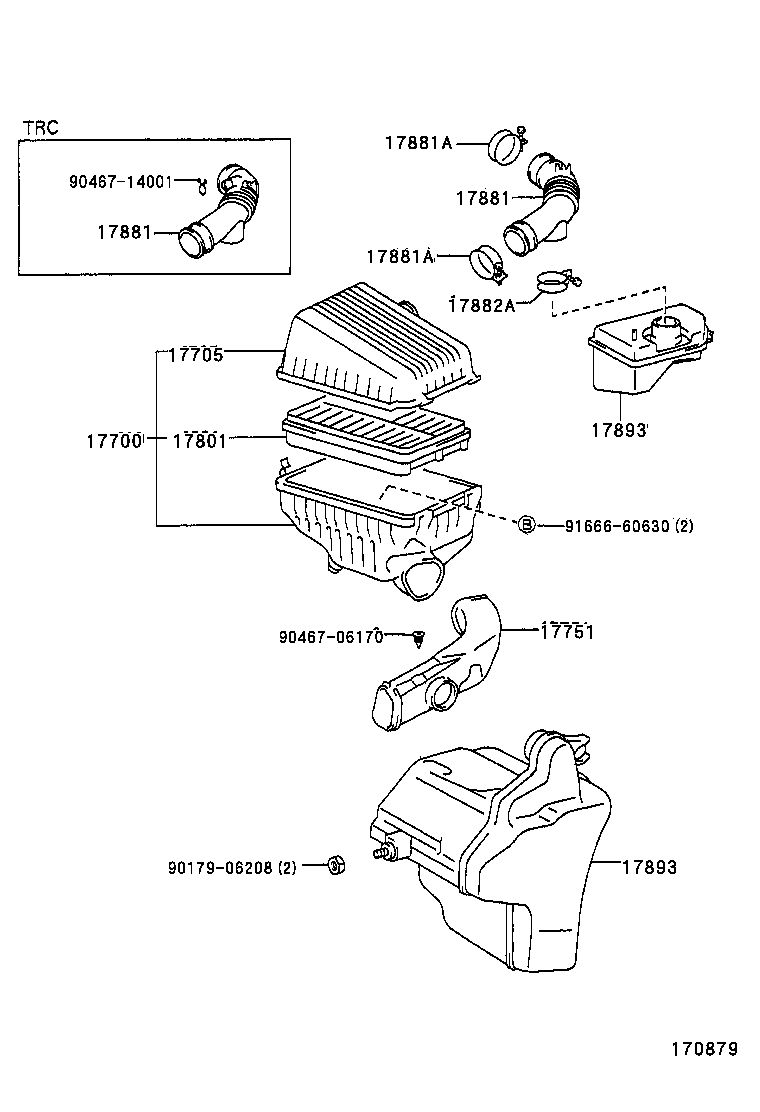

Figure MAH264B MAH264B 1994-06 → — Figure 170879 170879 1994-06 → 1996-05 Figure MAK479 MAK479 1996-05 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17752 Inlet, Air Cleaner, NO.2
17761 Cap, Air Cleaner Inlet
17801 Element Sub-assy, Air Cleaner Filter
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17890 Hose Assy, Air Cleaner, NO.2
17893 Resonator, Intake Air
17896 Resonator, Intake Air, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
