Toyota Camry/Vista
1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan
Discontinued model
Data version 1999-01

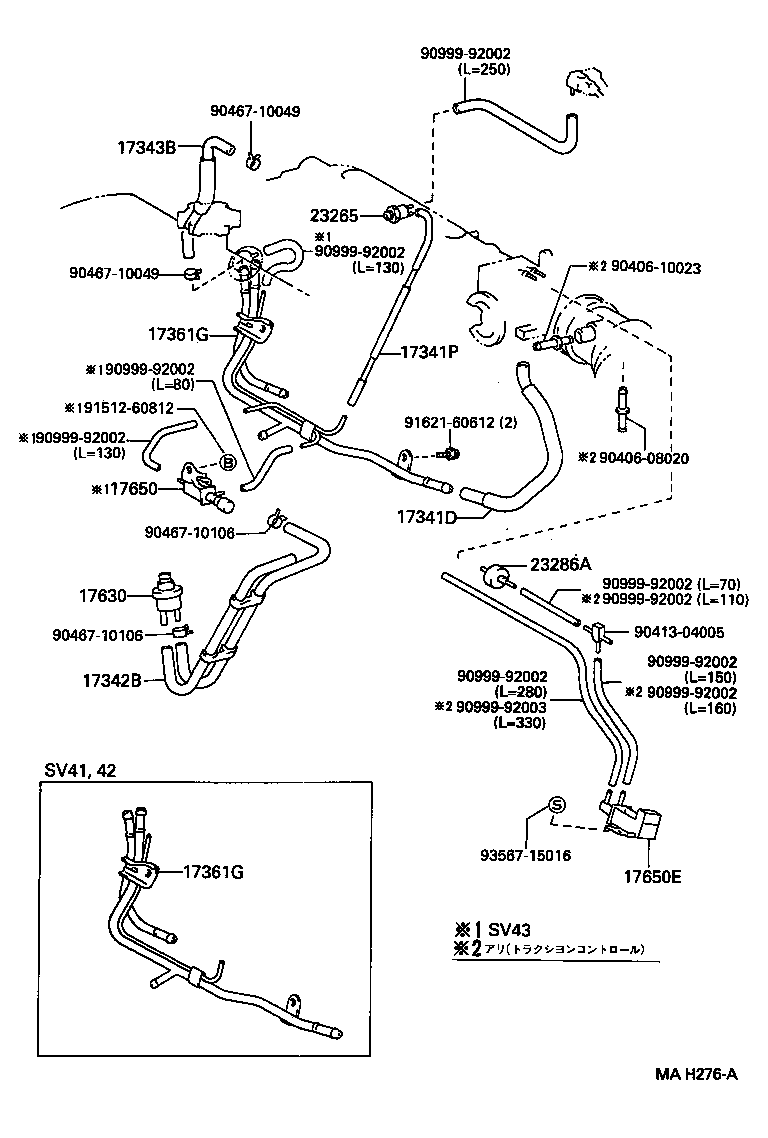

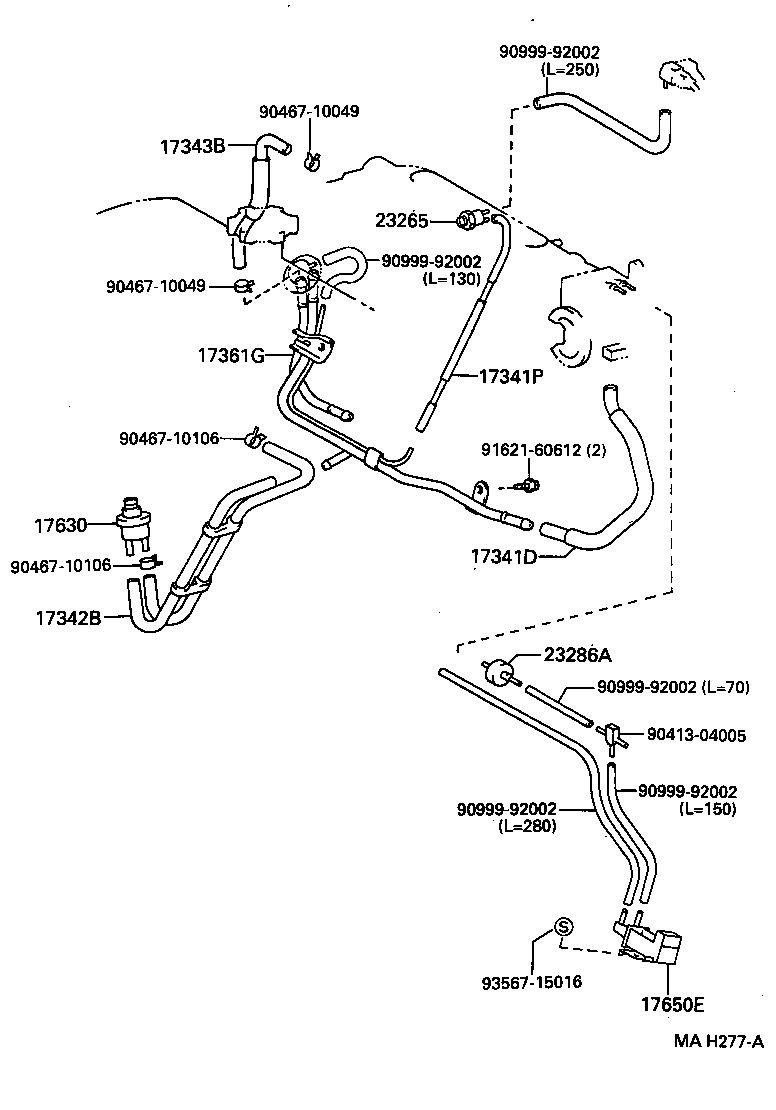

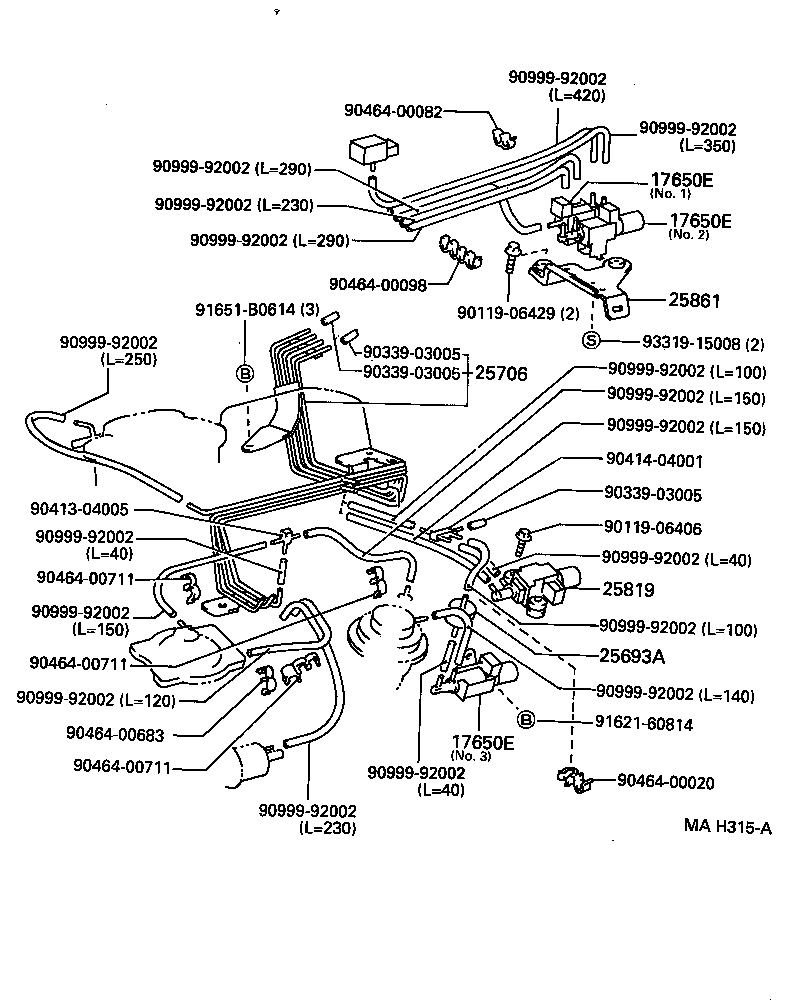

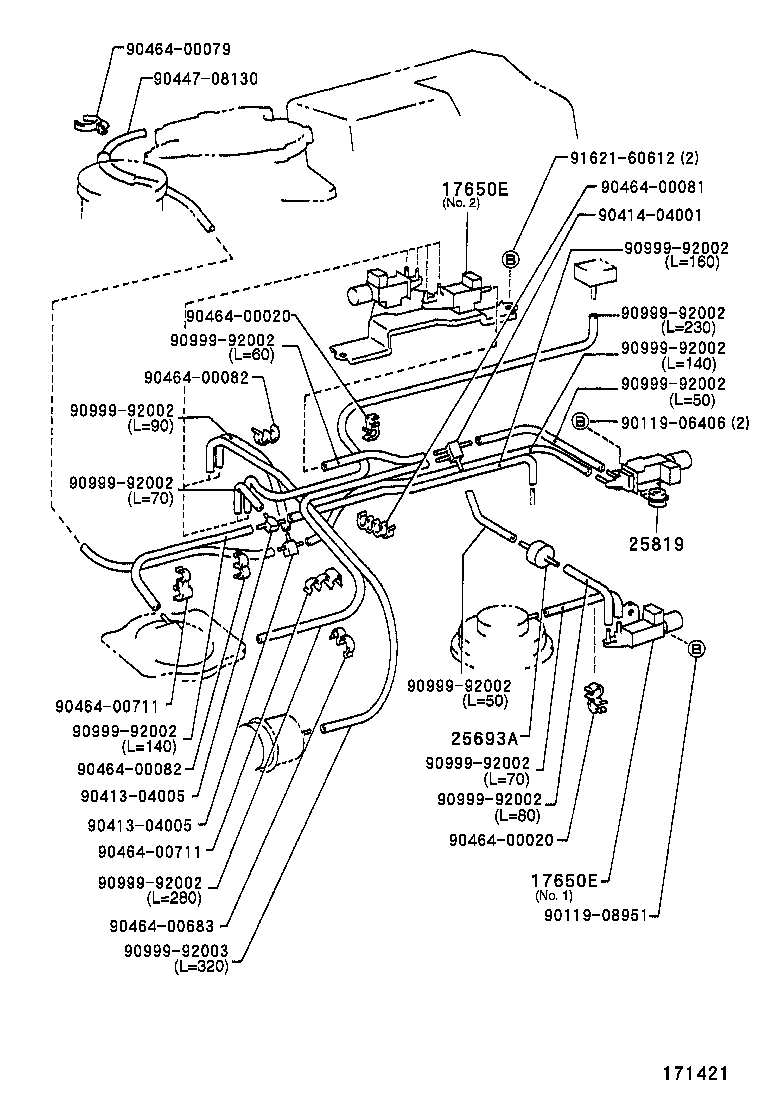

Vacuum Piping
16 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 17341D | Hose, NO.1(FOR IDLE-UP) |
| 17341P | Hose, Air |
| 17342B | Hose, NO.2(FOR IDLE-UP) |
| 17343B | Hose, NO.3(FOR IDLE-UP) |
| 17361G | Tube, Air(FOR IDLE-UP) |
| 17630 | Valve Assy, Air Control |
| 17650 | Valve Assy, Vacuum Switching |
| 17650E | Valve, Vacuum Switching |
| 17650G | Valve, Duty Vacuum Switching |
| 23265 | Filter, Gas, NO.1 |
| 23286A | Valve, Check, NO.2 |
| 25693A | Damper, Egr Vacuum Modulator |
| 25706 | Pipe Sub-assy, Vacuum Transmitting, NO.1 |
| 25819 | Valve Assy, Vacuum Regulating |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25861 | Bracket, Vacuum Switching Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
