Toyota Camry/Vista

1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

19 part groups · 4 illustrations

Illustrations

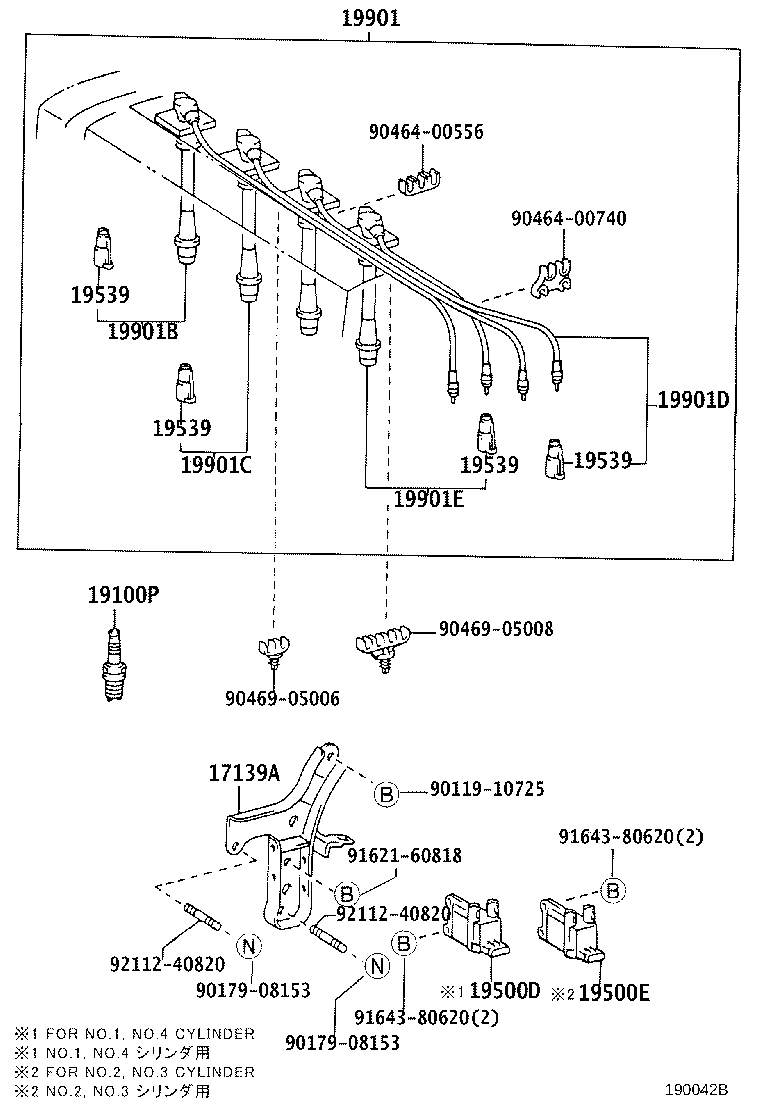

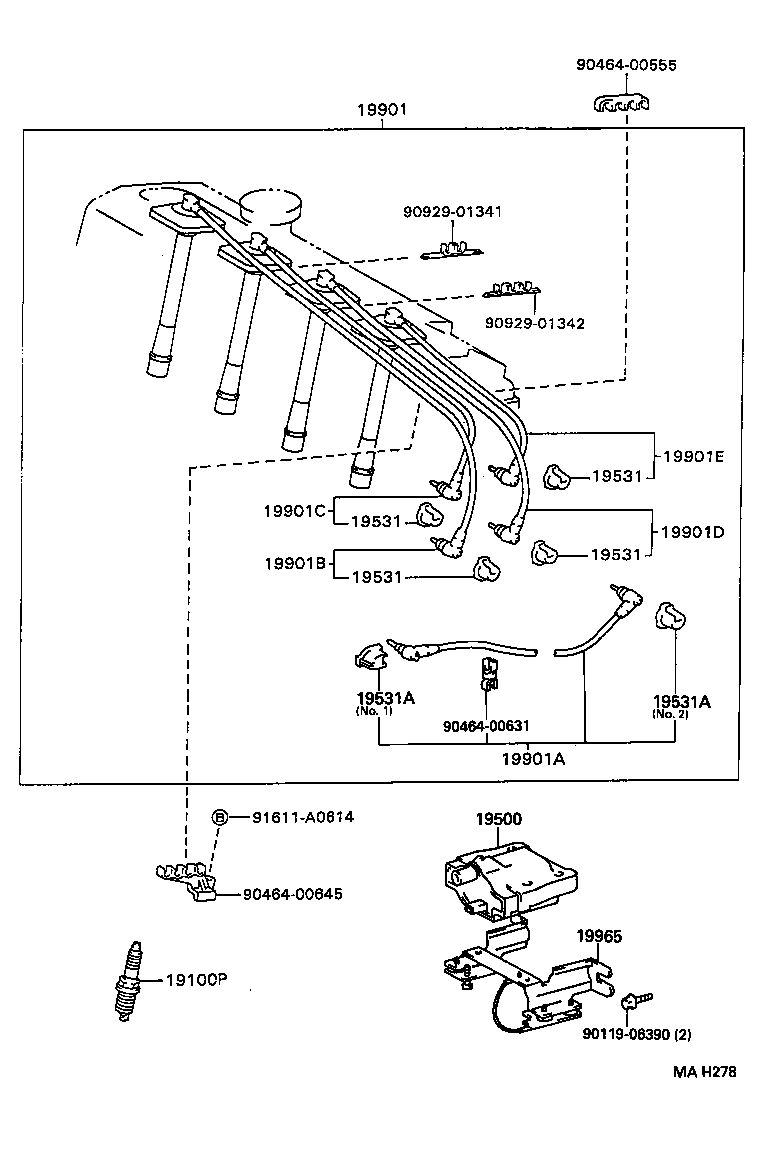

Figure MEC974 MEC974 1994-06 → — Figure MAH278 MAH278 1994-06 → 1996-05 Figure MAG858 MAG858 1994-06 → 1996-05 Figure 190042B 190042B 1996-05 → —

Part groups

PNCDescription
17139A Stay, Manifold, NO.1
19100P Plug, Spark
19500 Coil Assy, Ignition
19500D Coil, Ignition, NO.1
19500E Coil, Ignition, NO.2
19531 Holder, Resistive Cord, NO.1
19531A Holder, Resistive Code, NO.3
19532 Holder, Resistive Code, NO.2
19539 Holder, Resistive Code, NO.4
19850 Plug Assy, Glow
19850B Grommet, Screw(FOR GLOW PLUG)
19871 Connector, Glow Plug NO.1
19901 Cord Set, Coil & Spark, W/Resistive
19901A Cord, Coil Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19965 Band, Ignition Coil, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
