Toyota Camry/Vista

1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Body

105 part groups · 2 illustrations

Illustrations

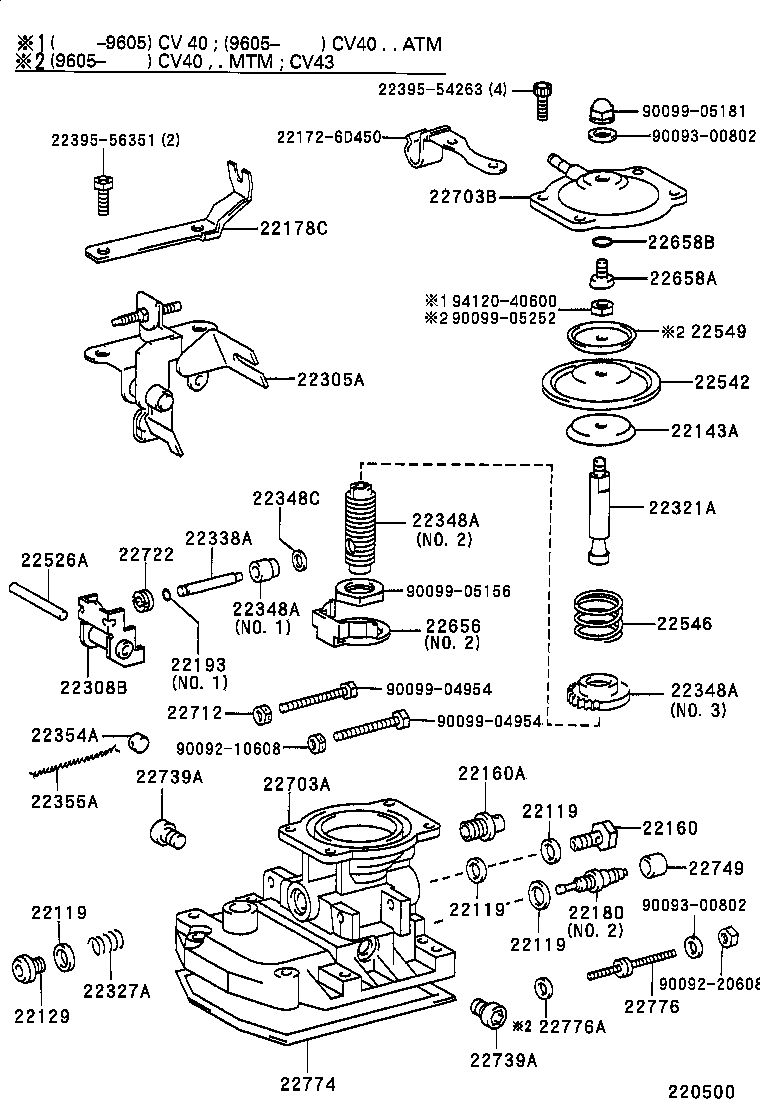

Figure 220499 220499 1994-06 → — Figure 220500 220500 1994-06 → —

Part groups

PNCDescription
22101 Housing Sub-assy, Injection Pump
22101B Ring, O(FOR INJECTION PUMP HOUSING)
22104 Valve Sub-assy, Injection Pump Delivery
22108A Ring Sub-assy, Roller
22119 Washer, Air Bleeder Nipple
22128A Bolt, Distributive Head
22129 Plug, Screw
22130 Camplate Sub-assy, Face
22131 Holder, Delivery Valve
22140 Head Sub-assy, Distributive Pump
22143 Seat, Spring Upper
22143A Seat, Spring Upper, NO.2
22144 Spring, Pump Plunger
22145 Seat, Spring, Lower
22146D Key(FOR DRIVE GEAR)
22146E Seal(FOR DRIVE SHAFT)
22147B Ring, Governor Sleeve
22148 Spring, Delivery Valve
22149 Gasket, Delivery Valve
22160 Screw Sub-assy, Overflow
22160A Screw Sub-assy, Over Flow, NO.2
22161A Washer, Drive Shaft
22162 Plate, Plunger Upper
22163 Plate, Plunger Lower
22169 Joint, Rubber
22170 Shaft Sub-assy, Drive
22170A Key(FOR DRIVE SHAFT)
22176 Plug, Distributive Head
22176A Ring, O(FOR DISTRIBUTIVE HEAD PLUG)
22178B Bracket(FOR INJECTION PUMP ASSY)
22178C Bracket(FOR THROTTLE CABLE)
22179 Shim, Plunger Adjusting
22180 Valve Sub-assy, Regulator
22182 Plate, Tappet Adjusting Shim
22192 Guide Sub-assy, Plunger Spring
22193 Ring, O(FOR LEVER CONNECTING PIN)
22193F Ring, O(FOR FUEL INJECTION PUMP FILTER)
22305A Idle-up Sub-assy
22308B Lever Sub-assy, Control
22314A Spring, Lever Support
22316A Sleeve, Governor
22316B Bearing, Ball(FOR GOVERNOR SLEEVE)
22321A Rod, Push
22322A Spring, Return
22322B Spring, Return(INNER)
22327A Spring(FOR BELLOWS)
22338A Pin, Lever Connecting
22341C Gear, Governor Drive
22348A Bushing, Guide
22348C Washer(FOR GUIDE BUSHING)
22350A Governor Assy, Torque Control
22354A Seal, Rod
22355A Wire, Governor Housing Seal
22378A Washer, Governor Thrust
22384D Shaft, Governor
22384E Ring, O(FOR GOVERNOR MAIN SHAFT)
22390A Solenoid Assy, Fuel Cut
22505 Pump Sub-assy, Fuel Feed
22505A Screw(FOR FUEL FEED PUMP)
22511A Cover, Feed Pump
22526A Pin, Lever Support
22542 Diaphragm(FOR BOOST COMPENSATOR)
22545 Nipple, Swivel(FOR INJECTION PUMP INLET)
22546 Spring, Boost Compensator
22549 Washer, Thrust(FOR BOOST COMPENSATOR DIAPHRAGM)
22550 Piston Assy, Timer
22601 Bracket Sub-assy, Idle UP
22602 Filter Sub-assy, Fuel Injection Pump
22602A Filter Sub-assy, Fuel Injection Pump, NO.2
22611 Nut, Timer Round
22612B Cover, Timer
22612C Cover, Timer
22612D Ring, O(FOR TIMER COVER)
22615A Spring, Timer Outer
22632A Coupling, Injection Pump
22655A Pin, Timer Slide
22656 Clip, Timer
22657 Clip, Timer
22658 Stopper, Timer
22658A Stopper, Timer Slide
22658B Ring, O(FOR TIMER SLIDE STOPPER)
22659 Spring, Coupling
22689 Washer(FOR SWIVEL NIPPLE)
22701 Lever Sub-assy, Adjusting
22703A Cover Sub-assy, Governor
22703B Cover, Governor
22712 Nut, Rock
22713 Washer, Governor Gear Adjusting
22722 Nut, Governor Shaft Rock
22739 Bolt, Governor Link Support
22739A Bolt, Governor Link Support NO.2
22740 Shaft Sub-assy, Governor Adjusting
22740A Ring, O(FOR GOVERNOR ADJUSTING SHAFT)
22741 Holder Sub-assy, Flyweight
22745 Flyweight, Distributive Pump
22749 Collar, Smoke Set Adjusting
22751 Wire Sub-assy, Fuel Cut Solenoid
22753A Washer, Flyweight, NO.1
22753B Washer, Flyweight, NO.2
22774 Gasket, Governor Cover
22776 Screw, Smoke Set Adjusting
22776A Ring, O(FOR SMOKE SET SCREW)
22787 Plug, Governor Sleeve
22790 Cover Sub-assy, Timer
22790A Ring, O(FOR TIMER COVER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
